Dash And Glovebox - Z17vd_99Ab/Ak/Am/Aw/Lw/Az/Ap (49Rgrdash151000) replacement parts for 2017 Polaris RZR XP 1000 (R12)

OEM Parts Polaris 2017 Polaris RZR XP 1000 (R12) Dash And Glovebox - Z17vd_99Ab/Ak/Am/Aw/Lw/Az/Ap (49Rgrdash151000)

DASH AND GLOVEBOX - Z17VD_99AB/AK/AM/AW/LW/AZ/AP (49RGRDASH151000) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, UPPER, IP, BLACK Part #: 2634956-070 Required per assembly: 1 Note: INCL. QTY 7 OF REF. 3 Currently Not Available
1	ASM-UPPER, IP, BLK Part #: 2637083-070 Required per assembly: 1 Note: INCL. QTY 7 OF REF. 3 Currently Not Available
2	ASM-LWR, IP, WARNDECAL, BLK Part #: 2636416-070 Required per assembly: 1 Note: INCL. WARNING DECALS Currently Not Available
2	ASM-LWR, IP, WARNDECAL, BLK Part #: 2635645-070 Required per assembly: 1 Note: INCL. WARNING DECALS Currently Not Available
3	CLIP, DASH, TRIM, METAL Part #: 7519806 Currently Not Available

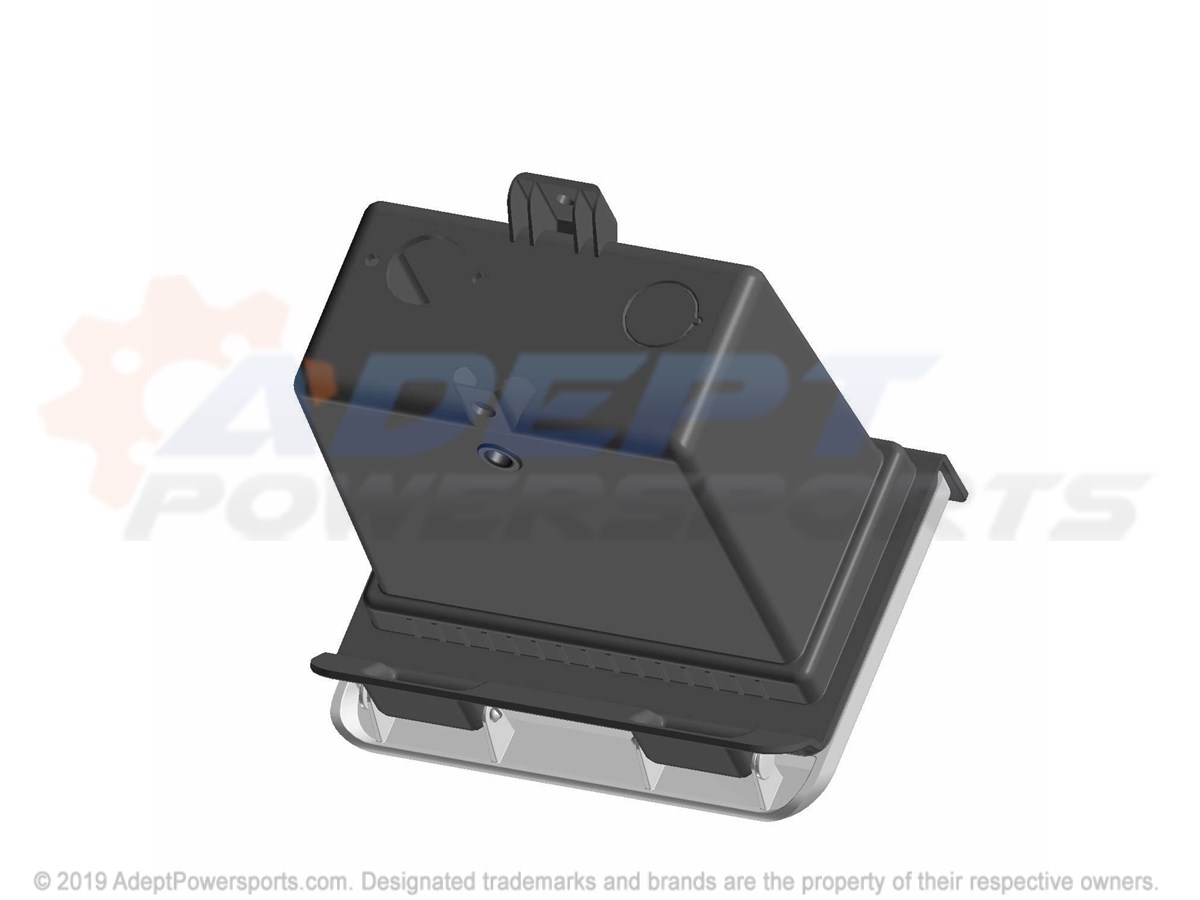

4	ASM-GLOVE BOX Part #: 2635460 Required per assembly: 1 Note: INCL. 5-8 ~~$116.62~~ $87.09 - + Add to cart
5	ASM-GLOVE BOX Part #: 2635460 Required per assembly: 1 ~~$116.62~~ $87.09 - + Add to cart
6	BRKT-GLOVEBOX, LATCH Part #: 5259660 Required per assembly: 1 Currently Not Available
7	SCREW Part #: 7512026 Required per assembly: 5 Note: Screw Currently Not Available
8	SCR-WSHRPNHD, 10-16, HILO Part #: 7518641 Required per assembly: 2 ~~$6.99~~ $4.03 - + Add to cart
9	DOOR-GLOVEBOX, TPO, BLK Part #: 5451897-070 Required per assembly: 1 ~~$49.99~~ $25.88 - + Add to cart
10	SEAL-GLOVEBOX Part #: 5415208 Required per assembly: 1 Currently Not Available
11	SCR-TFHFL-M6X1.0X25 ZOD Part #: 7519342 Required per assembly: 2 ~~$4.04~~ $2.91 - + Add to cart
12	ASSEMBLY, DOUBLE, DIN Part #: 2635161 Required per assembly: 1 Note: INCL. 13-21 Currently Not Available
12	PANEL-DOUBLE, DIN, BLK Part #: 5451290-070 Required per assembly: 1 Note: A2 Currently Not Available
12	ASM-DIN, BOX, HC Part #: 2635640 Required per assembly: 1 Note: INCL. 24-28 Currently Not Available
12	ASM-DOUBLE, DIN, HC Part #: 2636158 Required per assembly: 1 Note: INCL. 13,14,16-21 Currently Not Available
13	PIN, HINGE Part #: 5451236 Required per assembly: 1 Note: USED W/2635161&2366158 Currently Not Available
14	PLUG Part #: 5412981 Required per assembly: 1 Note: USED W/2635161&2366158 Currently Not Available
15	GROMMET, ELEC, LED Part #: 5414942 Required per assembly: 1 Note: USED W/2635161 Currently Not Available
16	PIN-HINGE GLOVEBOX Part #: 5439091 Required per assembly: 4 Note: USED W/2635161&2366158 Currently Not Available
17	PANEL, DOUBLE, DIN, BLACK Part #: 5439789-070 Required per assembly: 1 Note: USED W/2635161 Currently Not Available
17	PANEL-DBL, DIN, ASM, WNCH, MNT, BLK Part #: 5452951-070 Required per assembly: 1 Note: USED W/2636158 Currently Not Available
18	LATCH, LID, DIN Part #: 5450654 Required per assembly: 1 Note: USED W/2635161&2366158 Currently Not Available
19	SEAL, DIN, OUTER Part #: 5522021 Required per assembly: 1 Note: USED W/2635161&2366158 Currently Not Available
20	SEAL, DIN, INNER Part #: 5522022 Required per assembly: 1 Note: USED W/2635161&2366158 Currently Not Available
21	FOAM, DOUBLE, DIN Part #: 5814055 Required per assembly: 1 Note: USED W/2635161&2366158 Currently Not Available
22	SCREW Part #: 7519650 Required per assembly: 1 Currently Not Available
23	NUT, U-TYPE Part #: 7547674 Required per assembly: 1 ~~$2.99~~ $1.73 - + Add to cart
24	SOCKET-WINCH, REMOTE, HC Part #: 4015090 Required per assembly: 1 Note: AZ Currently Not Available
25	SCREW Part #: 7516607 Required per assembly: 2 Note: AZ Currently Not Available
26	NUT, NYLOK Part #: 7546601 Required per assembly: 2 Note: AZ Sold in multiples of 10 only Currently Not Available
27	WASHER, FLAT Part #: 7558201 Required per assembly: 2 Note: AZ Currently Not Available
28	PANEL-DOUBLE, DIN, WINCH, MNT, BLK Part #: 5451824-070 Required per assembly: 1 Note: USED W/2635640 Currently Not Available
29	LATCH Part #: 7081425 Required per assembly: 1 Note: Latch Currently Not Available
