Front Shock Mounting - Z17vd_99Ab/Ak/Am/Aw/Lw/Az/Ap (701200) replacement parts for 2017 Polaris RZR XP 1000 (R12)

OEM Parts Polaris 2017 Polaris RZR XP 1000 (R12) Front Shock Mounting - Z17vd_99Ab/Ak/Am/Aw/Lw/Az/Ap (701200)

FRONT SHOCK MOUNTING - Z17VD_99AB/AK/AM/AW/LW/AZ/AP (701200) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BUSHING-REDUCER .500X.398 ZYW Part #: 5137876 Required per assembly: 8 ~~$7.99~~ $4.60 - + Add to cart
1	BUSHING-REDUCER .500X.398 ZYW Part #: 5137876 Required per assembly: 8 ~~$7.99~~ $4.60 - + Add to cart
2	O-RING Part #: 5412290 Required per assembly: 8 Currently Not Available
2	O-RING Part #: 5412290 Required per assembly: 8 Currently Not Available
3	SPACER, SPRING Part #: 5450644 Required per assembly: 2 Currently Not Available
4	RETAINER-SPRING, CAST Part #: 5634606 Required per assembly: 2 Currently Not Available

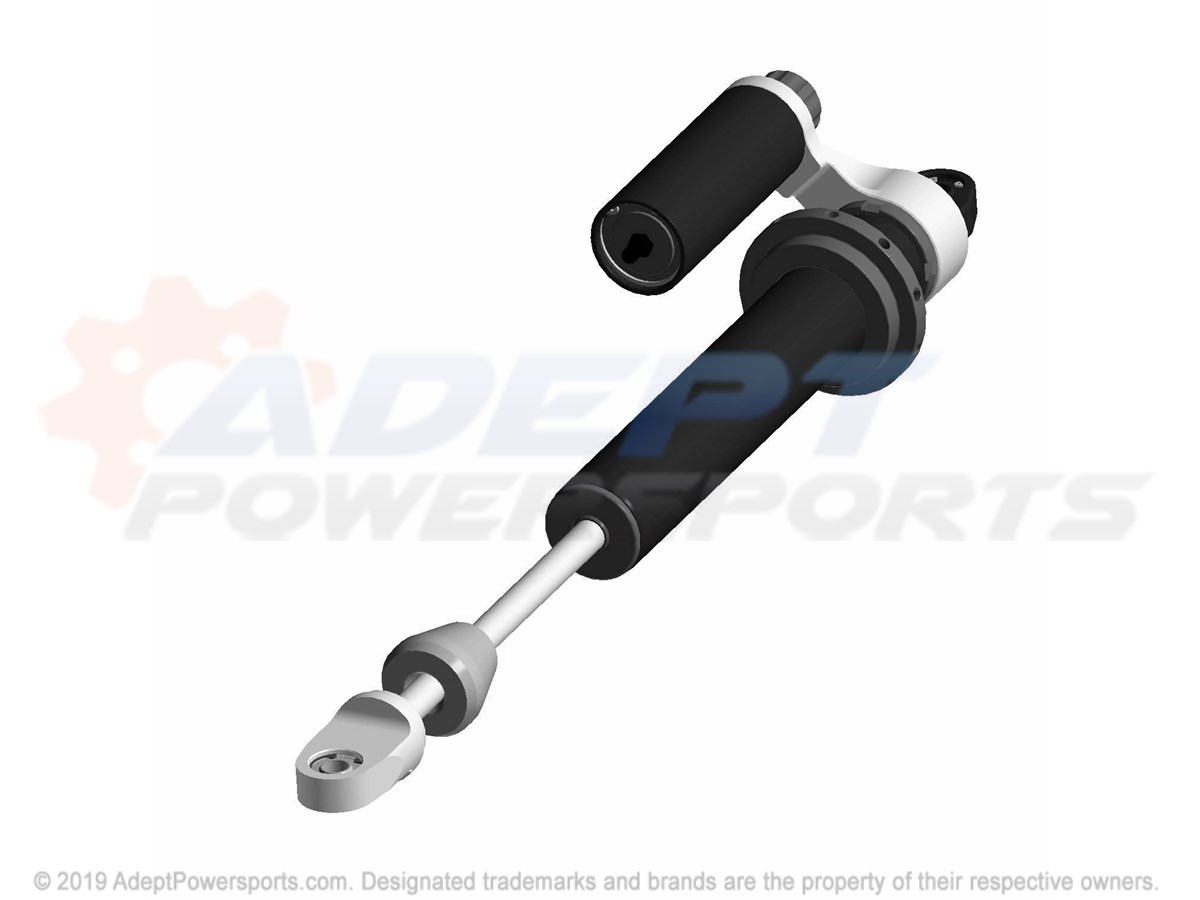

5	SHOCK-FRONT, RZRXP, PIGGYBK, LH Part #: 7044553 Required per assembly: 1 Note: AM Currently Not Available
5	SHOCK-FRONT, RZRXP, PIGGYBK, RH Part #: 7044554 Required per assembly: 1 Note: AM Currently Not Available

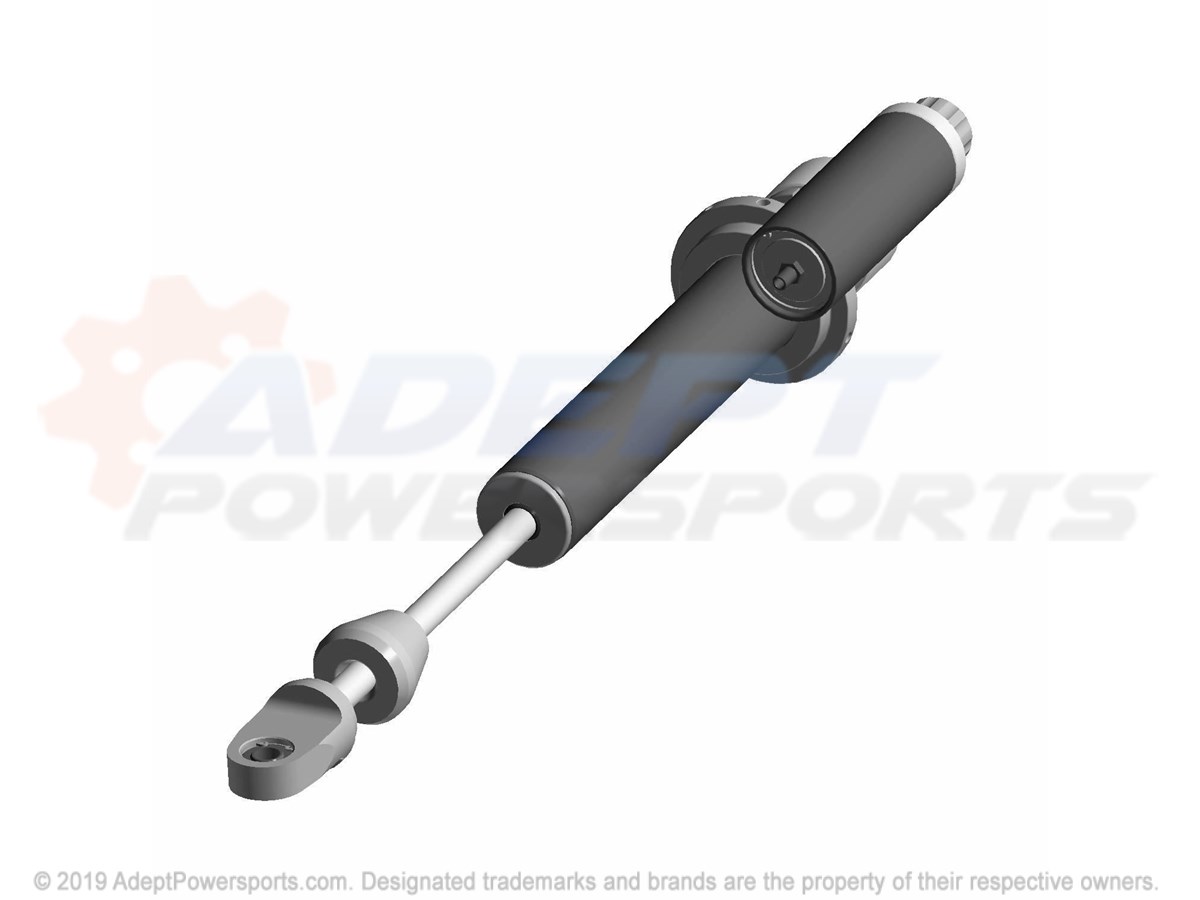

5	SHOCK-FRONT, RZRXP, LH Part #: 7044608 Required per assembly: 1 Note: AZ Currently Not Available
5	SHOCK-FRONT, RZRXP, RH Part #: 7044609 Required per assembly: 1 Note: AZ Currently Not Available
5	SHOCK-FRT, RZRXP, HC, PIGGYBK, LH Part #: 7044637 Required per assembly: 1 Note: AB Currently Not Available
5	SHOCK-FRT, RZRXP, HC, PIGGYBK, RH Part #: 7044638 Required per assembly: 1 Note: AB Currently Not Available

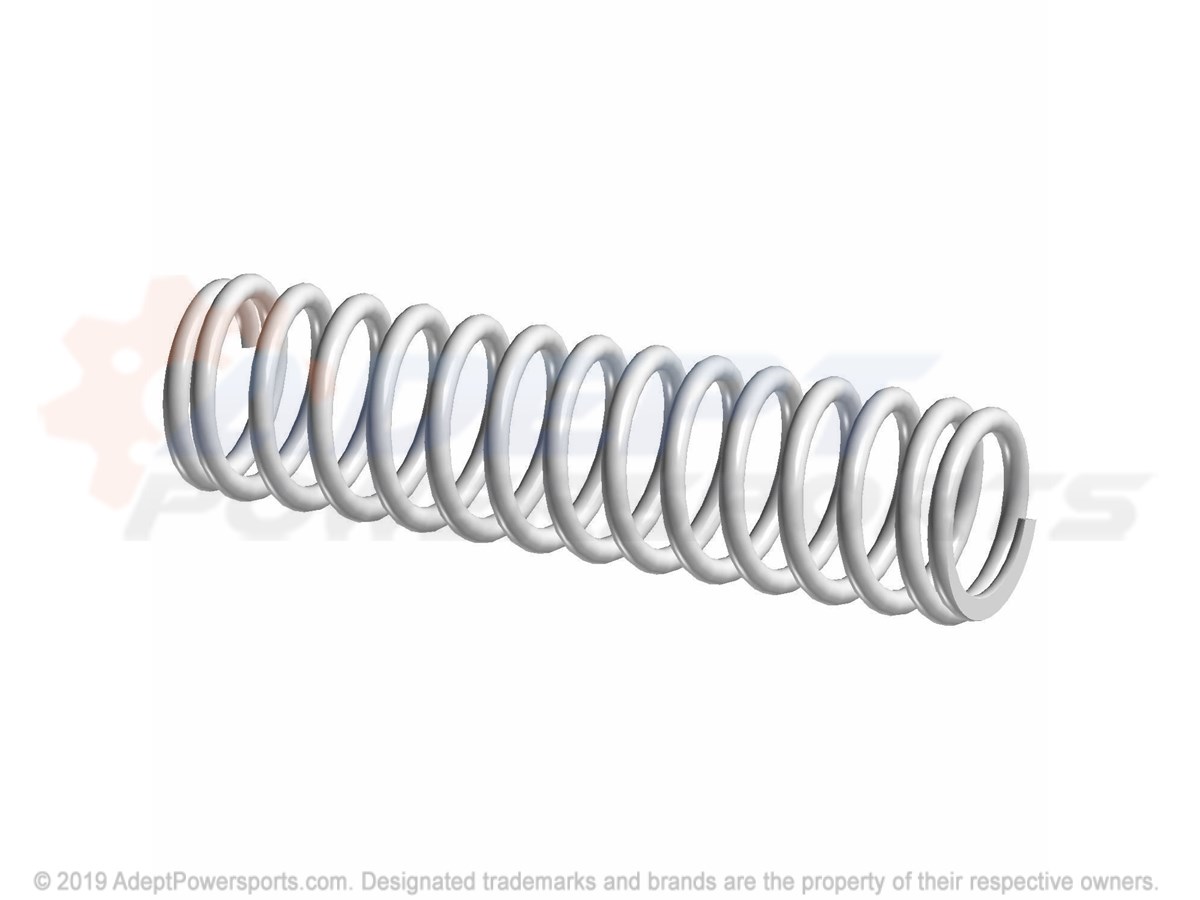

6	SPR-265#, 13.75FL, 3.04-3.04ID, W Part #: 7044370-133 Required per assembly: 2 Note: AB Currently Not Available
7	SPG-350#, 3.38FL, 3.04-3.04ID, WH Part #: 7044286-133 Required per assembly: 2 Note: AB Currently Not Available
8	SCR-HXFL-M10X1.25X55 10.9 ZOD Part #: 7519285 Required per assembly: 4 Currently Not Available
9	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
9	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
10	WASHER, FLAT Part #: 7556153 Required per assembly: 4 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
10	WASHER, FLAT Part #: 7556153 Required per assembly: 4 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
11	S-150-240#, 16.10FL, 3.04ID, WHT Part #: 7044640-133 Required per assembly: 2 Note: AM Currently Not Available
11	S-150-240#, 16.10FL, 3.04ID, SLV Part #: 7044640-385 Required per assembly: 2 Note: AZ Currently Not Available
11	S-150-240#, 16.10FL, 3.04ID, LMS Part #: 7044640-630 Required per assembly: 2 Note: AK Currently Not Available
