Brake Lines And Master Cylinder - A18dce87bb (100836) replacement parts for 2018 Polaris 900 ACE EPS XC (R04)

OEM Parts Polaris 2018 Polaris 900 ACE EPS XC (R04) Brake Lines And Master Cylinder - A18dce87bb (100836)

BRAKE LINES AND MASTER CYLINDER - A18DCE87BB (100836) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
1	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
1	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
1	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
2	BOLT, BANJO Part #: 1910958 Required per assembly: 1 Currently Not Available
3	SWITCH Part #: 4014225 Required per assembly: 1 Currently Not Available

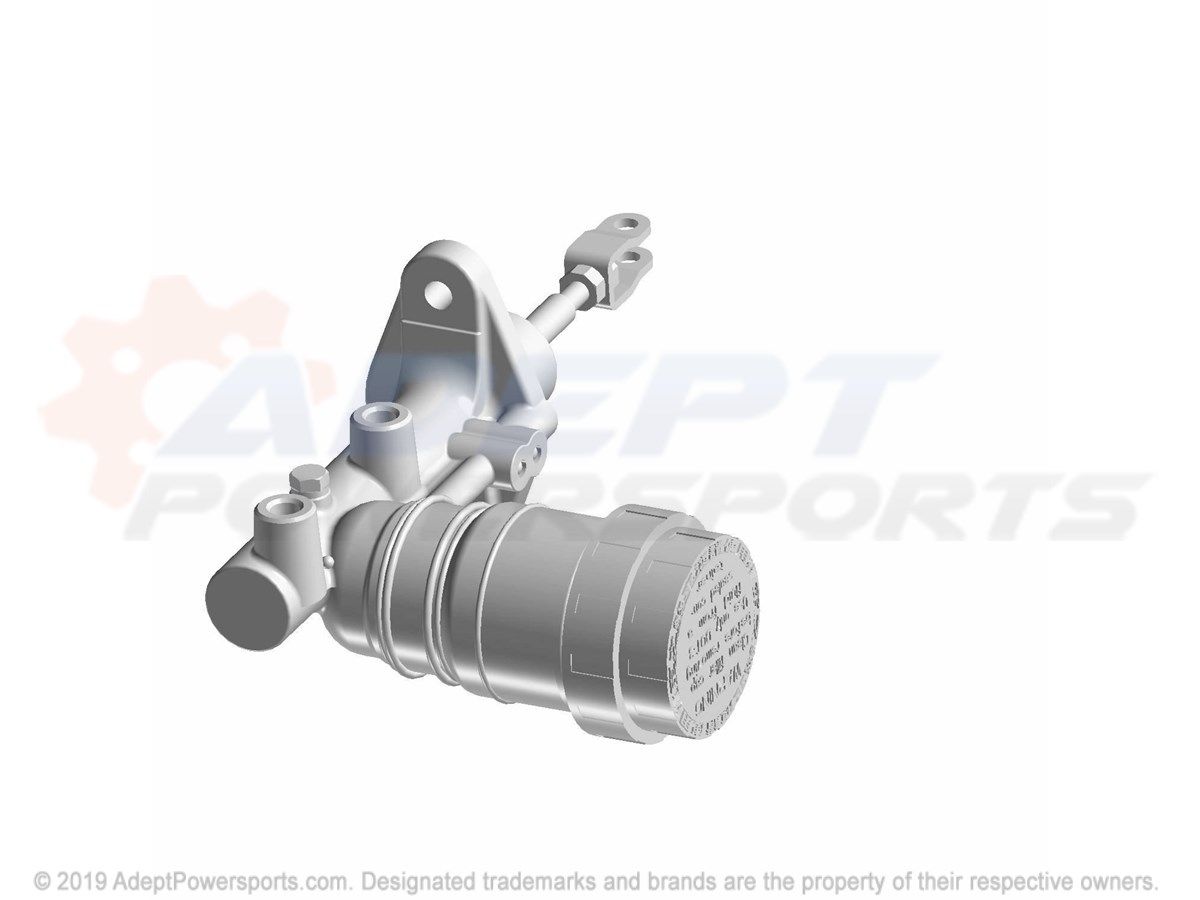

4	ASM-M/CYL, TANDEM, 11/16, FLG Part #: 1912714 Required per assembly: 1 Currently Not Available
5	LINE-BRK, RL, 45, 20F, 70B, 180, JF Part #: 1912717 Required per assembly: 1 Currently Not Available
6	LINE-BRK, RR, 52, 90F, 70B, 135, JF Part #: 1912718 Required per assembly: 1 Currently Not Available
7	LINE-BRK, MCT, 64, 45B, 20F, 270, JF Part #: 1912681 Required per assembly: 1 Currently Not Available
8	LINE-BRK, FL, 40, 45B, 20B, 75, JF Part #: 1912719 Required per assembly: 1 Currently Not Available
9	LINE-BRK, FR, 30, 20B, 20B, 220, JF Part #: 1912720 Required per assembly: 1 Currently Not Available
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
11	TEE, FITTING, BRAKE Part #: 7052293 Required per assembly: 1 Note: Fitting, Tee, Brake Currently Not Available
12	STRAP, PANDUIT, DOUBLE, LOOP Part #: 7081916 Required per assembly: 4 Currently Not Available
13	CLAMP, CABLE Part #: 7080499 Required per assembly: 2 Currently Not Available
14	CLAMP, HOSE Part #: 7080683 Required per assembly: 2 Currently Not Available
15	CLIP-RETAINING, DUAL, .250", LINE Part #: 7670126 Required per assembly: 1 Currently Not Available
16	SCREW Part #: 7512025 Required per assembly: 2 Currently Not Available
17	SCREW Part #: 7512084 Required per assembly: 2 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
18	RIVET Part #: 7621323 Required per assembly: 4 ~~$1.99~~ $1.35 - + Add to cart
19	CLIP, SILENCER, Part #: 7670102 Required per assembly: 1 Note: Clip Currently Not Available
20	RETAINER-BRAKE LINE 1" Part #: 5439192 Required per assembly: 2 Currently Not Available
21	SCREW, 10-24X5/8 Part #: 7517756 Required per assembly: 1 ~~$2.99~~ $1.73 - + Add to cart
22	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 1 Note: Cable Tie Currently Not Available
