Fuel Tank - A18dce87bb (101372) replacement parts for 2018 Polaris 900 ACE EPS XC (R04)

OEM Parts Polaris 2018 Polaris 900 ACE EPS XC (R04) Fuel Tank - A18dce87bb (101372)

FUEL TANK - A18DCE87BB (101372) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-FUEL TANK Part #: 2521691 Required per assembly: 1 Note: INCL. PUMP Currently Not Available
1	K-FUEL, PUMP, ACE Part #: 2208124 Required per assembly: 1 Note: INCL. PUMP, GASKET, NUT, INSTRUCTIONS Currently Not Available
1	K-FUEL, PUMP, ACE Part #: 2208124 Required per assembly: 1 Currently Not Available

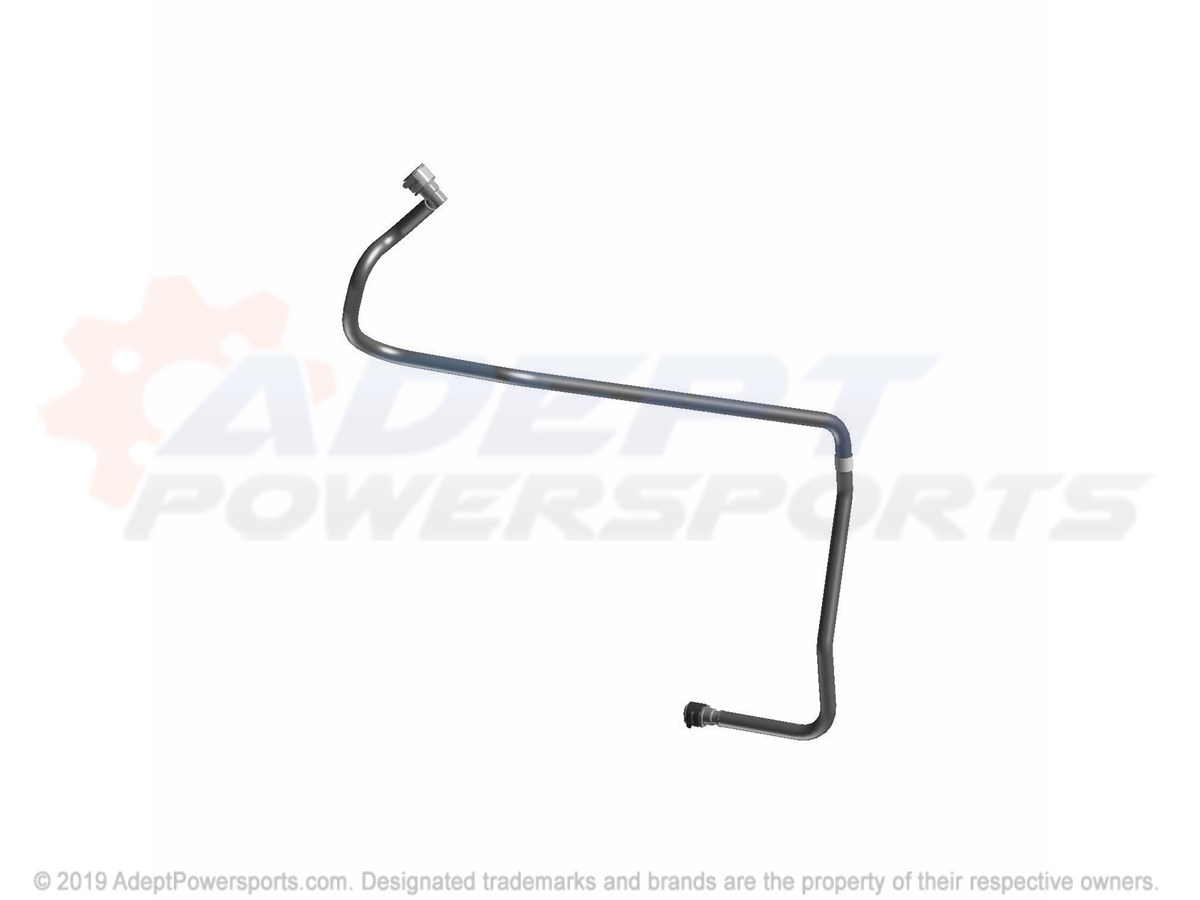

2	ASM-FUEL, LINE, RAIL, TO, TANK Part #: 2521694 Required per assembly: 1 Currently Not Available
3	CAP, GAS, TANK Part #: 5439075 Required per assembly: 1 Currently Not Available
4	CLIP, ROUTING, .472, B.D., HINGED Part #: 7670116 Required per assembly: 2 Note: Clip, Routing Currently Not Available
5	FUEL, LINE, 1/4"SAE, #30R7, 175CM Part #: 8450040-175 Required per assembly: 1 Currently Not Available
6	CLIP-ROUTING Part #: 7081496 Required per assembly: 1 Currently Not Available
7	T-CLIP T15 Part #: 7081689 Required per assembly: 1 Currently Not Available
8	STRAP-CABLE TIE W/EDGE CLIP Part #: 7082038 Required per assembly: 1 Currently Not Available
9	SCREW Part #: 7519650 Required per assembly: 2 Currently Not Available
9	SCREW Part #: 7519650 Required per assembly: 2 Currently Not Available
10	SCREW Part #: 7518552 Required per assembly: 1 Currently Not Available
11	FITTING-VENT, LINE, 90 Part #: 5453464 Required per assembly: 1 Currently Not Available
