Front Shock Mounting - Z18vba87b2/E87bk/Bu/Lk (700273) replacement parts for 2018 Polaris RZR 900 60 Inch All Options (R02)

OEM Parts Polaris 2018 Polaris RZR 900 60 Inch All Options (R02) Front Shock Mounting - Z18vba87b2/E87bk/Bu/Lk (700273)

FRONT SHOCK MOUNTING - Z18VBA87B2/E87BK/BU/LK (700273) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RETAINER-SPRING Part #: 1501194 Required per assembly: 2 Note: BK Currently Not Available
1	RETAINER-SPRING Part #: 1501194 Required per assembly: 2 Note: BK Currently Not Available
1	RETAINER-SPRING Part #: 1501329 Required per assembly: 2 Note: B2 Currently Not Available
1	RETAINER-SPRING Part #: 1501329 Required per assembly: 2 Note: B2 Currently Not Available
2	SHOCK-FRONT, 2, RESVR, PIGGYBK, LH Part #: 7044903 Required per assembly: 1 Note: BK Currently Not Available
3	SHOCK-FRONT, 2, RESVR, PIGGYBK, RH Part #: 7044904 Required per assembly: 1 Note: BK Currently Not Available

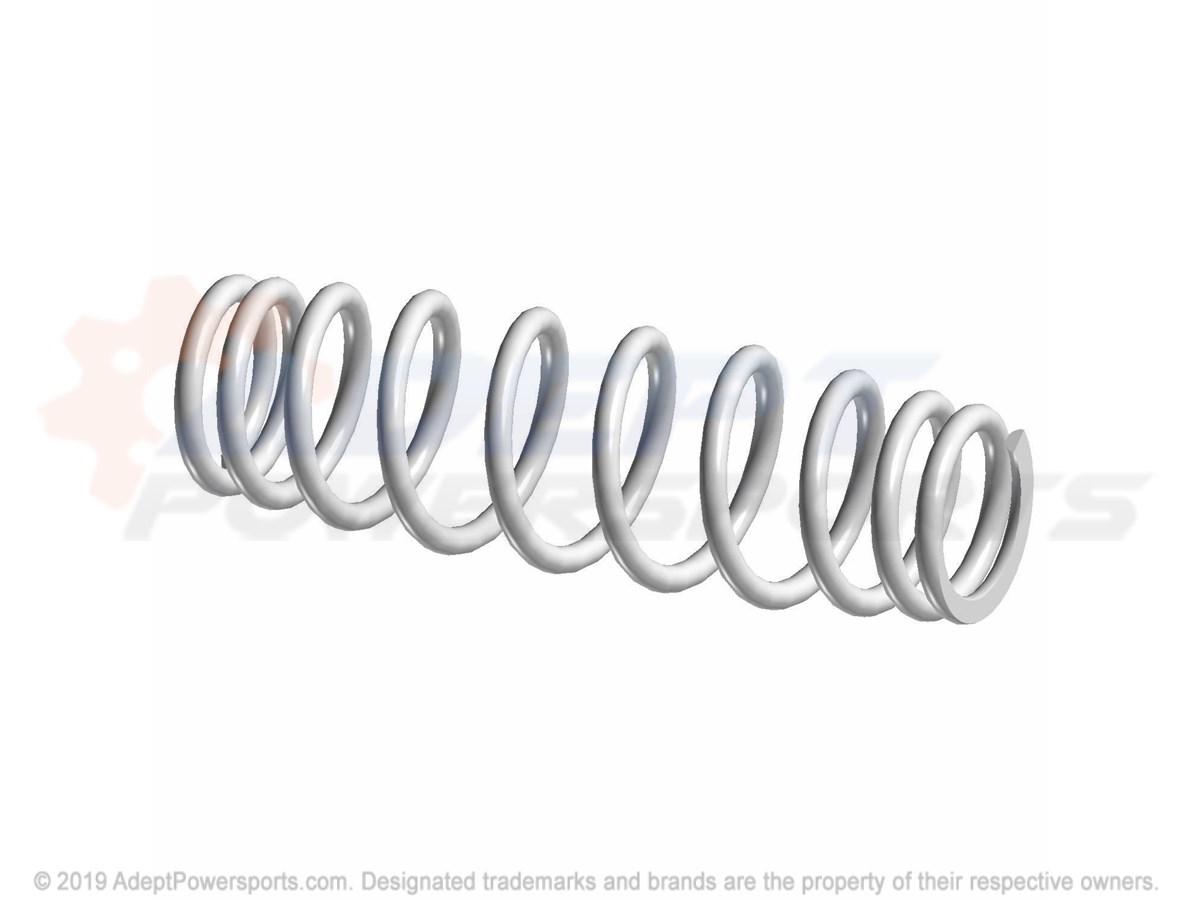

4	SPR-140#, 12FL, 2.3-2.31D, LIM, SQ Part #: 7044209-630 Required per assembly: 2 Note: BU Currently Not Available
4	SPR-140#, 12FL, 2.3-2.31D, LIM, SQ Part #: 7044209-630 Required per assembly: 2 Note: BU Currently Not Available
4	SPR-140#, 12FL, 2.3-2.31D, WHT, LT Part #: 7044209-133 Required per assembly: 2 Note: BK Currently Not Available
4	SPR-140#, 12FL, 2.3-2.31D, WHT, LT Part #: 7044209-133 Required per assembly: 2 Note: BK Currently Not Available
4	SPR-140#, 12FL, 2.3-2.3ID, BLK Part #: 7044494-458 Required per assembly: 2 Note: B2 Currently Not Available
4	SPR-140#, 12FL, 2.3-2.3ID, BLK Part #: 7044494-458 Required per assembly: 2 Note: B2 Currently Not Available
5	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
5	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
5	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
5	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
6	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
6	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
6	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
6	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
7	SHOCK-FRONT, MONO Part #: 7045410 Required per assembly: 2 Note: B2 Currently Not Available
