Rear Shock Mounting - Z18vba87b2/E87bk/Bu/Lk (701144) replacement parts for 2018 Polaris RZR 900 60 Inch All Options (R02)

OEM Parts Polaris 2018 Polaris RZR 900 60 Inch All Options (R02) Rear Shock Mounting - Z18vba87b2/E87bk/Bu/Lk (701144)

REAR SHOCK MOUNTING - Z18VBA87B2/E87BK/BU/LK (701144) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RETAINER-SPRING Part #: 1501096 Required per assembly: 2 Note: B2 Currently Not Available
2	SPACER-SPRING NYLON 2" Part #: 5438839 Required per assembly: 2 Note: B2 Currently Not Available

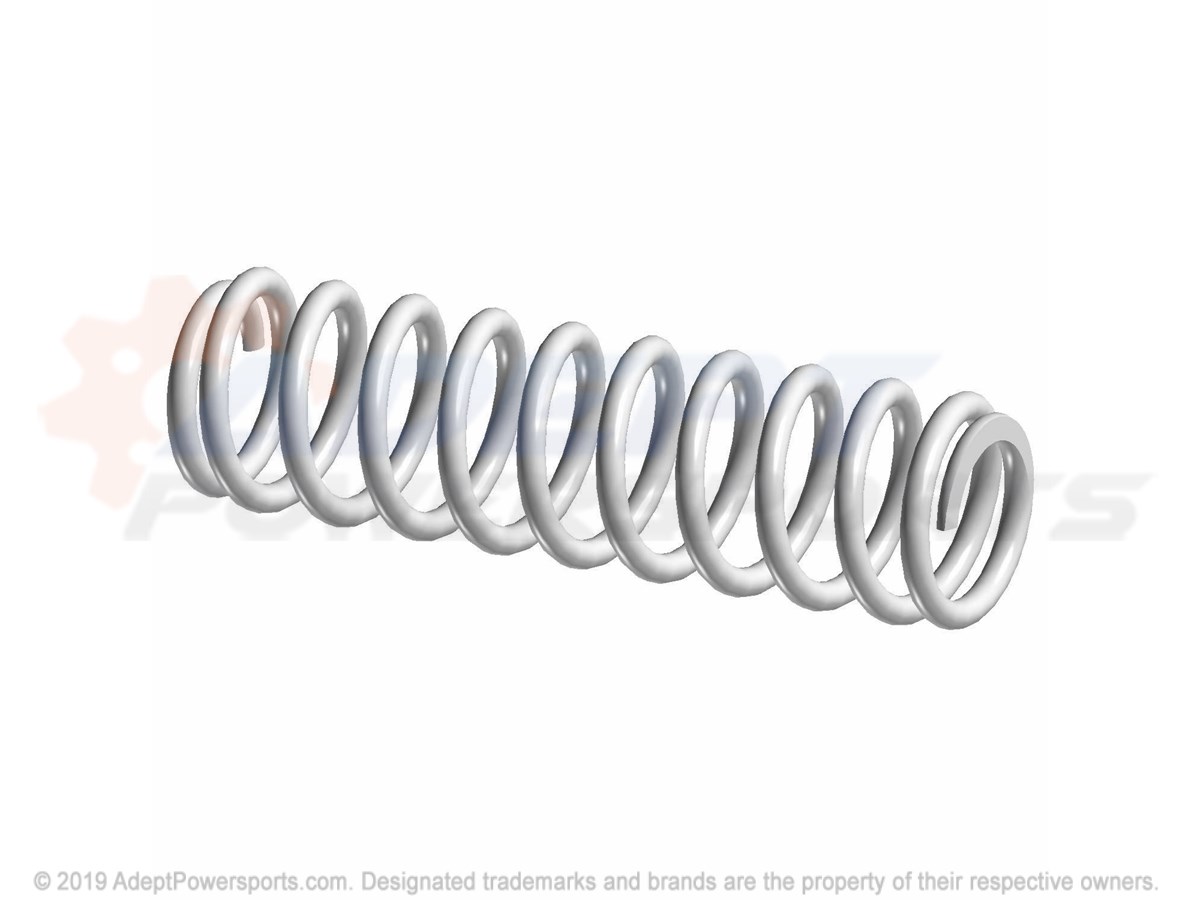

3	SPR-175#, 5.71FL, 2.3-2.31D, BLK Part #: 7044225-458 Required per assembly: 2 Note: B2 Currently Not Available
4	SHOCK-REAR, MONO Part #: 7045411 Required per assembly: 2 Note: B2 Currently Not Available
5	SPR-350#, 10.5FL, 2.3-2.31D, BLK Part #: 7044210-458 Required per assembly: 2 Note: B2 Currently Not Available
5	SPR-350#, 10.5FL, 2.3-2.31D, BLK Part #: 7044210-458 Required per assembly: 2 Note: B2 Currently Not Available
5	S-200-250#, 14.25FL, 2.30ID, L.SQ Part #: 7044651-630 Required per assembly: 2 Note: BU Currently Not Available
5	S-200-250#, 14.25FL, 2.30ID, L.SQ Part #: 7044651-630 Required per assembly: 2 Note: BU Currently Not Available
5	S-200-250#, 14.25FL, 2.30ID, WHT Part #: 7044651-133 Required per assembly: 2 Note: BK Currently Not Available
5	S-200-250#, 14.25FL, 2.30ID, WHT Part #: 7044651-133 Required per assembly: 2 Note: BK Currently Not Available
6	SHOCK-REAR, 2, RESVR, PIGGYBK, RH Part #: 7044906 Required per assembly: 1 Note: BK Currently Not Available
6	SHOCK-REAR, 2, RESVR, PIGGYBK, LH Part #: 7044905 Required per assembly: 1 Note: BK Currently Not Available
7	RETAINER-SPRING Part #: 1501194 Required per assembly: 2 Note: BK Currently Not Available
8	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
9	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
