Front Control Arms - Z18vde99ak/Aw/Bk/Bw/Lw/K99ak/Bk/M99al/R99al/Bl (701199) replacement parts for 2018 Polaris RZR XP 1000 (R01)

OEM Parts Polaris 2018 Polaris RZR XP 1000 (R01) Front Control Arms - Z18vde99ak/Aw/Bk/Bw/Lw/K99ak/Bk/M99al/R99al/Bl (701199)

FRONT CONTROL ARMS - Z18VDE99AK/AW/BK/BW/LW/K99AK/BK/M99AL/R99AL/BL (701199) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

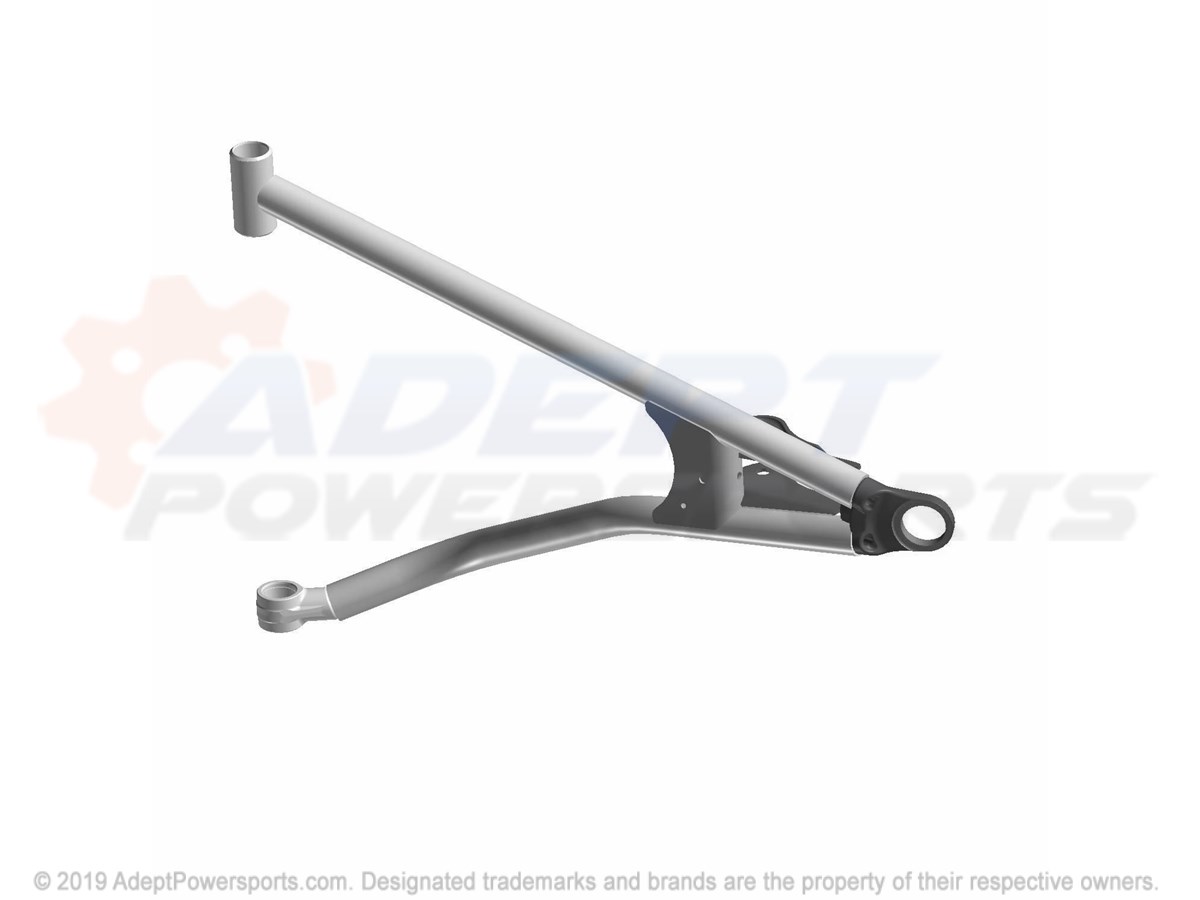

1	WELD-CTRL, ARM, UPR, FR, LH, 64, BLK Part #: 1023526-458 Required per assembly: 1 Note: M99AL Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, RED Part #: 1023530-293 Required per assembly: 1 Note: K99AK Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, BLK Part #: 1023530-458 Required per assembly: 1 Note: E99AK Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, SLV, [R99BL] Part #: 1023530-385 Required per assembly: 1 Note: R99AL Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, L/S, [E99BW][E99LW] Part #: 1023530-630 Required per assembly: 1 Note: E99AW Currently Not Available

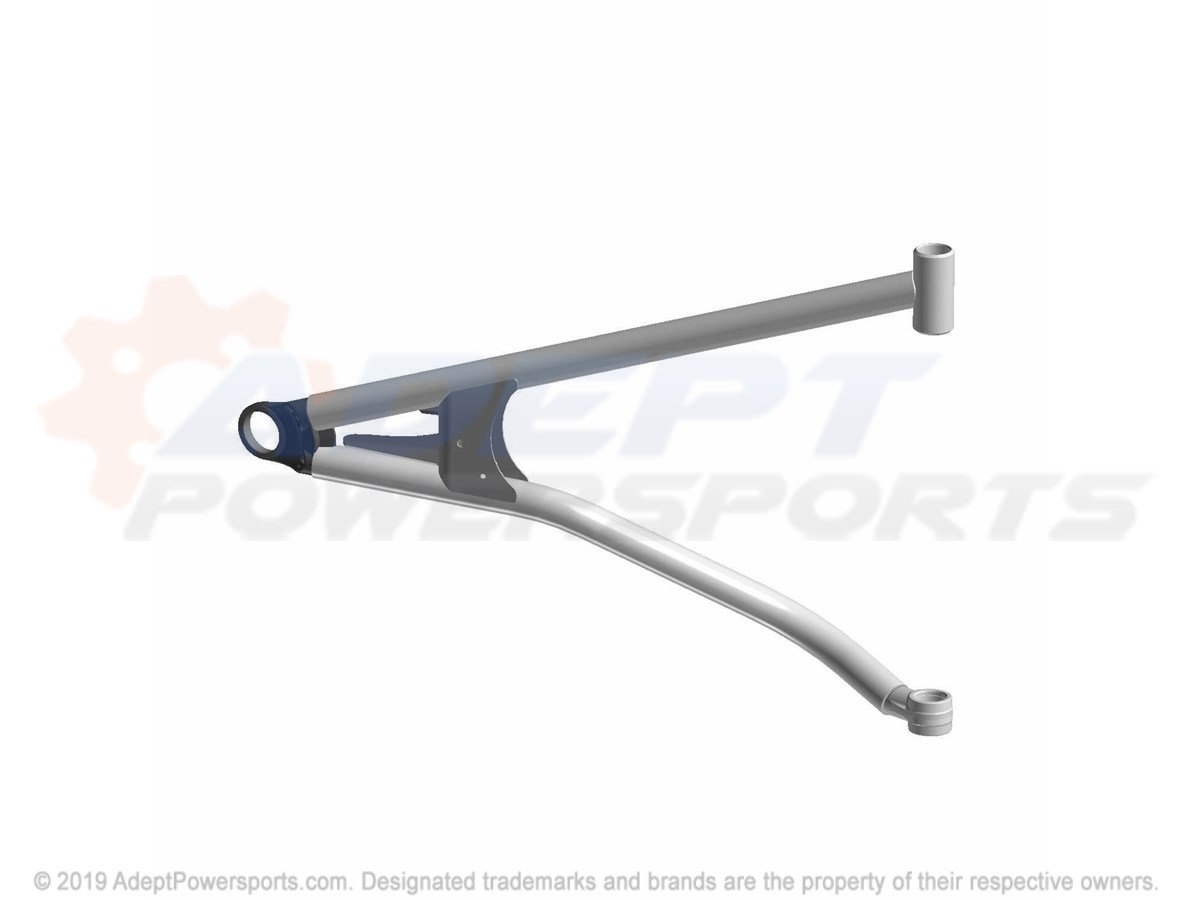

2	WELD-CTRL, ARM, UPR, FR, RH, 64, RED, [K99BK] Part #: 1023531-293 Required per assembly: 1 Note: K99AK Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, SLV, [R99BL] Part #: 1023531-385 Required per assembly: 1 Note: R99AL Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, L/S, [E99BW][E99LW] Part #: 1023531-630 Required per assembly: 1 Note: E99AW Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, BLK Part #: 1023531-458 Required per assembly: 1 Note: E99AK Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, BLK Part #: 1023527-458 Required per assembly: 1 Note: M99AL Currently Not Available

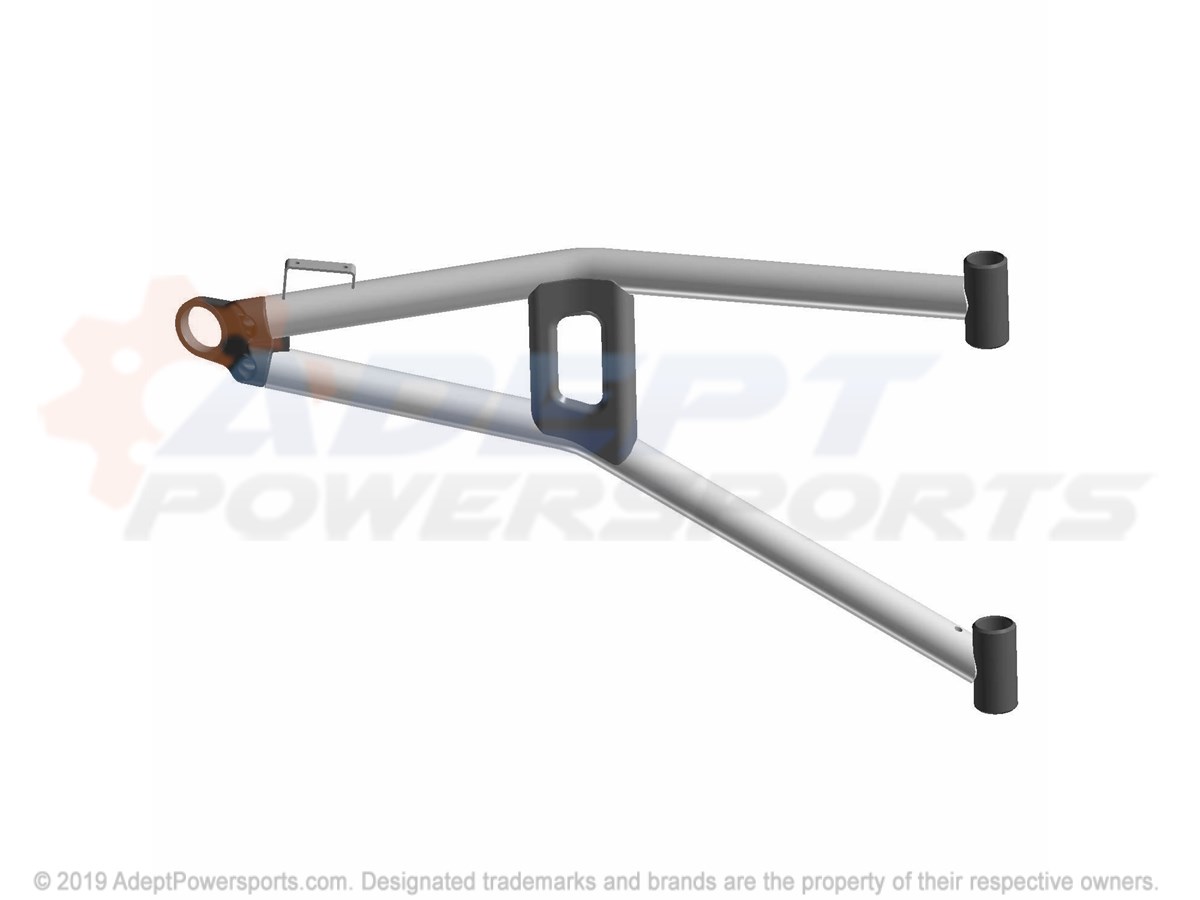

3	WELD-CTRLARM, HC, LWR, FR, LH, 64, S Part #: 1021482-385 Required per assembly: 1 Note: R99AL Currently Not Available
3	WELD-CTRL, ARM, LWR, FR, LH, 64, RED Part #: 1021480-293 Required per assembly: 1 Note: K99AK Currently Not Available
3	WELD-CTRL, ARM, LWR, FR, LH, 64, BLK Part #: 1021480-458 Required per assembly: 1 Note: E99AK Currently Not Available
3	WELD-CTRL, ARM, LWR, FR, LH, 64, L/S Part #: 1021480-630 Required per assembly: 1 Note: E99AW Currently Not Available
3	WELD-CTRLARM, HC, LWR, FR, LH, 64, B Part #: 1021482-458 Required per assembly: 1 Note: M99AL Currently Not Available

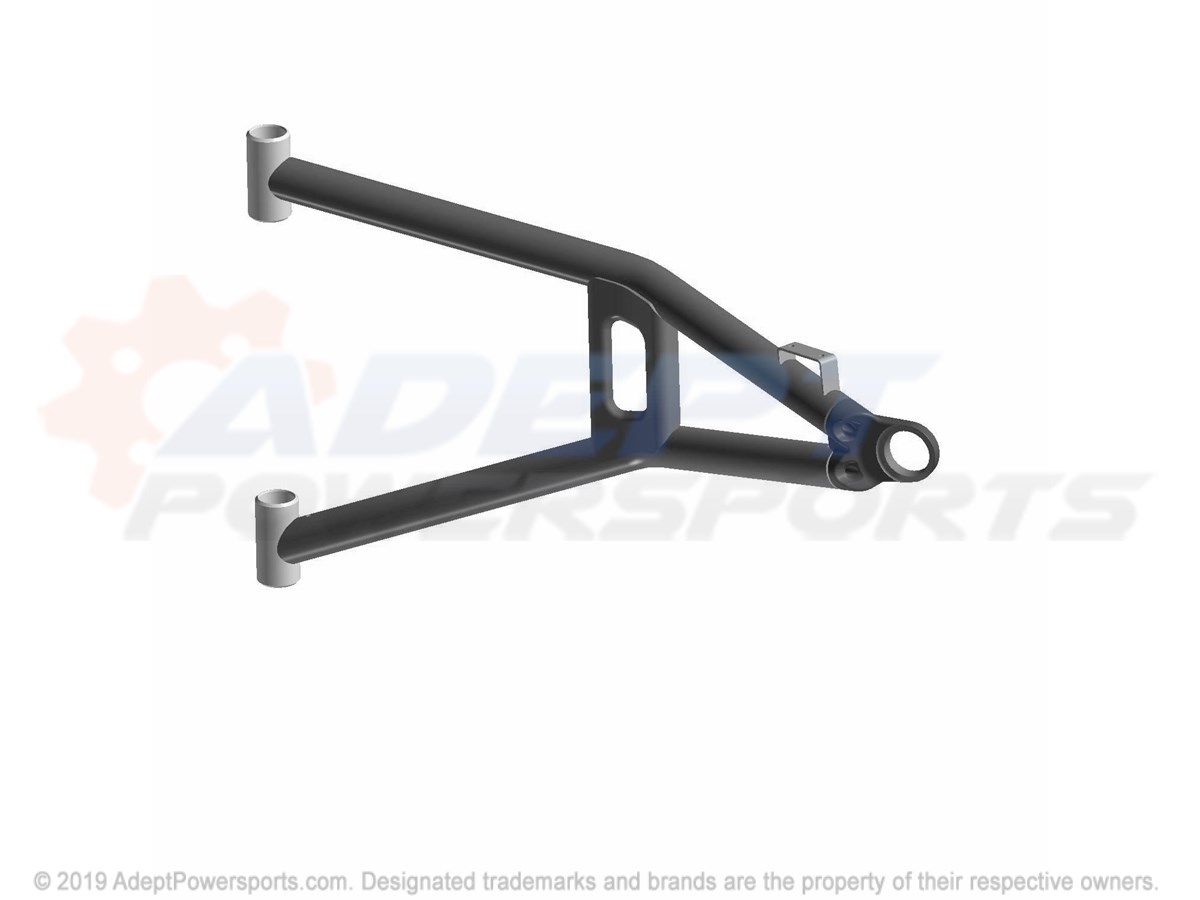

4	WELD-CTRLARM, HC, LWR, FR, RH, 64, B Part #: 1021483-458 Required per assembly: 1 Note: M99AL Currently Not Available
4	WELD-CTRL, ARM, LWR, FR, RH, 64, RED Part #: 1021481-293 Required per assembly: 1 Note: K99AK Currently Not Available
4	WELD-CTRL, ARM, LWR, FR, RH, 64, BLK Part #: 1021481-458 Required per assembly: 1 Note: E99AK Currently Not Available
4	WELD-CTRL, ARM, LWR, FR, RH, 64, L/S Part #: 1021481-630 Required per assembly: 1 Note: E99AW Currently Not Available
4	WELD-CTRLARM, HC, LWR, FR, RH, 64, S Part #: 1021483-385 Required per assembly: 1 Note: R99AL Currently Not Available
5	SHIELD-CV FRONT BLK Part #: 5438641-070 Required per assembly: 2 Currently Not Available
6	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
7	SCREW Part #: 7519043 Required per assembly: 6 Note: Bolt Currently Not Available
8	SCR-HXFL-M10X1.25X55 10.9 ZOD Part #: 7519285 Required per assembly: 2 Currently Not Available
9	NUT, FLANGE Part #: 7547333 Required per assembly: 12 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
10	WASHER, FLAT Part #: 7556153 Required per assembly: 8 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
11	BALL-JOINT, HARDENED, HI-MISALGN Part #: 7082892 Required per assembly: 4 Currently Not Available
12	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
13	RING, RETAINING Part #: 7710716 Required per assembly: 4 Currently Not Available
14	ASM-PIVOT, CAP, SEALED, M10 Part #: 1543611 Required per assembly: 12 Currently Not Available
15	ASM-PIVOT, CAP, SEALED, SLIM, M10 Part #: 1543735 Required per assembly: 4 Currently Not Available
16	SHAFT-PIVOT, SHORT, M10 Part #: 5139966 Required per assembly: 6 Currently Not Available
17	BUSHING-STANDARD, SUSP, M10 Part #: 5452233 Required per assembly: 14 Currently Not Available
18	28MM, SPIRAL, RING, STEEL Part #: 7710845 Required per assembly: 2 Currently Not Available
