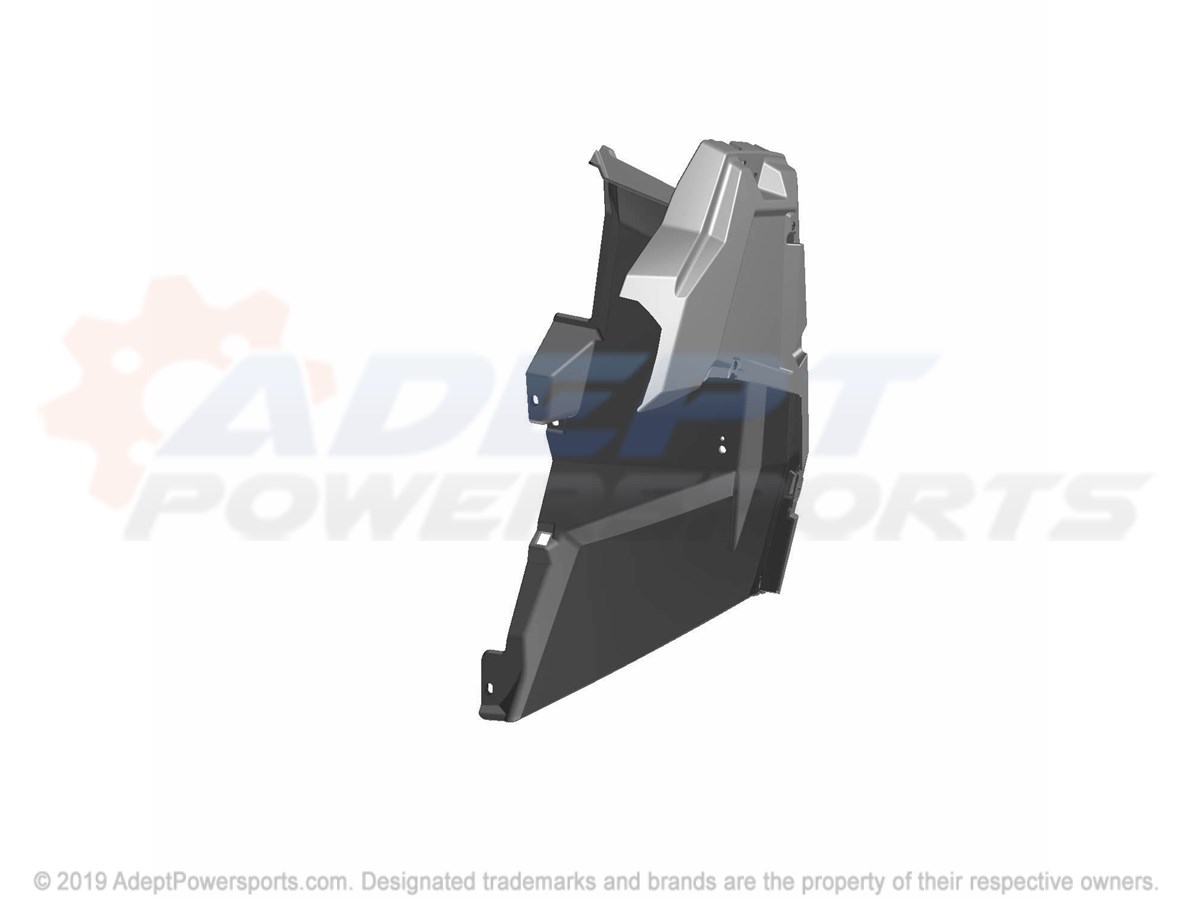

HOOD AND FRONT BODY WORK - Z18VDE99AK/AW/BK/BW/LW/K99AK/BK/M99AL/R99AL/BL (49RGRHOOD14RZR1000) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FENDER, FRONT, FLAIR, LH, BLACK Part #: 5439760-070 Required per assembly: 1 Currently Not Available
1	FENDER-FRONT, FLAIR, LH, BLK Part #: 5439772-070 Required per assembly: 1 Note: R99AL Currently Not Available
2	FENDER-FRONT, FLAIR, RH, BLK Part #: 5439773-070 Required per assembly: 1 Note: R99AL ~~$109.99~~ $87.75 - + Add to cart
2	FENDER, FRONT, FLAIR, RH, BLACK Part #: 5439761-070 Required per assembly: 1 Currently Not Available
3	FENDER, FRONT, LH, WHITE, LIGHTNING Part #: 5450717-599 Required per assembly: 1 Note: E99AW Currently Not Available
3	FENDER-FR, PNTD, LH, ST.BLK Part #: 5450717-464 Required per assembly: 1 Note: M99AL Currently Not Available
3	FENDER-FR, PNTD, LH, PEARL, BLK Part #: 5450717-666 Required per assembly: 1 Note: E99AK Currently Not Available
4	FENDER-FR, PNTD, RH, BLK, PRL Part #: 5453682-666 Required per assembly: 1 Note: K99AK Currently Not Available
4	FENDER-FR, PNTD, RH, ST.BLK Part #: 5450718-464 Required per assembly: 1 Note: M99AL Currently Not Available
4	FENDER-FR, PNTD, RH, PEARL, BLK Part #: 5450718-666 Required per assembly: 1 Note: E99AK Currently Not Available
4	FENDER, FRONT, RH, WHITE, LIGHTNING Part #: 5450718-599 Required per assembly: 1 Note: E99AW Currently Not Available
5	SCREW Part #: 7519650 Required per assembly: 8 Currently Not Available
6	SCREW Part #: 7519840 Required per assembly: 2 Currently Not Available
7	SCREW Part #: 7519841 Required per assembly: 2 Currently Not Available
8	NUT, U-TYPE Part #: 7547674 Required per assembly: 14 ~~$2.99~~ $1.73 - + Add to cart
9	GROMMET, LATCH Part #: 5413428 Required per assembly: 2 Currently Not Available
10	HOOD, CENTER, BLACK Part #: 5439785-070 Required per assembly: 1 Currently Not Available
11	LATCH, 1/4, TURN Part #: 7081730 Required per assembly: 2 Currently Not Available
12	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available
