Wire Harness replacement parts for 2019 Polaris ACE 150 EFI INDY (R05)

OEM Parts Polaris 2019 Polaris ACE 150 EFI INDY (R05) Wire Harness

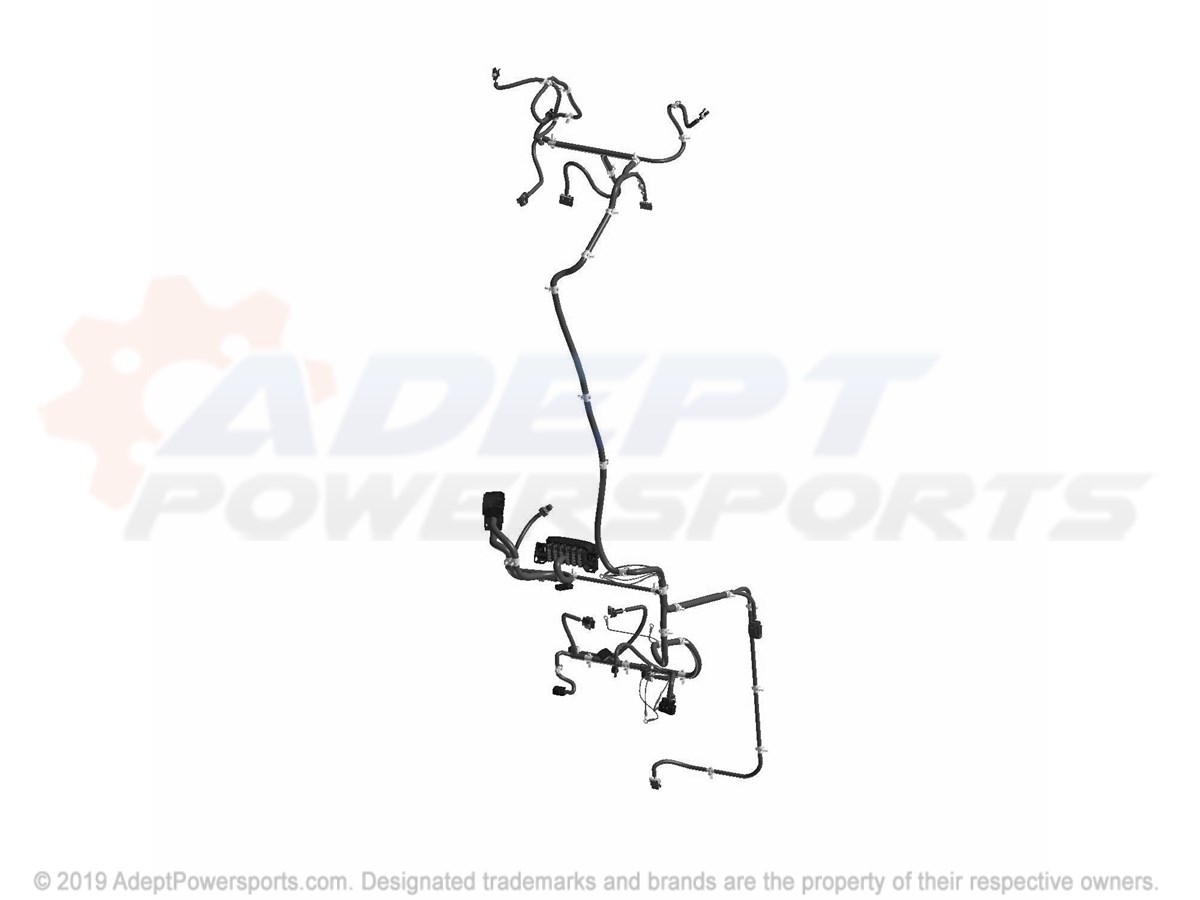

WIRE HARNESS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HANRESS-CHASSIS, INTLOCK, AR Part #: 2414132 Required per assembly: 1 Note: A7 Currently Not Available
1	HARNESS-CHASSIS, AR, INTERLOCK Part #: 2414960 Required per assembly: 1 Note: A7 Currently Not Available
1	HARNESS-CHASSIS, ARROW, EVAP Part #: 2414256 Required per assembly: 1 Note: B7 Currently Not Available
2	LABEL-FUSE BOX Part #: 7185153 Required per assembly: 1 Currently Not Available
3	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
4	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 2 Currently Not Available
5	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 2 Currently Not Available
6	FUSE, 10AMP Part #: 2434016 Required per assembly: 3 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
7	FUSE, MINI, BLADE, 15, AMP. Part #: 4010859 Required per assembly: 2 Currently Not Available
8	BRKT-FUSE, BOX, RETAINER, BLK Part #: 5263566-458 Required per assembly: 1 Currently Not Available
9	RIVET Part #: 7661855 Required per assembly: 3 ~~$2.99~~ $1.73 - + Add to cart
10	CLIP-ROUTING Part #: 7081496 Required per assembly: 2 Currently Not Available
11	FUSE-IGNITION, 10, AMP, SPD, CTRL Part #: 4016537 Required per assembly: 1 Currently Not Available
12	KIT, HARNESS, RESISTOR, MODULE Part #: 2204890 Required per assembly: 1 Currently Not Available
13	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
14	COVER-FUSEBOX, 48WAY Part #: 4015011 Required per assembly: 1 Currently Not Available
14	SEAL-FUSE CENTER Part #: 5415598 Required per assembly: 1 Currently Not Available
