2019 Polaris ACE 150 EFI INDY (R05) A19HAA15A7/B7 - Rear Wheels

REAR WHEELS Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

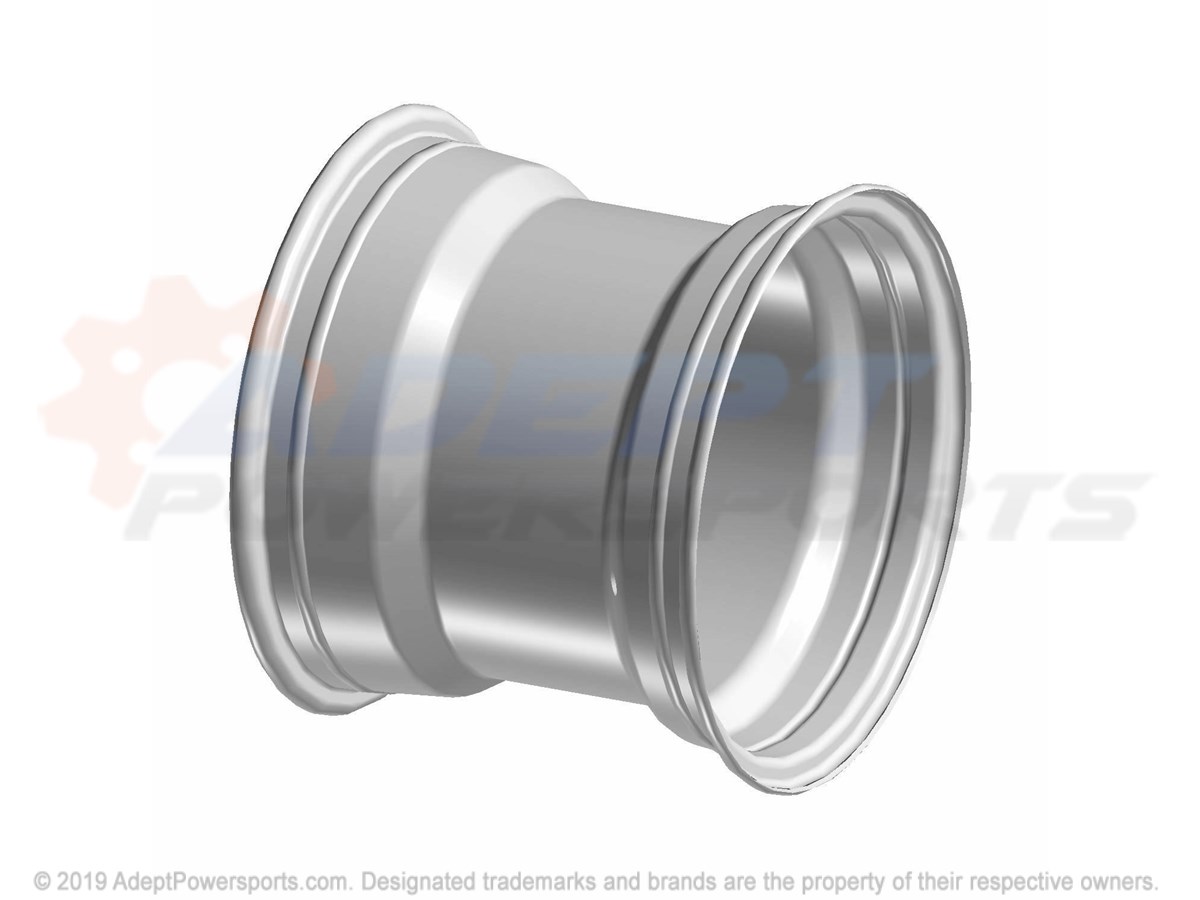

Polaris 1523019-067 Weld-Rim, Rear, 10X8, Blk

WELD-RIM, REAR, 10X8, BLK

Part #: 1523019-067 Required per assembly: 2
Currently Not Available
2

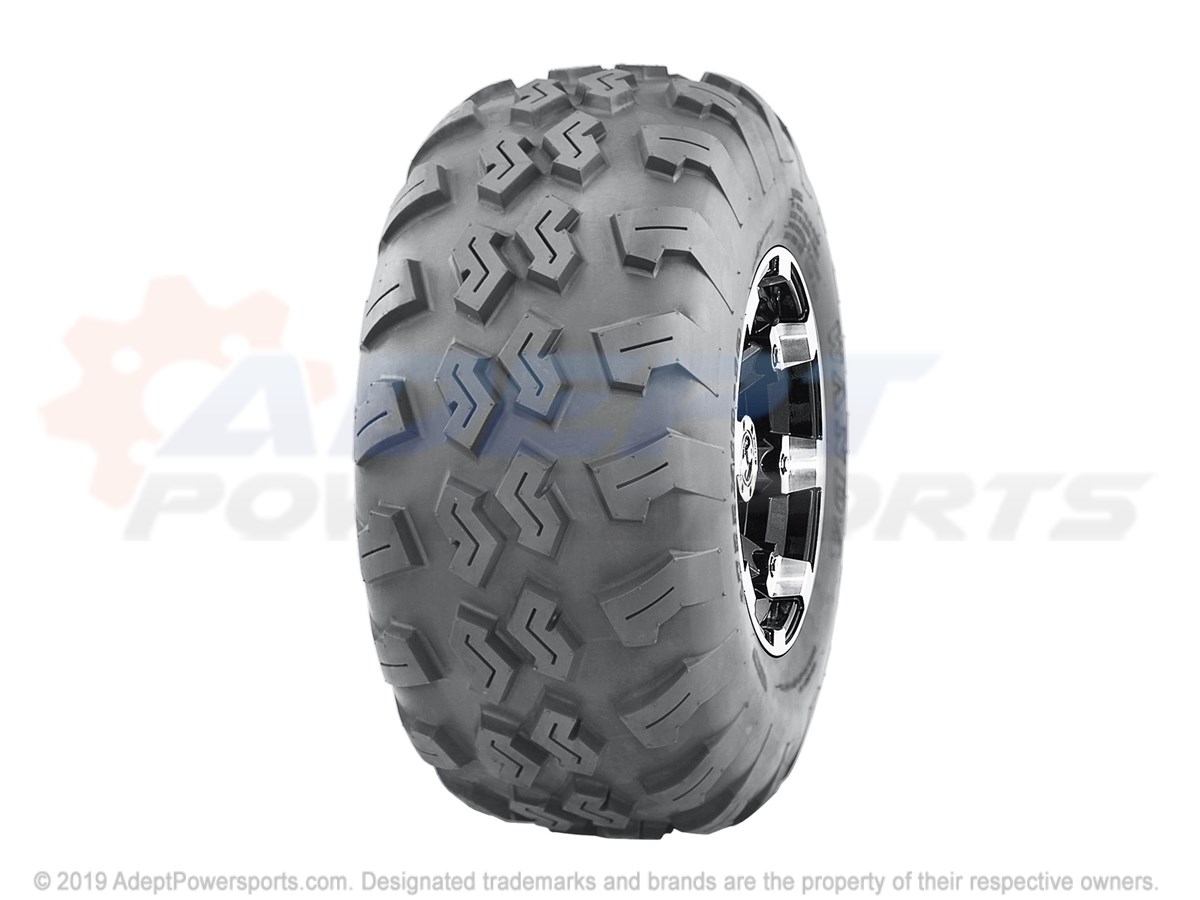

Polaris 5416080 Tire-22X10-10, P3018

TIRE-22X10-10, P3018

Part #: 5416080 Required per assembly: 2
Currently Not Available
4

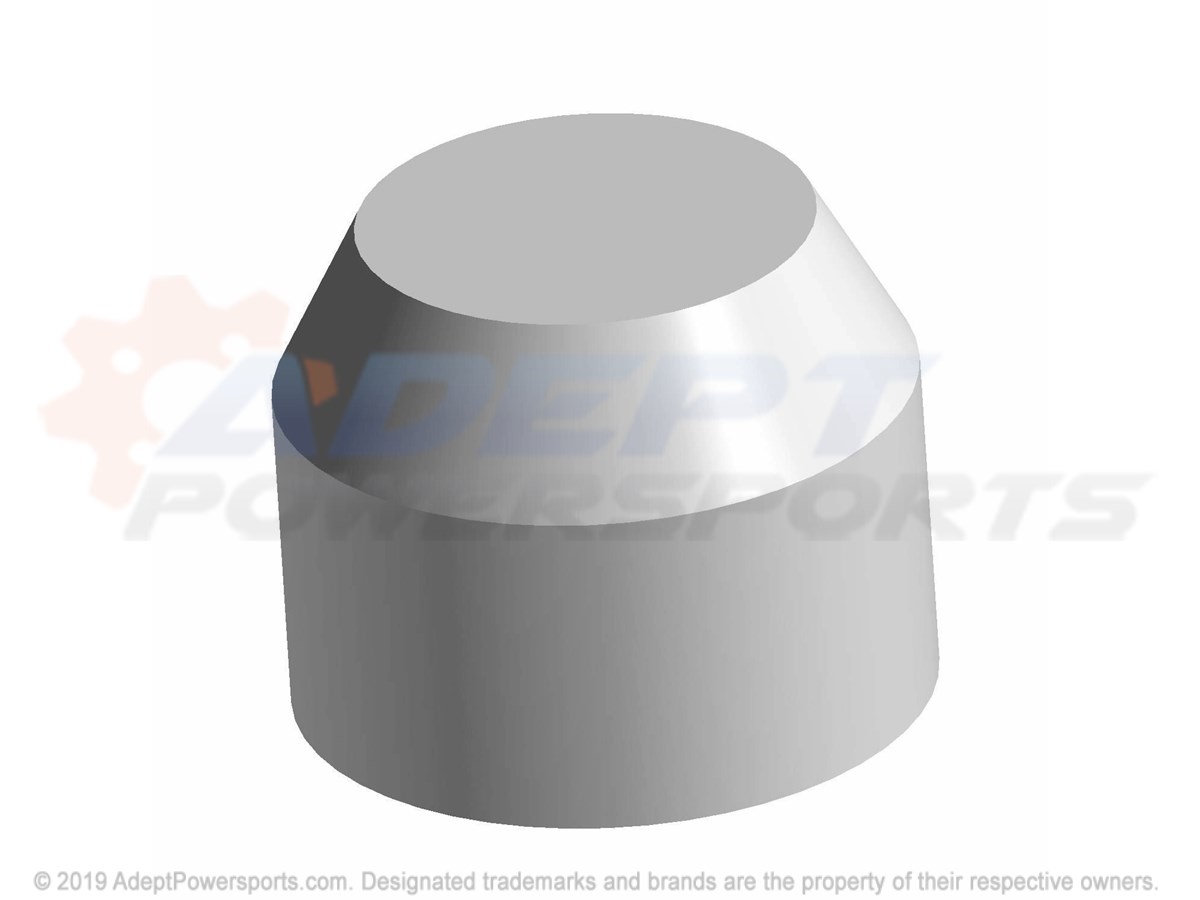

Polaris 5416088 Cover-Front Hub

COVER-FRONT HUB

Part #: 5416088 Required per assembly: 2
Currently Not Available
5
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 8 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
6

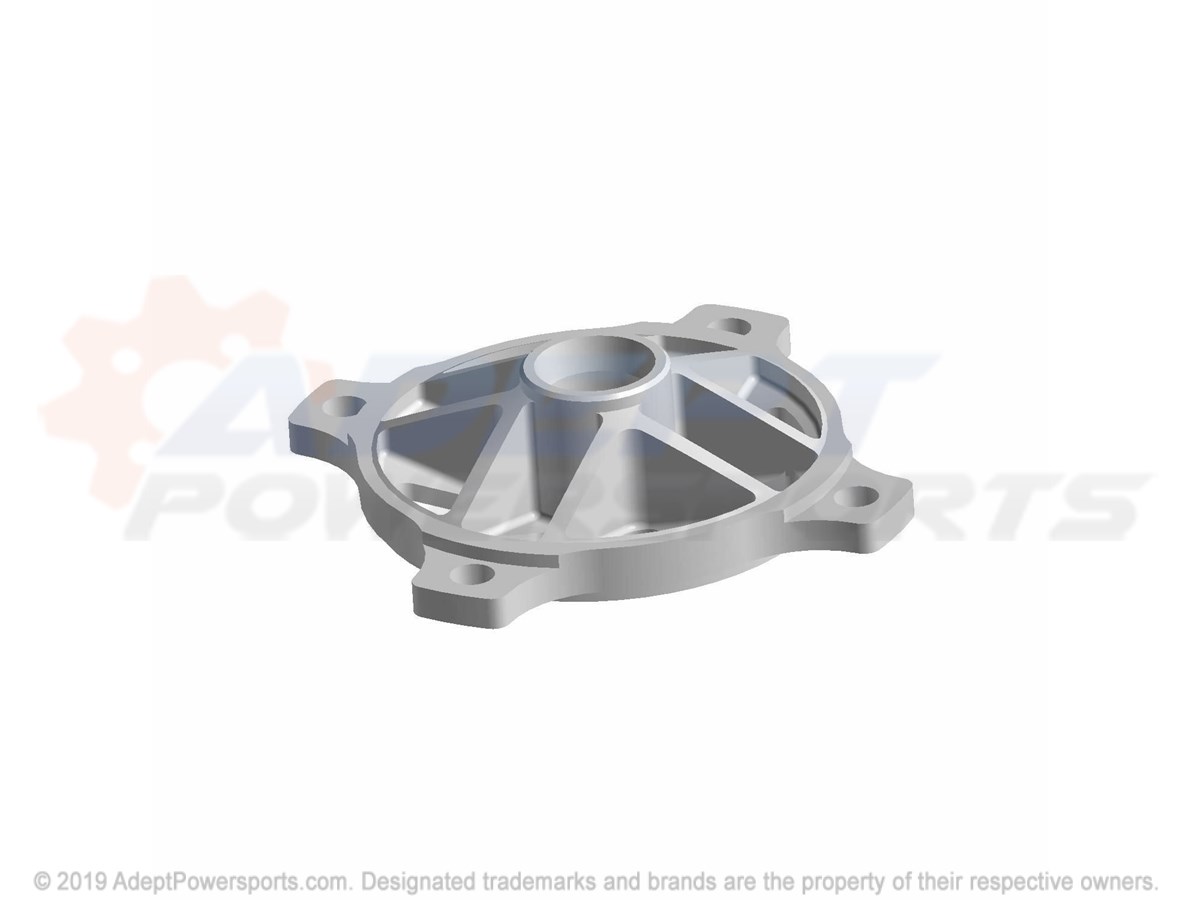

Polaris 5633733 Hub-Rear, Axle, 4-165Mm

HUB-REAR, AXLE, 4-165MM

Part #: 5633733 Required per assembly: 2
Currently Not Available
7

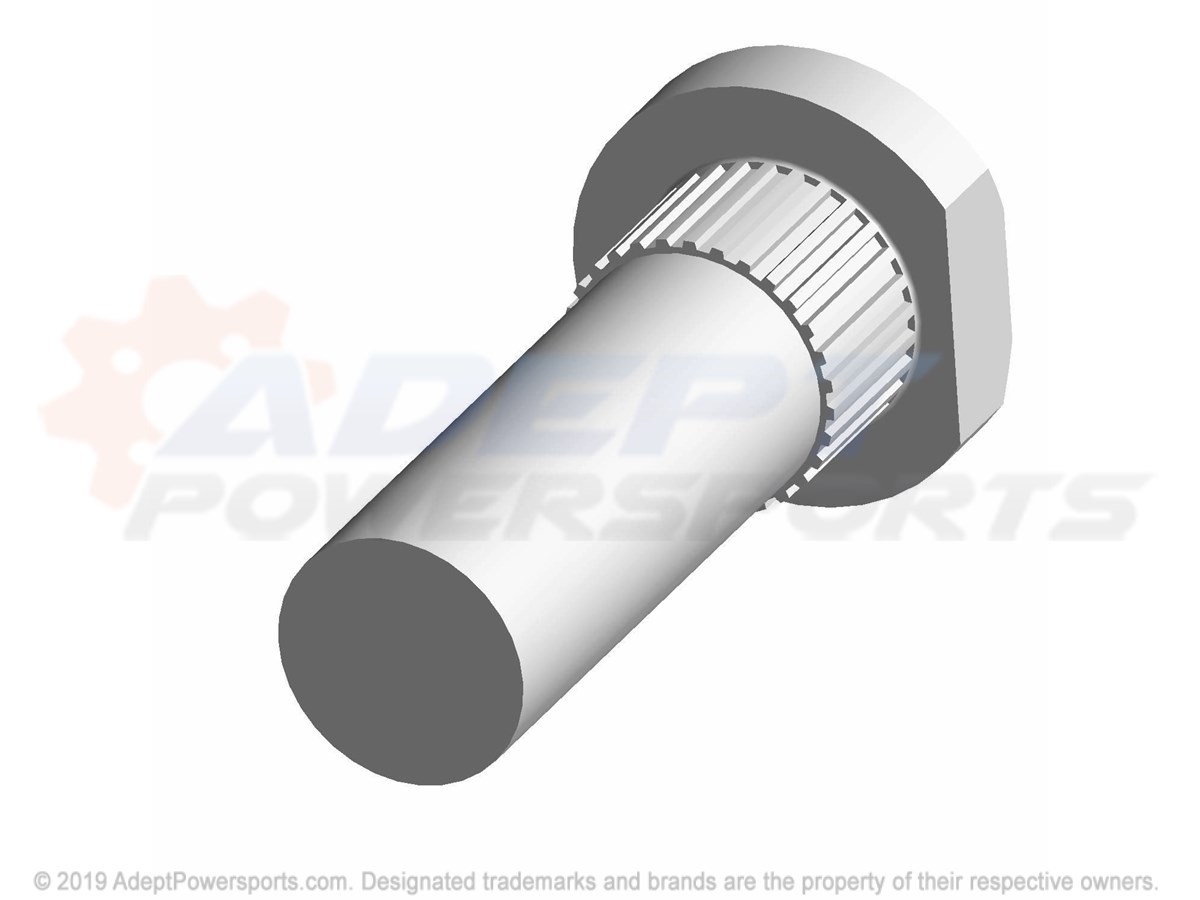

Polaris 7520745 Stud-M10x1.25X35.5

STUD-M10X1.25X35.5

Part #: 7520745 Required per assembly: 8
Currently Not Available
8

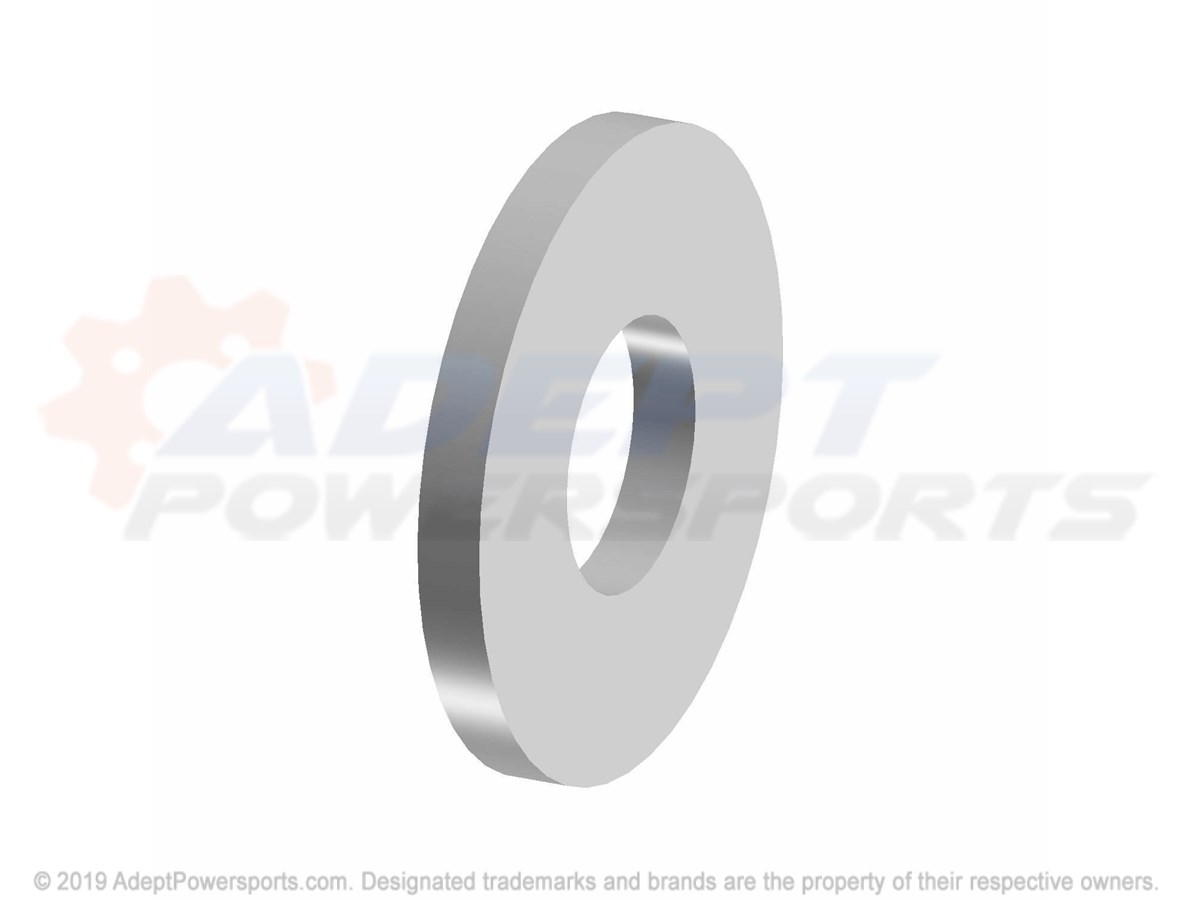

Polaris 7557057 Washer-16.5X39x4mm-Y

WASHER-16.5X39X4MM-Y

Part #: 7557057 Required per assembly: 2
Currently Not Available
9

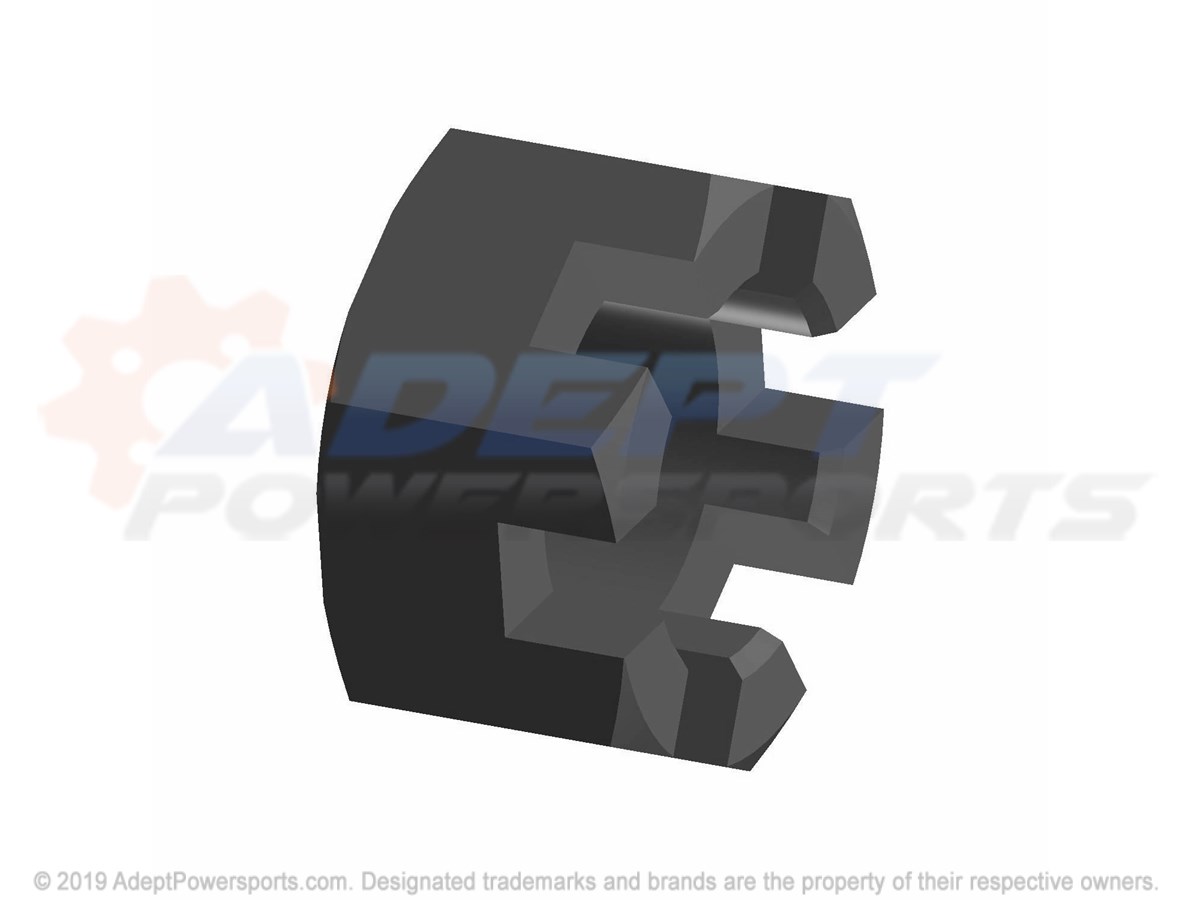

Polaris 7547842 Nut-M16x1.50 Castle

NUT-M16X1.50 CASTLE

Part #: 7547842 Required per assembly: 2
Currently Not Available
10

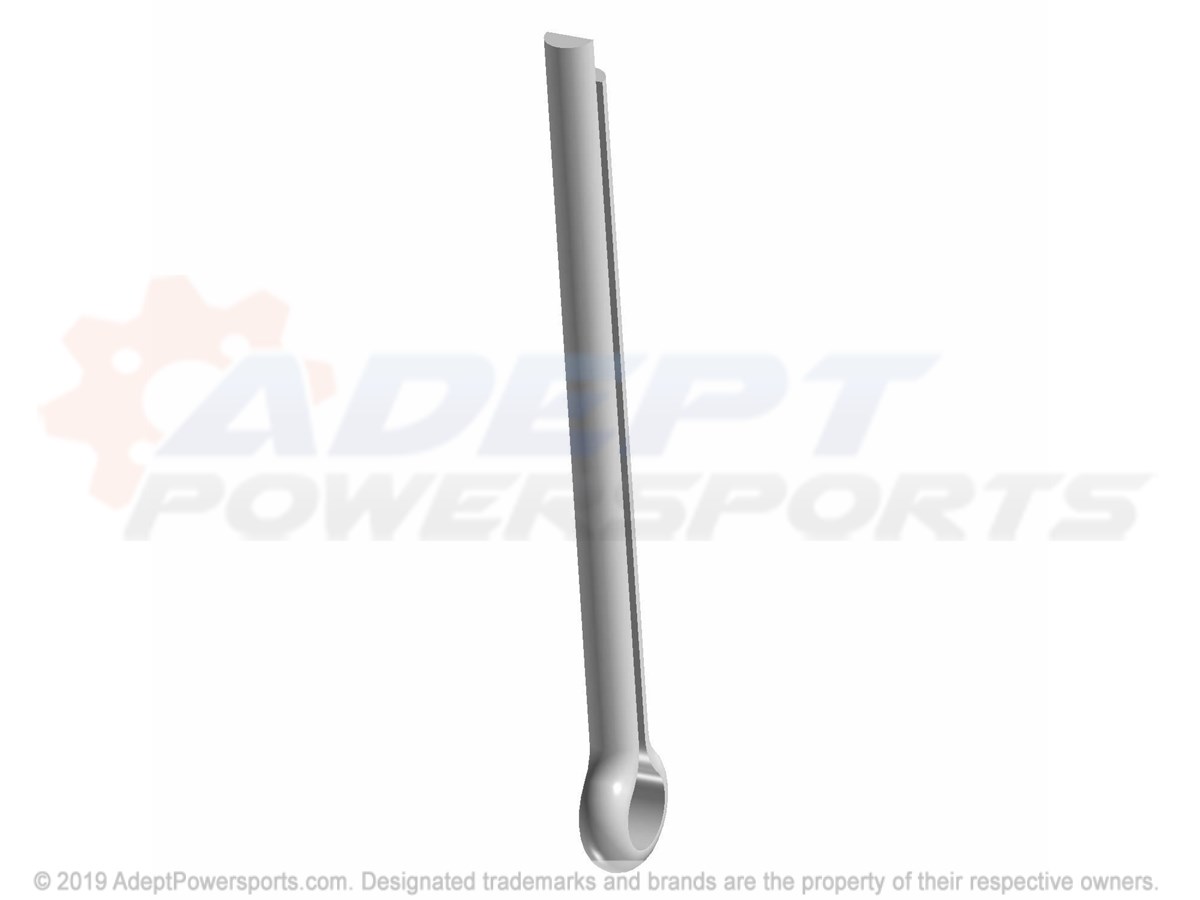

Polaris 7662314 Pin-M4x30 Cotter

PIN-M4X30 COTTER

Part #: 7662314 Required per assembly: 2
Currently Not Available
