Engine, Air Intake replacement parts for 2019 Polaris Sportsman 850 HIGH LIFTER (R04)

OEM Parts Polaris 2019 Polaris Sportsman 850 HIGH LIFTER (R04) Engine, Air Intake

ENGINE, AIR INTAKE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

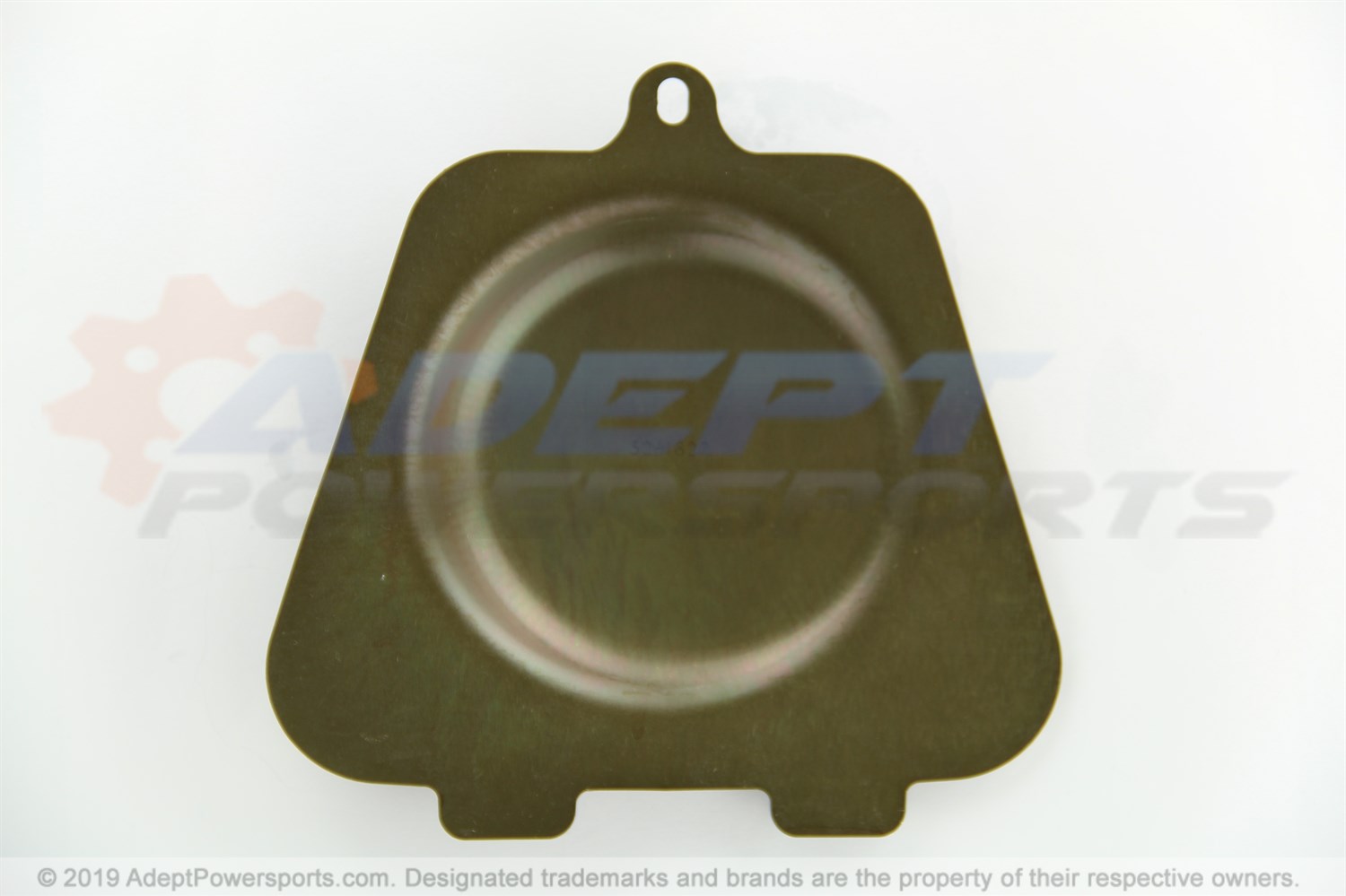

1	COVER-AIRBOX Part #: 5261827 Required per assembly: 1 Currently Not Available
2	SCREW Part #: 7517685 Required per assembly: 1 Note: Screw Currently Not Available
3	O-RING Part #: 5414246 Required per assembly: 1 Currently Not Available

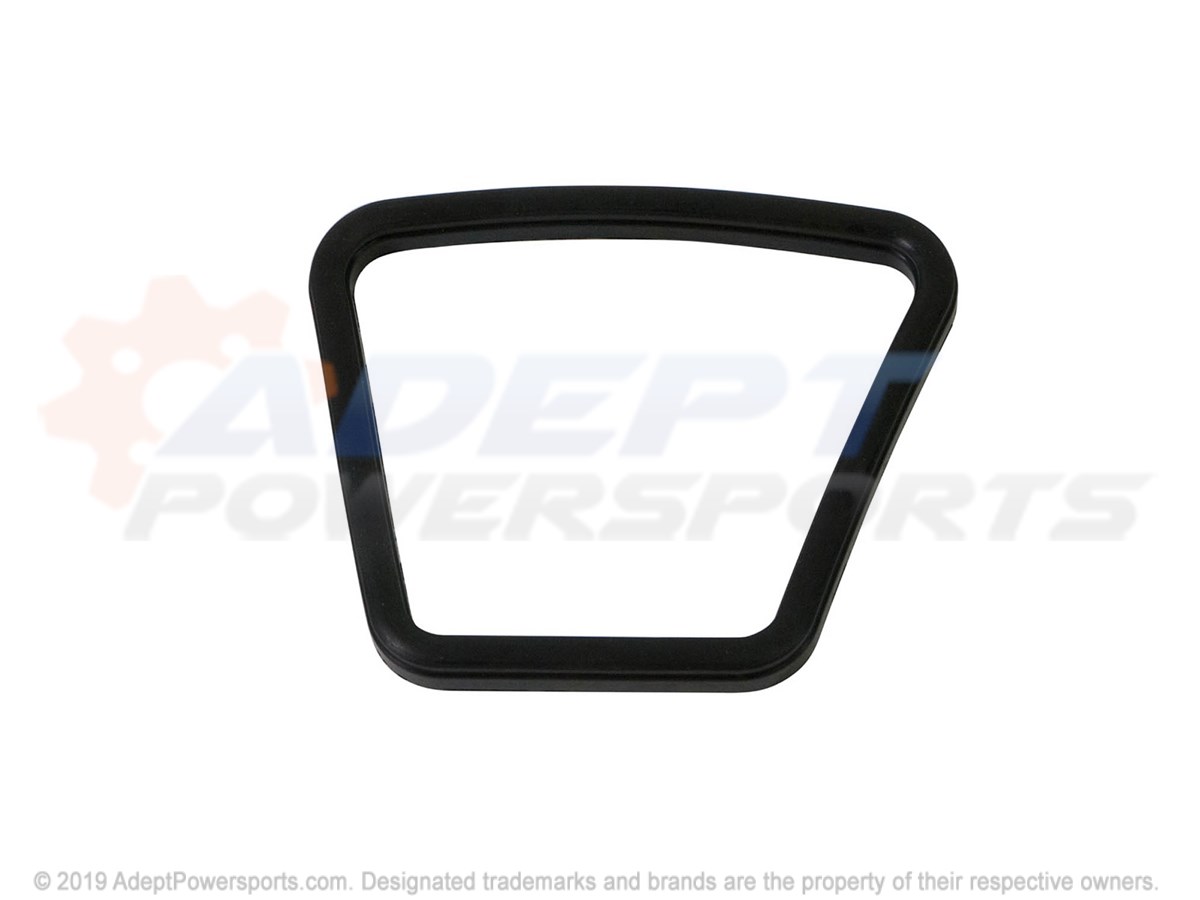

4	SEAL-AIRBOX COVER Part #: 5814345 Required per assembly: 1 Currently Not Available
5	FILTER-AIR INTAKE Part #: 7082101 Aftermarket alternatives available Required per assembly: 1 Currently Not Available
6	PURE POLARIS STANDARD PREFILTER (SLEEVE) Part #: 5811633 Required per assembly: 1 Note: Slips over air filter to prefilter intake air and extend air cleaner life. Can be cleaned and reused again and again. Currently Not Available

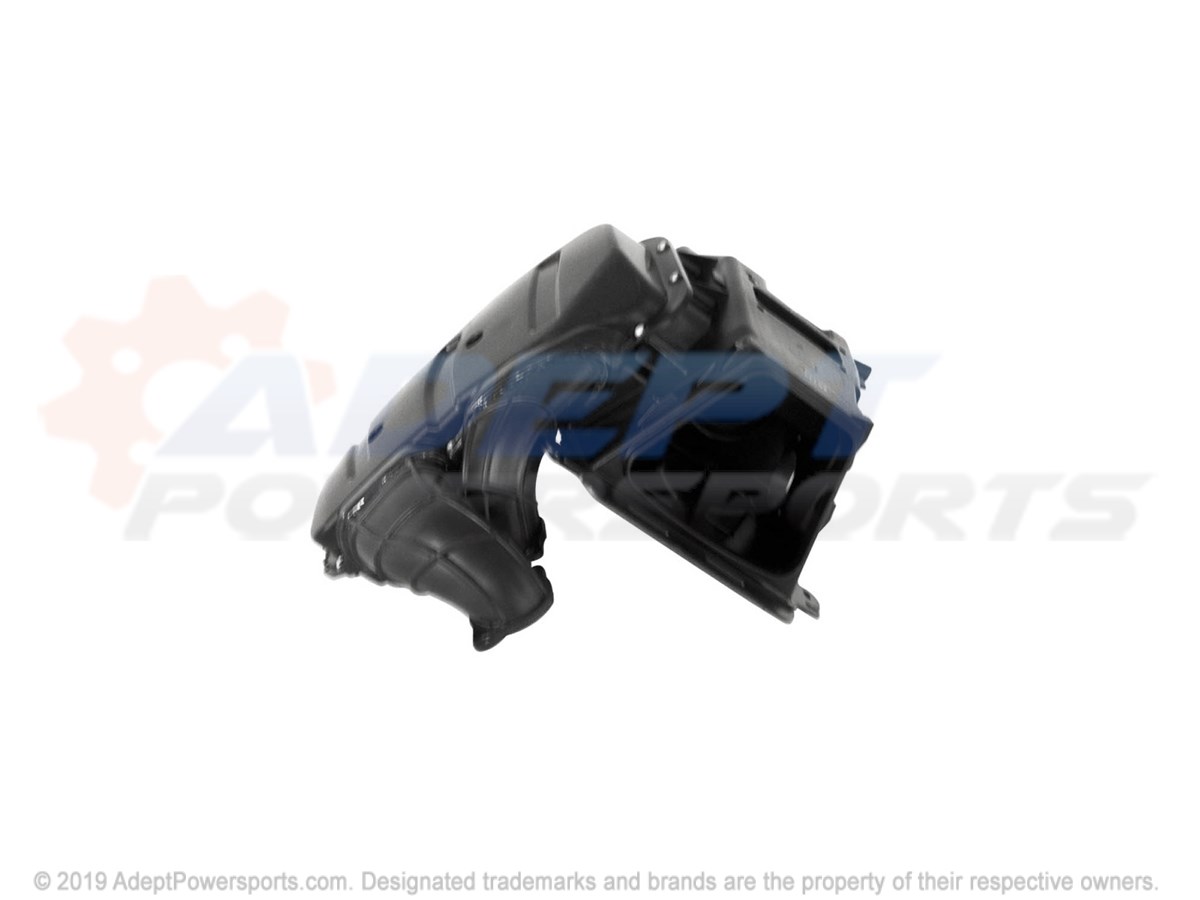

7	ASM-AIR, INTAKE, BOX, W/RUNNERS Part #: 1240953 Required per assembly: 1 Currently Not Available
8	HOSE, BREATHER, TWIN Part #: 5414322 Required per assembly: 1 Currently Not Available

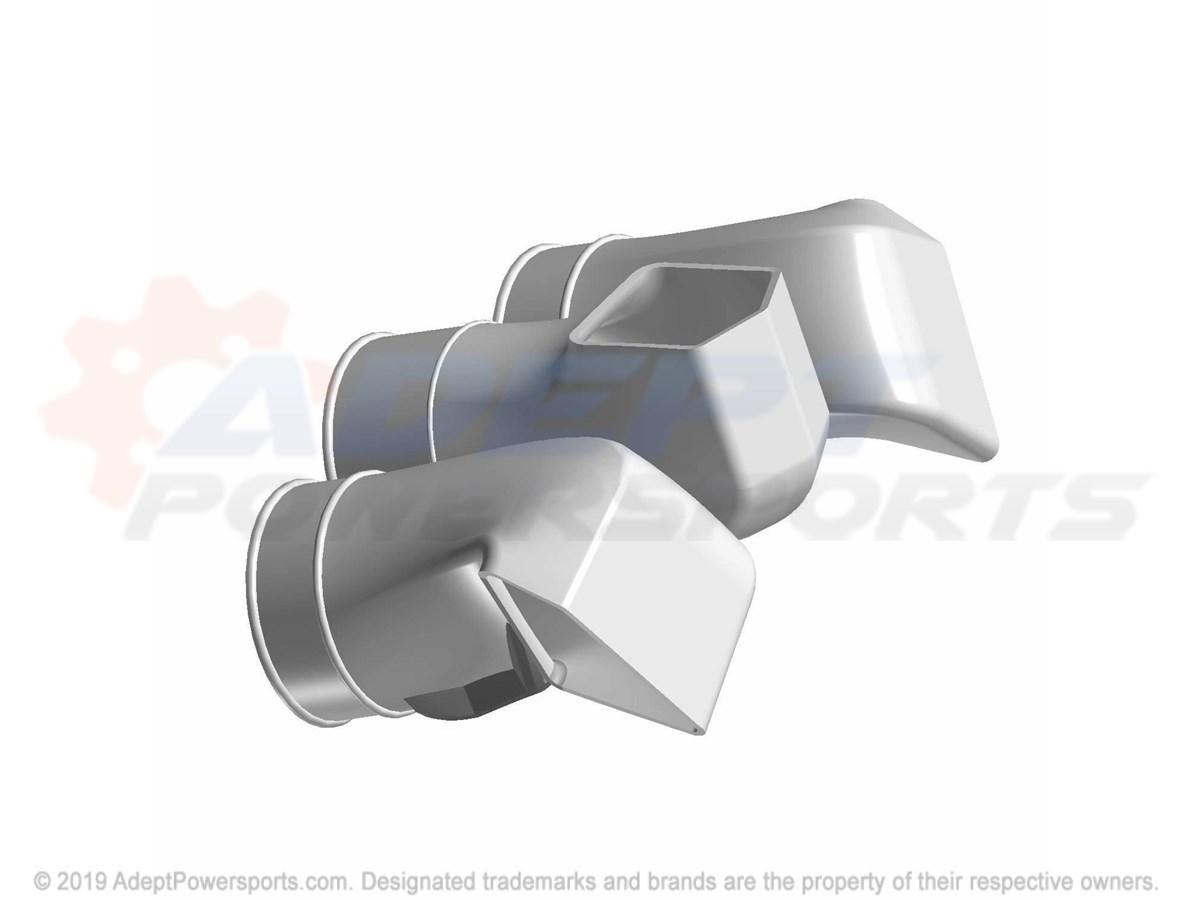

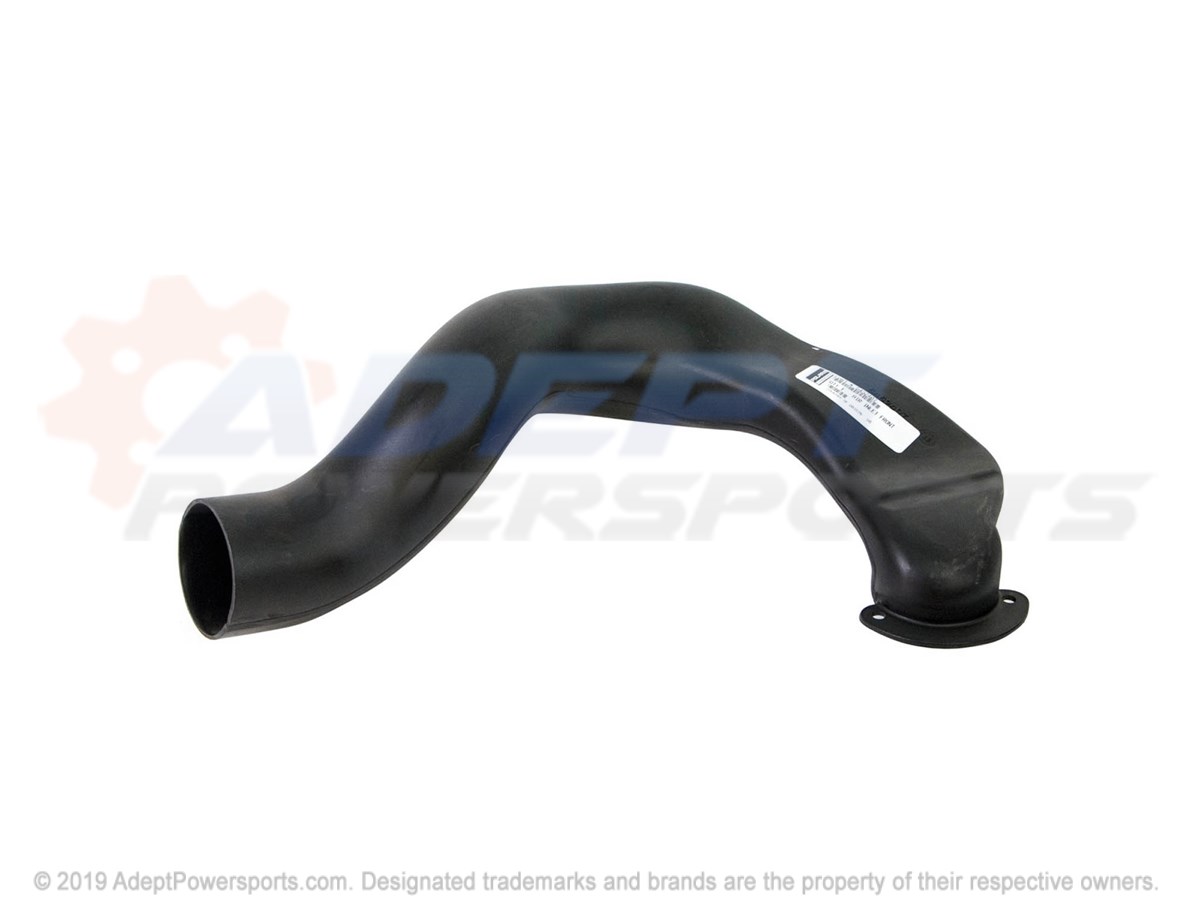

9	DUCT-AIR, INLET, FRONT Part #: 5452407 Required per assembly: 1 Currently Not Available
10	PLUG-AIRBOX Part #: 5451429 Required per assembly: 1 Currently Not Available
11	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
12	FOAM Part #: 5813409 Required per assembly: 1 Currently Not Available
13	CLAMP Part #: 7081026 Required per assembly: 1 Note: Clamp, Hose, Spring Currently Not Available
14	WASHER, FLAT Part #: 7555859 Required per assembly: 2 Note: Washer, Flat ~~$2.99~~ $1.73 - + Add to cart
15	GROMMET, SUPPORT, TRUNK Part #: 5413423 Required per assembly: 1 Currently Not Available
16	SCR-SOCFLGHD, M6X1.0X16 Part #: 7518803 Required per assembly: 4 Currently Not Available
17	CLAMP, SPRINGBAND Part #: 7080842 Required per assembly: 1 Currently Not Available
18	GROMMET, AIR, TEMP, SENSOR Part #: 5436346 Required per assembly: 1 Currently Not Available

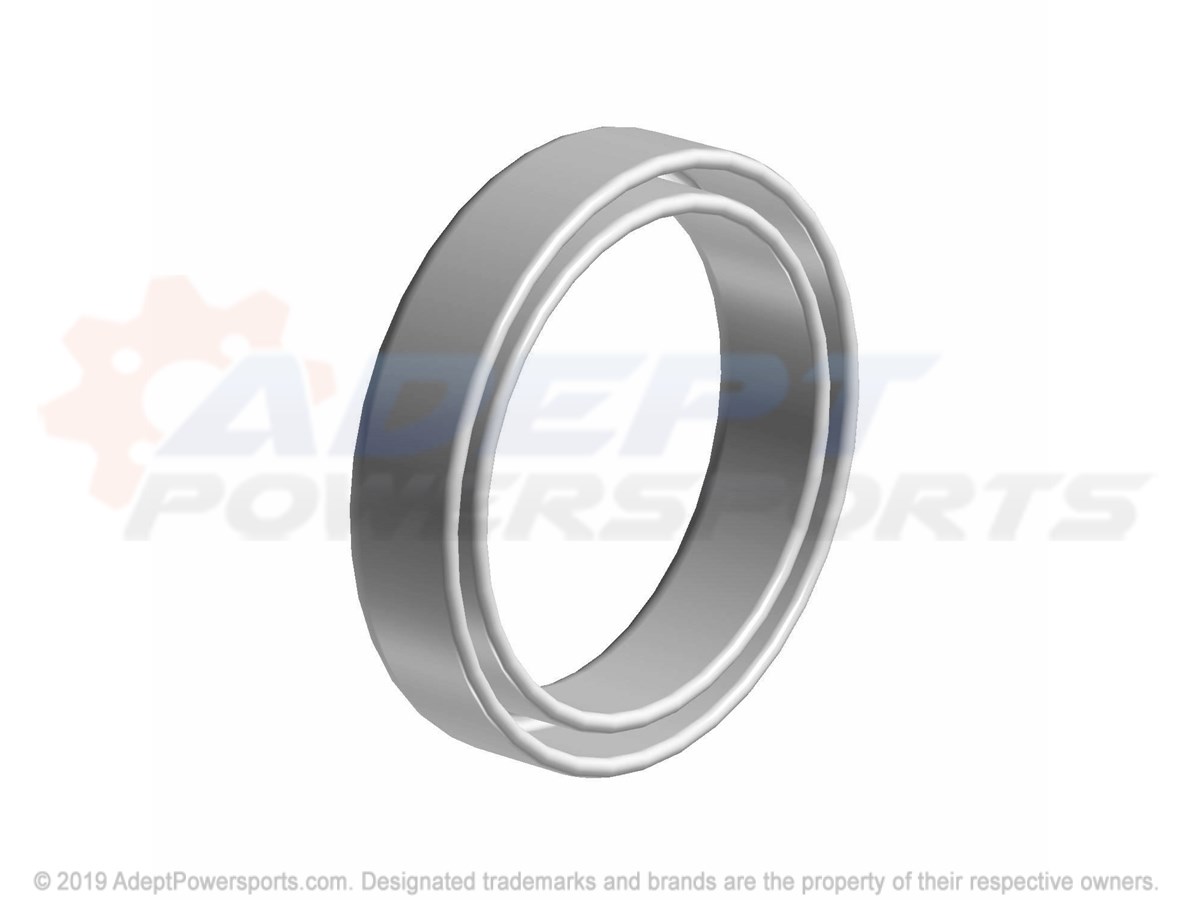

19	SEAL-AIRBOX, INTAKE, DUCT Part #: 5814346 Required per assembly: 1 Currently Not Available

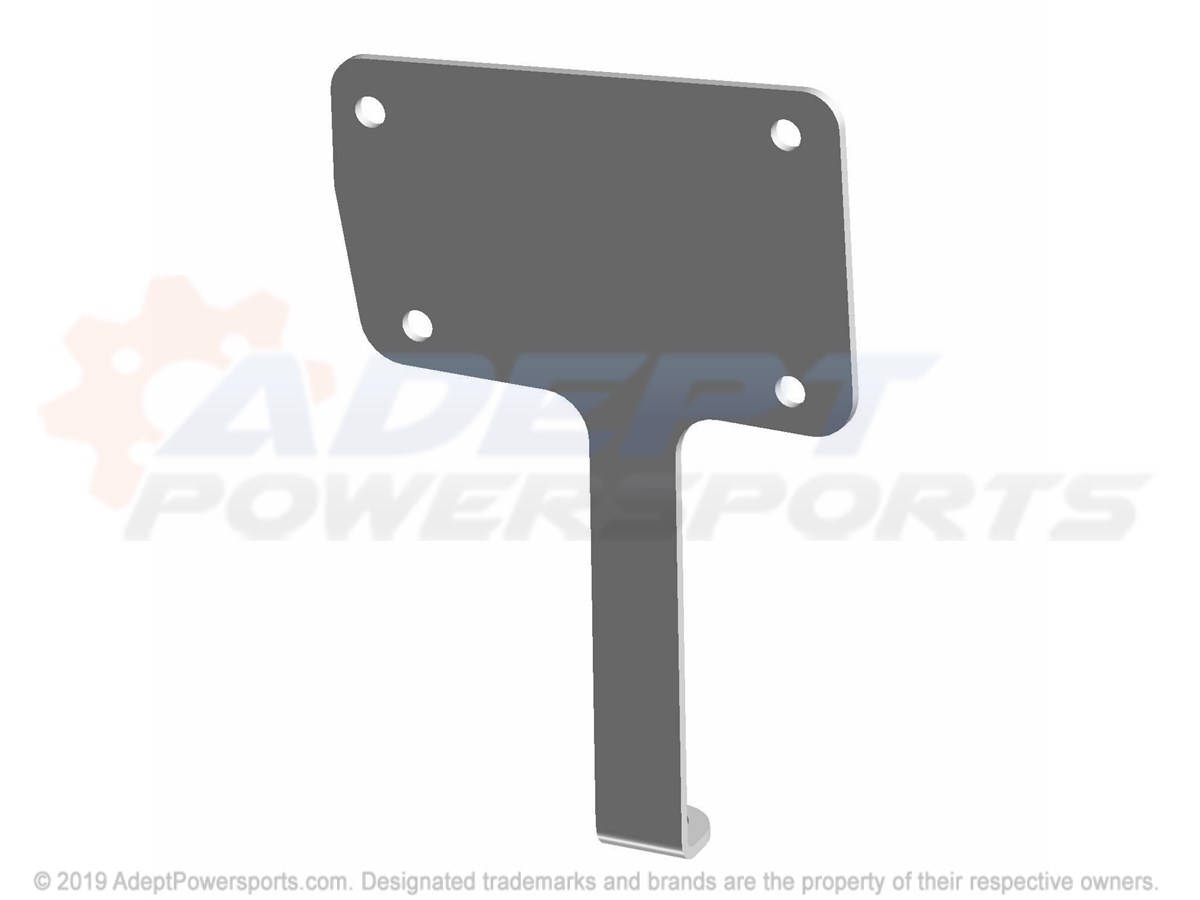

20	PLATE-CLOSEOUT Part #: 5261826 Required per assembly: 1 Currently Not Available
21	BOOT-AIR NTAKE Part #: 5415531 Required per assembly: 1 Currently Not Available
22	CLAMP, NARROW, BAND Part #: 7081279 Required per assembly: 3 Currently Not Available
23	SCREW Part #: 7518546 Required per assembly: 6 Currently Not Available
24	NUT Part #: 7547274 Required per assembly: 6 Note: Nut, Flange Currently Not Available
25	WASHER Part #: 7555748 Required per assembly: 2 Currently Not Available
26	NUT Part #: 7670096 Required per assembly: 1 Note: Nut, Chimney Sold in multiples of 10 only Currently Not Available
27	RETAINER, BOLT Part #: 7670154 Required per assembly: 1 Currently Not Available
