Engine, Cooling System, Radiator replacement parts for 2019 Polaris Sportsman 850 HIGH LIFTER (R04)

OEM Parts Polaris 2019 Polaris Sportsman 850 HIGH LIFTER (R04) Engine, Cooling System, Radiator

ENGINE, COOLING SYSTEM, RADIATOR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

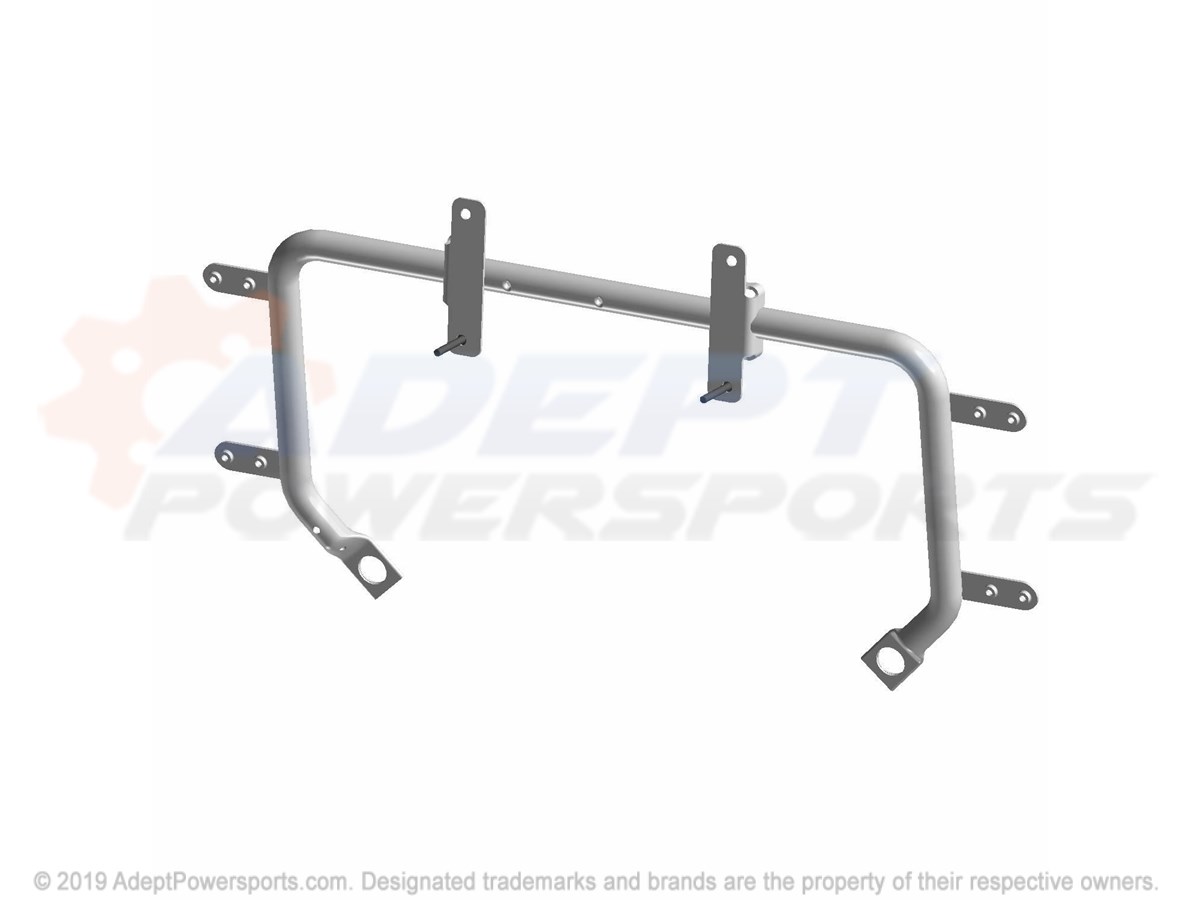

1	WELD-RADIATOR SUPPORT Part #: 1021184 Required per assembly: 1 Currently Not Available
2	CAP, PRESSURE Part #: 1240466 Required per assembly: 1 Currently Not Available

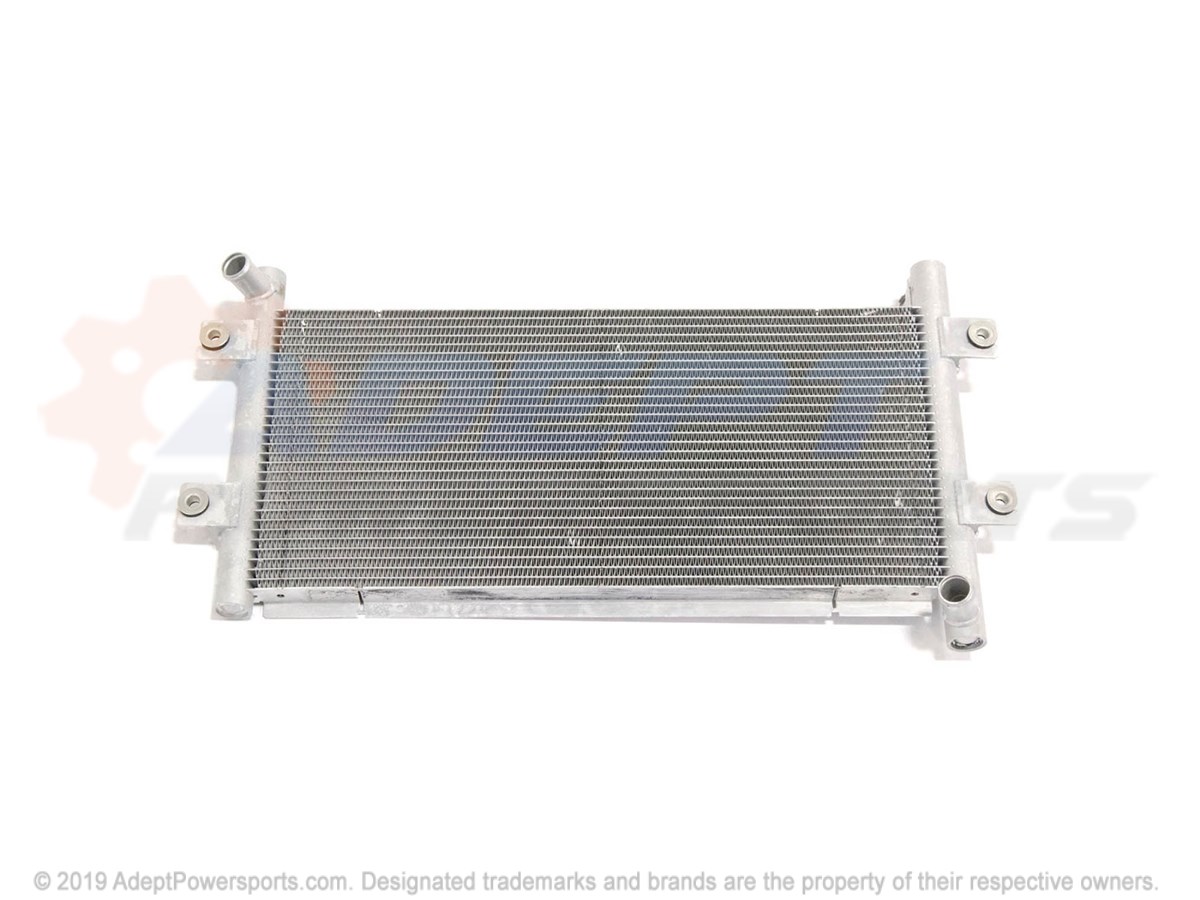

3	ASM-RADIATOR, FLAT, MNT Part #: 1240922 Required per assembly: 1 Note: INCL. CAP, GROMMET AND INSERT Currently Not Available
4	ASSEMBLY, GROMMET, AND, INSERT Part #: 5413509 Required per assembly: 2 Currently Not Available

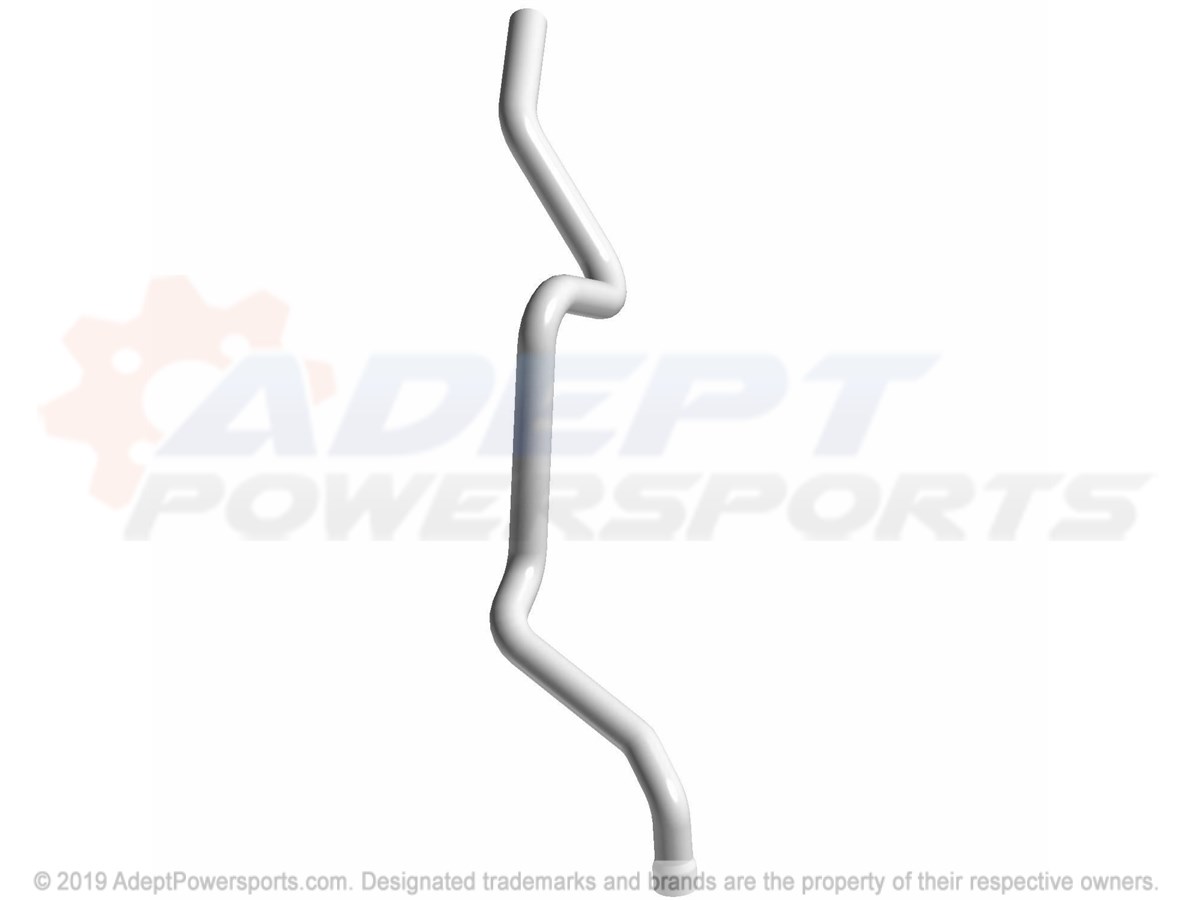

5	HOSE-COOLANT, ENGINE, IN Part #: 5415399 Required per assembly: 1 Currently Not Available

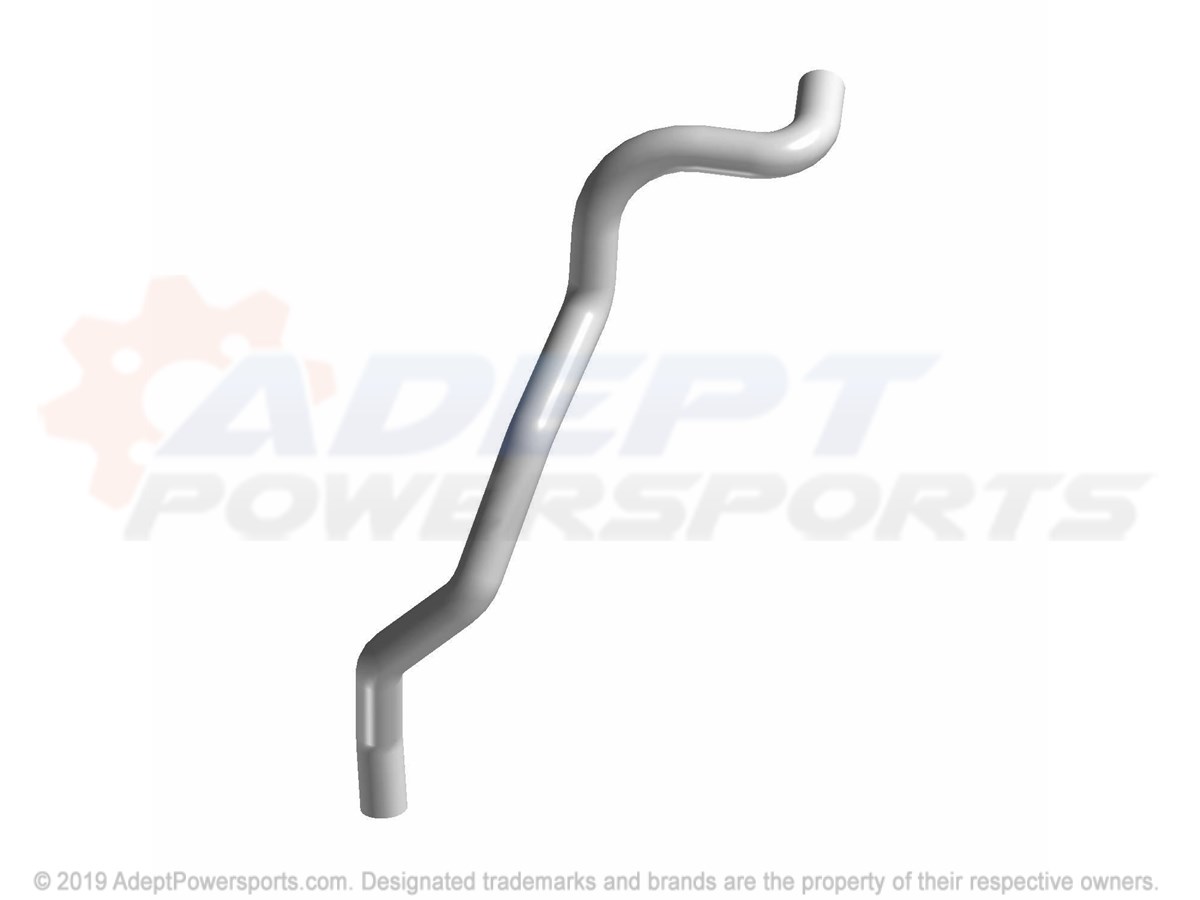

6	HOSE-COOLANT, ENGINE, OUT Part #: 5415831 Required per assembly: 1 Currently Not Available
7	TANK, SURGE Part #: 5436936 Required per assembly: 1 Currently Not Available
8	CAP, OVERFLOW, BOTTLE, W/FITTING Part #: 5437635 Required per assembly: 1 Currently Not Available
9	GASKET Part #: 5810279 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
10	FITTING, 90, DEGREE, ("J", MODEL, ONLY) Part #: 7052065 Required per assembly: 1 Note: FITTING,90 DEGREE ~~$11.99~~ $6.90 - + Add to cart
11	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 1 Note: Cable Tie Currently Not Available
12	CLAMP, SPRINGBAND Part #: 7080844 Required per assembly: 3 Currently Not Available
13	CLAMP, HOSE Part #: 7080908 Required per assembly: 1 Currently Not Available
14	CLAMP, HOSE Part #: 7081192 Required per assembly: 1 Currently Not Available
15	SCREW Part #: 7512084 Required per assembly: 2 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
16	SCREW Part #: 7518513 Required per assembly: 1 Currently Not Available
17	SCREW Part #: 7518555 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
18	SCR-TFHFL-M6X1.0X25 ZOD Part #: 7519342 Required per assembly: 6 ~~$4.04~~ $2.91 - + Add to cart
19	FUEL, LINE, 1/8, ID, 600, CM. Part #: 8360009-600 Currently Not Available
20	FUEL, LINE, 1/4, ID(1525, CM.) Part #: 8450003-1525 Currently Not Available
21	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap ~~$4.79~~ $2.92 - + Add to cart
