2019 Polaris Pro XD (R04) D19BBPD4B4/BAPD4B4 - Alternator

ALTERNATOR Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 3023570 Alternator-140A

ALTERNATOR-140A

Part #: 3023570 Required per assembly: 1
Currently Not Available
2

BRKT-GUARD, FAN, REAR

Part #: 5267379 Required per assembly: 1
Currently Not Available
3

BRKT-GUARD, FAN, LWR

Part #: 5267380 Required per assembly: 1
Currently Not Available
4

GUARD-FAN, ENGINE, DSL

Part #: 5267431 Required per assembly: 1
Currently Not Available
5
Polaris 5416931 Belt-Xpz913

BELT-XPZ913

Part #: 5416931 Required per assembly: 1
Currently Not Available
6
Polaris 5455840 Fan-Engine, Dsl

FAN-ENGINE, DSL

Part #: 5455840 Required per assembly: 1
Currently Not Available
7
Polaris 7518591 Scr-Hxflghd, M6x16, 0600086

SCR-HXFLGHD, M6X16, 0600086

Part #: 7518591 Required per assembly: 2
Currently Not Available
8
Polaris 7519133 Screw

SCREW

Part #: 7519133 Required per assembly: 6
Currently Not Available
9
Polaris 7519181 Scr-Hxfl-M8x1.25X16 8.8 Zod

SCR-HXFL-M8X1.25X16 8.8 ZOD

Part #: 7519181 Required per assembly: 4
Currently Not Available
10
Polaris 7519298 Screw, Flange

SCREW, FLANGE

Part #: 7519298 Required per assembly: 1
Currently Not Available
11
Polaris 7547014 Nut, Hxflghd, M8

NUT, HXFLGHD, M8

Part #: 7547014 Required per assembly: 2
Currently Not Available
12
Polaris 5634289-329 Coupler-Alternator, Blk

COUPLER-ALTERNATOR, BLK

Part #: 5634289-329 Required per assembly: 1
Currently Not Available
13

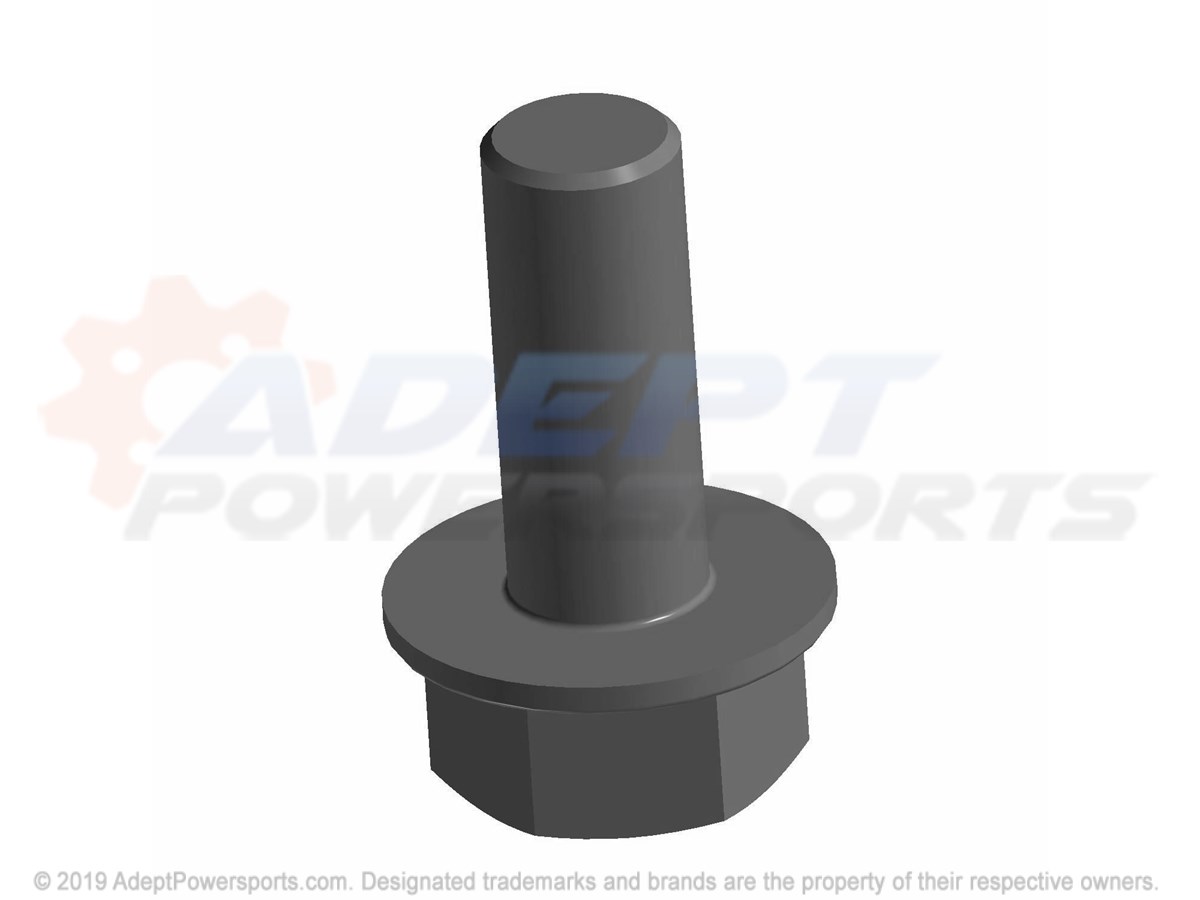

Polaris 7519374 Bolt

BOLT

Part #: 7519374 Required per assembly: 3
Currently Not Available
14

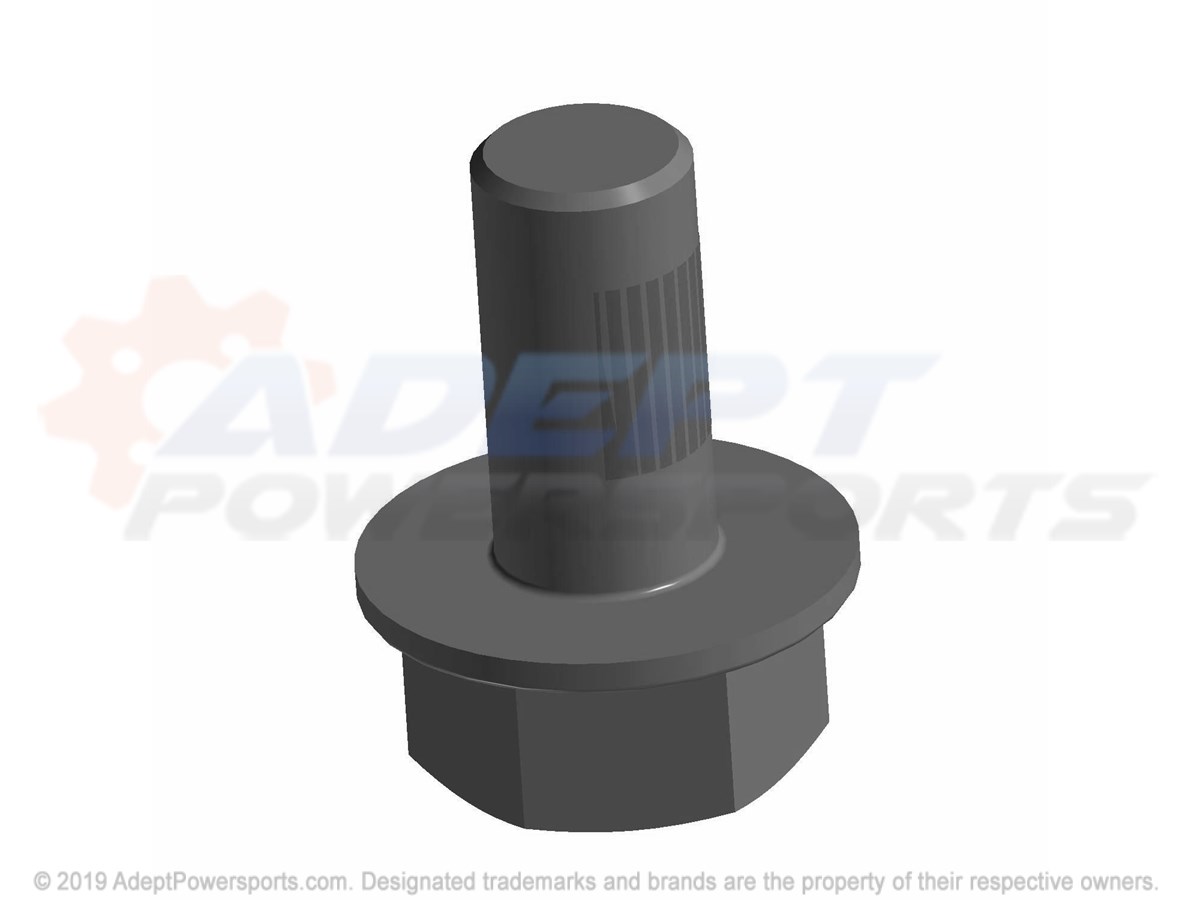

Polaris 7518514 Screw

SCREW

Part #: 7518514 Required per assembly: 1 Note: Bolt
Currently Not Available
