Mounting replacement parts for 2019 Polaris Pro XD (R04)

OEM Parts Polaris 2019 Polaris Pro XD (R04) Mounting

MOUNTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-ENG KUBOTA D902 Part #: 1205925 Required per assembly: 1 Currently Not Available
2	MOUNT-ISOLATOR DRIVELINE Part #: 1332955 Required per assembly: 2 Currently Not Available
3	ASM-DIPSTICK, GUIDE, SIDE, 454MM Part #: 3023641 Required per assembly: 1 Note: FROM 3/1/19 Currently Not Available
3	ASM-DIPSTICK, GUIDE, SIDE, 505MM Part #: 3023561 Required per assembly: 1 Currently Not Available

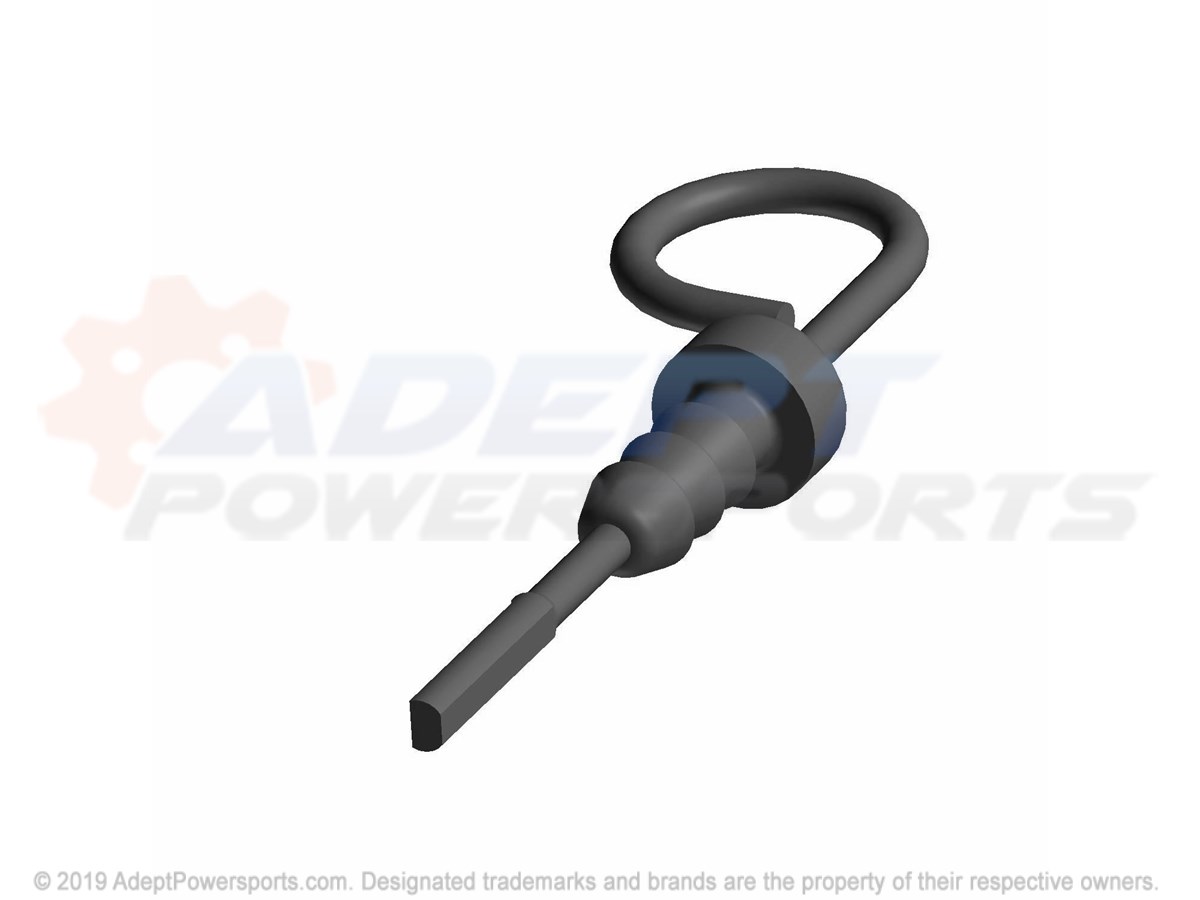

4	DIPSTICK, ENGINE, OIL, 454MM Part #: 3023640 Required per assembly: 1 Note: FROM 3/1/19 Currently Not Available
4	DIPSTICK, ENGINE, OIL, 454MM Part #: 3023640 Required per assembly: 1 Note: TO 3/1/19 Currently Not Available
5	COUPLER-ENGINE, FRONT Part #: 5141576 Required per assembly: 1 Currently Not Available
6	COUPLER-ENGINE, REAR Part #: 5141577 Required per assembly: 1 Currently Not Available

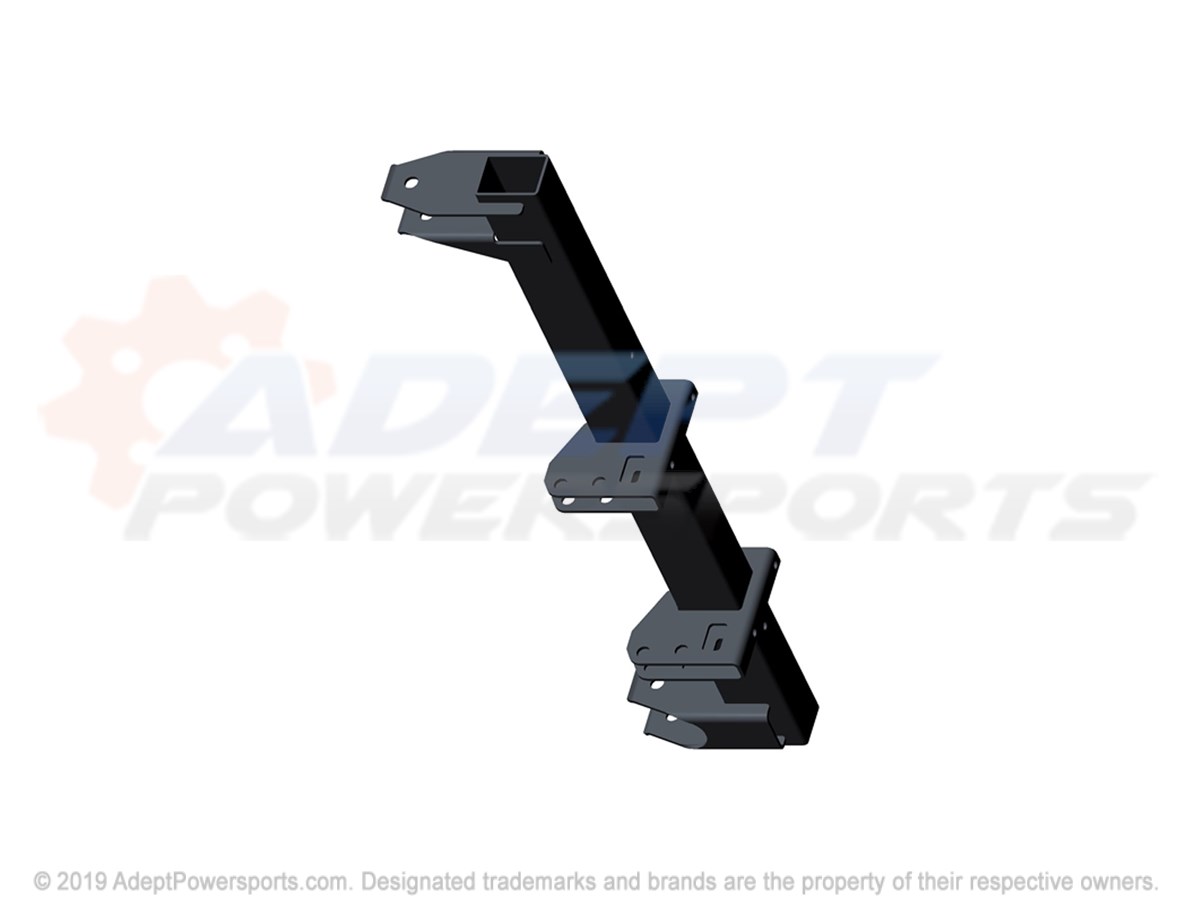

7	BRKT-ROUTING, REAR Part #: 5267918 Required per assembly: 1 Currently Not Available
8	FITTING-VENT, LINE, 90 Part #: 5454069 Required per assembly: 1 Currently Not Available

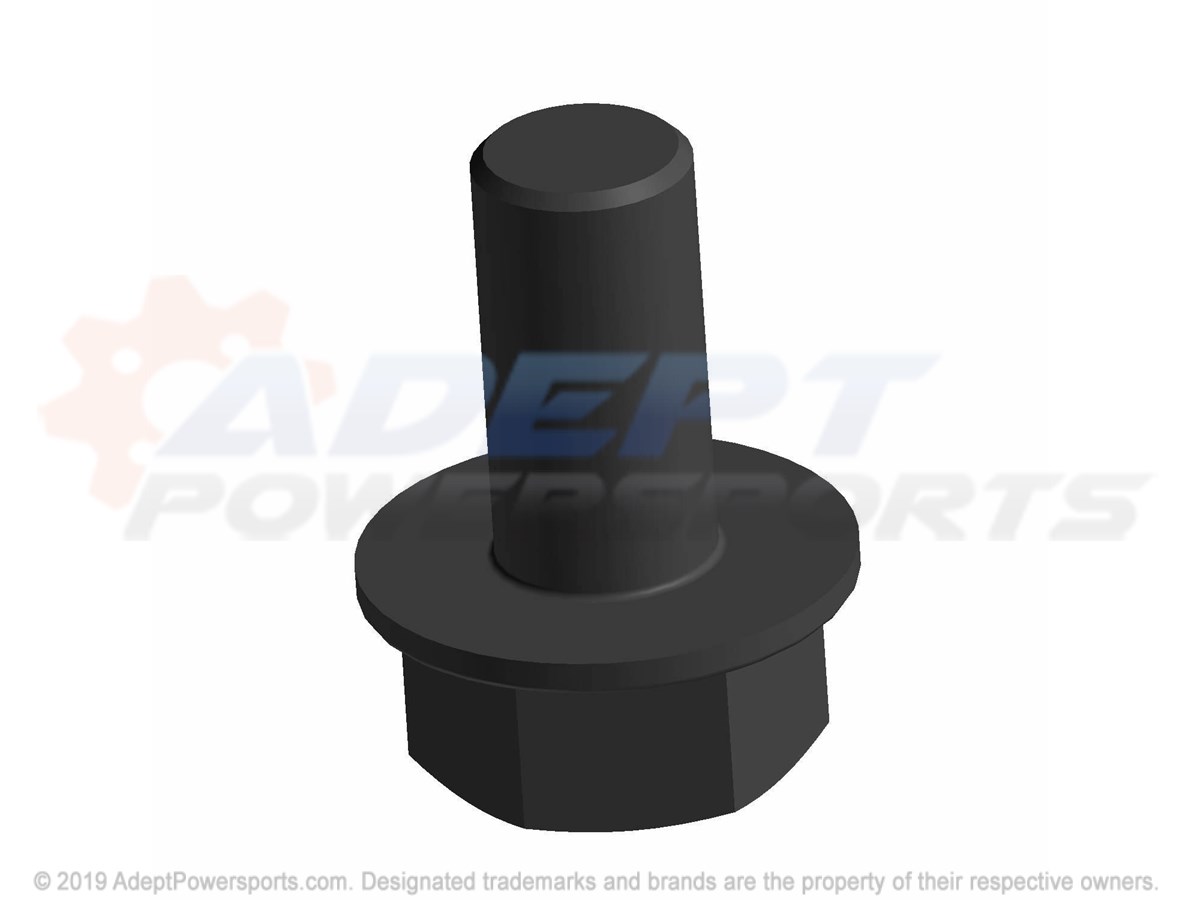

9	BOLT, FLANGE Part #: 7518563 Required per assembly: 2 Currently Not Available
10	BOLT Part #: 7518760 Required per assembly: 2 Note: Bolt Currently Not Available
11	SCREW Part #: 7519097 Required per assembly: 4 Currently Not Available
12	SCR-HXFL-M10X1.25X40 8.8 ZOD Part #: 7519332 Required per assembly: 6 Currently Not Available
13	BOLT Part #: 7519374 Required per assembly: 2 Currently Not Available
14	PALNUT Part #: 7547030 Required per assembly: 4 Currently Not Available
15	NUT, FLANGE Part #: 7547332 Required per assembly: 4 Note: Nut, Nylok Currently Not Available
16	NUT, FLANGE Part #: 7547333 Required per assembly: 7 Note: M10 x 1.25 $3.74 $2.23 - + Add to cart

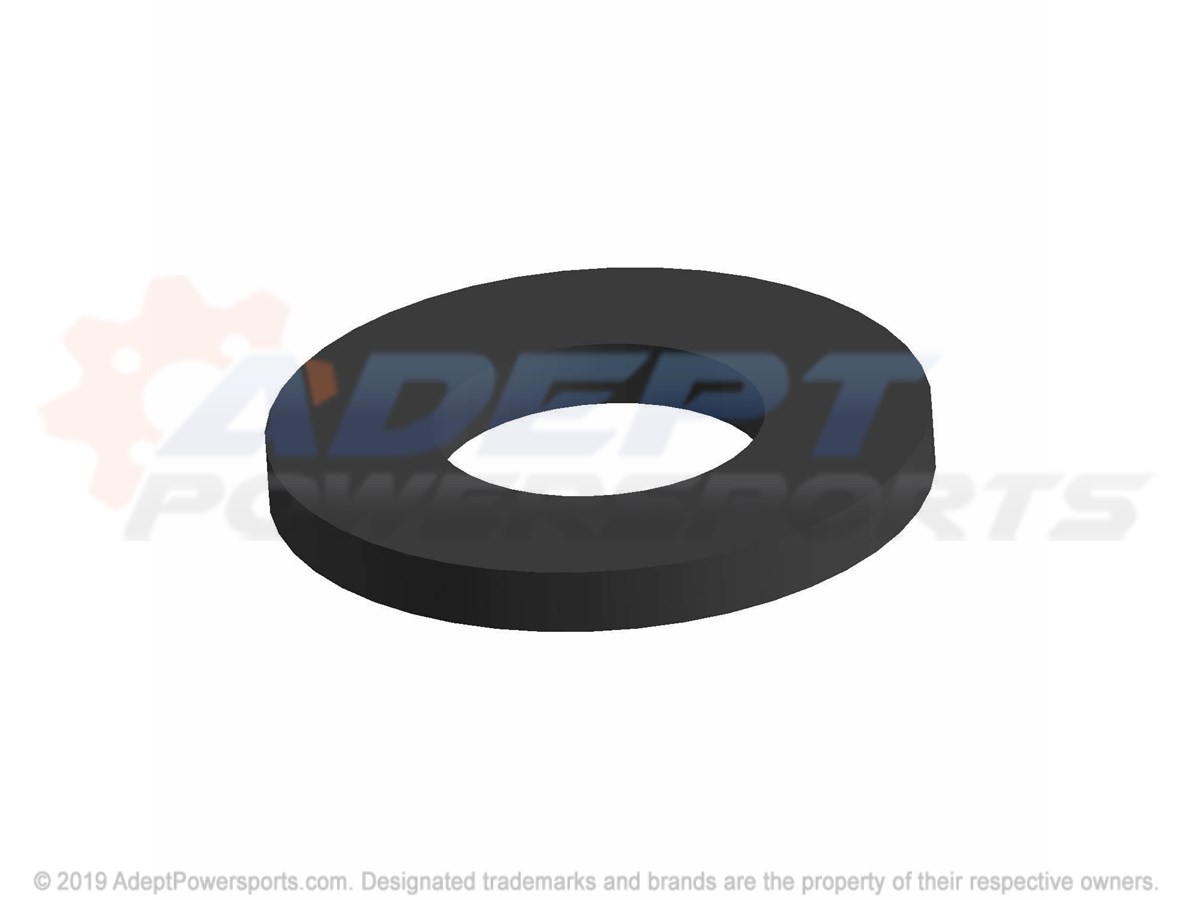

17	WSHR-FL, 8X1.6, ZINC Part #: 7556245 Required per assembly: 3 Currently Not Available
18	LINE-VENT, STARTER Part #: 8450218 Required per assembly: 1 Currently Not Available
19	MOUNT, ENGINE, BLACK Part #: 1018333-329 Required per assembly: 1 $174.99 $99.22 - + Add to cart
20	BRKT-STAY, CABLE, THROTTLE Part #: 5268543 Required per assembly: 1 Currently Not Available
21	SCREW Part #: 7518925 Required per assembly: 2 Currently Not Available
22	SCR-HXFL-M8X1.25X16 8.8 ZPC Part #: 7519005 Required per assembly: 1 Currently Not Available

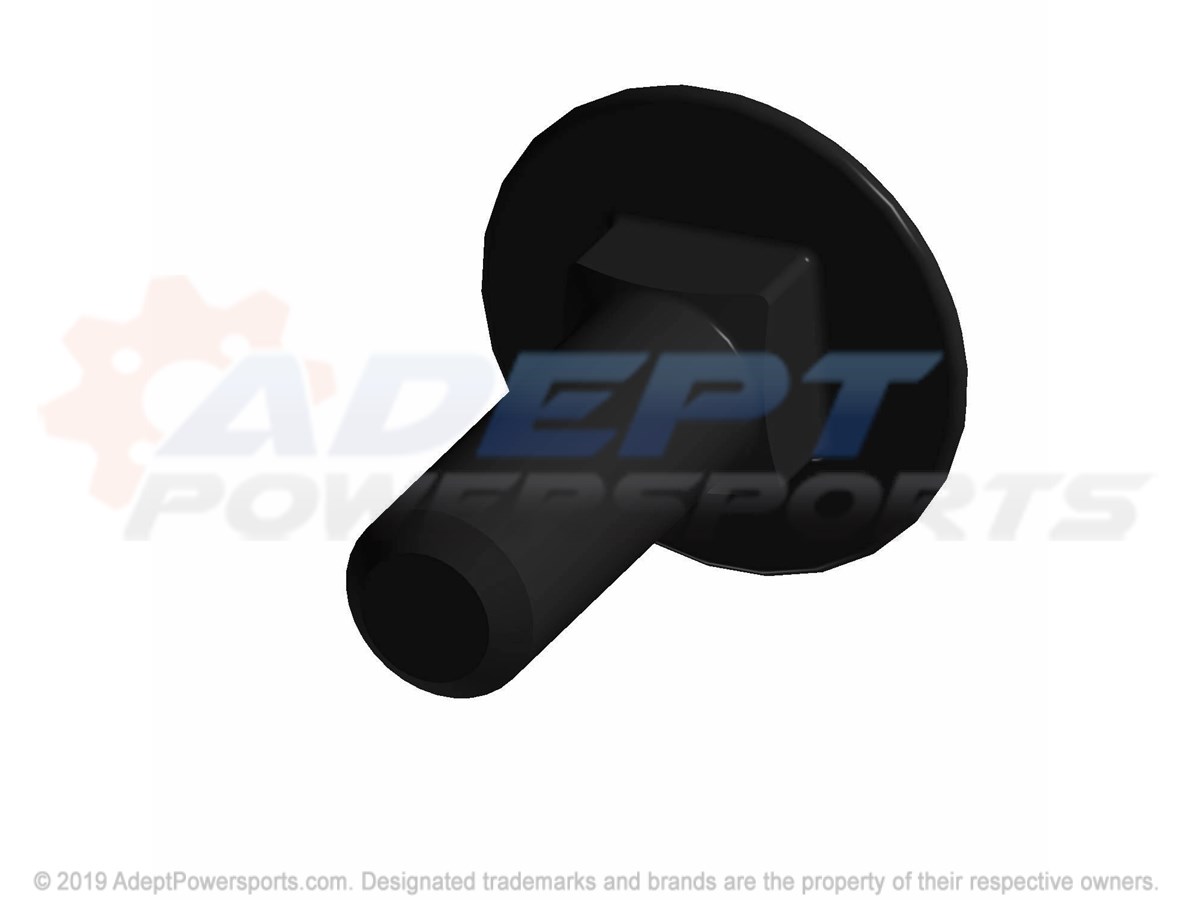

23	SCR-RHCAR-M8X1.25X25 10.9 ZB3 Part #: 7520298 Required per assembly: 1 Currently Not Available
24	LOCK WASHER Part #: 7552801 Required per assembly: 2 $3.99 $2.30 - + Add to cart
