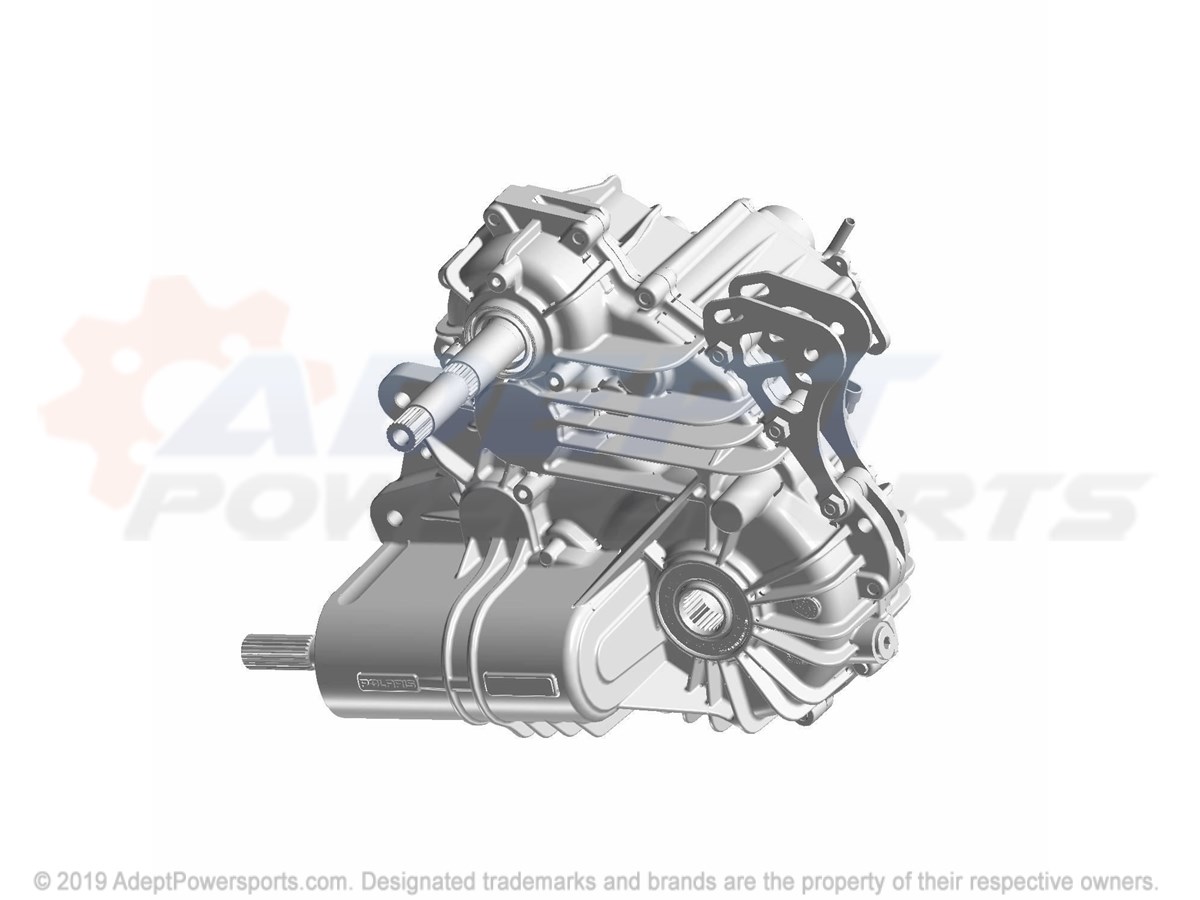

MAIN GEARCASE MOUNTING - Z19VDE99AD/BD/LD/AK/BK/AN/BN/L99AC/BC/M99AL/R99AK/BK/K99AD/AK/AN/BD/BK/BN Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-GEARCASE, COMPLETE Part #: 1333694 Required per assembly: 1 Currently Not Available
1	ASM-GEARCASE, COMPLETE Part #: 1333536 Required per assembly: 1 Note: R99AK Currently Not Available
2	MOUNT, ISOLATOR Part #: 1333242 Required per assembly: 1 Currently Not Available
3	CLAMP, HOSE Part #: 7081432 Required per assembly: 1 Currently Not Available
4	BOLT, FLANGE Part #: 7518563 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 7519097 Required per assembly: 2 Currently Not Available
6	PALNUT Part #: 7547030 Required per assembly: 2 Currently Not Available
7	NUT, FLANGE Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
8	NUT, FLANGE Part #: 7547333 Required per assembly: 1 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
9	CLIP, ROUTING, .472, B.D., HINGED Part #: 7670116 Required per assembly: 2 Note: NOT ILLUSTRATED Currently Not Available
9	FUEL, LINE, 1/4"SAE, #30R7, 133CM Part #: 8450040-133 Required per assembly: 1 Note: M99AL Currently Not Available
9	VENT-TRANS, FORMED Part #: 2521771 Required per assembly: 1 Currently Not Available
10	FITTING-VENT, LINE, 90 Part #: 5454069 Required per assembly: 1 Currently Not Available
10	FITTING-VENT, LINE, 90 Part #: 5453464 Required per assembly: 1 Note: EXCLUDING M99AL Currently Not Available
11	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 1 Note: Cable Tie Currently Not Available
