Rear - Z19vdr99ak/Bk replacement parts for 2019 Polaris RZR XP1000

OEM Parts Polaris 2019 Polaris RZR XP1000 Rear - Z19vdr99ak/Bk

REAR - Z19VDR99AK/BK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	VALVE-RIM Part #: 1521982 Required per assembly: 2 Currently Not Available
2	TIRE-30X10R14, CRAWLERXG, PA Part #: 5415616 Required per assembly: 2 Currently Not Available
3	SCR-HEXFLG, M8X30, ZPB, 0600086 Part #: 7518884 Required per assembly: 36 Currently Not Available
4	NUT, WHEEL Part #: 7547489 Required per assembly: 8 Currently Not Available
5	RIM-BDLK, 14X8, CAST, 63.5, FB Part #: 1522807-655 Required per assembly: 2 Currently Not Available

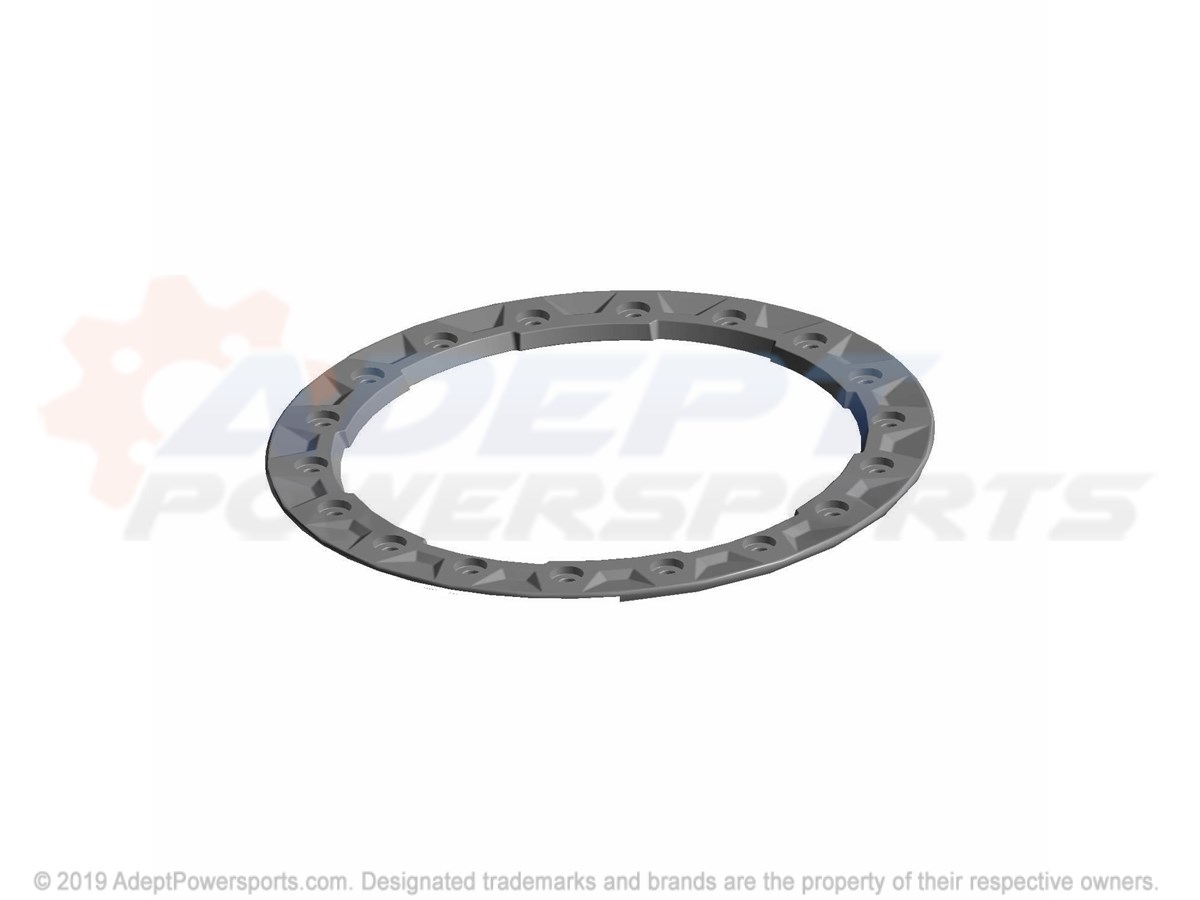

6	RING-14", BDLCK, CAST, BRONZE Part #: 1522789-768 Required per assembly: 2 Currently Not Available
7	CAP-RIM, BLK Part #: 1522853-655 Required per assembly: 2 Currently Not Available
