Box Harness, Reg, Relay replacement parts for 2019 Polaris RZR 570 (R02)

OEM Parts Polaris 2019 Polaris RZR 570 (R02) Box Harness, Reg, Relay

BOX HARNESS, REG, RELAY Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

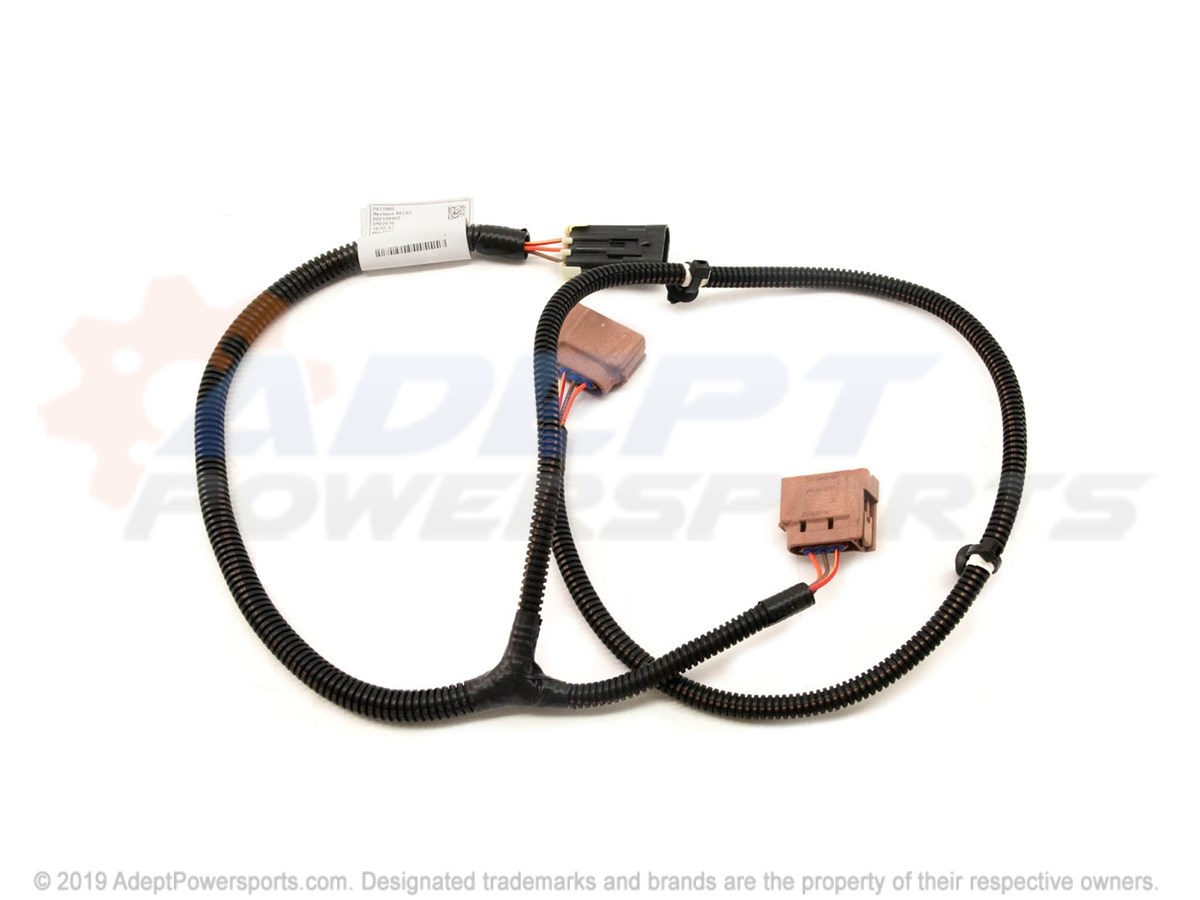

1	HARNESS-BOX Part #: 2411805 Required per assembly: 1 Currently Not Available
2	REGULATOR-3PH, 50A, SERIES, HISPD Part #: 4016868 Required per assembly: 1 Currently Not Available
3	SCR-TFHFL-M6X1.0X25 ZOD Part #: 7519342 Required per assembly: 2 ~~$4.04~~ $2.91 - + Add to cart
4	NUT, FLANGE Part #: 7547339 Required per assembly: 3 Currently Not Available
5	STRAP PANDUIT Part #: 7080138 ~~$1.99~~ $1.15 - + Add to cart
6	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 4 Note: Cable Tie Currently Not Available
7	CLIP-ROUTING Part #: 7081496 Required per assembly: 7 Currently Not Available
8	RIVET Part #: 7661855 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart

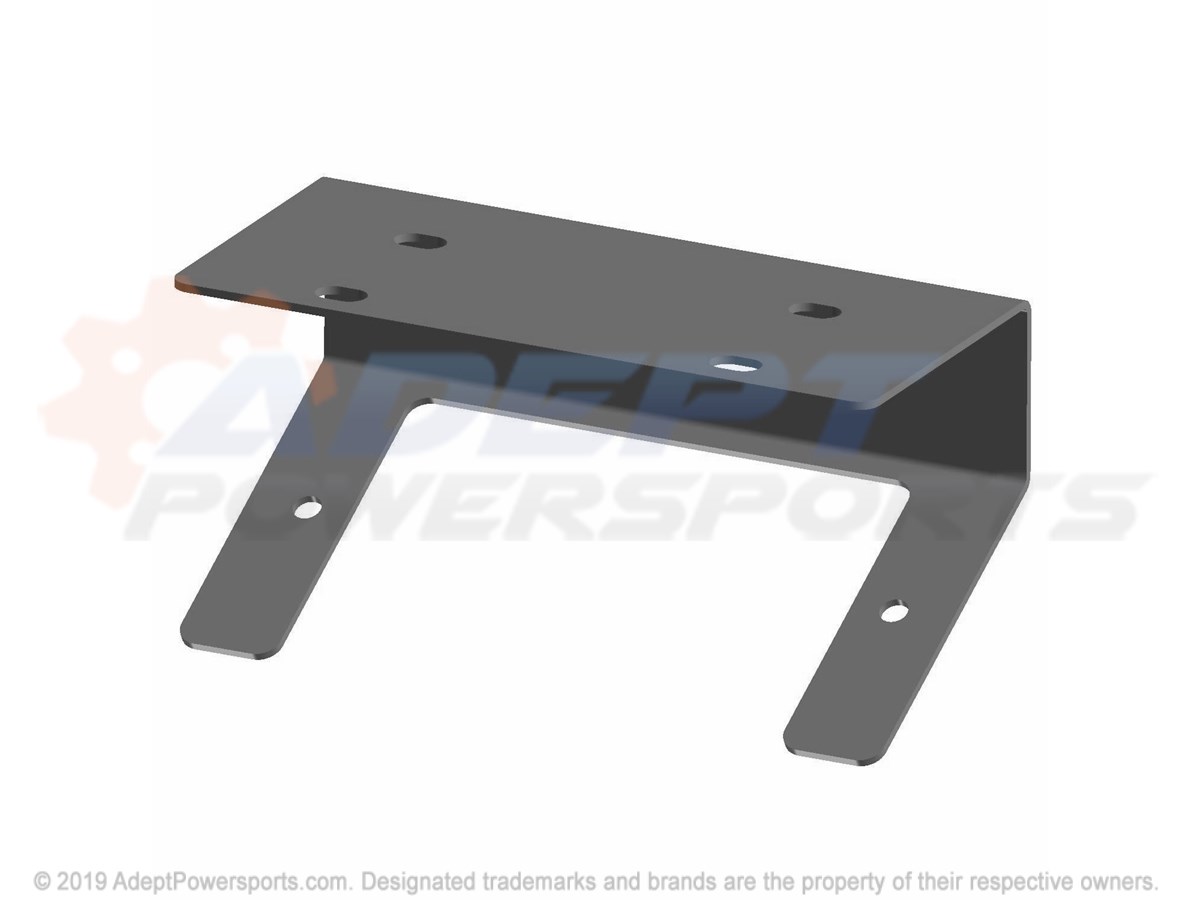

9	BRKT-RELAY, MOUNT, E-COAT Part #: 5262824-329 Required per assembly: 1 Currently Not Available
10	SCREW Part #: 7519121 Required per assembly: 2 Currently Not Available
11	RELAY, SOLID, STATE, 9, AMP Part #: 4012829 Required per assembly: 1 Note: BM Currently Not Available
12	SCREW Part #: 7519257 Required per assembly: 1 Note: BM Currently Not Available
13	SPACER Part #: 7556318 Required per assembly: 1 Note: BM Currently Not Available
