OEM Parts Polaris 2019 Polaris RZR 570 (R02) Rear Shock Mounting

2019 Polaris RZR 570 (R02) Z19VHA57B2/E57BM - Rear Shock Mounting

REAR SHOCK MOUNTING Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7044093 Shock, Rear

SHOCK, REAR

Part #: 7044093 Required per assembly: 2
Currently Not Available
2

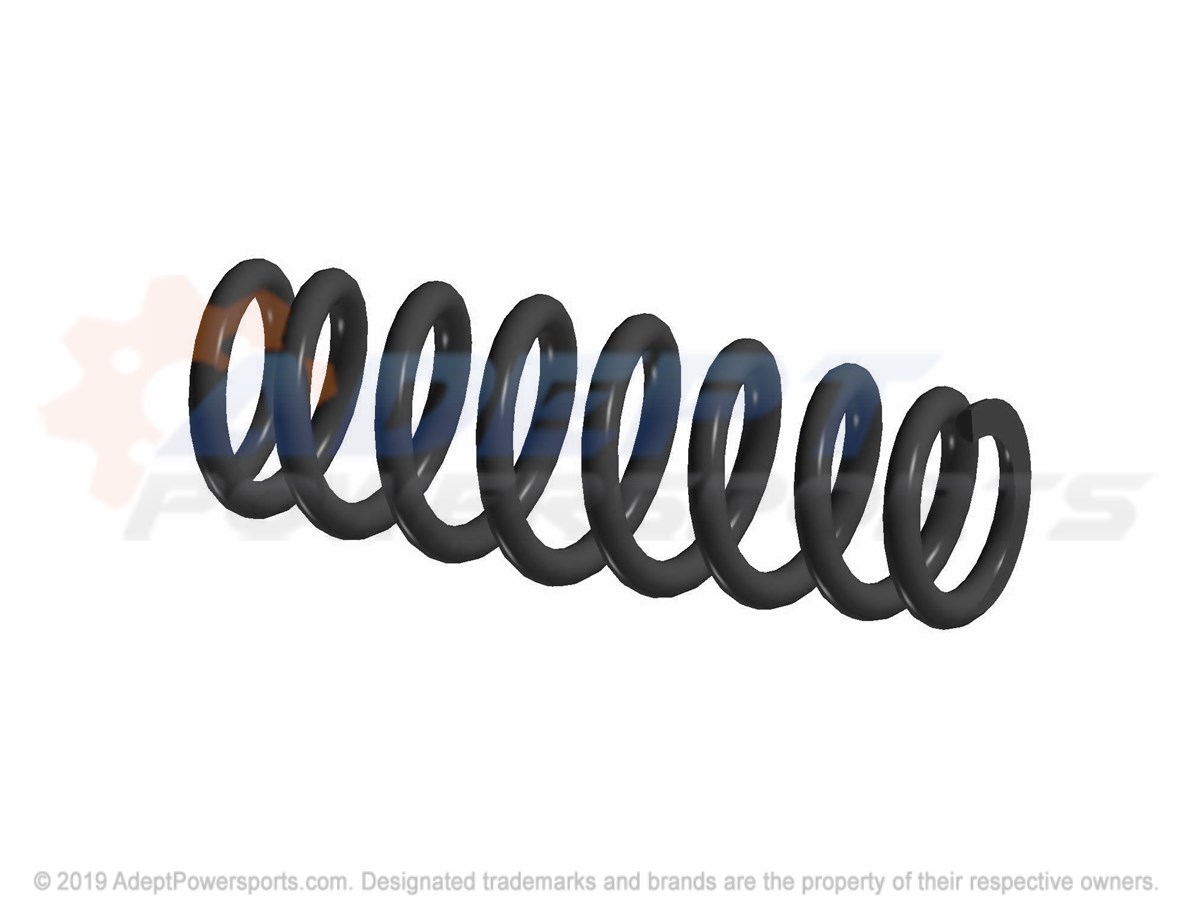

Polaris 7044054-293 Spring-330#, 10.8Fl, I.Red

SPRING-330#, 10.8FL, I.RED

Part #: 7044054-293 Required per assembly: 2 Note: B2
Currently Not Available
2

SPRING-330#, 10.8FL, BLK

Part #: 7045572-458 Required per assembly: 2 Note: BM
Currently Not Available
3

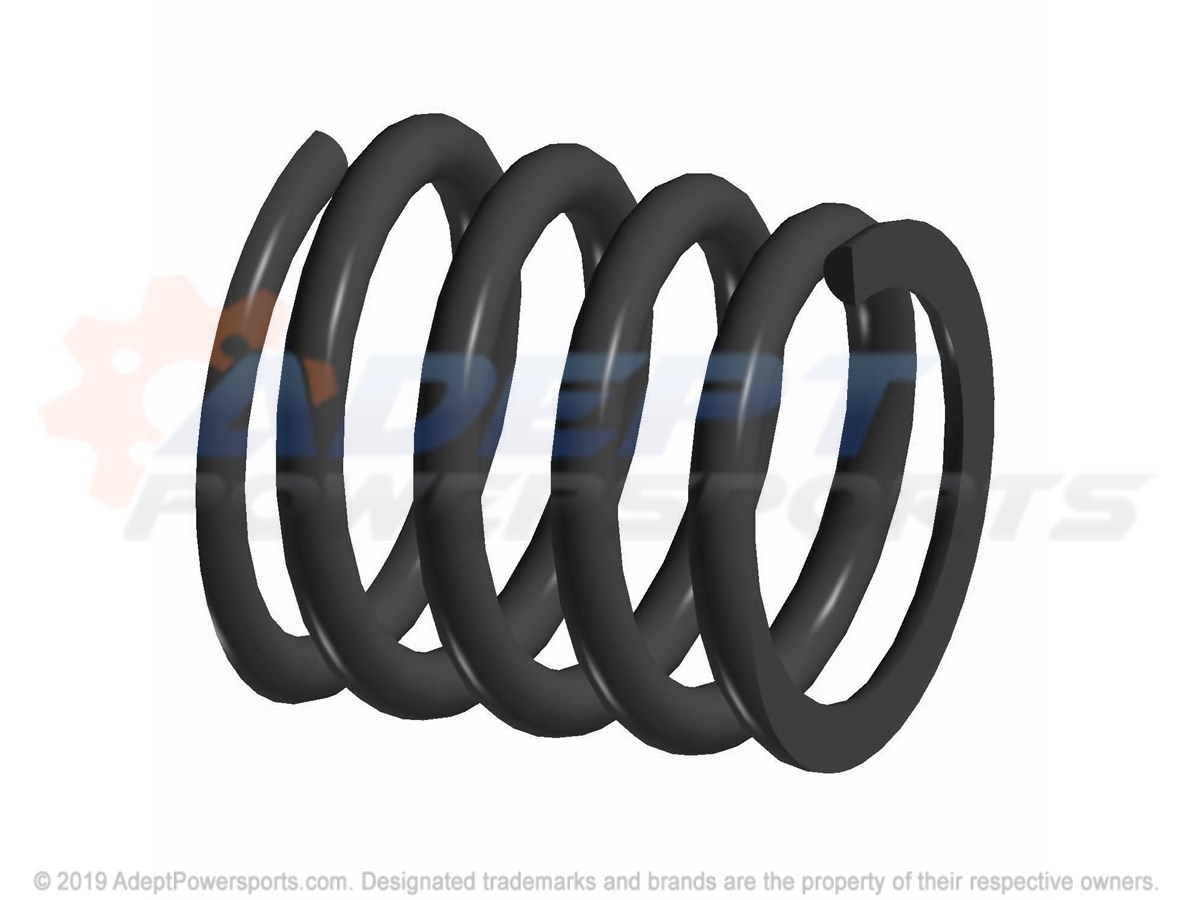

Polaris 7044158-293 Spr-300#, 2.9Fl, 2.06-2.3Id, I.Rd

SPR-300#, 2.9FL, 2.06-2.3ID, I.RD

Part #: 7044158-293 Required per assembly: 2 Note: B2
Currently Not Available
3
Polaris 7044158-458 Spring, Matte, Black

SPRING, MATTE, BLACK

Part #: 7044158-458 Required per assembly: 2 Note: BM
Currently Not Available
4
Polaris 5253768 Cam-Adjusting Spring Steel

CAM-ADJUSTING SPRING STEEL

Part #: 5253768 Required per assembly: 2
Currently Not Available
5
Polaris 5438839 Spacer-Spring Nylon 2"

SPACER-SPRING NYLON 2"

Part #: 5438839 Required per assembly: 2
Currently Not Available
6
Polaris 5251753 Retainer, Spring

RETAINER, SPRING

Part #: 5251753 Required per assembly: 2
Currently Not Available
7

SCREW

Part #: 7518610 Required per assembly: 2 Note: Bolt, Flange
Currently Not Available
8
Polaris 7519285 Scr-Hxfl-M10x1.25X55 10.9 Zod

SCR-HXFL-M10X1.25X55 10.9 ZOD

Part #: 7519285 Required per assembly: 2
Currently Not Available
9
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
