Battery replacement parts for 2020 Polaris Sportsman XP 1000 S 55" (R05)

OEM Parts Polaris 2020 Polaris Sportsman XP 1000 S 55" (R05) Battery

BATTERY Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CABLE-BATTERY/SOLENOID Part #: 4018146 Required per assembly: 1 Currently Not Available
2	SCREW Part #: 7518529 Required per assembly: 1 ~~$2.99~~ $1.73 - + Add to cart

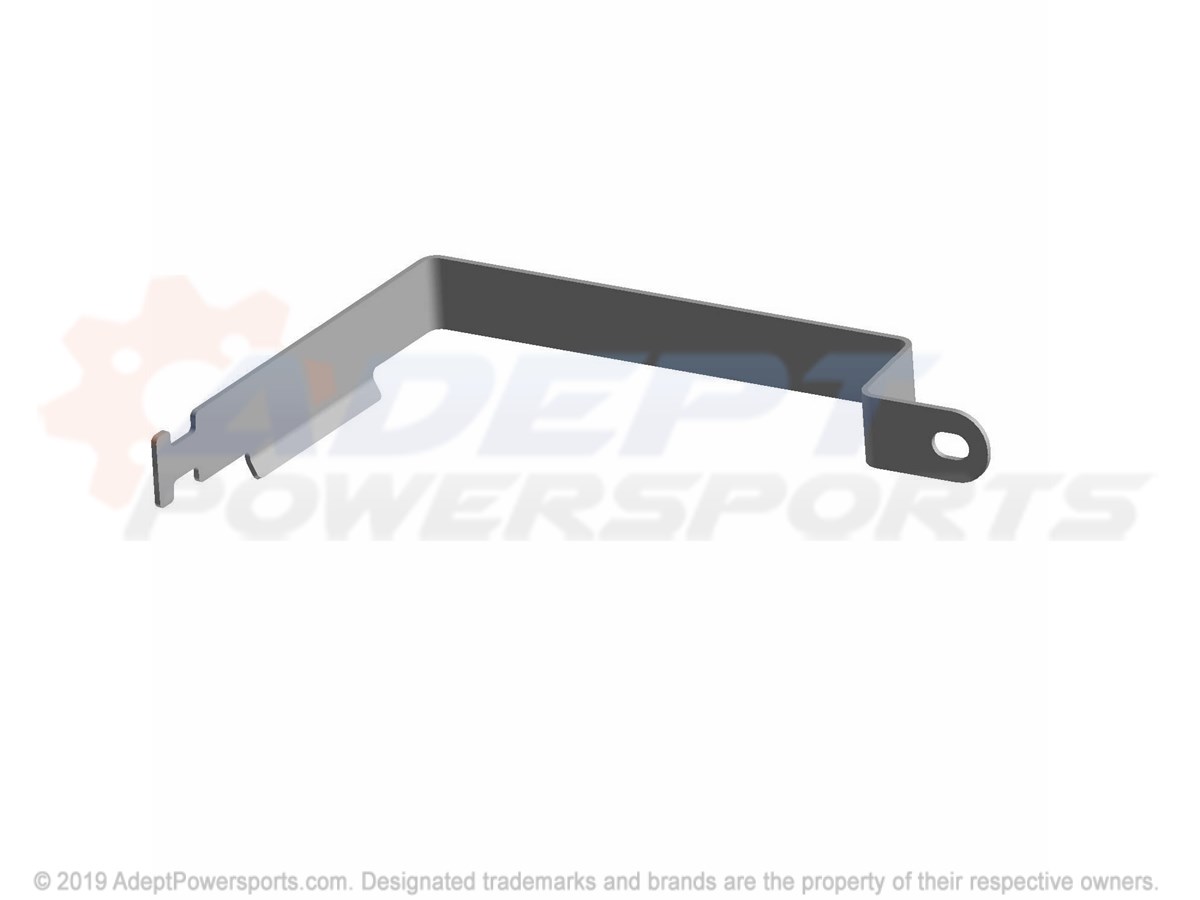

3	BRKT-BATTERY, STRAP, 30A-H, ATV Part #: 5268020 Required per assembly: 1 Currently Not Available
4	BATTERY-30AH, 12, VOLT, AGM Part #: 4014609 Required per assembly: 1 Currently Not Available
5	COVER, BATTERY Part #: 5438299 Required per assembly: 1 Currently Not Available
6	KIT, BATTERY, BOLT Part #: 2201357 Required per assembly: 1 Currently Not Available
7	PAD-FOAM, SHIM, TRUNK Part #: 5413465 Required per assembly: 2 Currently Not Available
8	CABLE-NEGATIVE Part #: 4018144 Required per assembly: 1 Currently Not Available
9	NUT Part #: 7547274 Required per assembly: 1 Note: Nut, Flange Currently Not Available
10	SCREW Part #: 7519145 Required per assembly: 1 Currently Not Available
11	STUD Part #: 7519333 Required per assembly: 1 Currently Not Available
12	CABLE-NEGATIVE Part #: 4018145 Required per assembly: 1 Currently Not Available
13	STRAP PANDUIT Part #: 7080138 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
14	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 1 Note: Cable Tie Currently Not Available
15	NUT, FLANGE Part #: 7547317 Required per assembly: 1 Currently Not Available
16	CLIP-ROUTING Part #: 7081496 Required per assembly: 1 Currently Not Available
