Cooling System replacement parts for 2020 Polaris Sportsman XP 1000 S 55" (R05)

OEM Parts Polaris 2020 Polaris Sportsman XP 1000 S 55" (R05) Cooling System

COOLING SYSTEM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FOAM-COOLANT, 85MM Part #: 5814822-85 Required per assembly: 1 Currently Not Available

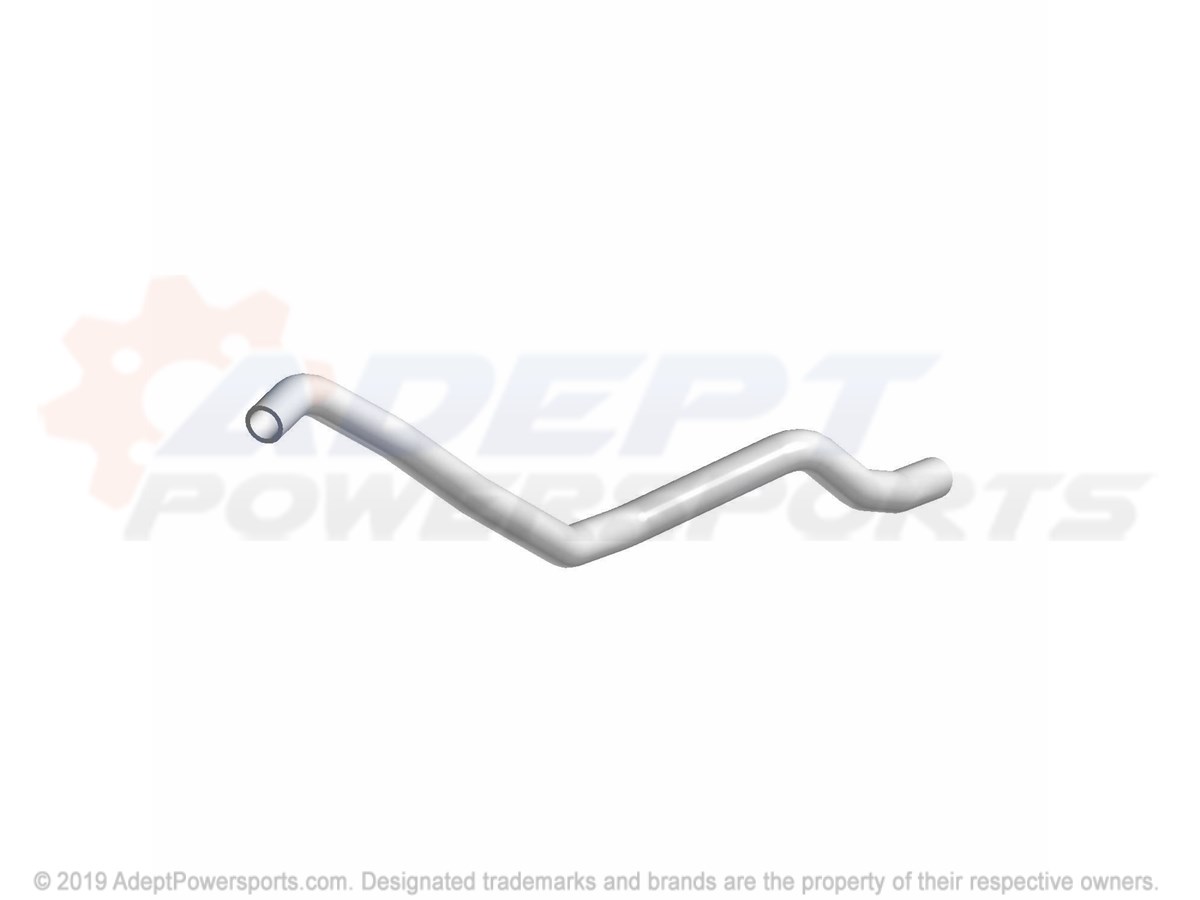

1	HOSE-RADIATOR, ENGINE, OUT, 25MM Part #: 5416687 Required per assembly: 1 Currently Not Available
1	ASM-COOLANT, SUPPLY Part #: 1241351 Required per assembly: 1 Note: INCL. HOSE, FOAM Currently Not Available
2	FOAM-COOLANT, 105MM Part #: 5814822-105 Required per assembly: 1 Currently Not Available

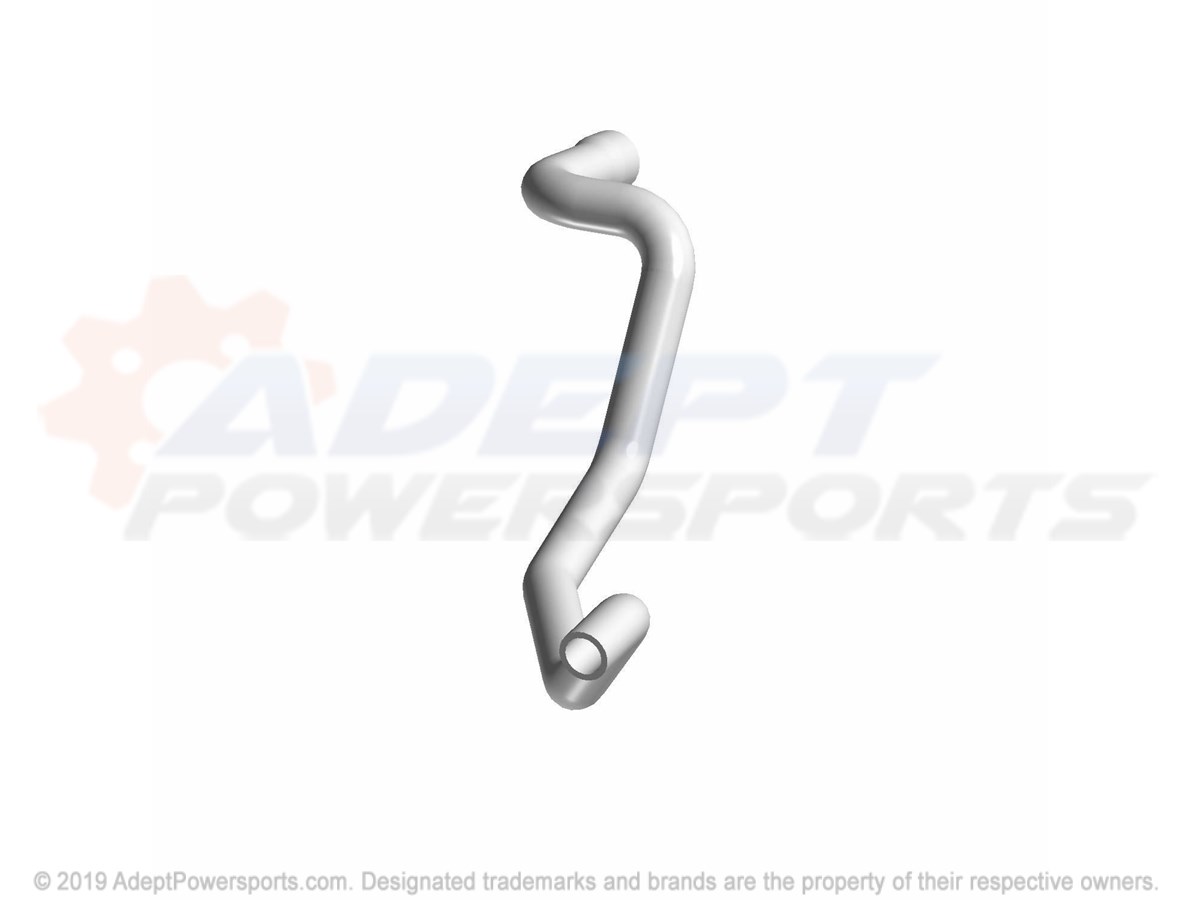

2	HOSE-RADIATOR, ENGINE, IN, 25MM Part #: 5416686 Required per assembly: 1 Currently Not Available
2	ASM-COOLANT, RETURN Part #: 1241350 Required per assembly: 1 Note: INCL. HOSE, FOAM Currently Not Available

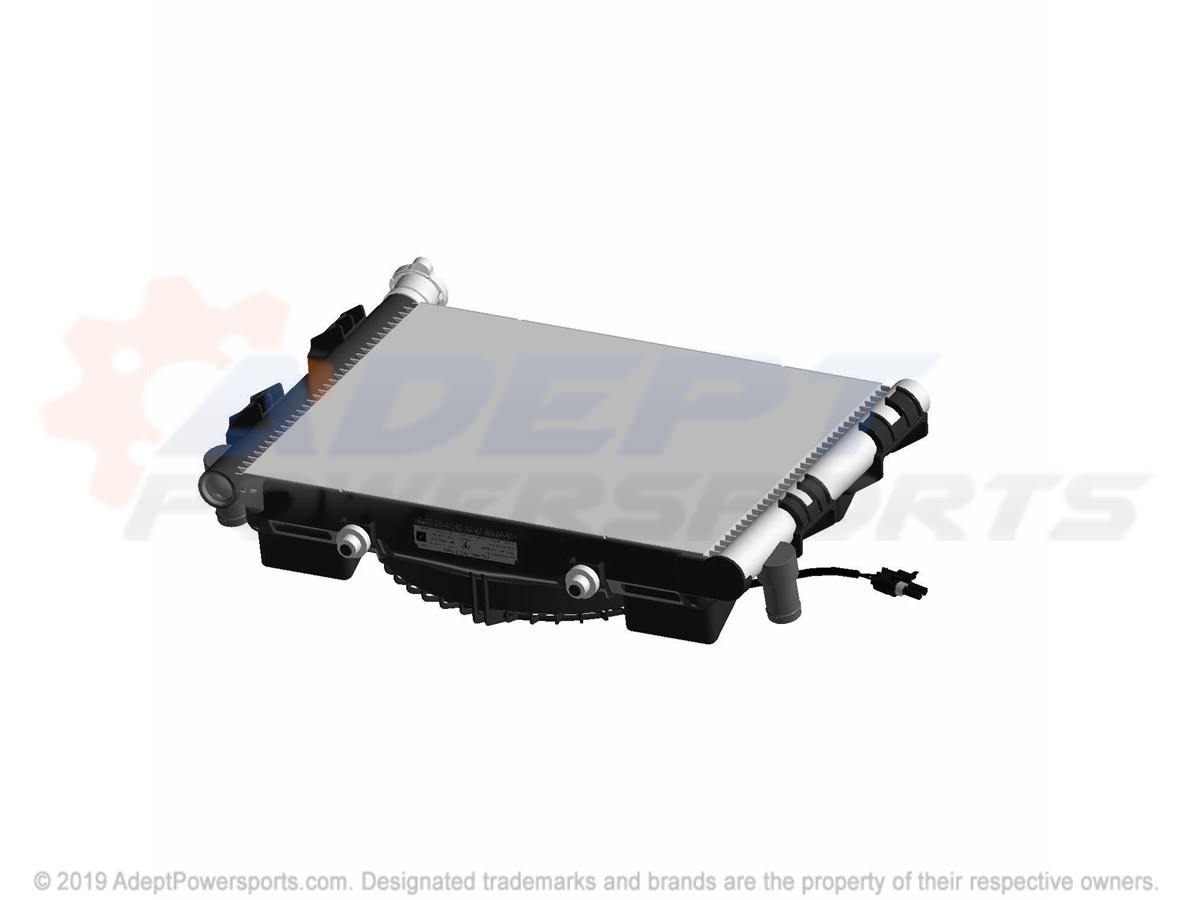

3	ASM-RADIATOR, WL, LED Part #: 1241448 Required per assembly: 1 Note: INCL. RADIATOR, CAP, FAN Currently Not Available

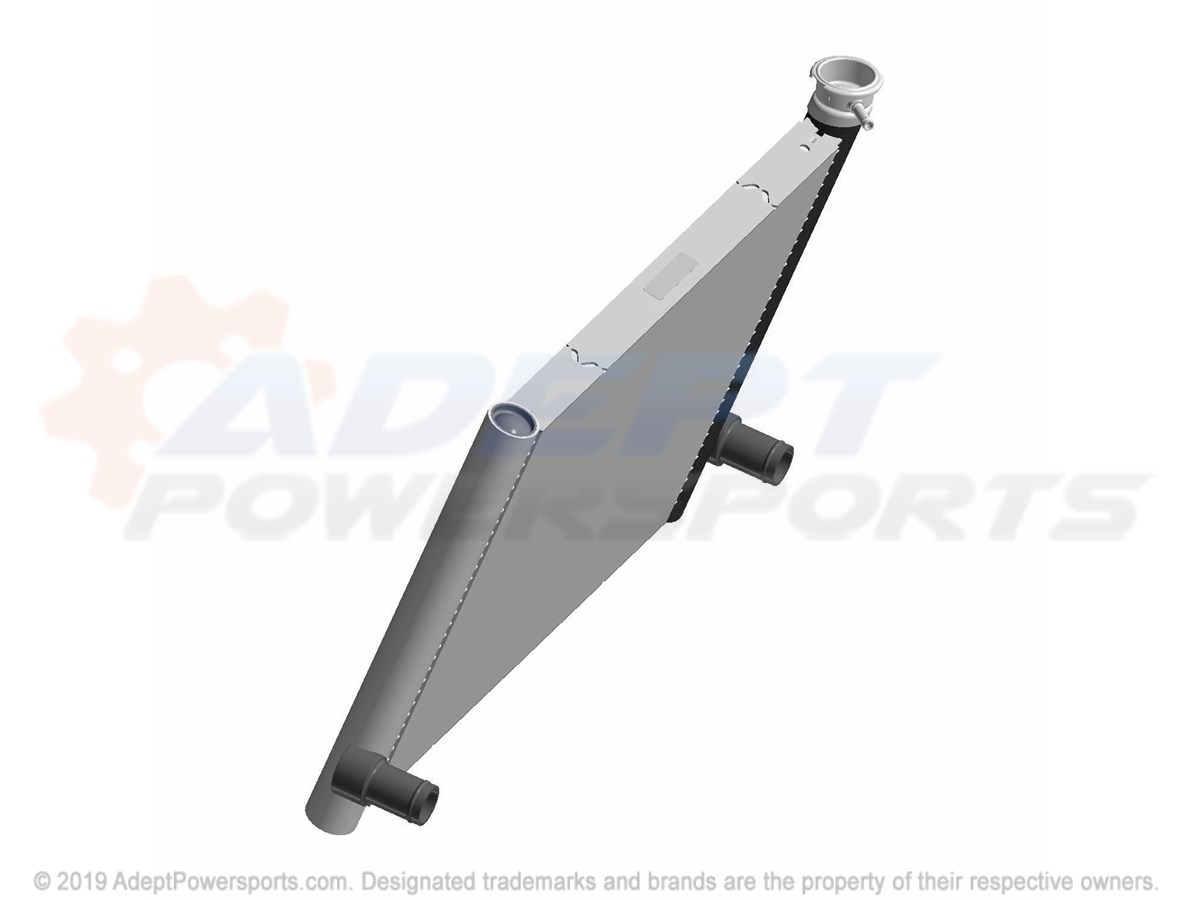

3	RADIATOR Part #: 1241264 Required per assembly: 1 Currently Not Available
4	CLAMP, SPRINGBAND Part #: 7080844 Required per assembly: 1 Currently Not Available
5	NUT Part #: 7547274 Required per assembly: 2 Note: Nut, Flange Currently Not Available
6	SCR-HXFL-M6X1.0X30 RIE DGPNT Part #: 7519202 Required per assembly: 2 Currently Not Available
7	CLAMP, SPRINGBAND Part #: 7080843 Required per assembly: 2 Note: Clamp, Spring Band Sold in multiples of 10 only Currently Not Available
8	CLAMP, HOSE Part #: 7081192 Required per assembly: 1 Currently Not Available

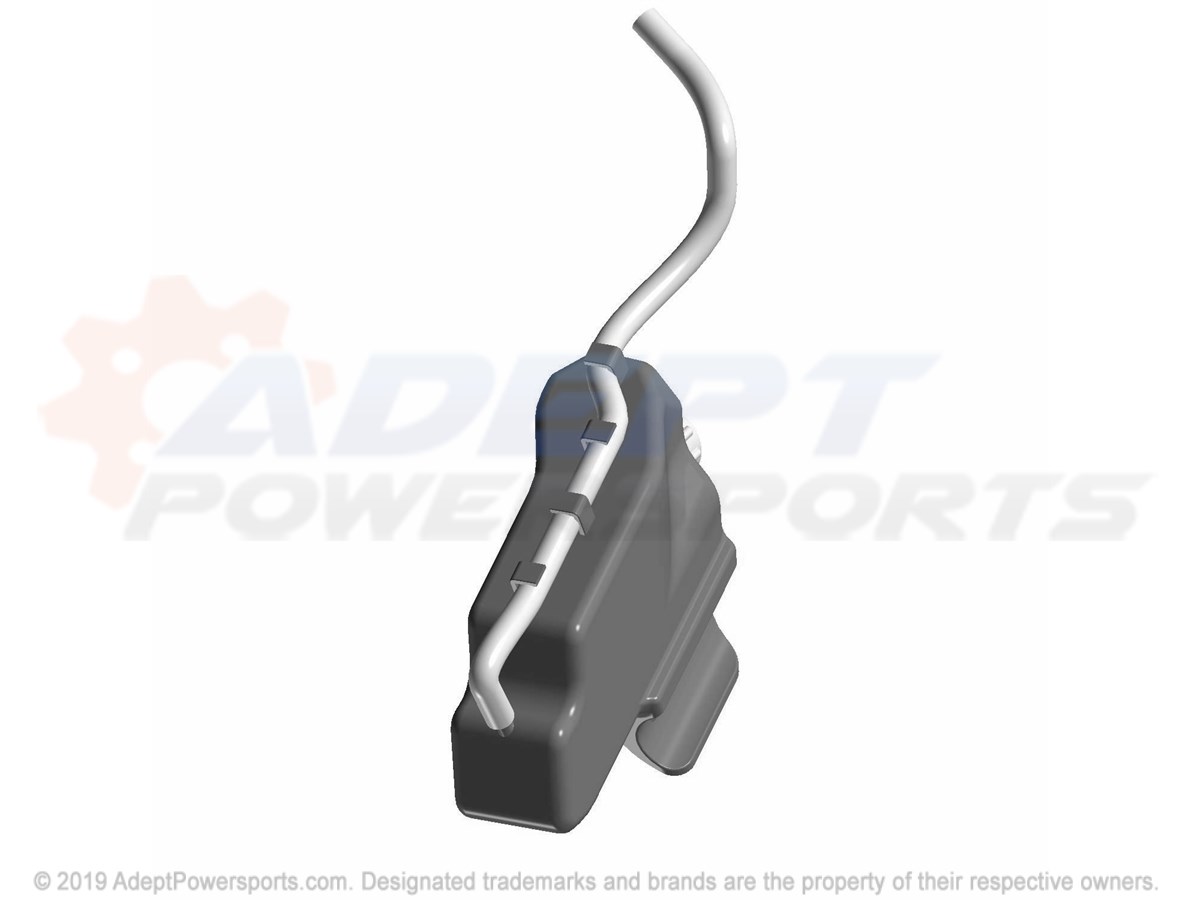

9	ASSEMBLY, BOTTLE, COOLANT, RECOVERY Part #: 1241323 Required per assembly: 1 Note: INCL. 9, 13-16,18 Currently Not Available

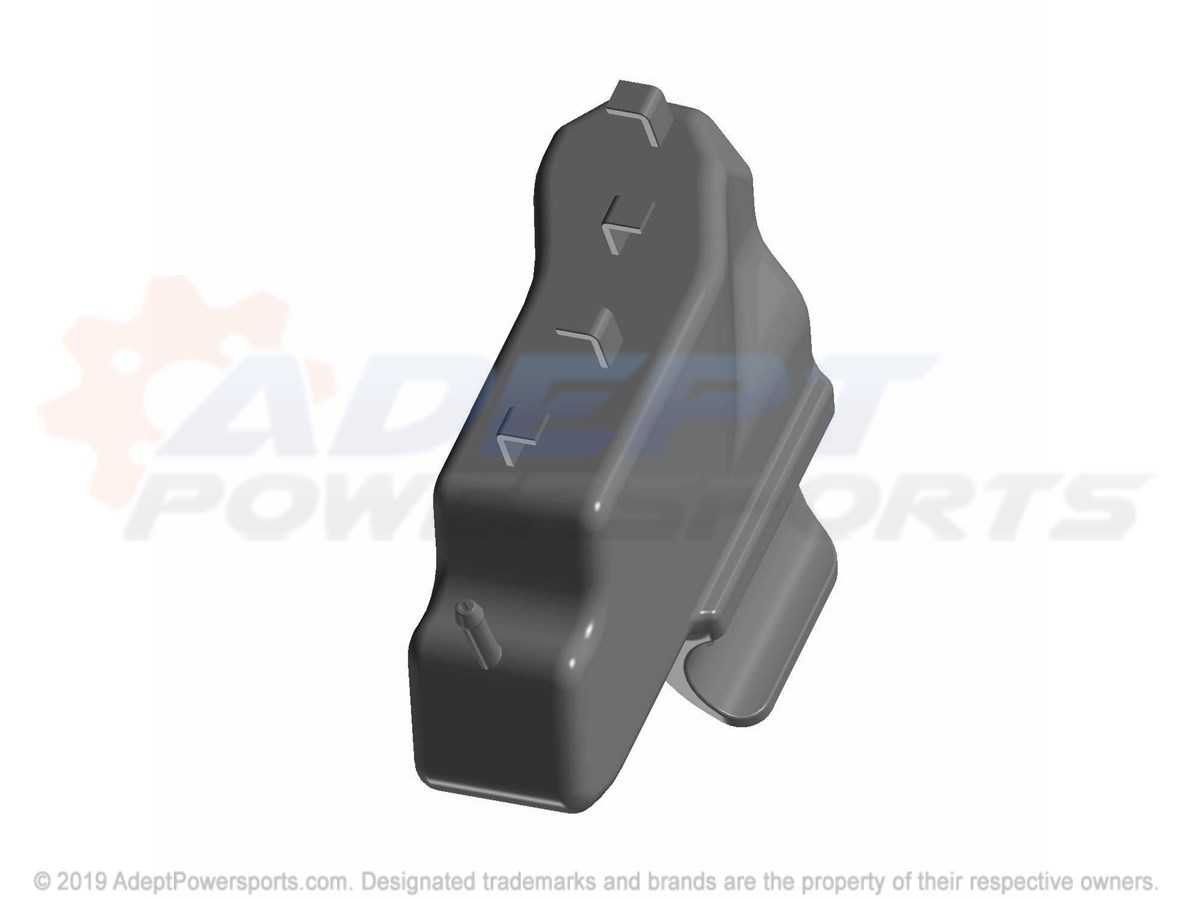

9	BOTTLE, COLLANT, RECOVERY Part #: 5455427 Required per assembly: 1 Currently Not Available
10	ASSEMBLY, GROMMET, AND, INSERT Part #: 5413509 Required per assembly: 2 Currently Not Available
11	CAP, PRESSURE Part #: 1240466 Required per assembly: 1 Currently Not Available
12	GROMMET, RADIATOR, MOUNT, LOWER Part #: 5413510 Required per assembly: 2 Currently Not Available
13	CAP, OVERFLOW, BOTTLE, W/FITTING Part #: 5437635 Required per assembly: 1 Currently Not Available
14	GASKET Part #: 5810279 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
15	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap ~~$4.79~~ $2.92 - + Add to cart
16	FAN-12", RING, SHROUD, LED Part #: 2415280 Required per assembly: 1 Currently Not Available

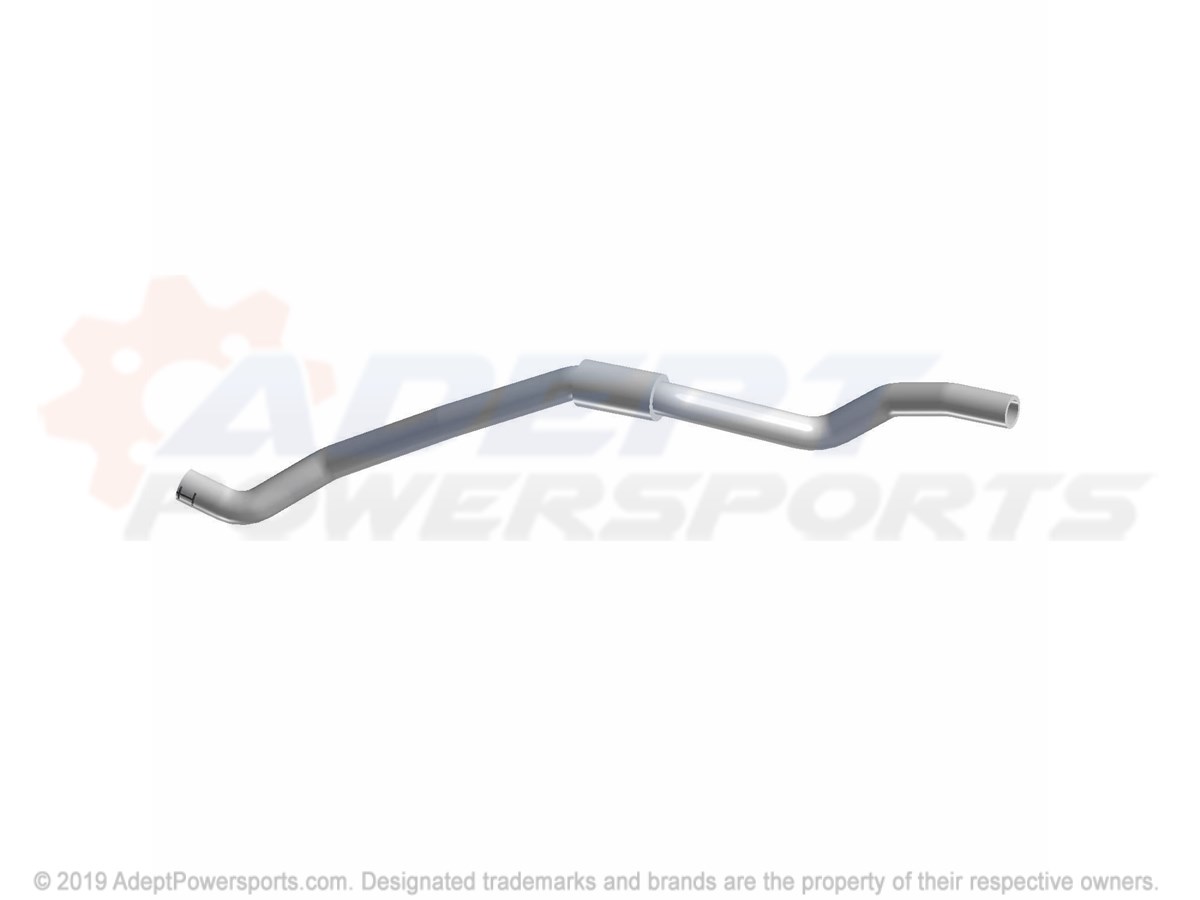

17	HOSE Part #: 8450120-600 Required per assembly: 1 Currently Not Available
18	STRAP-CABLE TIE W/EDGE CLIP Part #: 7081808 Required per assembly: 1 Currently Not Available
19	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
20	HOSE-POLY, CLEAR, 3/16, OD, 1/8, ID Part #: 8360009-52 Required per assembly: 1 Currently Not Available
