OEM Parts Polaris 2020 Polaris Scrambler 850 48" (R04) Clutch Cover

2020 Polaris Scrambler 850 48" (R04) A20SVA85A3 - Clutch Cover

CLUTCH COVER Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

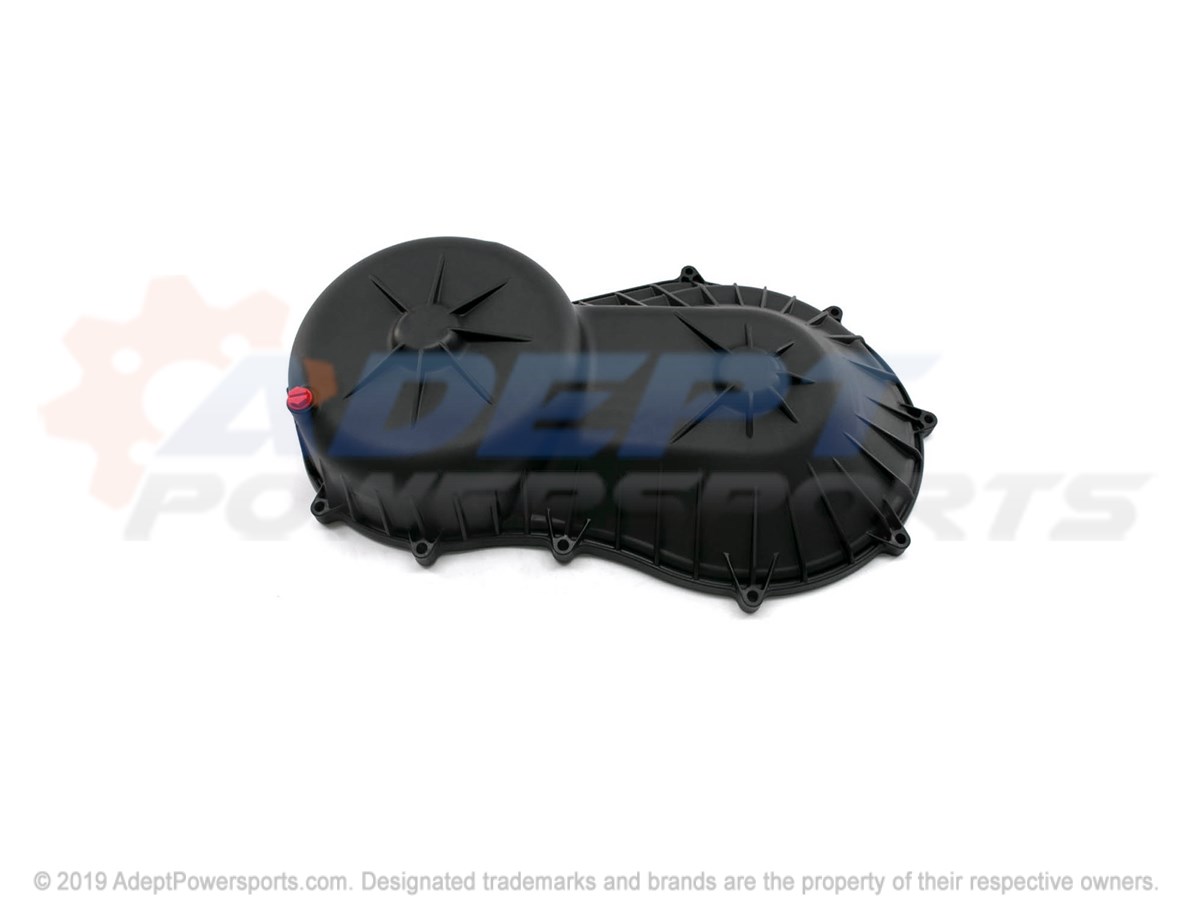

Polaris 2633919 Assembly, Cover, Outer

ASSEMBLY, COVER, OUTER

Part #: 2633919 Required per assembly: 1 Note: INCL. OUTER COVER,3,4
Currently Not Available
2

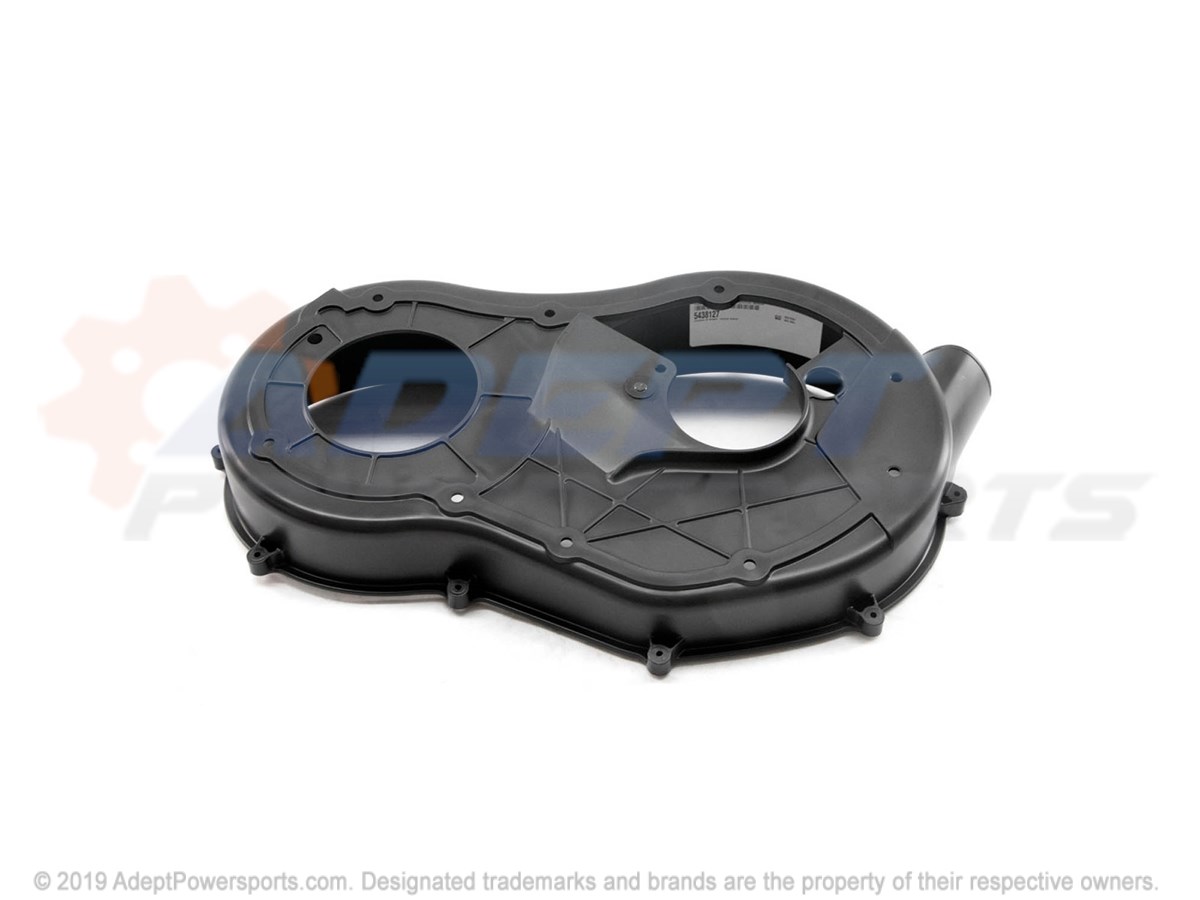

Polaris 5438127 Cover, Clutch, Inner

COVER, CLUTCH, INNER

Part #: 5438127 Required per assembly: 1
Currently Not Available
3

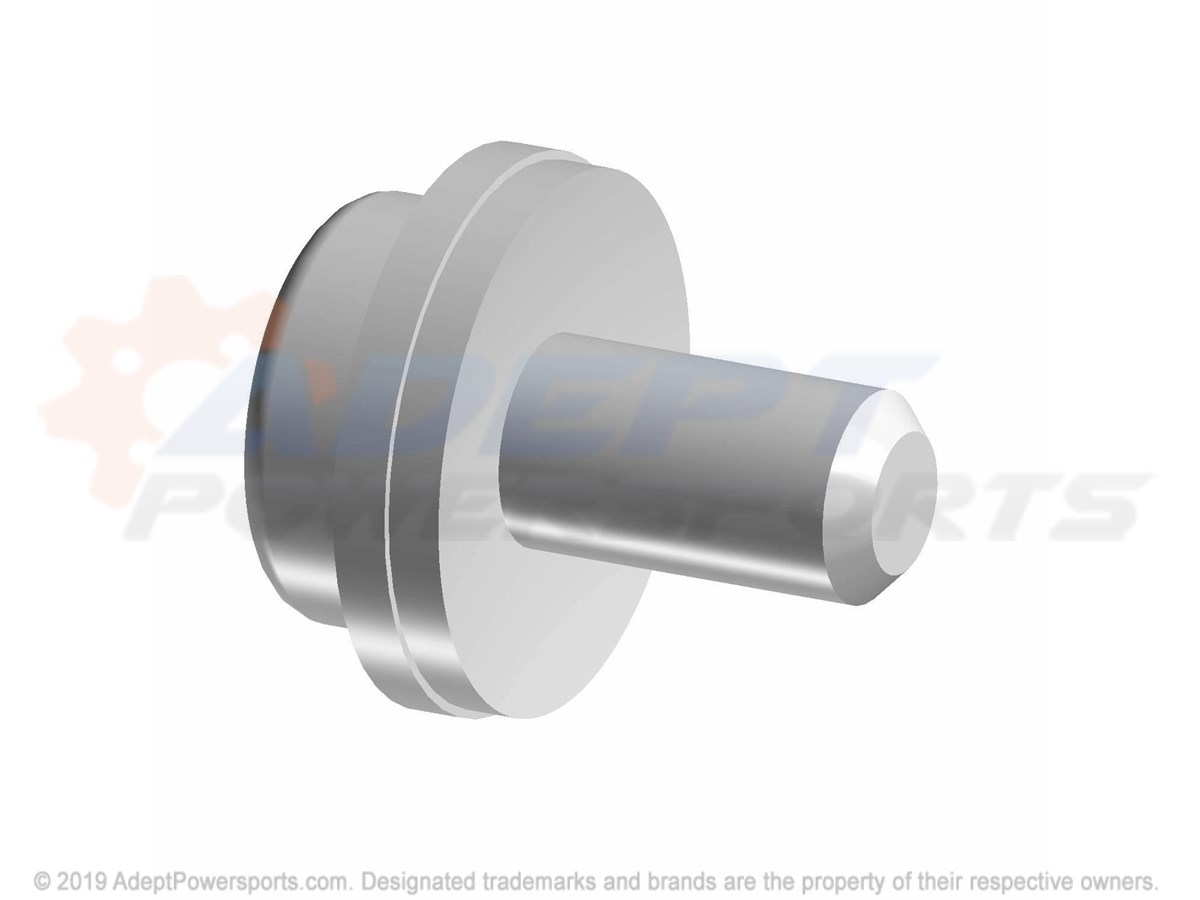

Polaris 5434264 Plug-Drain, Clutch, Cover

PLUG-DRAIN, CLUTCH, COVER

Part #: 5434264 Required per assembly: 1 Note: Plug, Drain
Currently Not Available
4

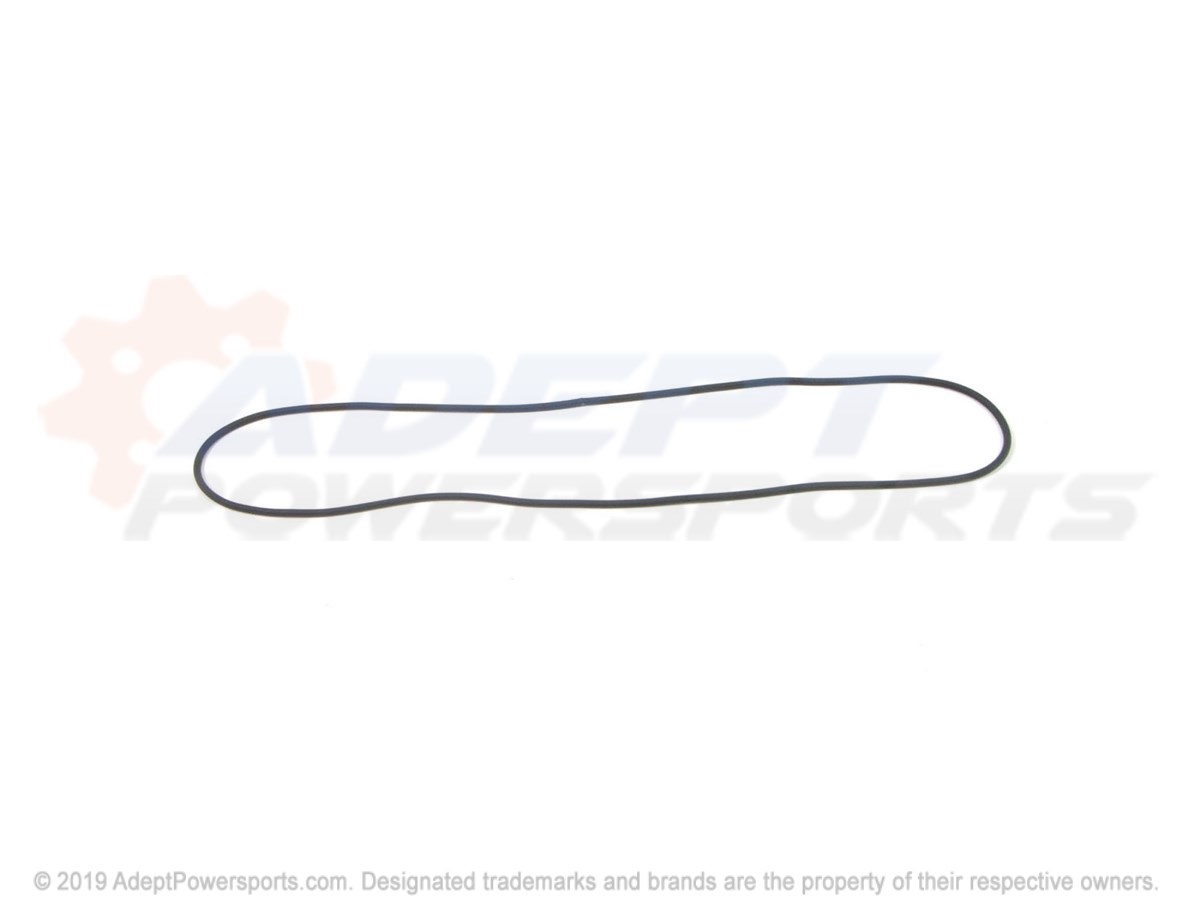

Polaris 5411432 O-Ring, Molded

O-RING, MOLDED

Part #: 5411432 Required per assembly: 1
$4.99
$2.92
-
+
Add to cart
5
Polaris 5526454 Seal-Cover, Clutch

SEAL-COVER, CLUTCH

Part #: 5526454 Required per assembly: 1
Currently Not Available
6
Polaris 7081279 Clamp, Narrow, Band

CLAMP, NARROW, BAND

Part #: 7081279 Required per assembly: 3
Currently Not Available
7
Polaris 7520472 Scr-M6x1.0X14, Pn/Tx

SCR-M6X1.0X14, PN/TX

Part #: 7520472 Required per assembly: 10
Currently Not Available
8

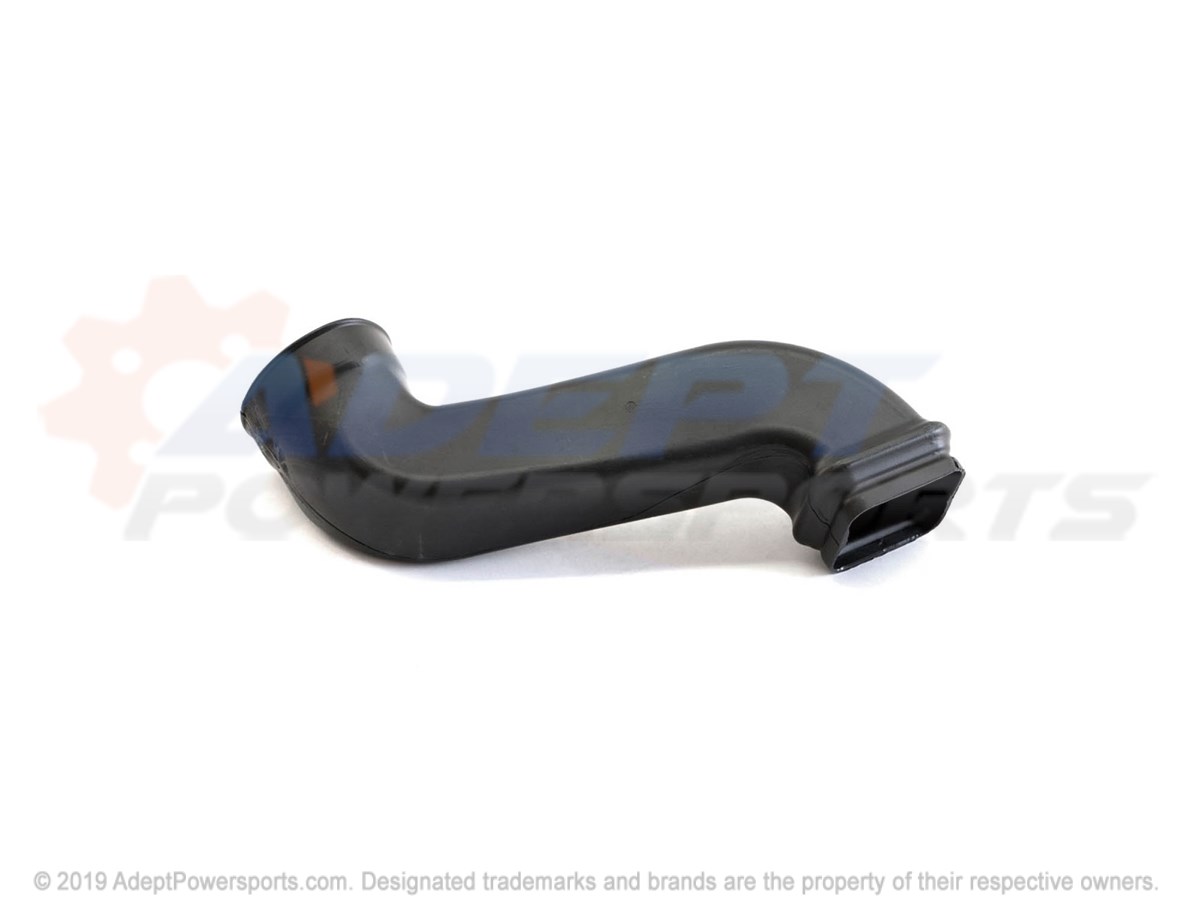

Polaris 5415566 Duct-Outlet, Clutch

DUCT-OUTLET, CLUTCH

Part #: 5415566 Required per assembly: 1
Currently Not Available
9

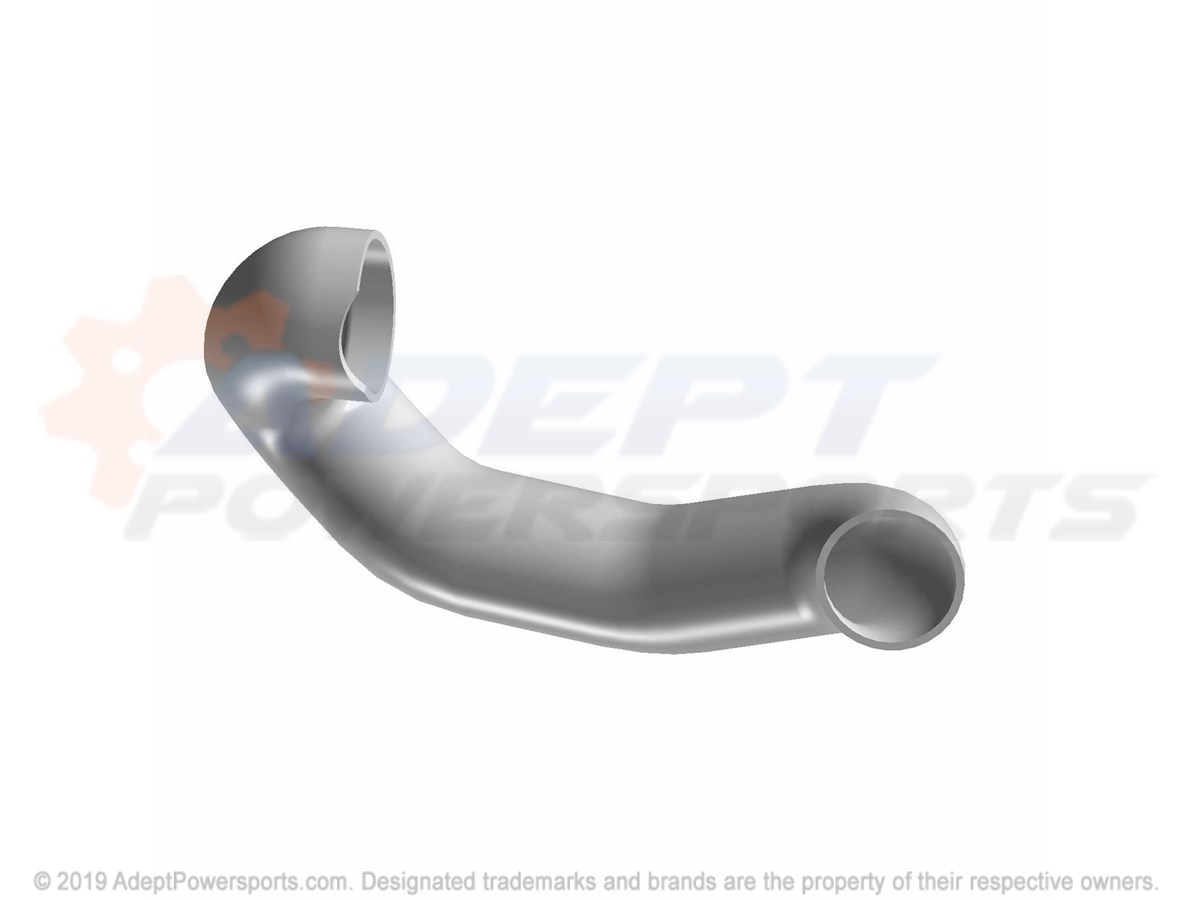

Polaris 5436820 Duct, Air, Inlet

DUCT, AIR, INLET

Part #: 5436820 Required per assembly: 1
Currently Not Available
10

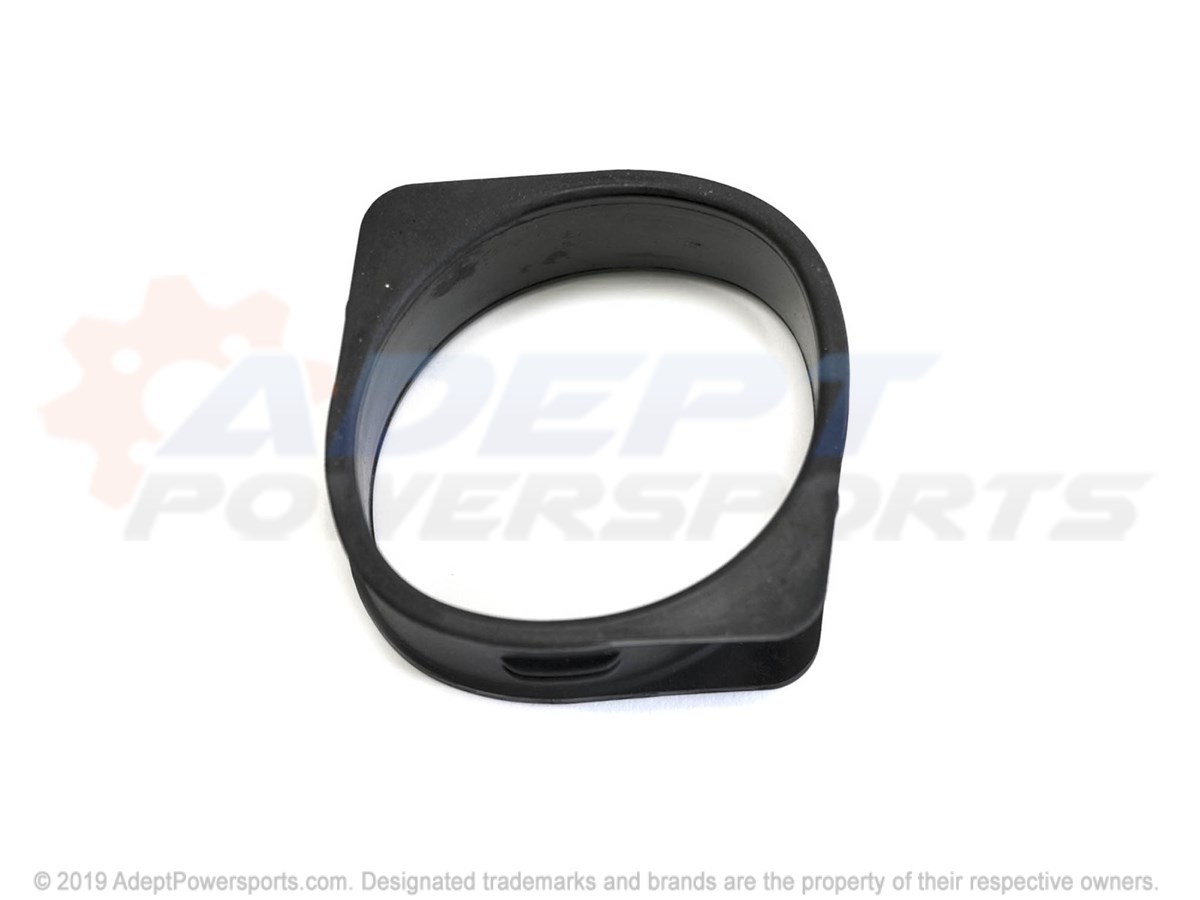

Polaris 5413177 Boot, Clutch, Inlet

BOOT, CLUTCH, INLET

Part #: 5413177 Required per assembly: 1
Currently Not Available
11
Polaris 7519849 Screw

SCREW

Part #: 7519849 Required per assembly: 11
Currently Not Available
12

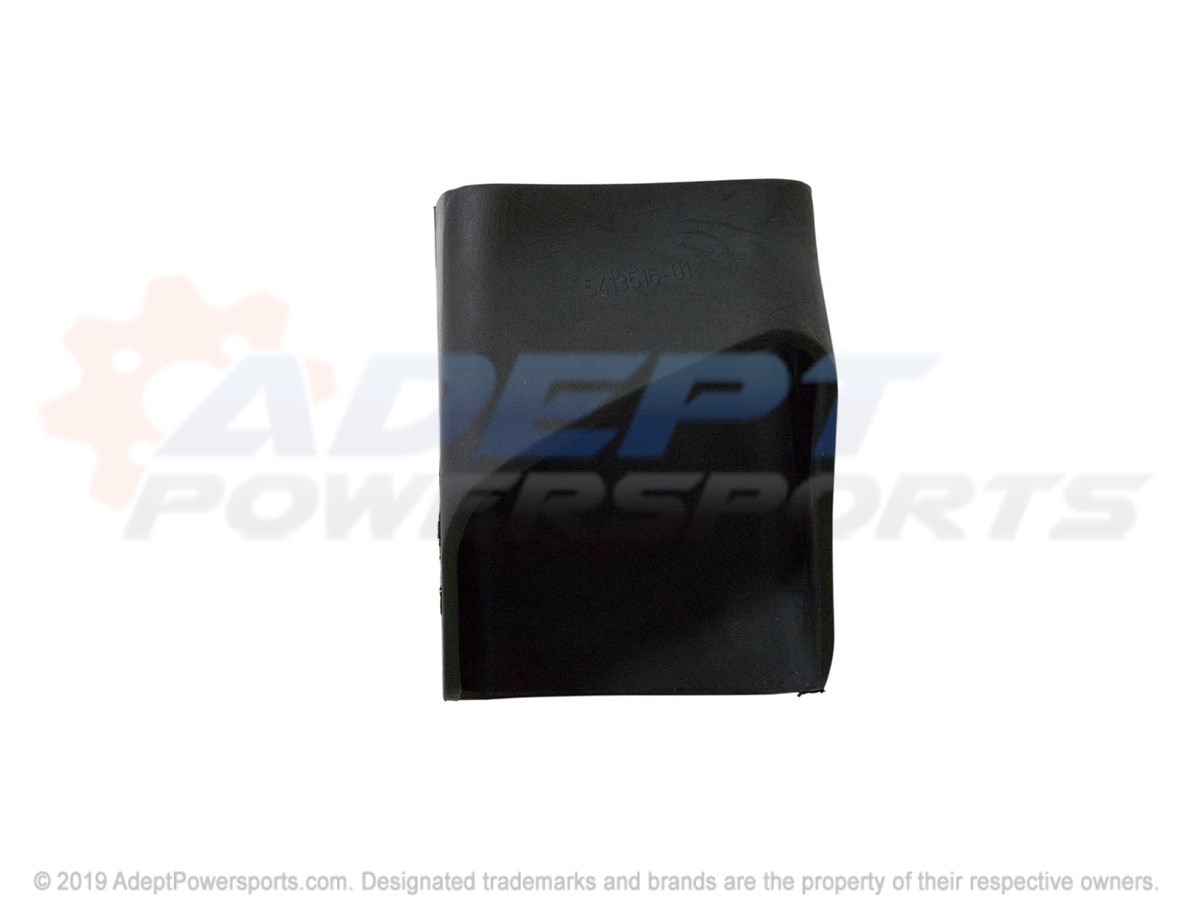

Polaris 5413516 Boot, Inlet, Duct

BOOT, INLET, DUCT

Part #: 5413516 Required per assembly: 1
Currently Not Available
13

CLIP-DUCT, OUTLET

Part #: 7082264 Required per assembly: 1
Currently Not Available
