Fuel Tank replacement parts for 2020 Polaris Scrambler 850 48" (R04)

OEM Parts Polaris 2020 Polaris Scrambler 850 48" (R04) Fuel Tank

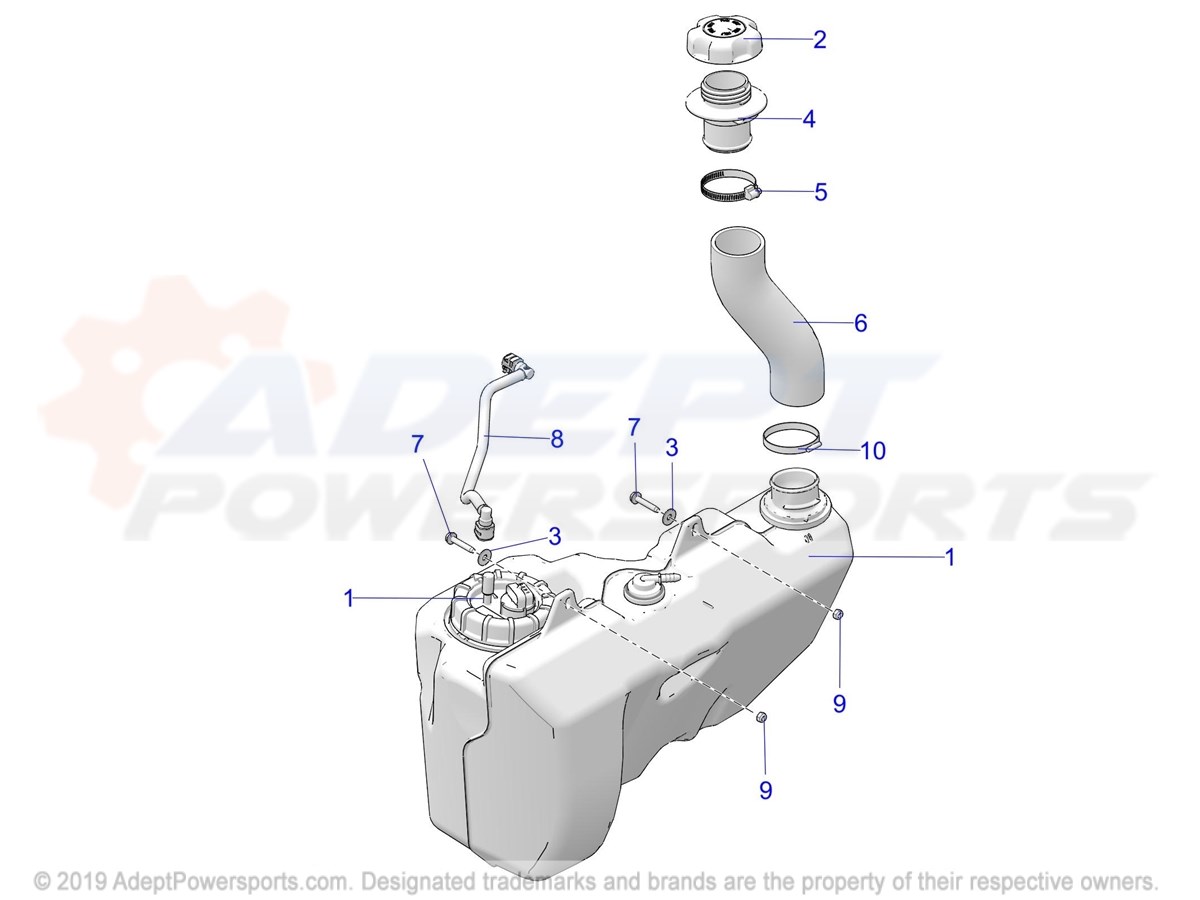

FUEL TANK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

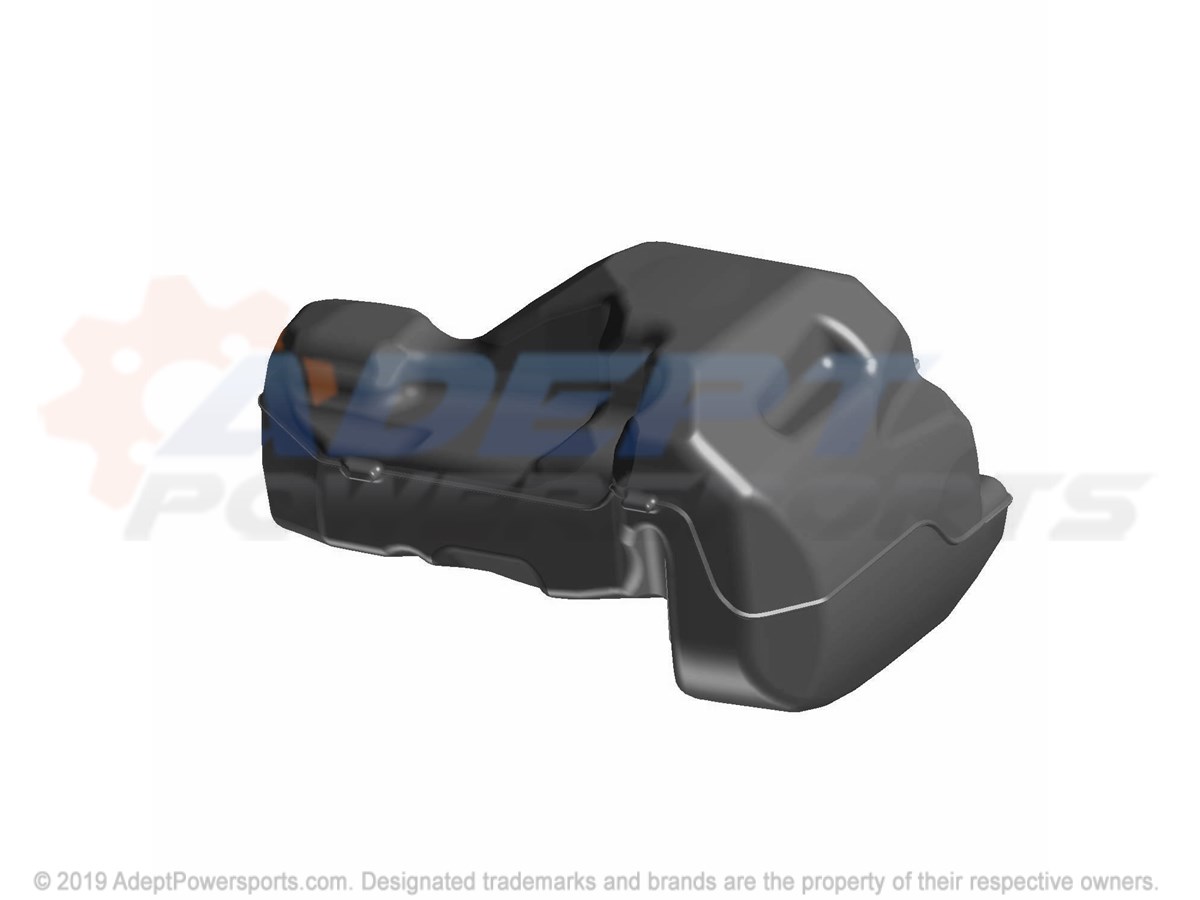

1	ASM-FUEL, TANK, W/PUMP, 4, BAR Part #: 2522236 Required per assembly: 1 Note: INCL. PUMP Currently Not Available
1	ASM-FUEL, TANK, W/PUMP, 4, BAR Part #: 2522236 Required per assembly: 1 Note: INCL. PUMP Currently Not Available
1	K-FUEL, PUMP, MIOP Part #: 2208595 Required per assembly: 1 Note: INCL. PUMP, GASKET, NUT, INSTRUCTIONS Currently Not Available
1	K-FUEL, PUMP, MIOP Part #: 2208595 Required per assembly: 1 Note: INCL. PUMP, GASKET, NUT, INSTRUCTIONS Currently Not Available
2	CAP, GAS, TANK Part #: 5439075 Required per assembly: 1 Note: INCL. GASKET Currently Not Available
3	WASHER, FLAT Part #: 7555859 Required per assembly: 2 Note: Washer, Flat ~~$2.99~~ $1.73 - + Add to cart

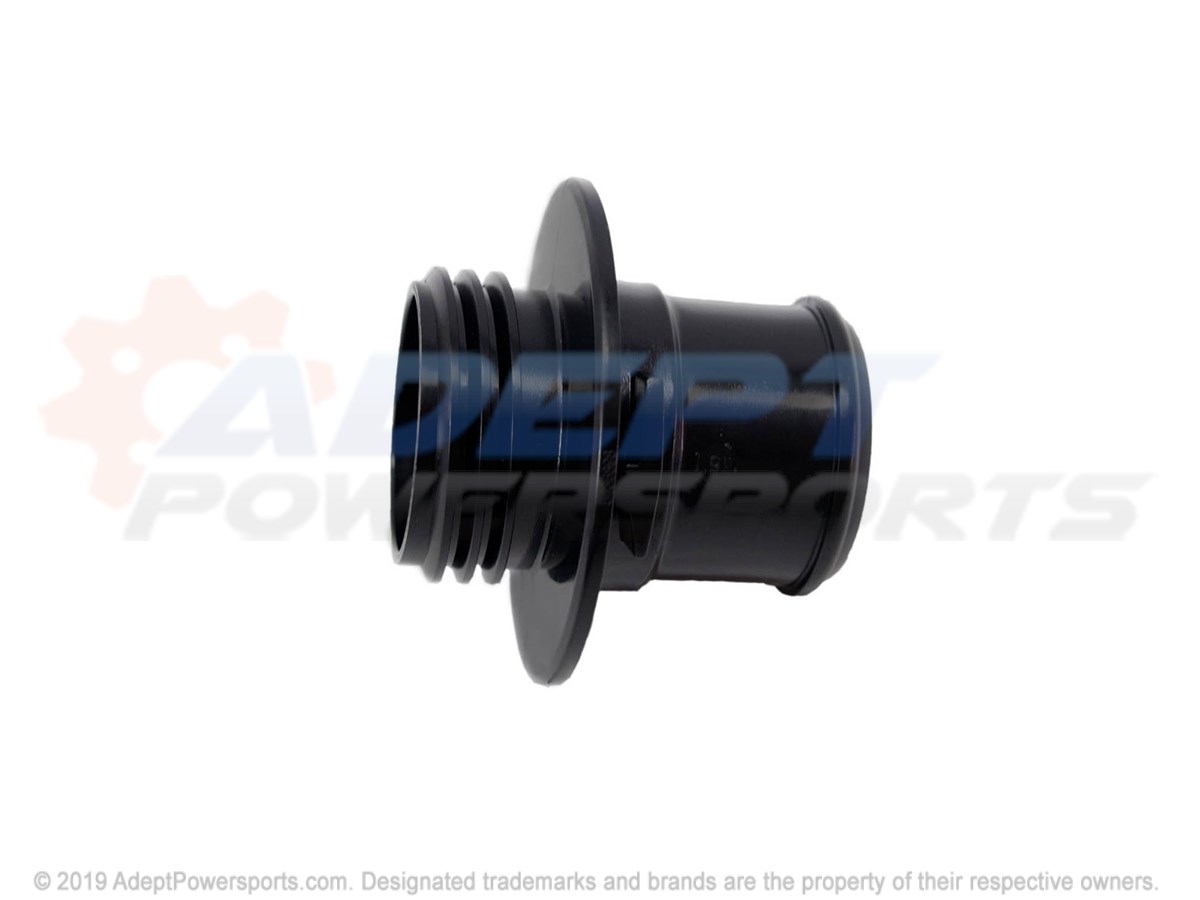

4	INLET, FUEL Part #: 5436898 Required per assembly: 1 Currently Not Available

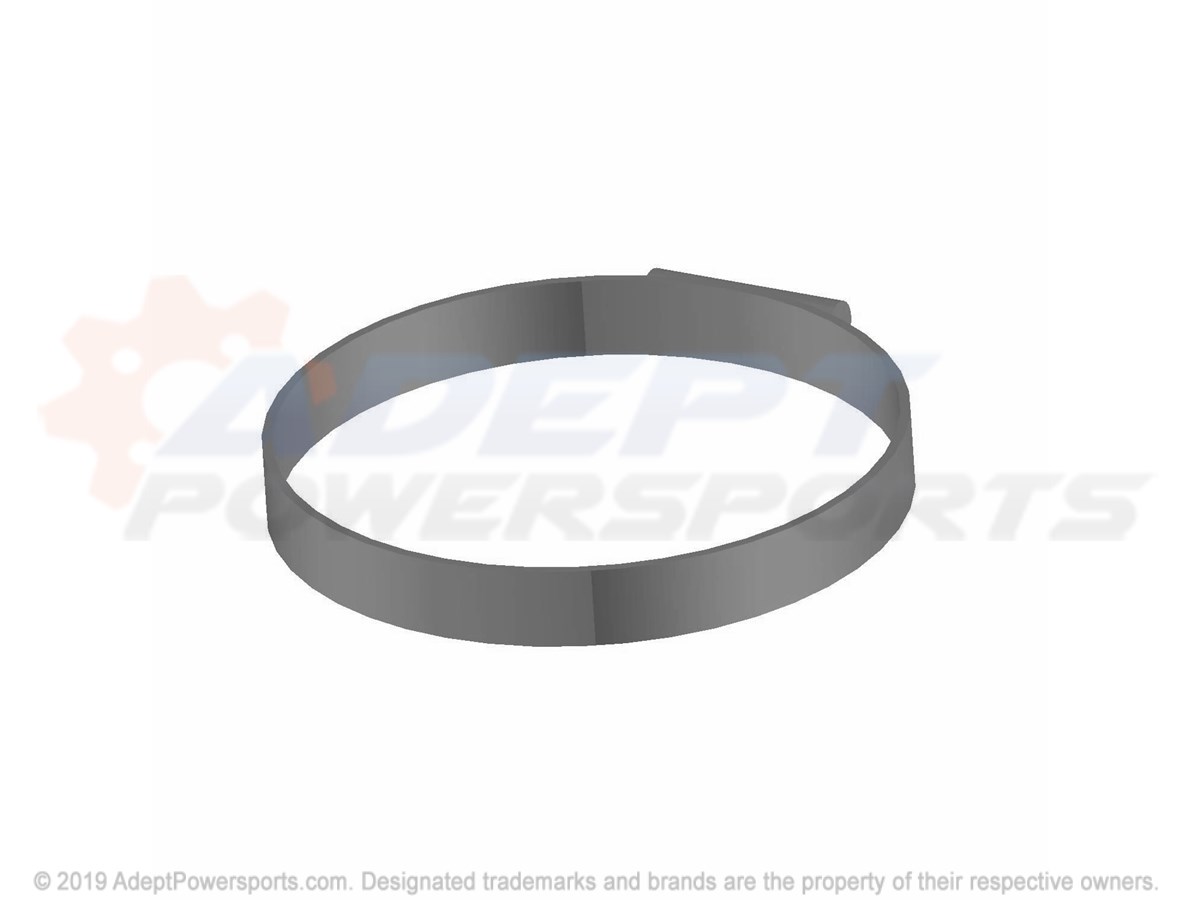

5	CLAMP, BAND, NARROW Part #: 7080413 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available

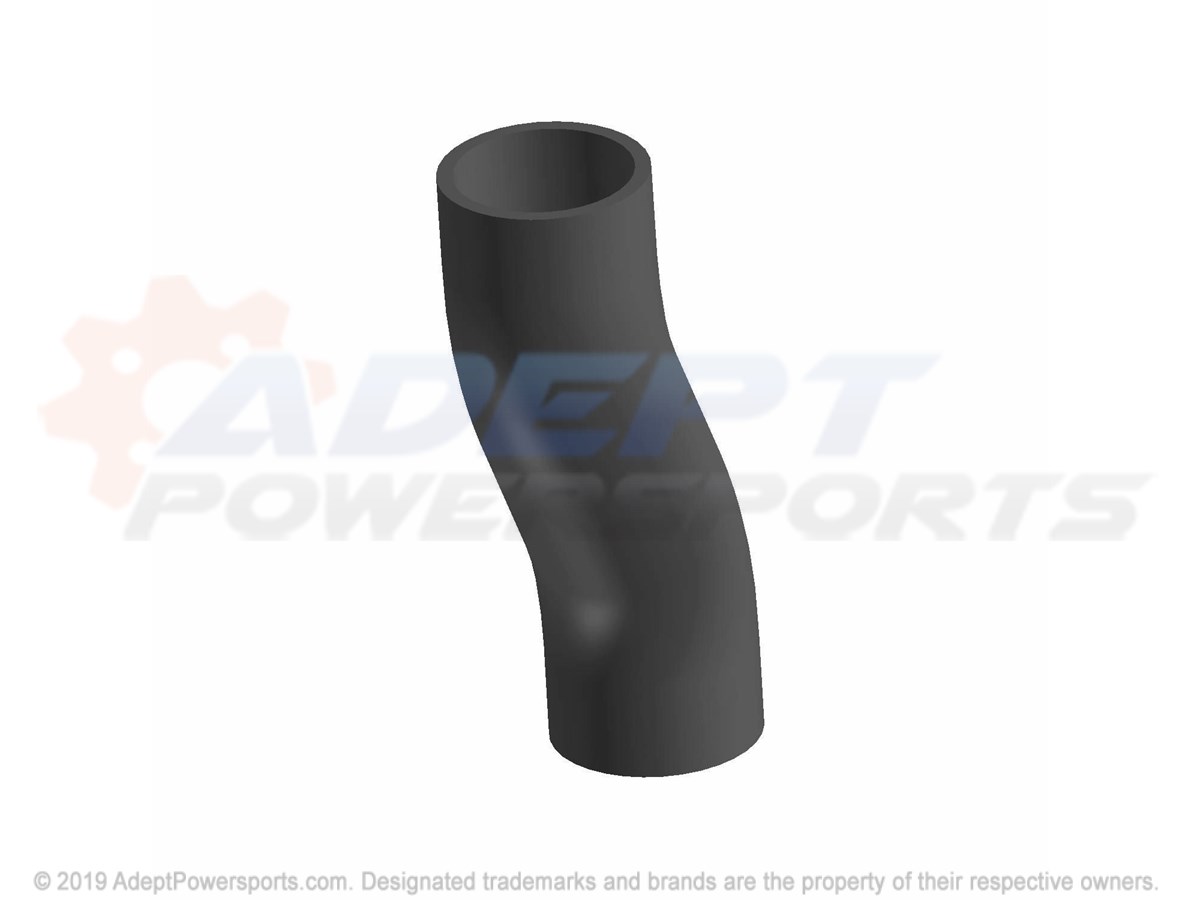

6	HOSE, FUEL, FILL Part #: 5414459 Required per assembly: 1 Currently Not Available
7	SCR-HXFL-M6X1.0X30 RIE DGPNT Part #: 7519202 Required per assembly: 2 Currently Not Available

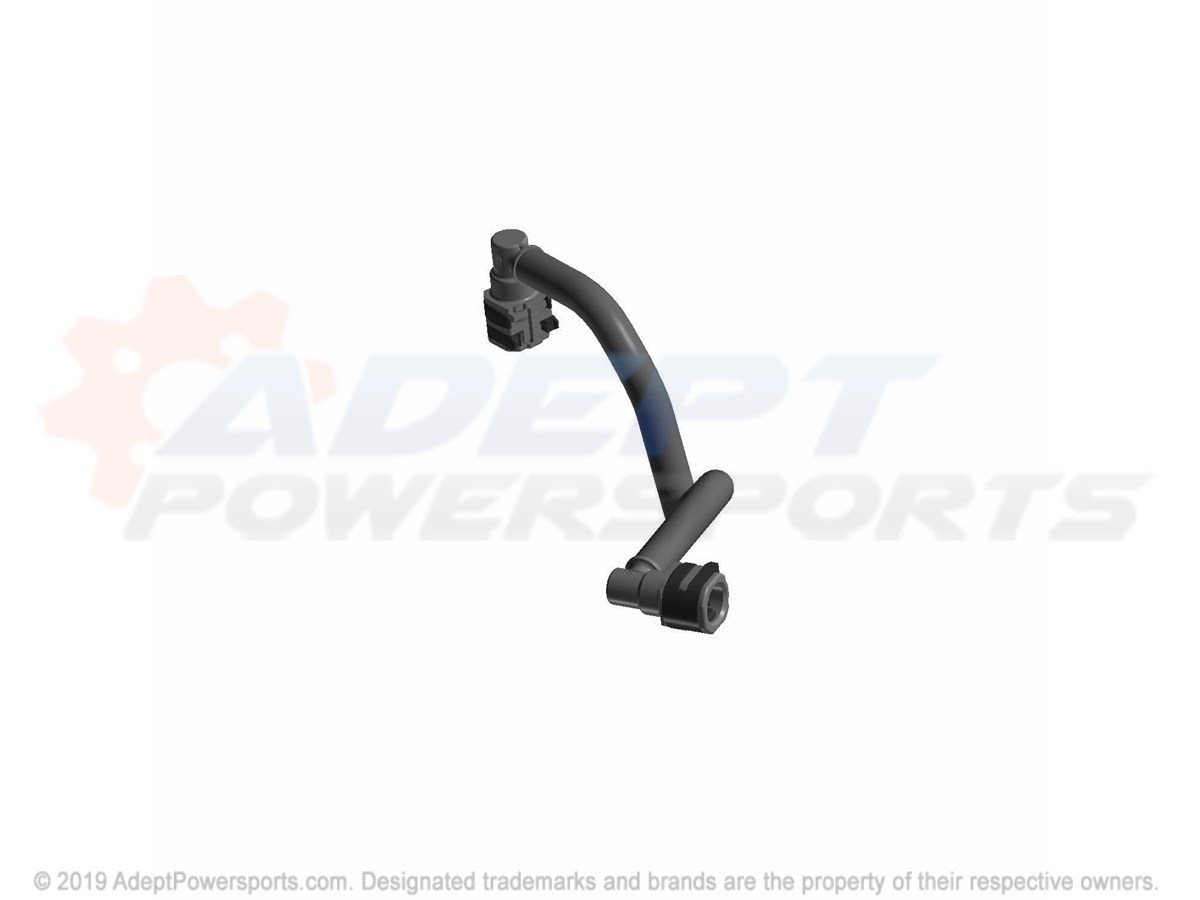

8	ASSEMBLY, FUEL, LINE Part #: 2521315 Required per assembly: 1 Currently Not Available
9	NUT, METRIC Part #: 7546703 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
10	CLAMP-CONSTANT TENSION 50-70 Part #: 7081413 Required per assembly: 1 Currently Not Available
11	HARNESS-JUMPER, FUELPUMP Part #: 2414671 Required per assembly: 1 Note: TO 9/13/2020 Currently Not Available

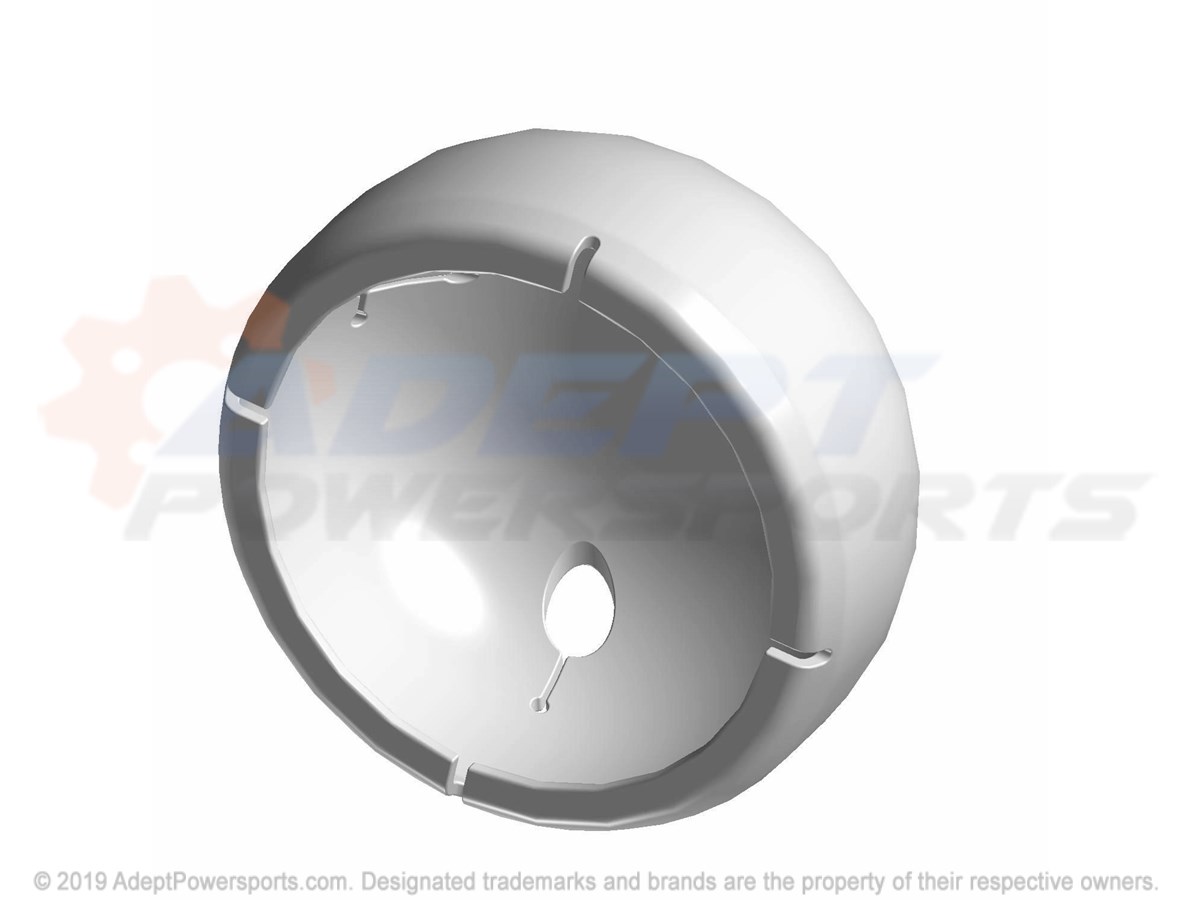

12	COVER-PFA, SM-XP Part #: 2522025 Required per assembly: 1 Currently Not Available
