OEM Parts Polaris 2020 Polaris Ranger 500 (R02) Front Drive Shaft

2020 Polaris Ranger 500 (R02) R20MAA50B1/B7 - Front Drive Shaft

FRONT DRIVE SHAFT Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

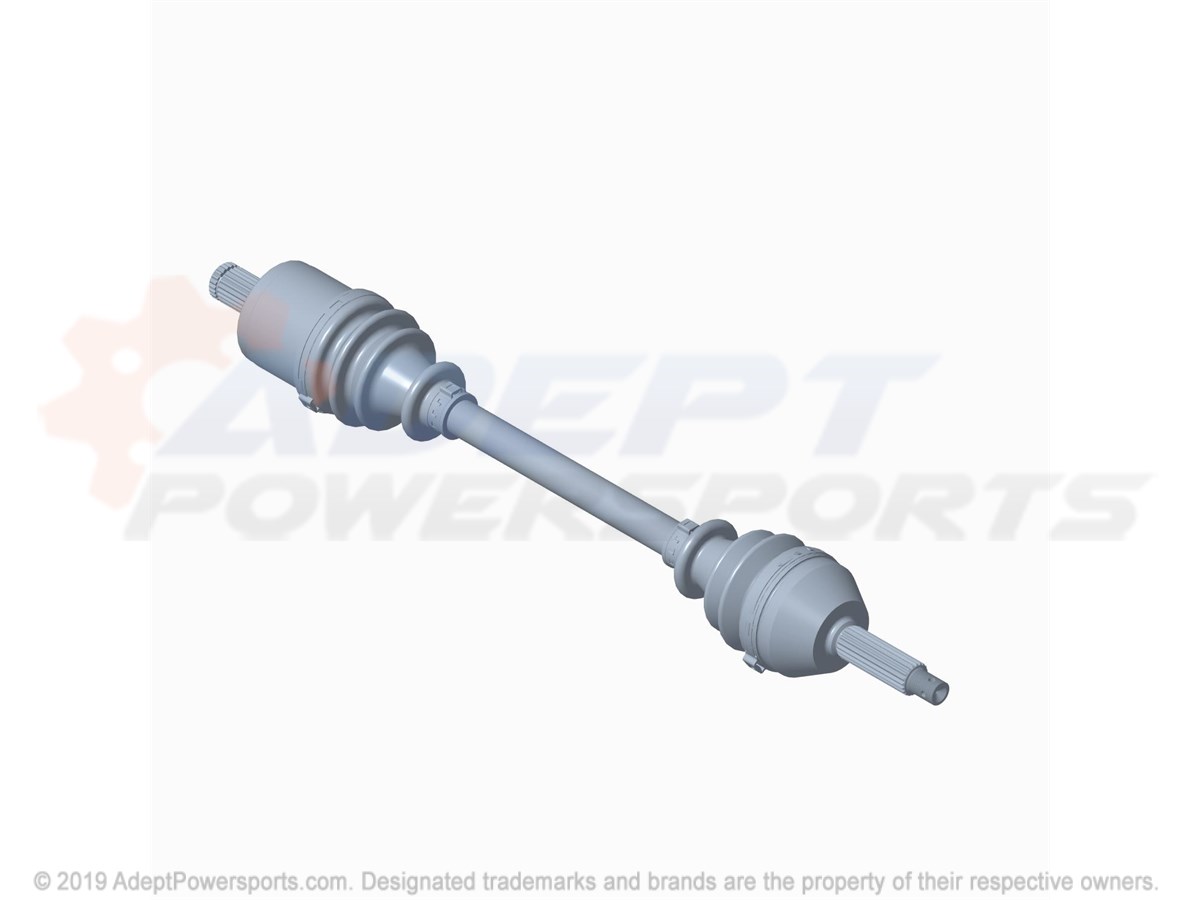

Polaris 1333742 Asm-Driveshaft, Frt

ASM-DRIVESHAFT, FRT

Part #: 1333742 Required per assembly: 2 Note: INCL ALL
Currently Not Available
2

K-OUTER JOINT

Part #: 2206540 Required per assembly: 1
Currently Not Available
3

K-OUTER BOOT KIT

Part #: 2206541 Required per assembly: 1 Note: INCL GREASE
Currently Not Available
4

K-BAR

Part #: 2206542 Required per assembly: 1
Currently Not Available
5

K-INNER BOOT KIT

Part #: 2206543 Required per assembly: 1 Note: INCL GREASE
Currently Not Available
6

K-INNER JOINT

Part #: 2206544 Required per assembly: 1
Currently Not Available
7

K-SNAP RING

Part #: 2206545 Required per assembly: 1
Currently Not Available
8

K-CIRCLIP

Part #: 2206546 Required per assembly: 1
Currently Not Available
