Front Control Arms - Z20nae99ac/Al/An/Bc/Bl/Bn/Ll/K99af/Ak/Bf/Bk/M99al/R99az/Bz replacement parts for 2020 Polaris RZR XP1000

OEM Parts Polaris 2020 Polaris RZR XP1000 Front Control Arms - Z20nae99ac/Al/An/Bc/Bl/Bn/Ll/K99af/Ak/Bf/Bk/M99al/R99az/Bz

FRONT CONTROL ARMS - Z20NAE99AC/AL/AN/BC/BL/BN/LL/K99AF/AK/BF/BK/M99AL/R99AZ/BZ Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

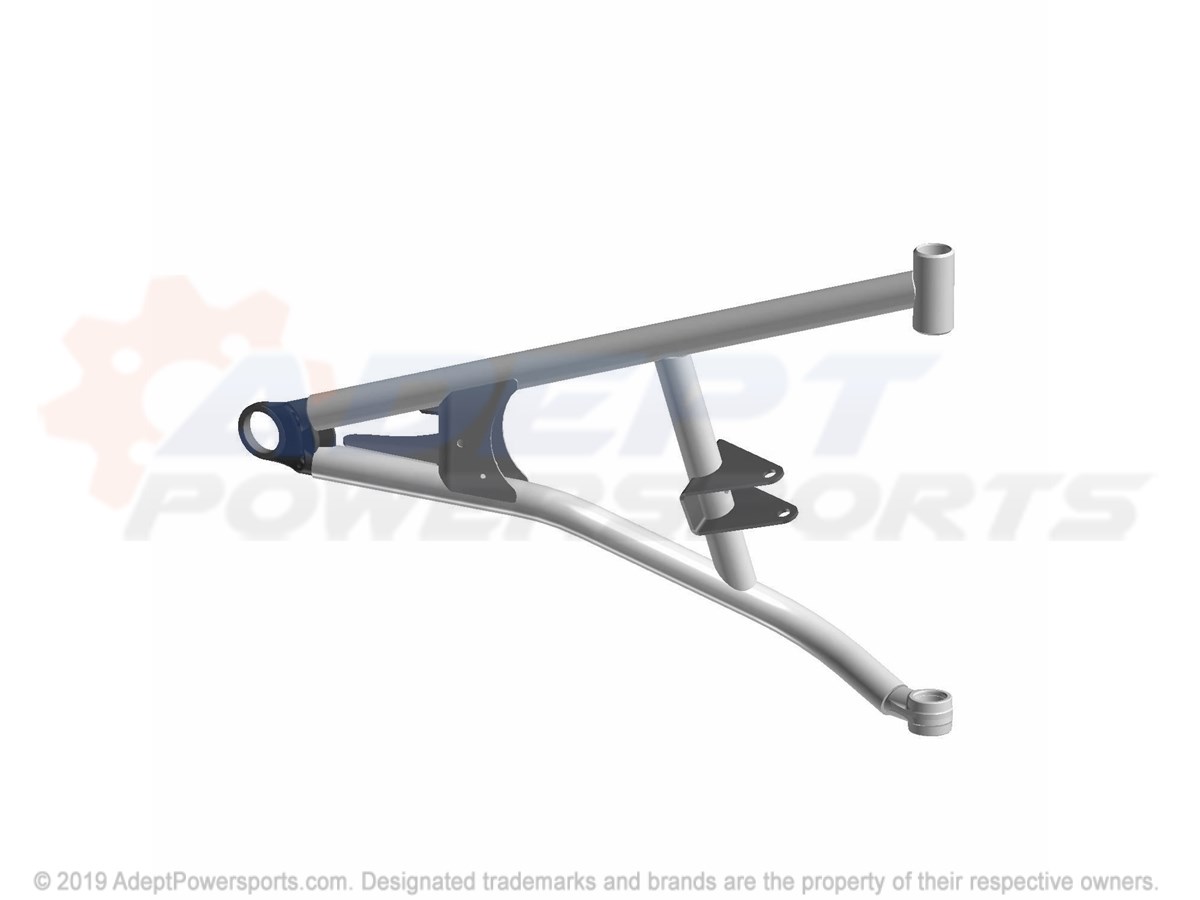

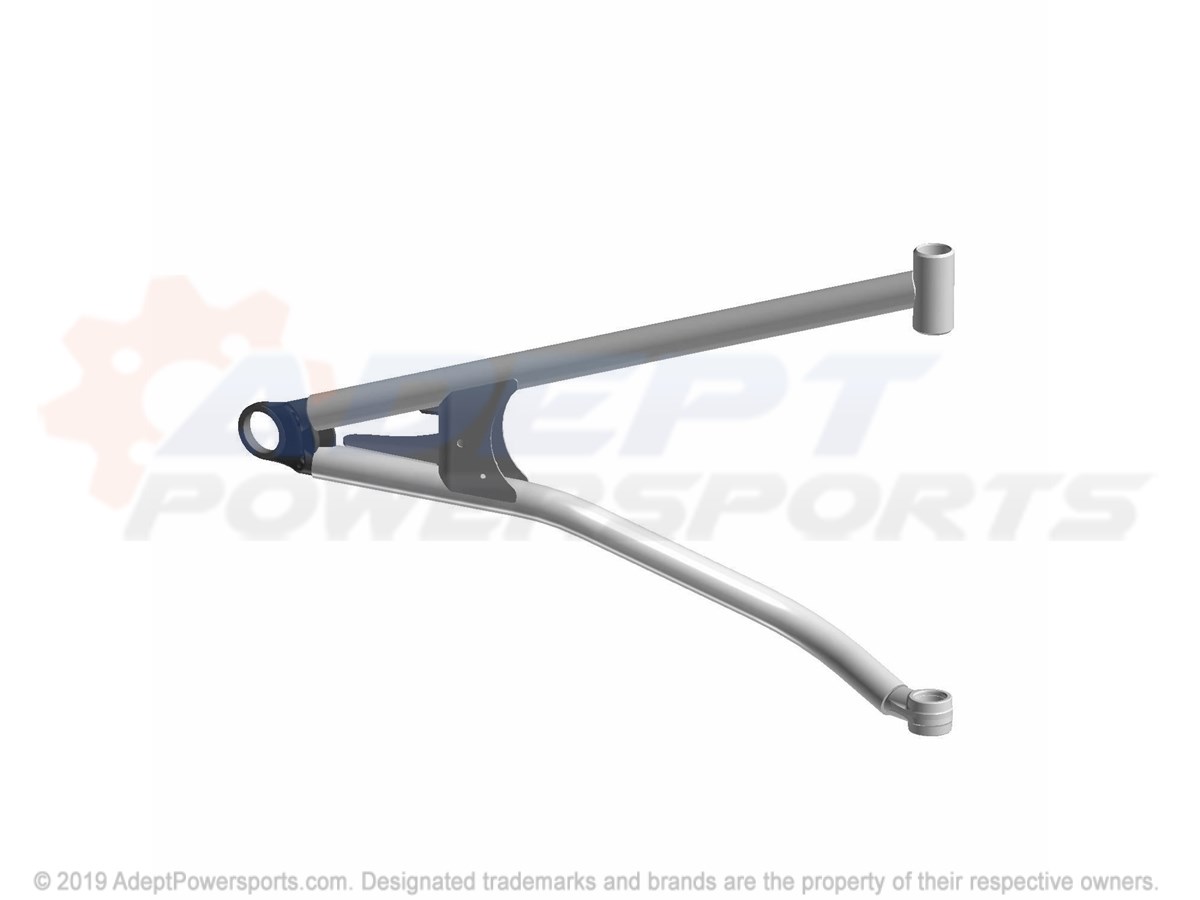

1	WELD-CTRL, ARM, UPR, FR, LH, 64, RED Part #: 1025143-293 Required per assembly: 1 Note: E99AC Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, BLK Part #: 1025143-458 Required per assembly: 1 Note: K99AK Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, MTS Part #: 1025143-705 Required per assembly: 1 Note: E99AL Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, SKB Part #: 1025143-737 Required per assembly: 1 Note: E99AN Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, ORG Part #: 1025143-750 Required per assembly: 1 Note: K99AF Currently Not Available
1	WELD-CTRL, ARM, UPR, FR, LH, 64, TAN Part #: 1025479-686 Required per assembly: 1 Note: R99AZ Currently Not Available

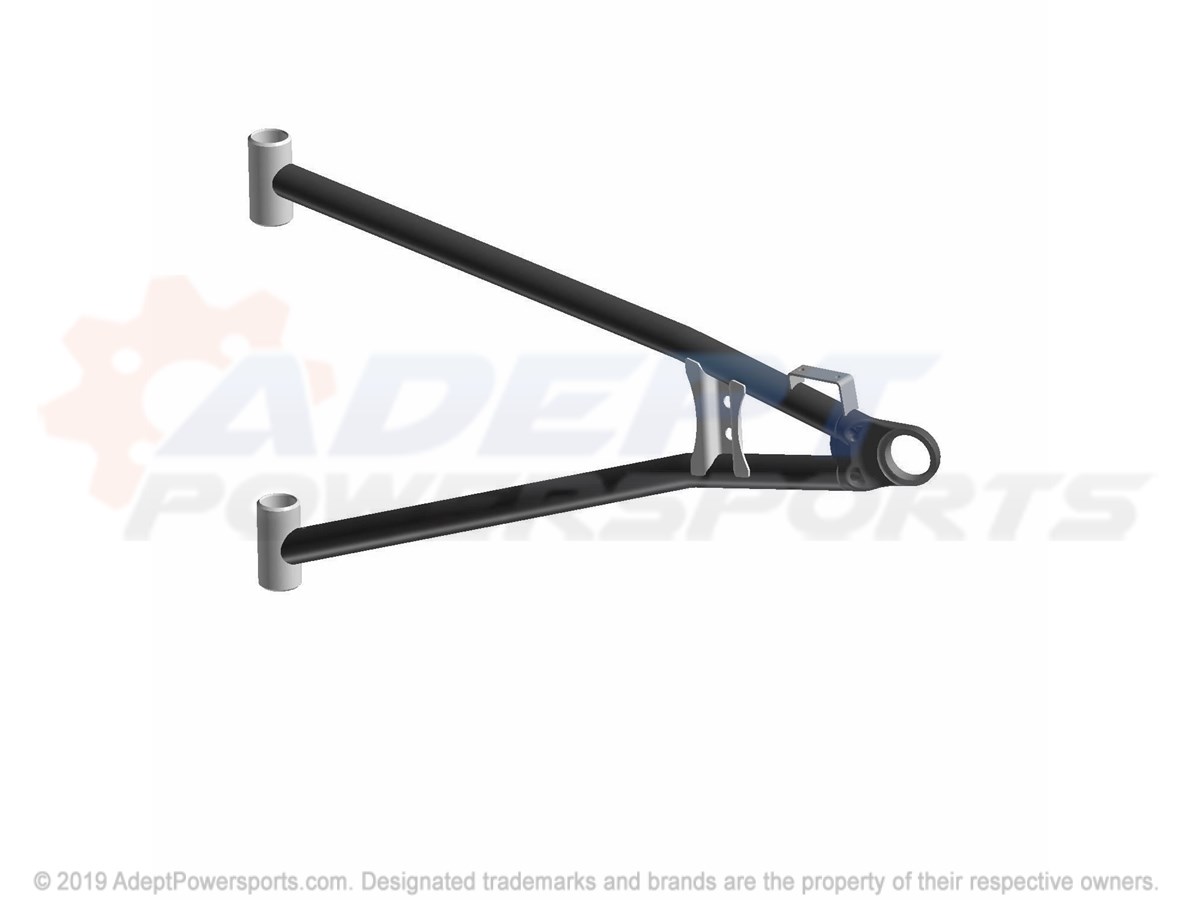

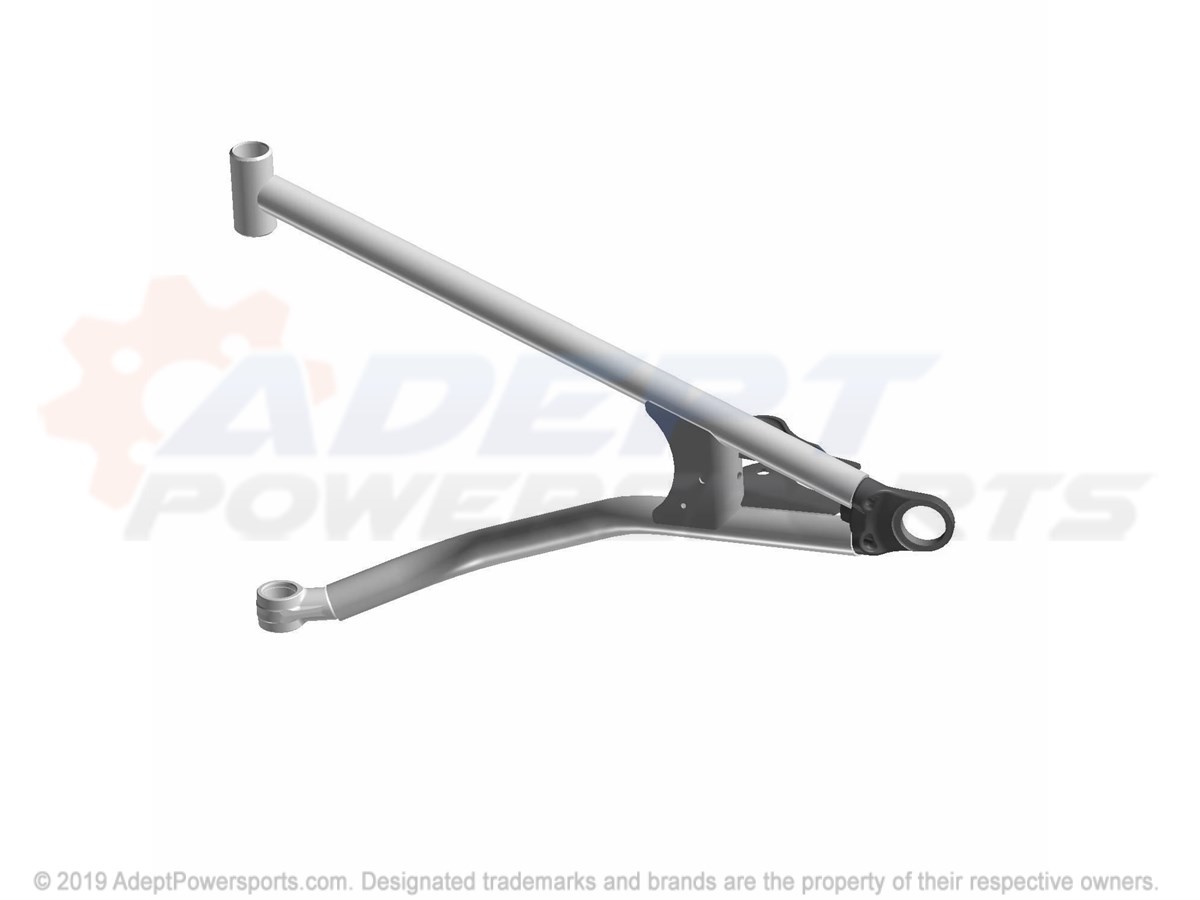

2	WELD-CTRL, ARM, UPR, FR, RH, 64, TAN Part #: 1025480-686 Required per assembly: 1 Note: R99AZ Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, RED Part #: 1025144-293 Required per assembly: 1 Note: E99AC Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, BLK Part #: 1025144-458 Required per assembly: 1 Note: K99AK Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, MTS Part #: 1025144-705 Required per assembly: 1 Note: E99AL Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, SKB Part #: 1025144-737 Required per assembly: 1 Note: E99AN Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, ORG Part #: 1025144-750 Required per assembly: 1 Note: K99AF Currently Not Available

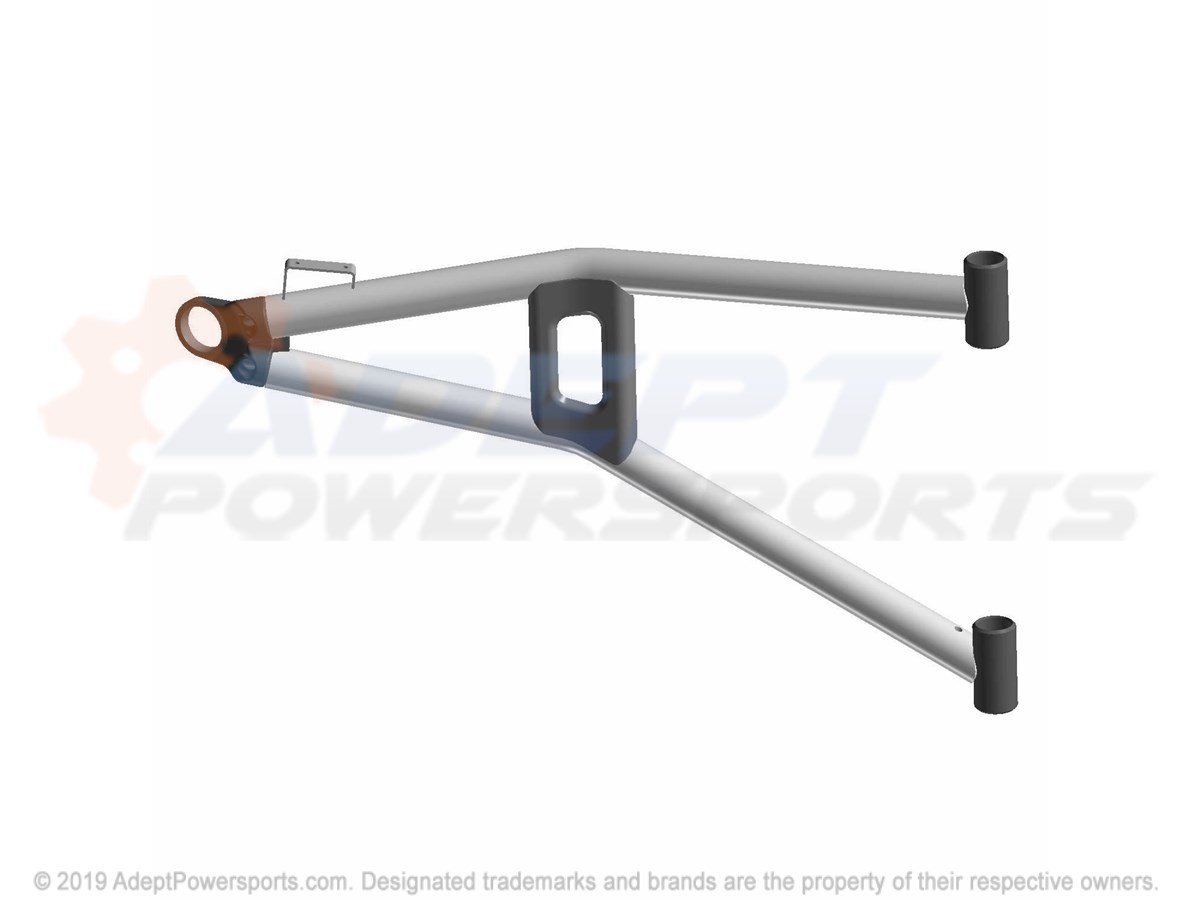

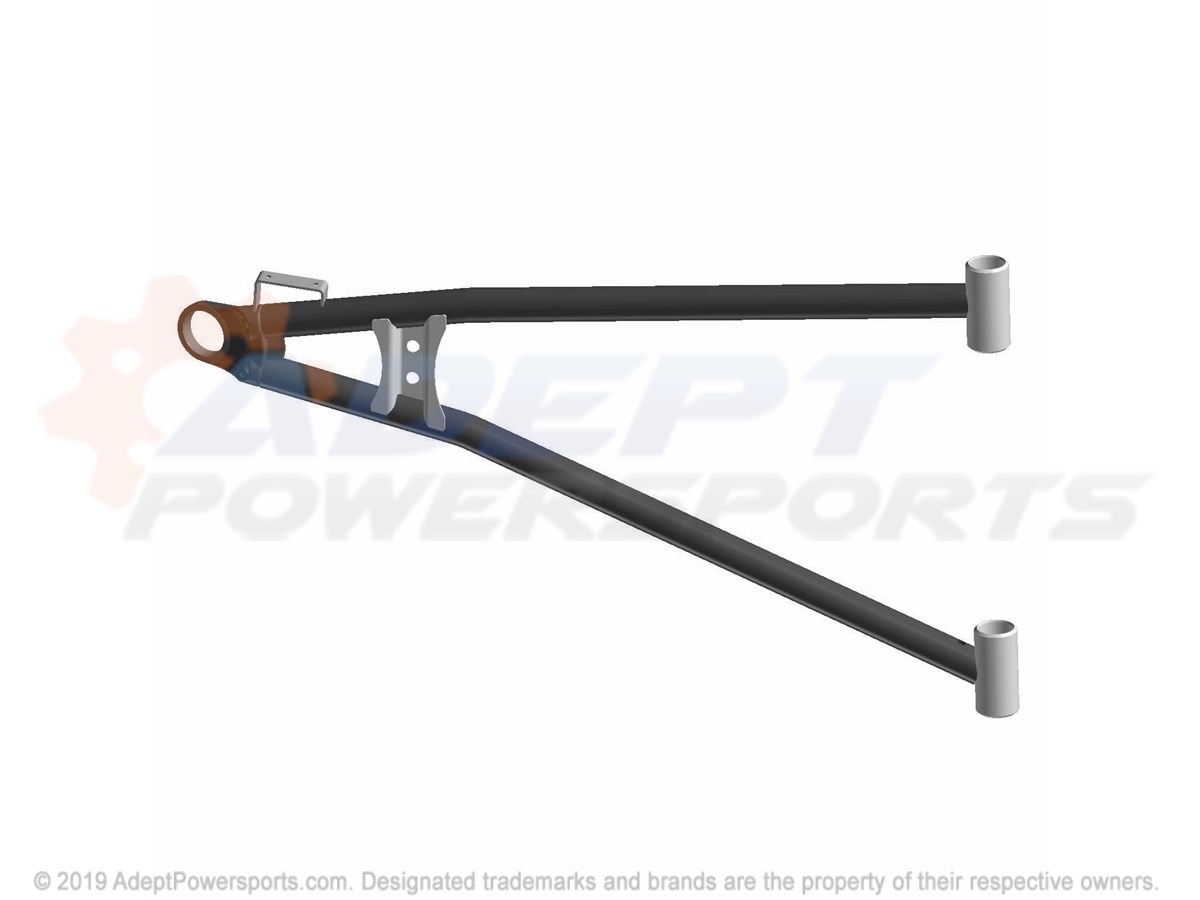

3	WELD-CTRLARM, LW, FR, LH, 64, HC, BK Part #: 1025141-458 Required per assembly: 1 Note: M99AL Currently Not Available
3	WELD-CTRLARM, LW, FR, LH, 64, HC, TN Part #: 1025141-686 Required per assembly: 1 Note: R99AZ Currently Not Available
3	WELD-CTRL, ARM, LWR, FR, LH, 64, RED Part #: 1025139-293 Required per assembly: 1 Note: E99AC Currently Not Available
3	WELD-CTRL, ARM, LWR, FR, LH, 64, BLK Part #: 1025139-458 Required per assembly: 1 Note: K99AK Currently Not Available
3	WELD-CTRL, ARM, LWR, FR, LH, 64, MTS Part #: 1025139-705 Required per assembly: 1 Note: E99AL Currently Not Available
3	WELD-CTRL, ARM, LWR, FR, LH, 64, SBL Part #: 1025139-737 Required per assembly: 1 Note: E99AN Currently Not Available
3	WELD-CTRLARM, LWR, FR, LH, 64, ORST Part #: 1025139-750 Required per assembly: 1 Note: K99AF Currently Not Available

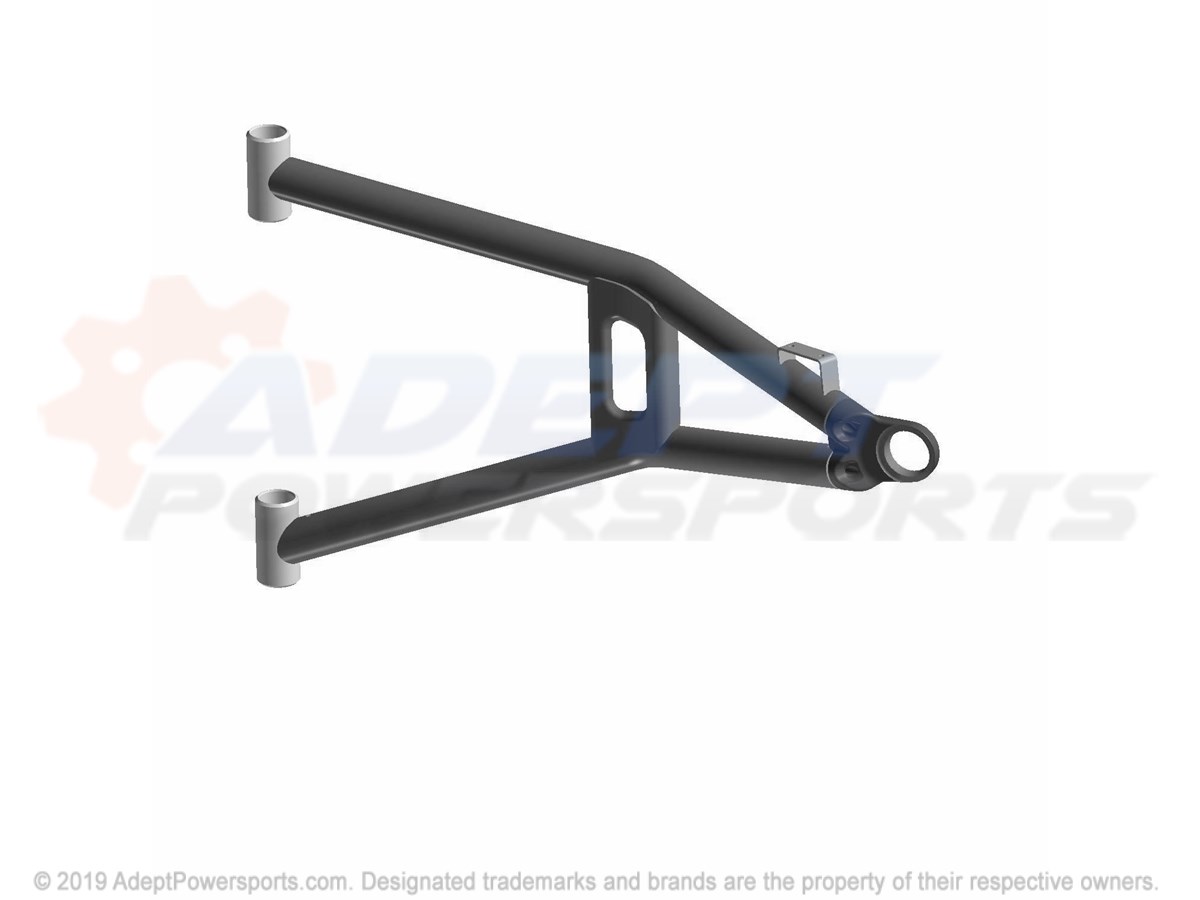

4	WELD-CTRL, ARM, LWR, FR, RH, 64, RED Part #: 1025140-293 Required per assembly: 1 Note: E99AC Currently Not Available
4	WELD-CTRL, ARM, LWR, FR, RH, 64, BLK Part #: 1025140-458 Required per assembly: 1 Note: K99AK Currently Not Available
4	WELD-CTRL, ARM, LWR, FR, RH, 64, MTS Part #: 1025140-705 Required per assembly: 1 Note: E99AL Currently Not Available
4	WELD-CTRL, ARM, LWR, FR, RH, 64, SKB Part #: 1025140-737 Required per assembly: 1 Note: E99AN Currently Not Available
4	WELD-CTRLARM, LWR, FR, RH, 64, ORST Part #: 1025140-750 Required per assembly: 1 Note: K99AF Currently Not Available
4	WELD-CTRLARM, LW, FR, RH, 64, HC, BK Part #: 1025142-458 Required per assembly: 1 Note: M99AL Currently Not Available
4	WELD-CTRLARM, LW, FR, RH, 64, HC, TN Part #: 1025142-686 Required per assembly: 1 Note: R99AZ Currently Not Available
5	SHIELD-CV FRONT BLK Part #: 5438641-070 Required per assembly: 2 Currently Not Available
6	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
7	SCREW Part #: 7519043 Required per assembly: 6 Note: Bolt Currently Not Available
8	SCR-HXFL-M10X1.25X55 10.9 ZOD Part #: 7519285 Required per assembly: 2 Currently Not Available
9	NUT, FLANGE Part #: 7547333 Required per assembly: 12 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
10	WASHER, FLAT Part #: 7556153 Required per assembly: 8 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
11	BALL-JOINT, HARDENED, HI-MISALGN Part #: 7082892 Required per assembly: 4 Note: FROM 10/16/2019 Currently Not Available
11	BALL-JOINT, HARDENED, HI-MISALGN Part #: 7082892 Required per assembly: 4 Note: TO 10/16/2019 Currently Not Available
12	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
13	RING, RETAINING Part #: 7710716 Required per assembly: 4 Currently Not Available
14	ASM-PIVOT, CAP, SEALED, M10 Part #: 1543611 Required per assembly: 12 Currently Not Available
15	ASM-PIVOT, CAP, SEALED, SLIM, M10 Part #: 1543735 Required per assembly: 4 Currently Not Available
16	SHAFT-PIVOT, SHORT, M10 Part #: 5139966 Required per assembly: 6 Currently Not Available
17	BUSHING-STANDARD, SUSP, M10 Part #: 5452233 Required per assembly: 14 Currently Not Available
18	28MM, SPIRAL, RING, STEEL Part #: 7710845 Required per assembly: 2 Currently Not Available
