OEM Parts Polaris 2020 Polaris RZR XP1000 Front Shock Mounting - Z20nar99az/Bz

2020 Polaris RZR XP1000 Z20NA_99AC/AL/AN/BC/BL/BN/LL/AZ/BZ/AF/AK/BF/BK - Front Shock Mounting - Z20nar99az/Bz

FRONT SHOCK MOUNTING - Z20NAR99AZ/BZ Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7044900 Shock-Front, Rzrxp, Lh, [R99bl]

SHOCK-FRONT, RZRXP, LH, [R99BL]

Part #: 7044900 Required per assembly: 1
Currently Not Available
1
Polaris 7044901 Shock-Front, Rzrxp, Rh, [R99bl]

SHOCK-FRONT, RZRXP, RH, [R99BL]

Part #: 7044901 Required per assembly: 1
Currently Not Available
2

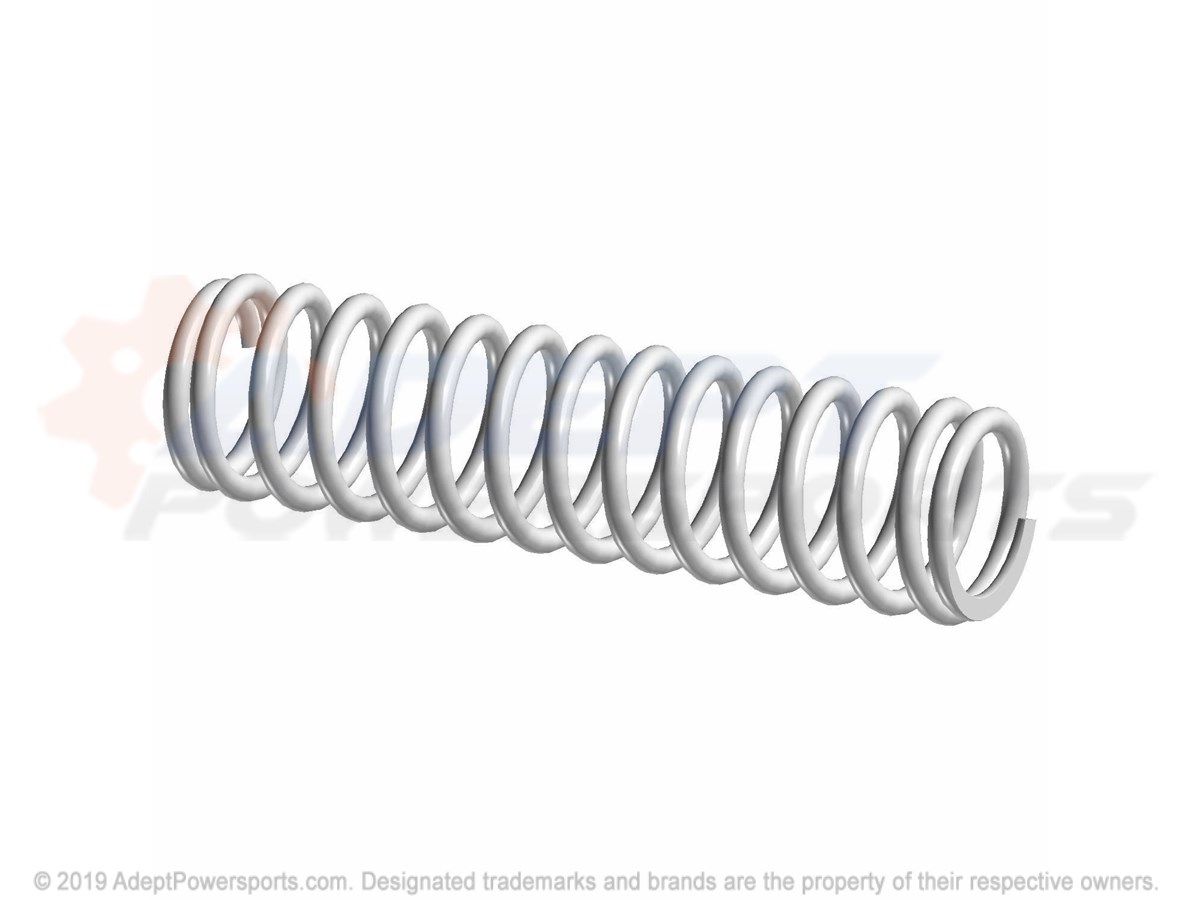

Polaris 7044640-458 S-150-240#, 16.10Fl, 3.04Id, Blk

S-150-240#, 16.10FL, 3.04ID, BLK

Part #: 7044640-458 Required per assembly: 2
Currently Not Available
3

RETAINER-SPRING, CAST

Part #: 5634606 Required per assembly: 2
Currently Not Available
4
Polaris 7519285 Scr-Hxfl-M10x1.25X55 10.9 Zod

SCR-HXFL-M10X1.25X55 10.9 ZOD

Part #: 7519285 Required per assembly: 4
Currently Not Available
5
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
6
Polaris 7556153 Washer, Flat

WASHER, FLAT

Part #: 7556153 Required per assembly: 4 Note: Washer
$3.99
$2.30
-
+
Add to cart
