Calipers, Front replacement parts for 2021 Polaris Outlaw 70 MD (R07)

OEM Parts Polaris 2021 Polaris Outlaw 70 MD (R07) Calipers, Front

CALIPERS, FRONT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-CALIPER, FR, SB1.00 Part #: 1913508 Required per assembly: 1 Note: INCL. 1-11 Currently Not Available
1	ASM-CALIPER, FL, SB1.00 Part #: 1913507 Required per assembly: 1 Note: INCL. 1-11 Currently Not Available
1	K-SVC, FL, HSNG, PSTN, SEALS, BLDR Part #: 2208283 Required per assembly: 1 Note: INCL. 1,5,10 Currently Not Available
1	K-SVC, FR, HSG, PISTON, SEALS, BLDR Part #: 2208284 Required per assembly: 1 Note: INCL. 1,5,10 Currently Not Available

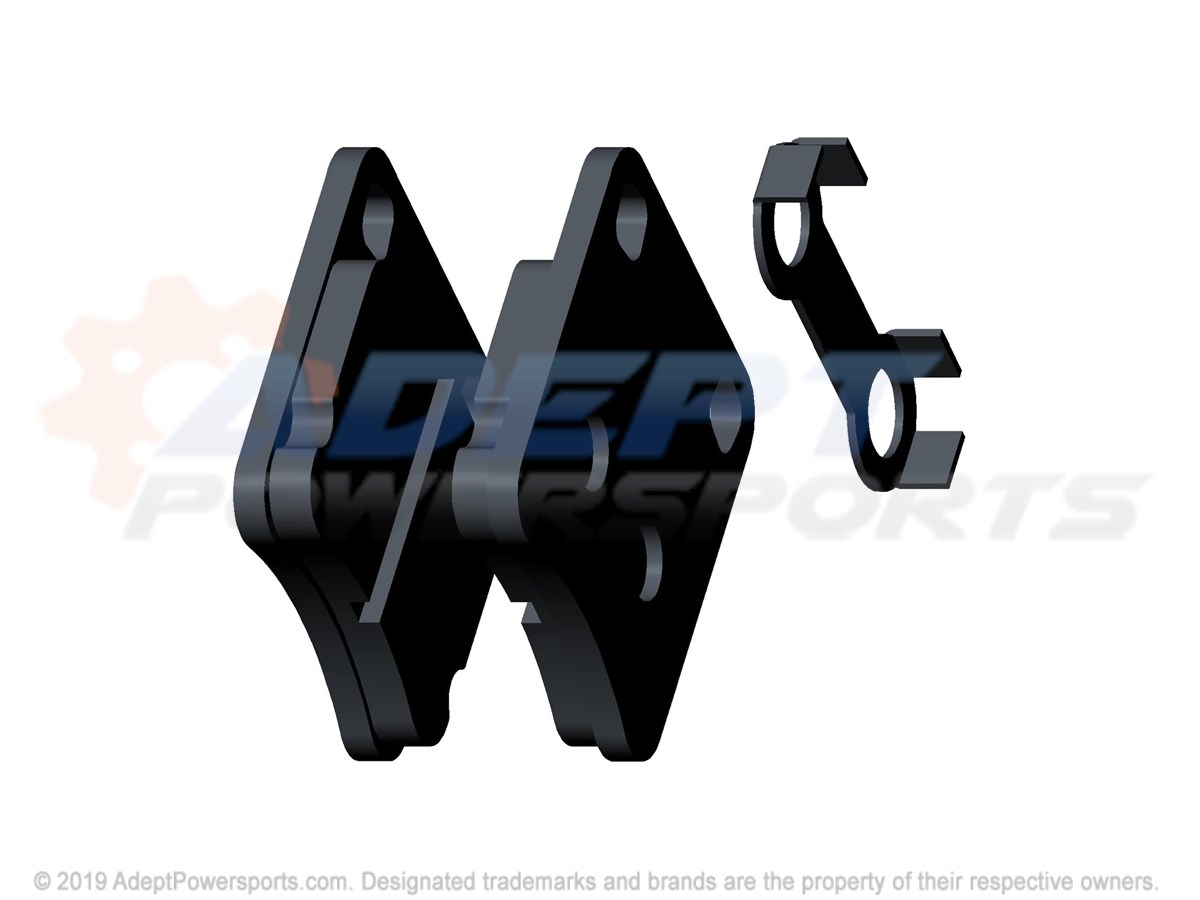

2	K-SVC, BRAKE, PADS Part #: 2208176 Required per assembly: 2 Note: INCL. 3 Currently Not Available
3	RETAINER-STEEL, PAD, PIN Part #: 5269057 Required per assembly: 2 Currently Not Available

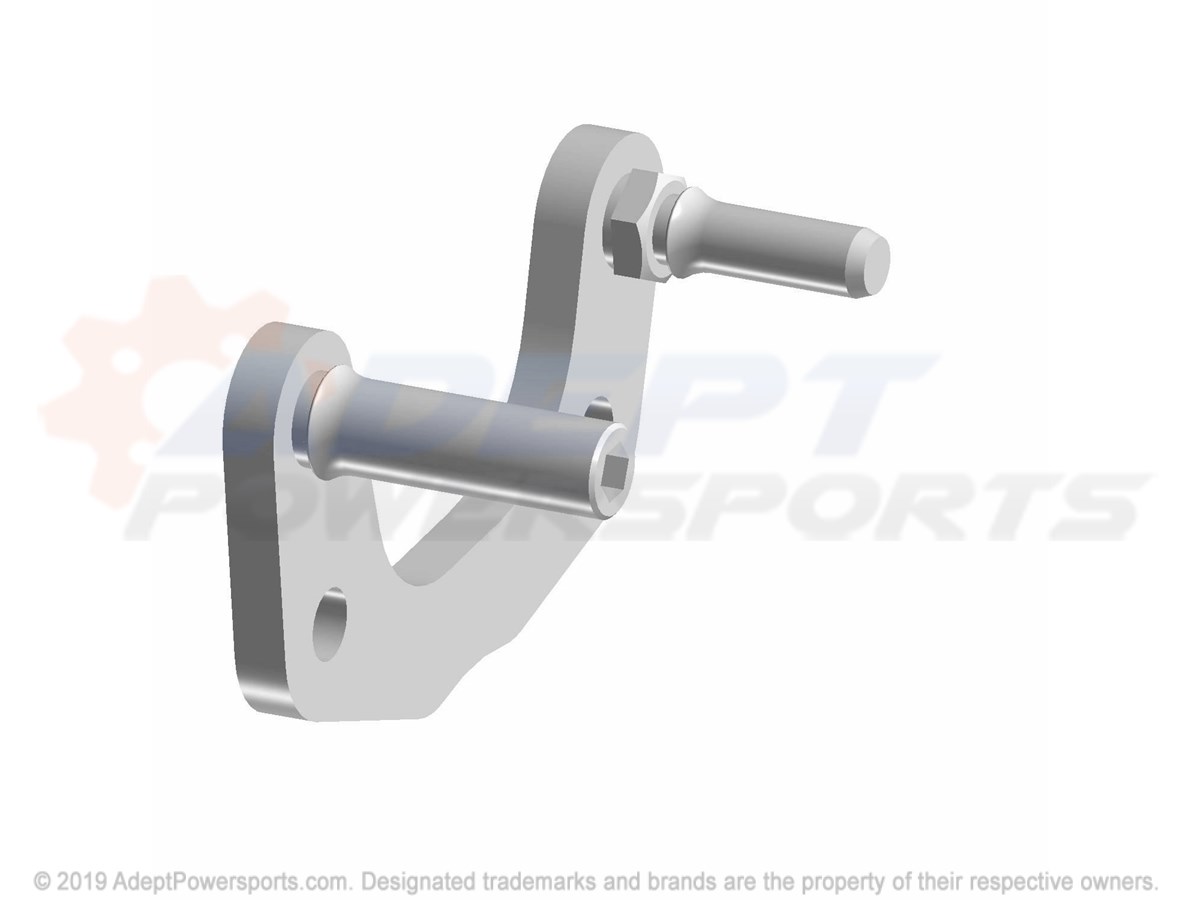

4	ASM-BRK-CAL, MNT, RH Part #: 1913592 Required per assembly: 1 Currently Not Available

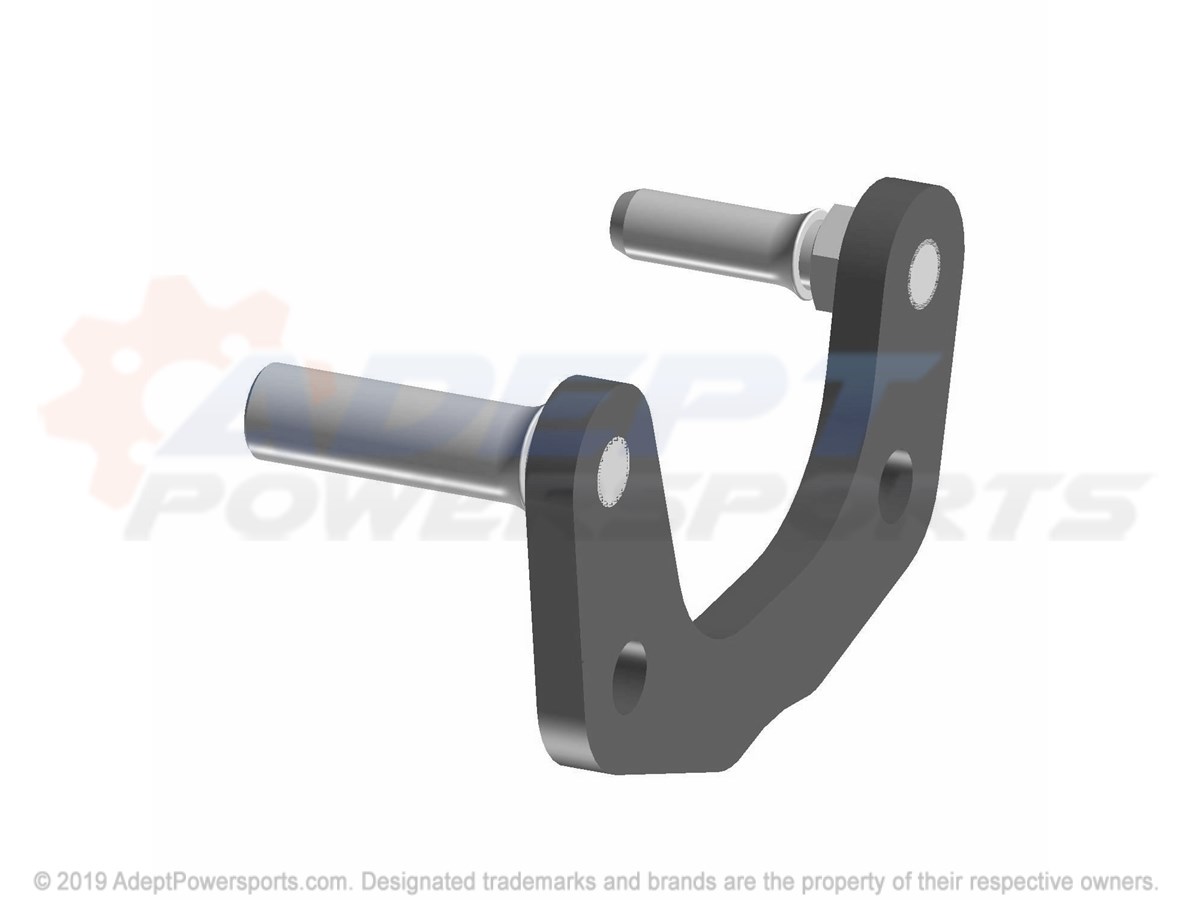

4	ASM-BRK-CAL, MNT, LH Part #: 1913591 Required per assembly: 1 Currently Not Available
5	K-SVC, PISTON, &, SEALS Part #: 2208177 Required per assembly: 2 Currently Not Available

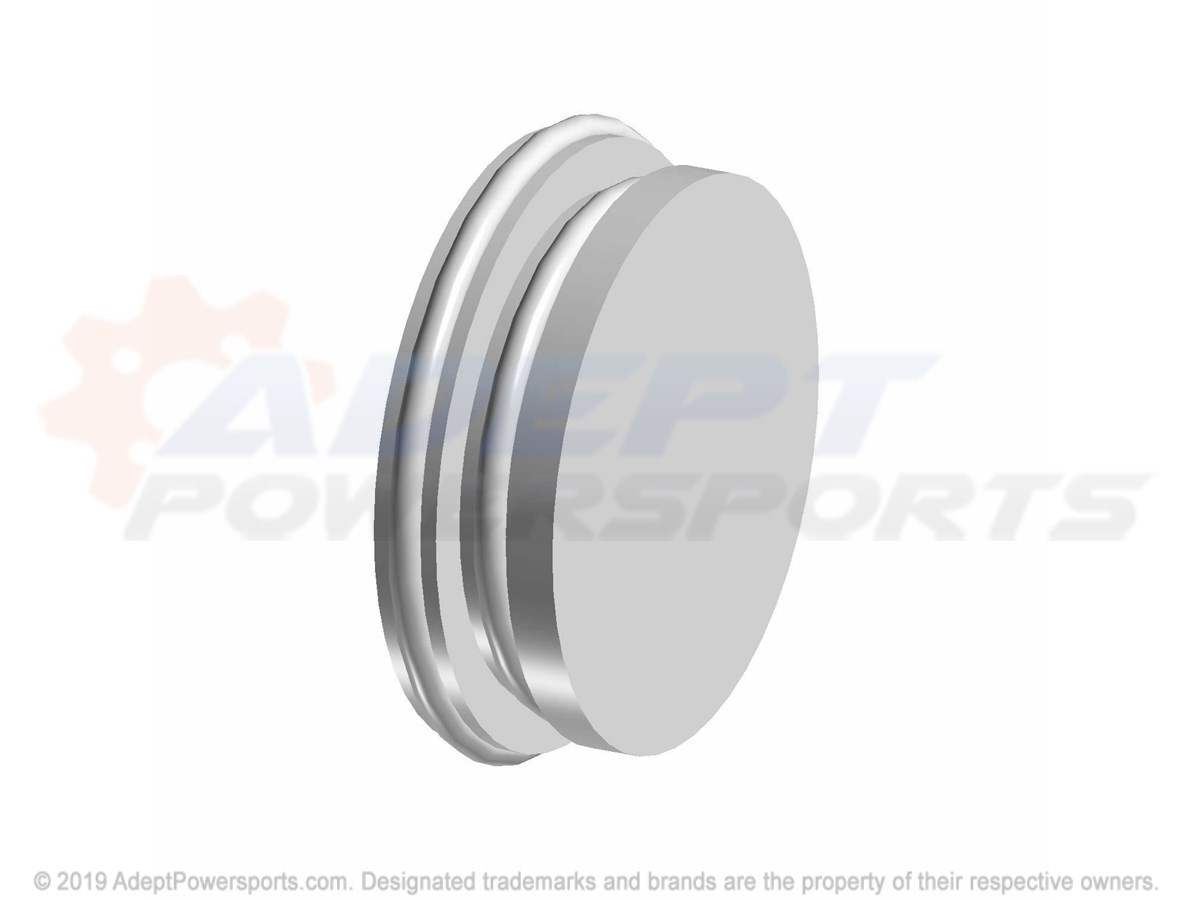

6	COVER-PLUG-EPDM, 70, DURO Part #: 5417134 Required per assembly: 2 Currently Not Available
7	BOOT-PIN, SEAL, EPDM, 50, DURO Part #: 5417135 Required per assembly: 2 Currently Not Available

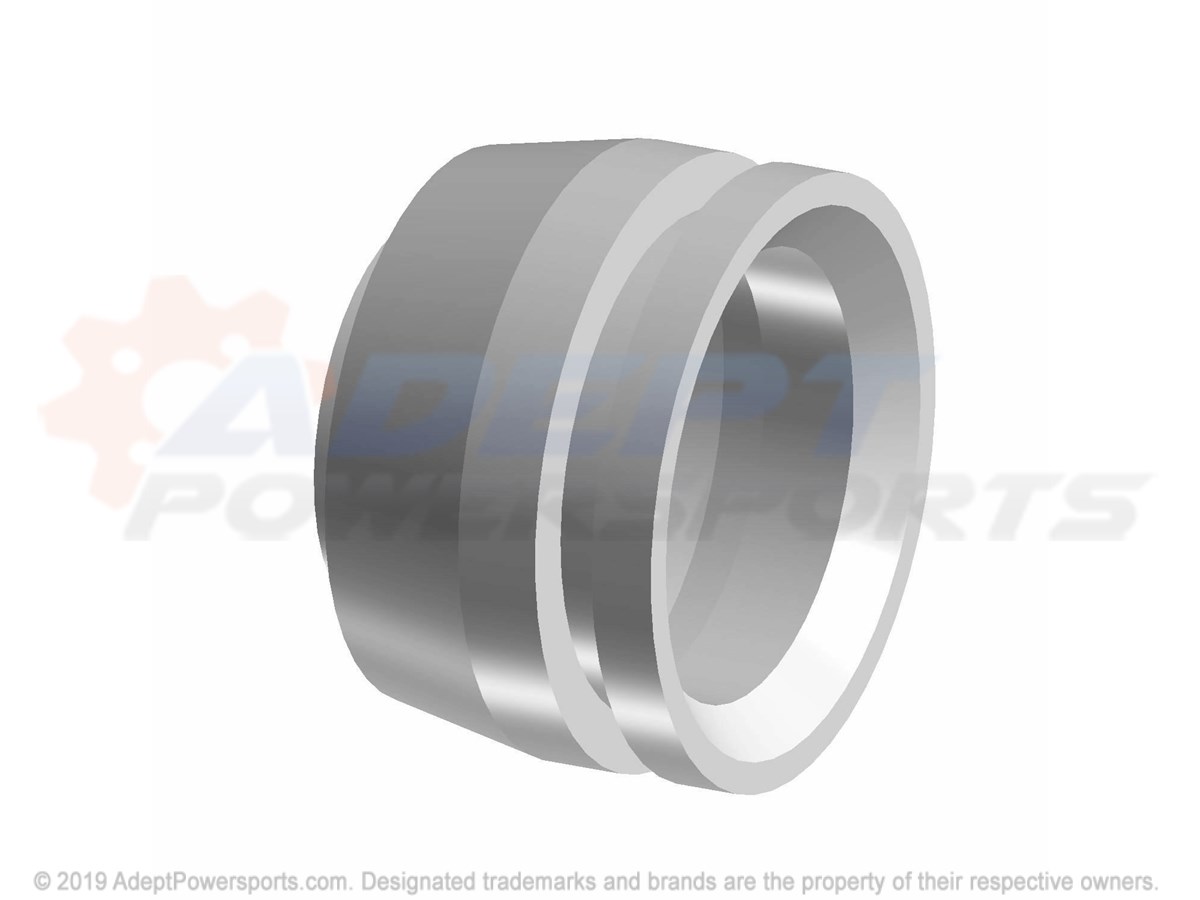

8	BOOT-PIN, BUSHING, EPDM, 50, DURO Part #: 5417136 Required per assembly: 2 Currently Not Available

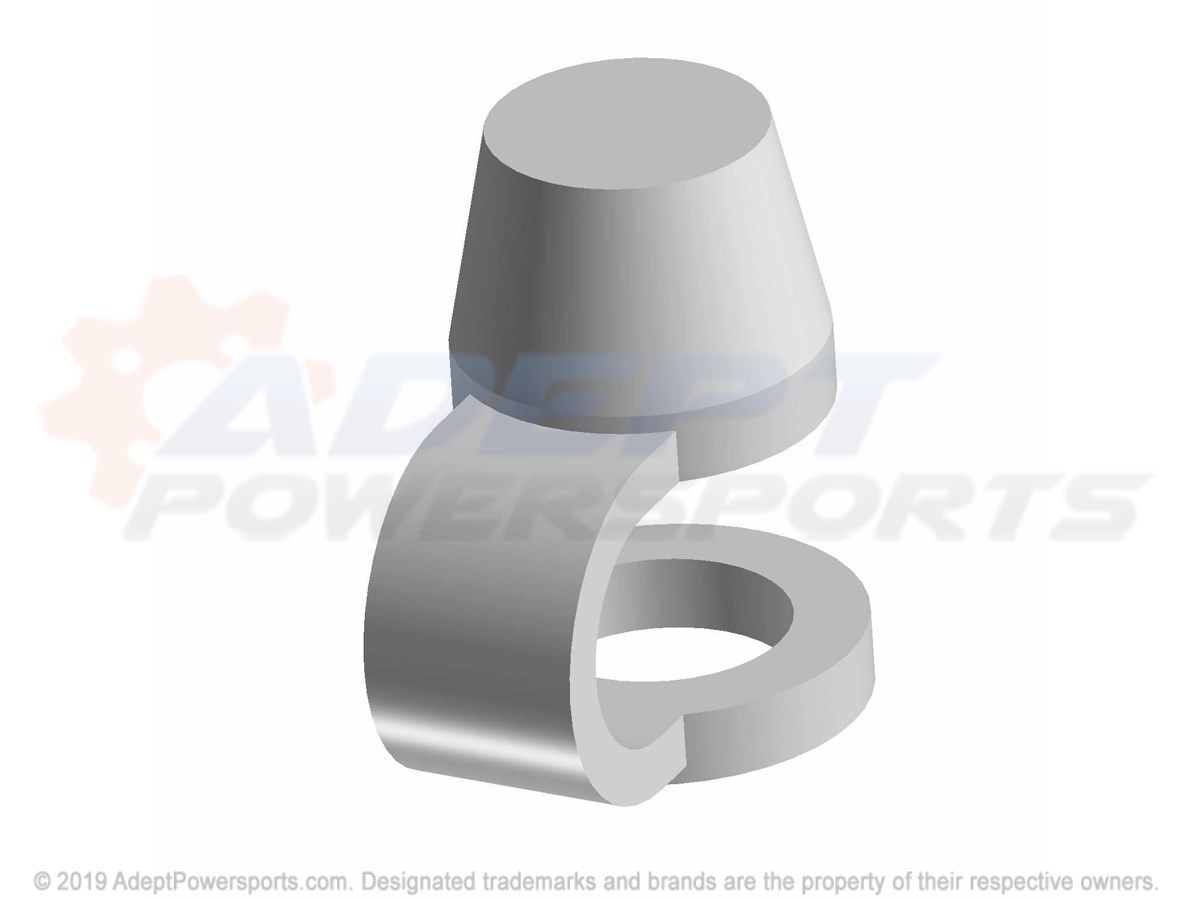

9	CAP-BLEEDER, SCRW, EP, RUBBER, 50 Part #: 5417286 Required per assembly: 2 Currently Not Available
10	SCREW, BLEEDER Part #: 7081343 Required per assembly: 2 Currently Not Available
11	SCR-SH-M8X1.25X51 8.8 ZOD Part #: 7521164 Required per assembly: 4 Currently Not Available
12	SCR-HXFL-M8X1.25X16 8.8 ZOD Part #: 7519181 Required per assembly: 4 Currently Not Available
