Fuel Injection replacement parts for 2021 Polaris Outlaw 70 MD (R07)

OEM Parts Polaris 2021 Polaris Outlaw 70 MD (R07) Fuel Injection

FUEL INJECTION Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	INJECTOR Part #: 1206119 Required per assembly: 1 Currently Not Available
2	THROTTLE BODY-22MM Part #: 1206120 Required per assembly: 1 Currently Not Available
3	SENSOR-TMAP DSS3-TF Part #: 2411528 Required per assembly: 1 Currently Not Available

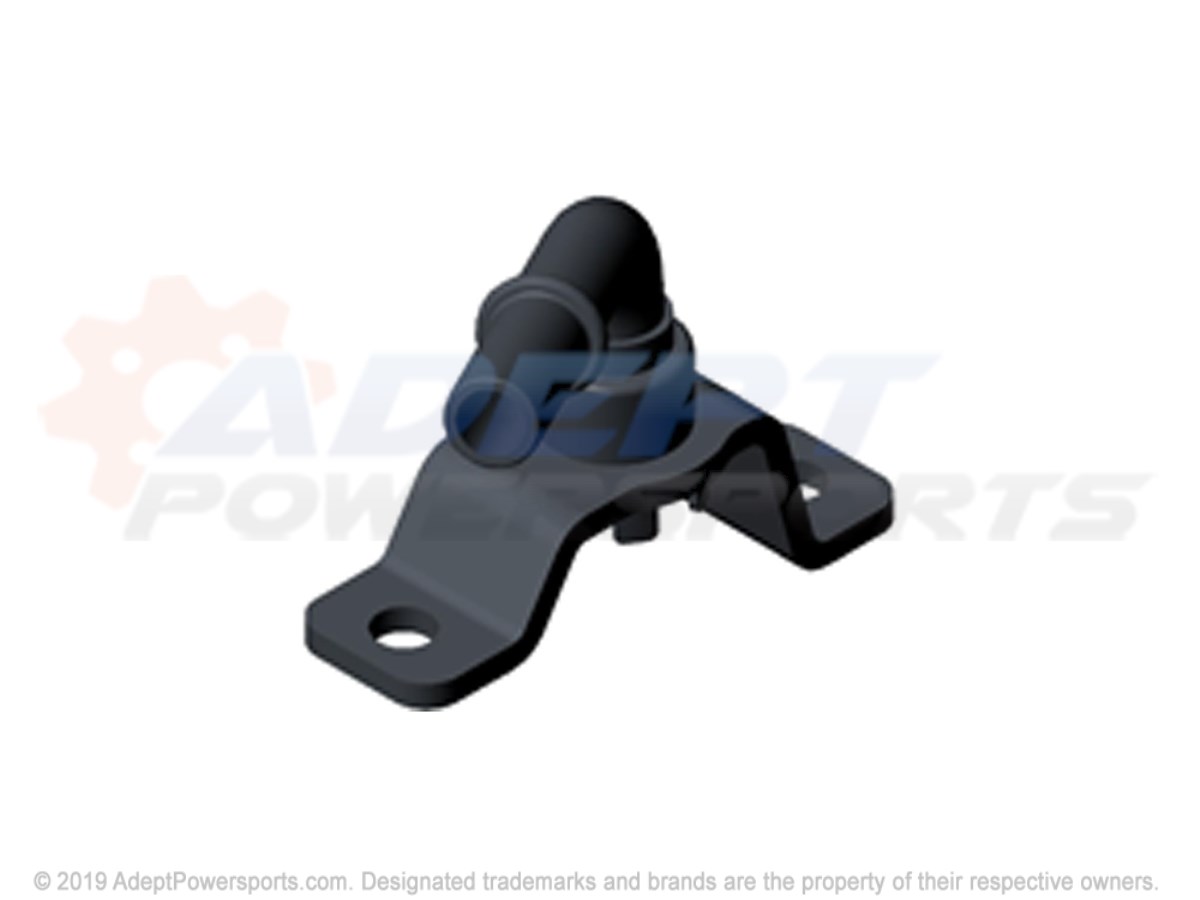

4	RAIL-FUEL, 1CYL Part #: 2522222 Required per assembly: 1 Currently Not Available
5	NUT M6 Part #: 3050333 Required per assembly: 2 Currently Not Available
6	ADAPTER-THROTTLE, BODY, NON-EVAP Part #: 5142933 Required per assembly: 1 Currently Not Available
7	MACH-ADAPTOR Part #: 5143148 Required per assembly: 1 Currently Not Available

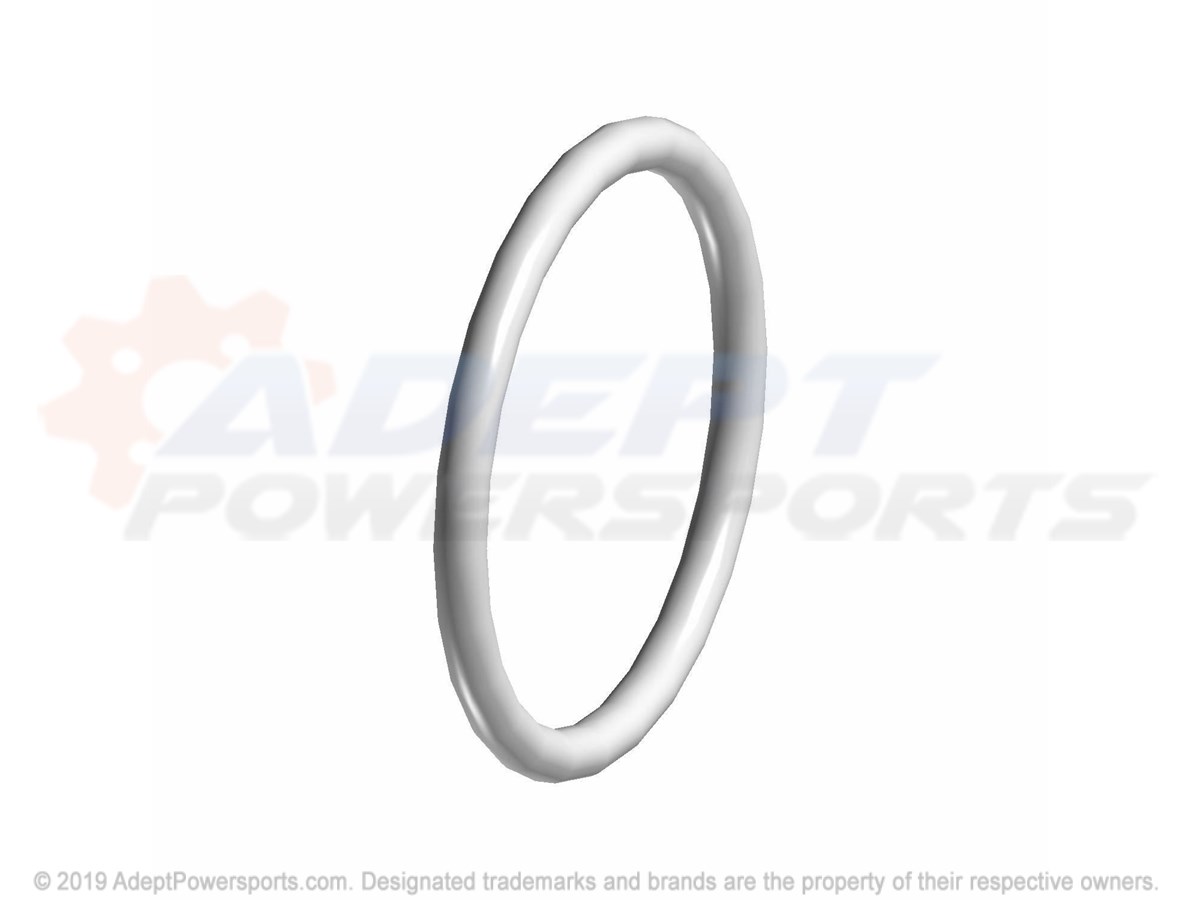

8	O-RING-THROTTLE, BODY, 2X27 Part #: 5416176 Required per assembly: 1 Currently Not Available
9	O-RING Part #: 5417182 Required per assembly: 1 Currently Not Available

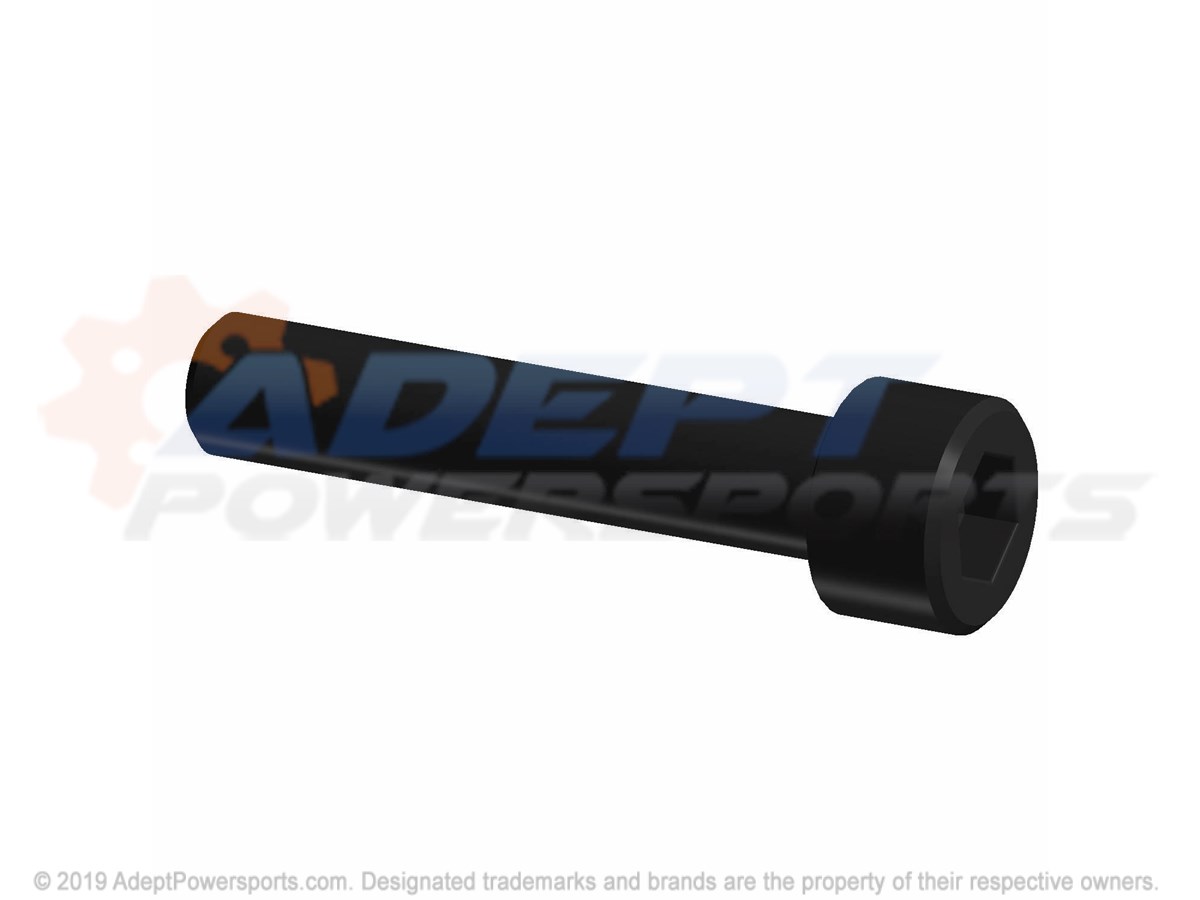

10	SCREW, SOCKET, HEAD Part #: 7517305 Required per assembly: 2 Currently Not Available
11	SCR-SH M6X1.0X30 8.8 ZY3 D204 Part #: 7521215 Required per assembly: 2 Currently Not Available
