Bulkhead And Front Cab Support replacement parts for 2021 Polaris Sportsman XP 1000 HUNTER EDITION (R01)

OEM Parts Polaris 2021 Polaris Sportsman XP 1000 HUNTER EDITION (R01) Bulkhead And Front Cab Support

BULKHEAD and FRONT CAB SUPPORT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BULKHEAD-CAST Part #: 5633745 Required per assembly: 1 Currently Not Available
2	SCREW, FLANGE Part #: 7517281 Required per assembly: 2 Note: Screw Currently Not Available
3	SCREW, FLANGE Part #: 7518450 Required per assembly: 6 Currently Not Available
4	NUT, FLANGE Part #: 7547317 Required per assembly: 8 Currently Not Available

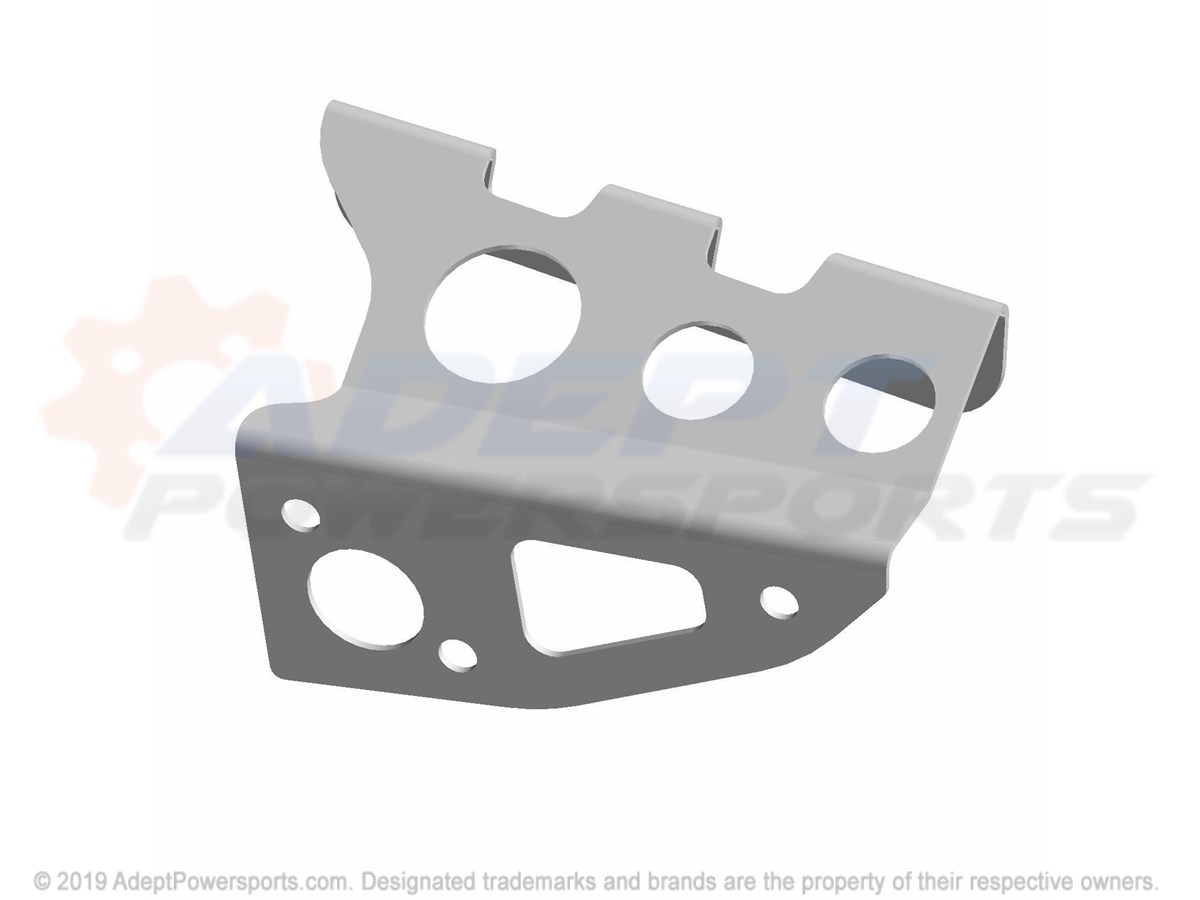

5	BRKT-CAB, SUPPORT, FRONT, LH, BLK Part #: 5263402-329 Required per assembly: 1 Currently Not Available

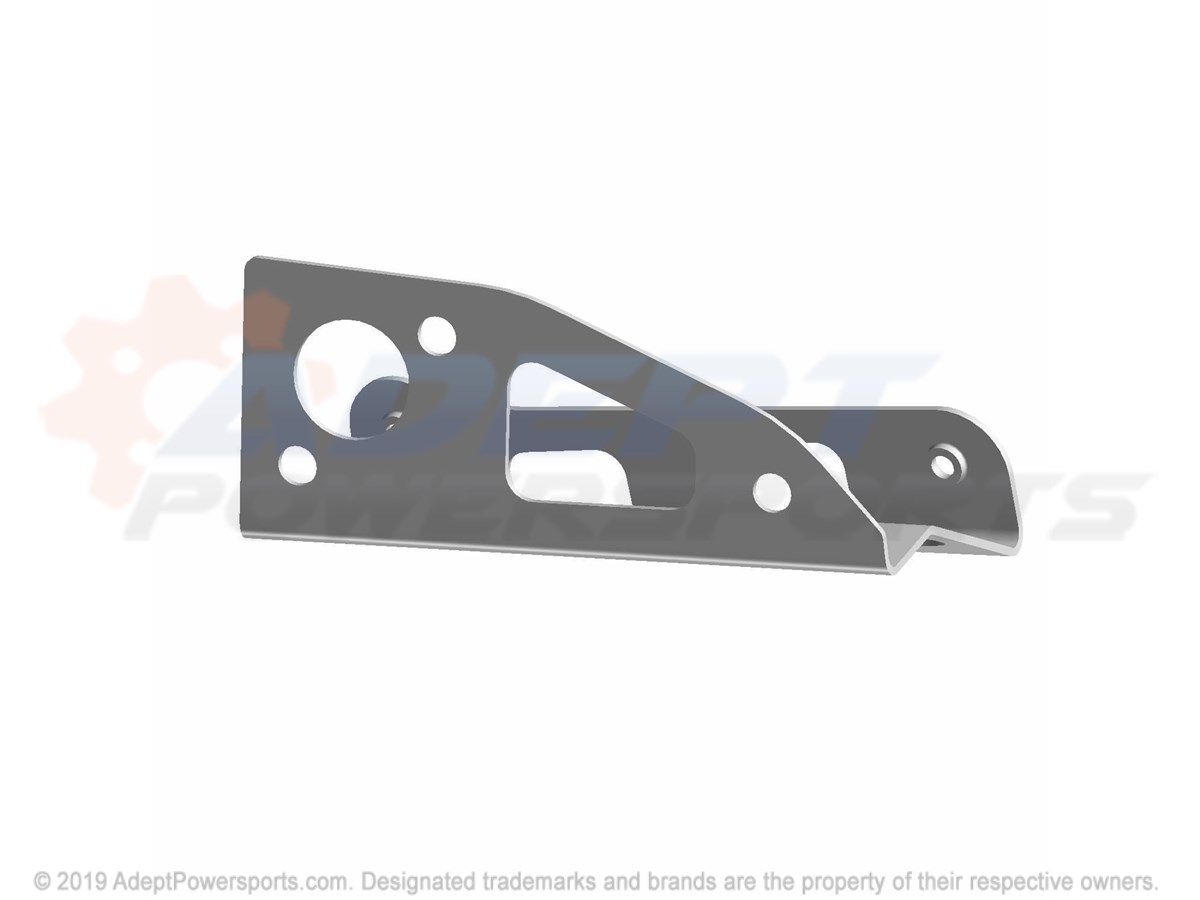

6	BRKT-CAB, SUPPORT, FRONT, RH, BLK Part #: 5263403-329 Required per assembly: 1 Currently Not Available
