Exhaust replacement parts for 2021 Polaris Sportsman XP 1000 HUNTER EDITION (R01)

OEM Parts Polaris 2021 Polaris Sportsman XP 1000 HUNTER EDITION (R01) Exhaust

EXHAUST Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-SUPPORT, EXHAUST, BLK Part #: 1022584-067 Required per assembly: 1 Currently Not Available

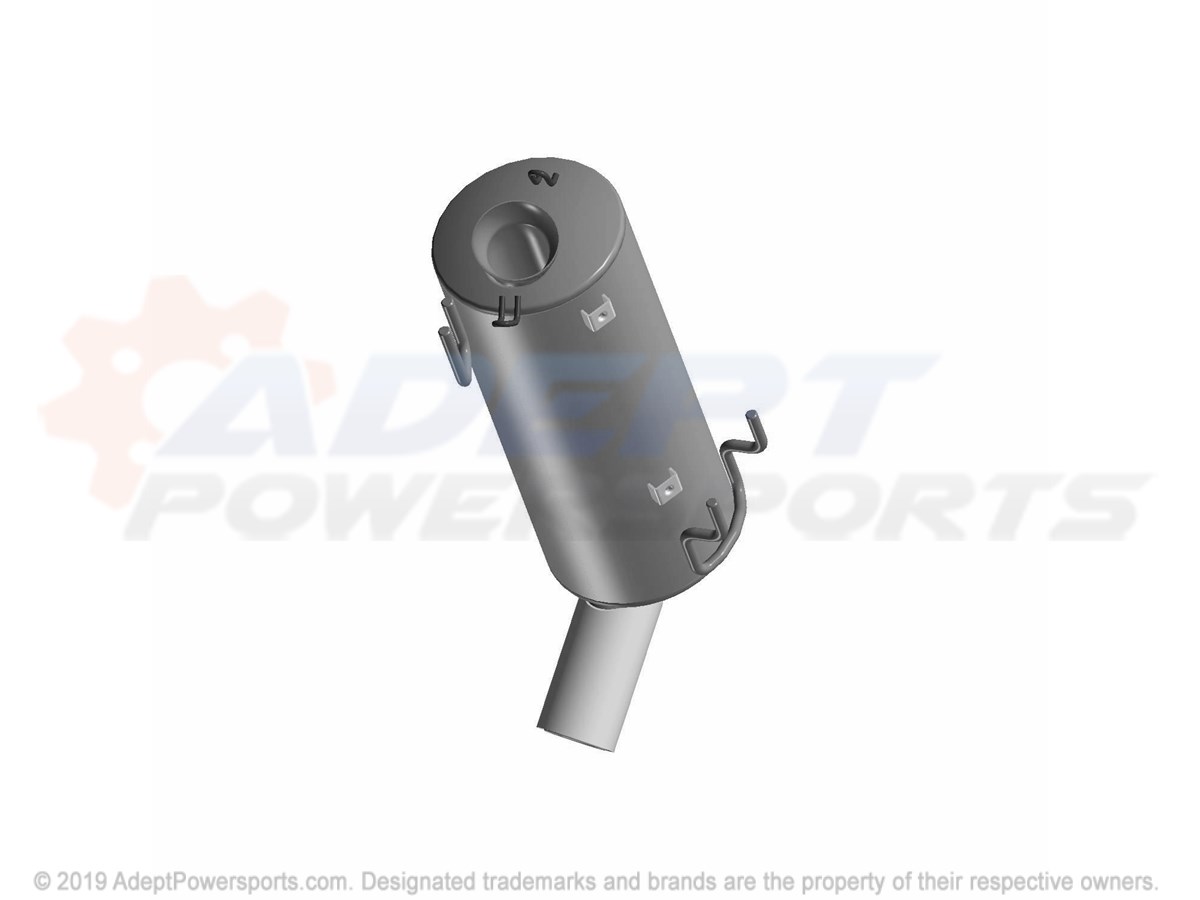

2	ASM-SILENCER Part #: 1262925 Required per assembly: 1 Currently Not Available
3	WELD-SILENCER, BLK Part #: 1262926-489 Required per assembly: 1 Currently Not Available
4	WELD-SPARK ARRESTOR AVA875 Part #: 1262123 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 7517257 Required per assembly: 1 Currently Not Available
6	NUT Part #: 7547120 Required per assembly: 1 Currently Not Available

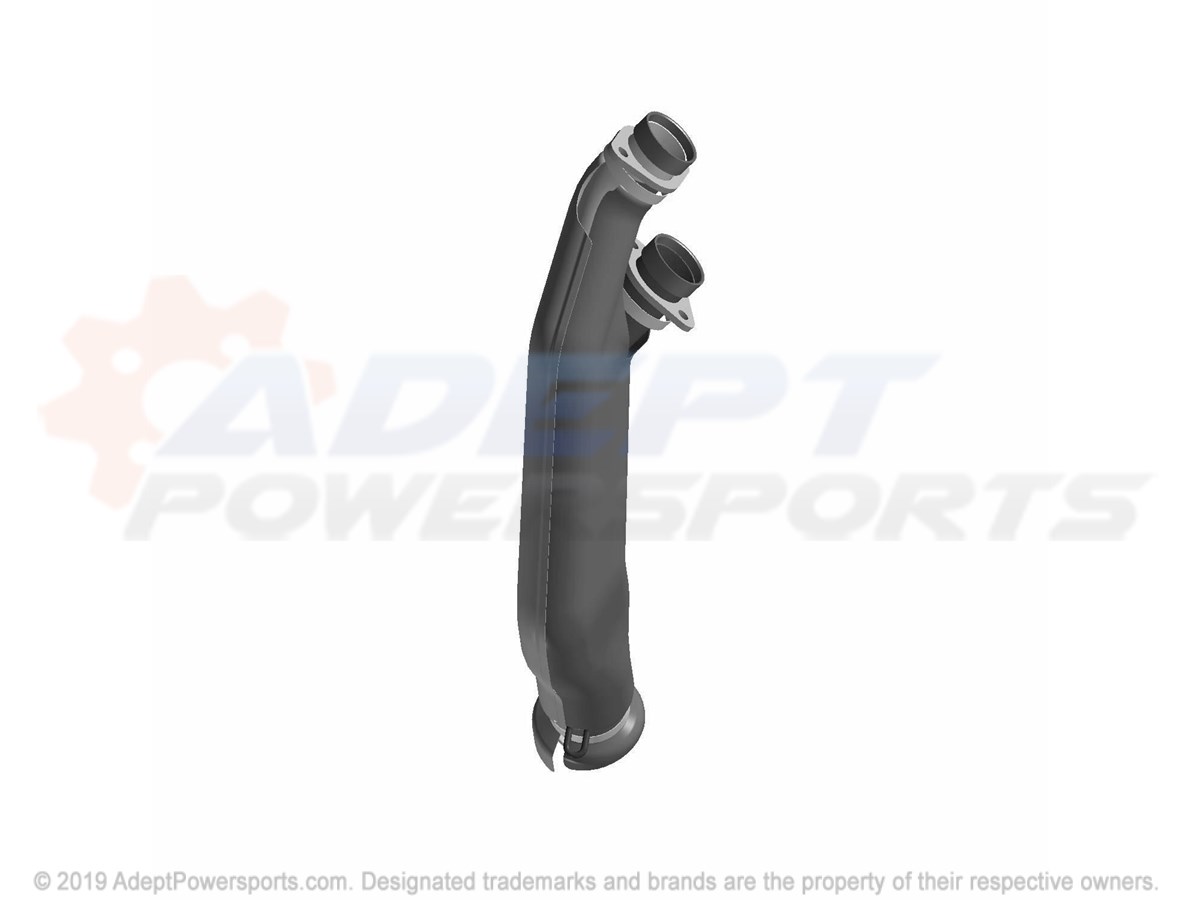

7	ASM-EXHAUST, PIPE, 1000 Part #: 1262934 Required per assembly: 1 Currently Not Available
8	SEAL, EXHAUST Part #: 3610204 Required per assembly: 1 Currently Not Available
9	GASKET, EXHAUST, SEALING Part #: 5257995 Required per assembly: 2 Currently Not Available
10	BRKT-EXHAUST, LOWER, SUPPORT, BLK Part #: 5262915-067 Required per assembly: 1 Currently Not Available
11	SHIELD-EXHAUST Part #: 5262918 Required per assembly: 1 Currently Not Available
12	ISOLATOR-EXHAUST, HANGER, HD Part #: 5417363 Required per assembly: 3 Currently Not Available
13	SPRING-EXHAUST S.S. SHOTPEENED Part #: 7043727 Required per assembly: 2 Currently Not Available
14	SCREW Part #: 7518555 Required per assembly: 1 Note: Bolt, Flange Currently Not Available
15	SCREW Part #: 7518490 Required per assembly: 4 Note: Screw, Flange Currently Not Available
16	NUT-HXFL-M8X1.25 A493 EM6340 Part #: 7547803 Required per assembly: 4 Currently Not Available
17	WASHER Part #: 7555935 Required per assembly: 4 Note: Washer, Flat Currently Not Available
