Wire Harnesses - R21maa57f1/F9/Sf1/F9/C1/C9/Ck replacement parts for 2021 Polaris Ranger 570 EPS, EU,ZUG, Tractor (R02)

OEM Parts Polaris 2021 Polaris Ranger 570 EPS, EU,ZUG, Tractor (R02) Wire Harnesses - R21maa57f1/F9/Sf1/F9/C1/C9/Ck

WIRE HARNESSES - R21MAA57F1/F9/SF1/F9/C1/C9/CK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-CHASSIS, 570, NRMM, TR Part #: 2415205 Required per assembly: 1 Note: INCL. 2,1416-27, ALL KITS Currently Not Available
1	HARNESS-CHASSIS, 570, NRMM, TR[S57CK] Part #: 2415460 Required per assembly: 1 Note: INCL. 2,3,5,7,8,10,16-18, ALL KITS Currently Not Available
2	LABEL, FUSE, BOX Part #: 7185002 Required per assembly: 1 Currently Not Available
3	KIT, FUSIBLE, LINK, 1.0MM Part #: 2202670 Required per assembly: 1 Note: Kit, Fusible Link Currently Not Available
4	BRACKET, MOUNT, FUSE, BLOCK, BLACK Part #: 5256408-329 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 7512084 Required per assembly: 2 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
6	HARNESS-BOX, 570, TR Part #: 2413588 Required per assembly: 1 Currently Not Available
7	SCREW Part #: 7518535 Required per assembly: 2 Currently Not Available
8	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
9	GROMMET, ELECTRICAL Part #: 5414440 Required per assembly: 1 Currently Not Available
10	CLIP Part #: 7670134 Required per assembly: 1 Note: Clip, Wire Currently Not Available
11	CLAMP, RUBBER, COATED Part #: 7081116 Required per assembly: 1 Currently Not Available
12	STRAP, BLACK, WEATHER-RESIST. Part #: 7080492 Required per assembly: 1 Currently Not Available
13	STRAP-CABLE TIE W/EDGE CLIP Part #: 7081808 Required per assembly: 1 Currently Not Available
14	CLIP-ROUTING Part #: 7081496 Currently Not Available
15	STRAP PANDUIT Part #: 7080138 Required per assembly: 6 ~~$1.99~~ $1.15 - + Add to cart
16	CLIP-OFFSET, 12.5MM, FIRTREE(BK) Part #: 7082458 Required per assembly: 1 Currently Not Available
17	CLIP-EDGE, 1-3MM, THICKNESS Part #: 7082428 Required per assembly: 1 Currently Not Available
18	RELAY-SPDT, 12V, 35A, SEALED, HFA Part #: 4016299 Required per assembly: 1 Currently Not Available
19	COVER-FUSEBOX, 72WAY Part #: 4014047 Required per assembly: 1 Currently Not Available
20	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Note: S57C1,C9 Currently Not Available
21	FUSE, 25, AMP Part #: 4011653 Required per assembly: 1 Currently Not Available
22	FUSE, MINI, BLADE, 5, AMP Part #: 4011652 Required per assembly: 2 Note: Fuse, Mini Blade, 5 Amp. Currently Not Available
23	BREAKER, CIRCUIT, 20, AMP Part #: 4011372 Required per assembly: 1 Currently Not Available
24	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 6 Currently Not Available
25	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 2 Currently Not Available
26	FUSE, 10AMP Part #: 2434016 Required per assembly: 9 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
27	FUSE, MINI, BLADE, 15, AMP. Part #: 4010859 Required per assembly: 3 Currently Not Available

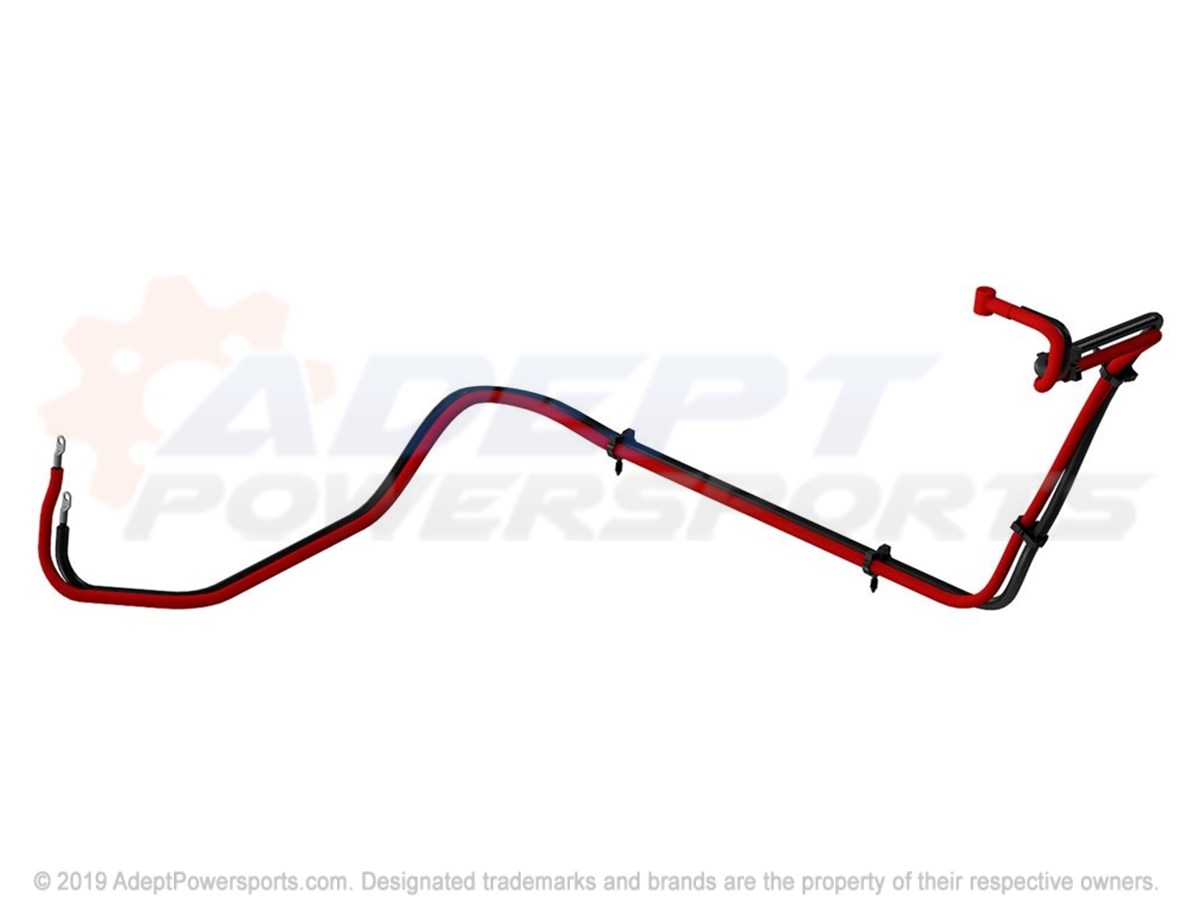

28	K-CABLE, BATT, BUS, RGT Part #: 2881684 Required per assembly: 1 Currently Not Available
29	JUMPER, P.SENSOR Part #: 4018150 Required per assembly: 1 Currently Not Available
