OEM Parts Polaris 2021 Polaris Ranger 570 EPS, EU,ZUG, Tractor (R02) Exhaust System - R21maa57f1/F9/Sf1/F9/C1/C9/Ck

2021 Polaris Ranger 570 EPS, EU,ZUG, Tractor (R02) R21MAA57F1/F9/MAS57F1/F9/C1/C9/CK - Exhaust System - R21maa57f1/F9/Sf1/F9/C1/C9/Ck

EXHAUST SYSTEM - R21MAA57F1/F9/SF1/F9/C1/C9/CK Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ASM-SILENCER, NRMM

Part #: 1263520 Required per assembly: 1 Note: INCL. 1,7,8,9
Currently Not Available
1

ASM-SILENCER, NRMM, HT, BLK

Part #: 1263545-489 Required per assembly: 1
Currently Not Available
2

WELD-HEADPIPE, NRMM

Part #: 1263427 Required per assembly: 1
Currently Not Available
3

SHIELD-HEAT, HEADPIPE, MID

Part #: 5268459 Required per assembly: 1
Currently Not Available
4

SHIELD-HEADPIPE, FRONT, UPPER

Part #: 5269069 Required per assembly: 1
Currently Not Available
5

SHIELD-HEADPIPE, FRONT, LOWER

Part #: 5269070 Required per assembly: 1
Currently Not Available
6
Polaris 7081156 Clamp Heat Shield Exhaust

CLAMP HEAT SHIELD EXHAUST

Part #: 7081156 Required per assembly: 5
Currently Not Available
7
Polaris 1263341 Weld-Spark Arrestor

WELD-SPARK ARRESTOR

Part #: 1263341 Required per assembly: 1 Note: INCL. 8
Currently Not Available
8
Polaris 7521252 Scr-Hxfl-M6x1.0X10 8.8

SCR-HXFL-M6X1.0X10 8.8

Part #: 7521252 Required per assembly: 4
Currently Not Available
9

SHIELD-HEAT, SILENCER, OUTER

Part #: 5269156 Required per assembly: 1
Currently Not Available
10
Polaris 3610248 Gasket-Double, Spherical, 2"

GASKET-DOUBLE, SPHERICAL, 2"

Part #: 3610248 Required per assembly: 1
Currently Not Available
11
Polaris 4011853 Sensor-Lambda, Lsf, 4.2

SENSOR-LAMBDA, LSF, 4.2

Part #: 4011853 Required per assembly: 1
Currently Not Available
12
Polaris 5010192 Bushing-Res. Mt.

BUSHING-RES. MT.

Part #: 5010192 Required per assembly: 2
Currently Not Available
13
Polaris 5253989 Gasket-Exhaust Sealing

GASKET-EXHAUST SEALING

Part #: 5253989 Required per assembly: 1
Currently Not Available
14
Polaris 5414945 Washer, Rubber

WASHER, RUBBER

Part #: 5414945 Required per assembly: 2
Currently Not Available
15
Polaris 5414946 Damper, Vibration

DAMPER, VIBRATION

Part #: 5414946 Required per assembly: 2
Currently Not Available
16
Polaris 7043727 Spring-Exhaust S.S. Shotpeened

SPRING-EXHAUST S.S. SHOTPEENED

Part #: 7043727 Required per assembly: 1
Currently Not Available
17
Polaris 7044274 Spring-Spherical, Exhaust

SPRING-SPHERICAL, EXHAUST

Part #: 7044274 Required per assembly: 2
Currently Not Available
18
Polaris 7518984 Screw

SCREW

Part #: 7518984 Required per assembly: 3
Currently Not Available
19
Polaris 7519305 Screw

SCREW

Part #: 7519305 Required per assembly: 2
Currently Not Available
20
Polaris 7520079 Stud-Spherical, Exhaust

STUD-SPHERICAL, EXHAUST

Part #: 7520079 Required per assembly: 2
Currently Not Available
21

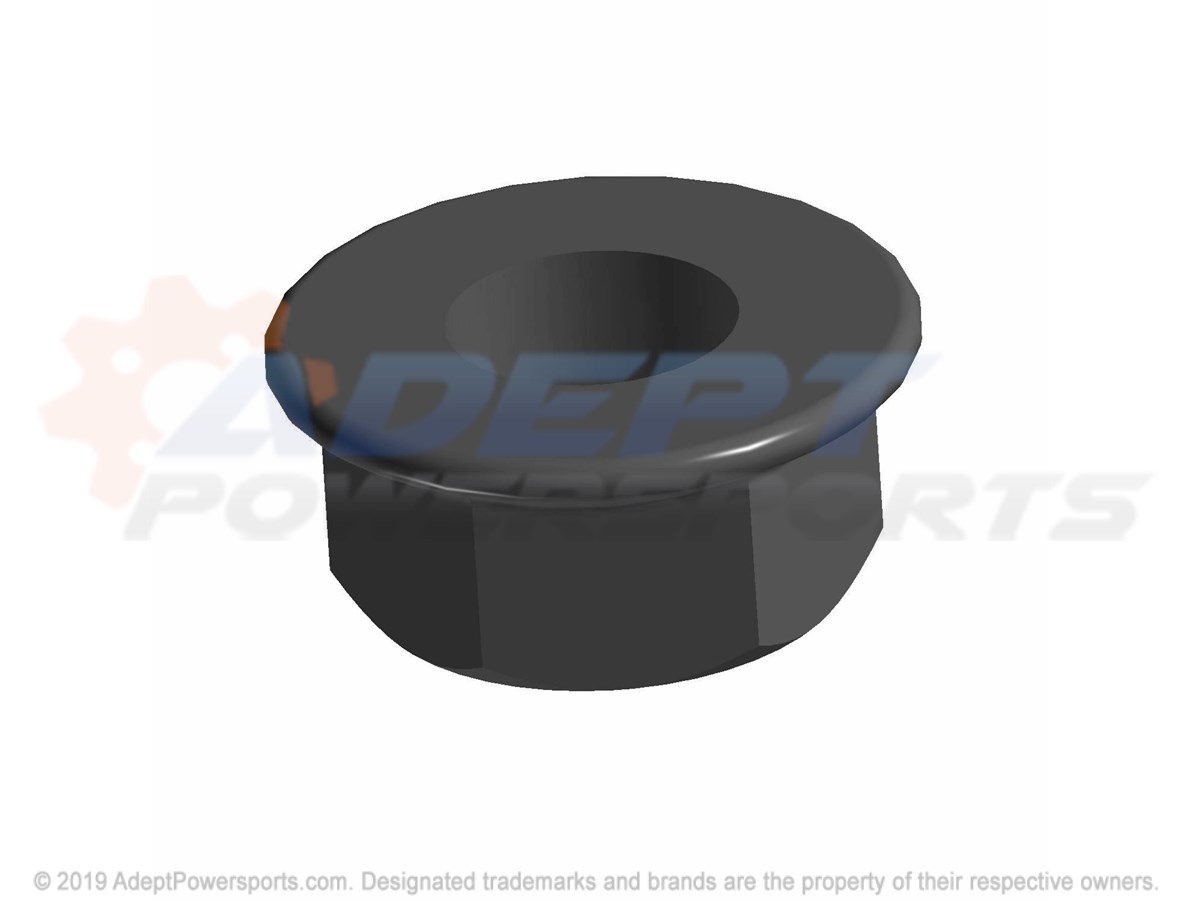

Polaris 7547839 Nut-Hxfl-M8x1.25 10 Spc

NUT-HXFL-M8X1.25 10 SPC

Part #: 7547839 Required per assembly: 2
Currently Not Available
22
Polaris 7555716 Washer

WASHER

Part #: 7555716 Required per assembly: 2
Currently Not Available
