Front replacement parts for 2021 Polaris Ranger 1000 FULL SIZE (R02)

OEM Parts Polaris 2021 Polaris Ranger 1000 FULL SIZE (R02) Front

FRONT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7518978 Required per assembly: 8 Currently Not Available
2	ROTOR, BRAKE Part #: 5263266 Required per assembly: 2 Currently Not Available
3	STUD, WHEEL Part #: 7519753 Required per assembly: 8 ~~$4.49~~ $2.80 - + Add to cart
4	HUB-WHEEL, FRONT, MACH, BLK Part #: 5141046-067 Required per assembly: 2 Currently Not Available

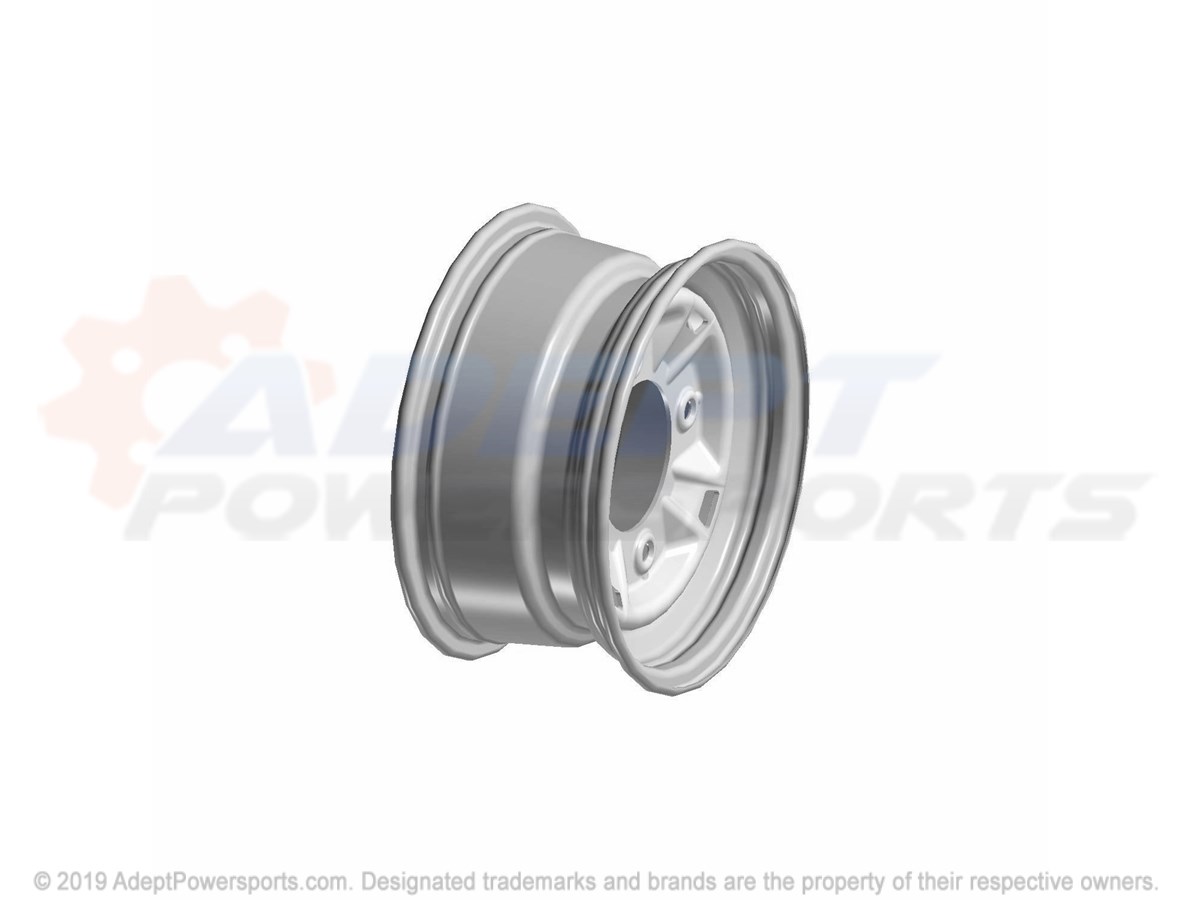

5	WELD-RIM, FRONT, 10, GA, 12X6, BLK Part #: 1523343-067 Required per assembly: 2 Note: A99A1/A7/B1/B7 Currently Not Available
6	TIRE-25X10-12 NHS 489 Part #: 5413961 Required per assembly: 2 Note: A99A1/A7/B1/B7 Currently Not Available
7	HUB-DUST COVER INTERNAL LIP Part #: 5413215 Required per assembly: 2 Note: A99A1/A7/B1/B7 Currently Not Available
8	NUT, LUG Part #: 7547660 Required per assembly: 8 Note: A99A1/A7/B1/B7 Currently Not Available
9	WSHR-AXLE, M18, 42X4.5 Part #: 7557134 Required per assembly: 2 Currently Not Available
10	NUT, CASTLE, [4X4] Part #: 7547337 Required per assembly: 2 Note: Nut, Castle ~~$3.99~~ $2.30 - + Add to cart
11	RING-RETAINING, 2.835, INTERNAL Part #: 7710780 Required per assembly: 1 Currently Not Available
12	PIN, COTTER Part #: 7661404 Required per assembly: 2 Currently Not Available
13	VALVE, RIM Part #: 1525017 Required per assembly: 2 Currently Not Available
14	BEARING-BALL, SEALED, 44X72X33.1 Part #: 3514924 Required per assembly: 2 Currently Not Available
14	BEARING-BALL, SEALED, 44X72X33.1 Part #: 3515090 Required per assembly: 2 Note: OPTIONAL Currently Not Available
