OEM Parts Polaris 2021 Polaris RZR Turbo XP PRO Sport/Premium/ULT (2020) (R01) Seat Mounting, Pass.

2021 Polaris RZR Turbo XP PRO Sport/Premium/ULT (2020) (R01) Z21RAC92AL/BL/D92AM/BM/E92AS/BS - Seat Mounting, Pass.

SEAT MOUNTING, PASS. Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

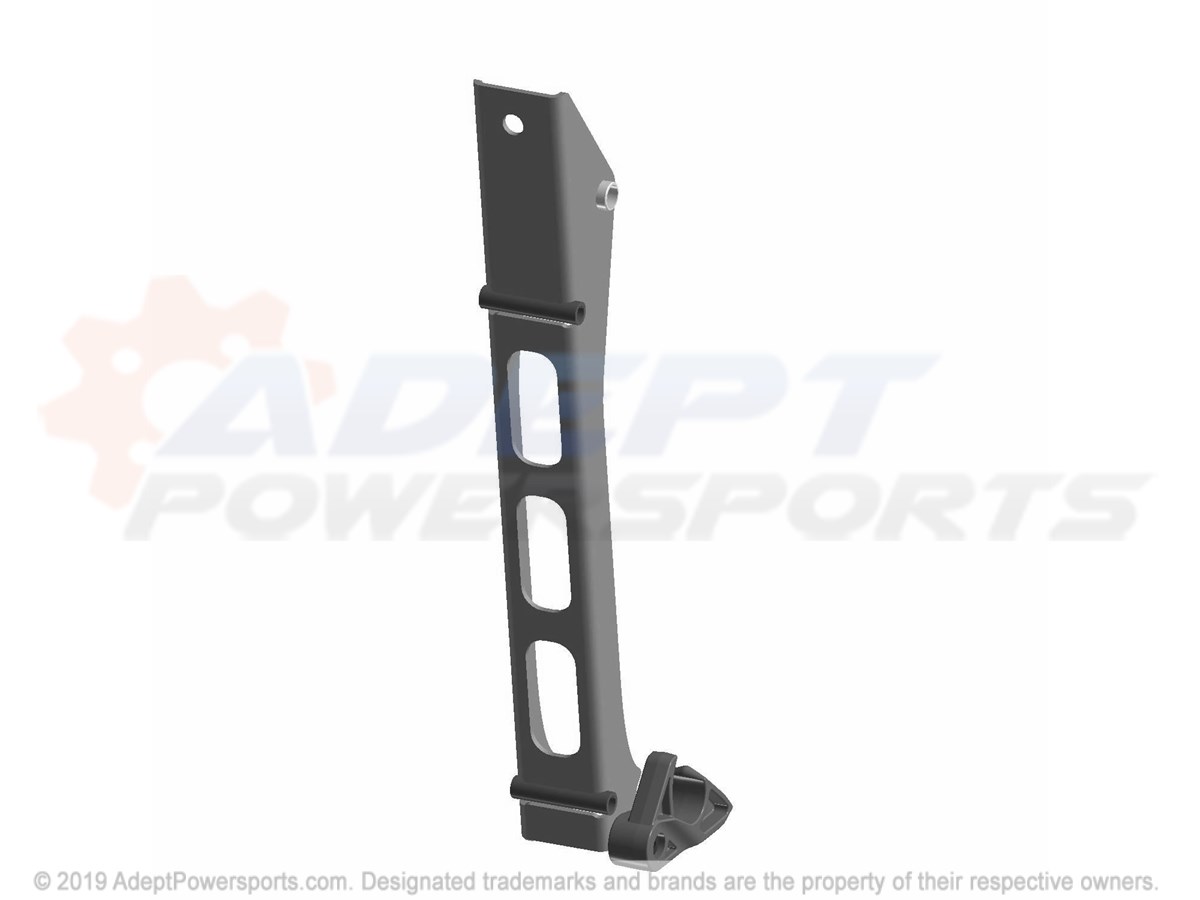

Polaris 2637650 Asm-Rcvr, Man, Seat, Slide, Lh

ASM-RCVR, MAN, SEAT, SLIDE, LH

Part #: 2637650 Required per assembly: 1 Note: INCL. 3-6
Currently Not Available
2

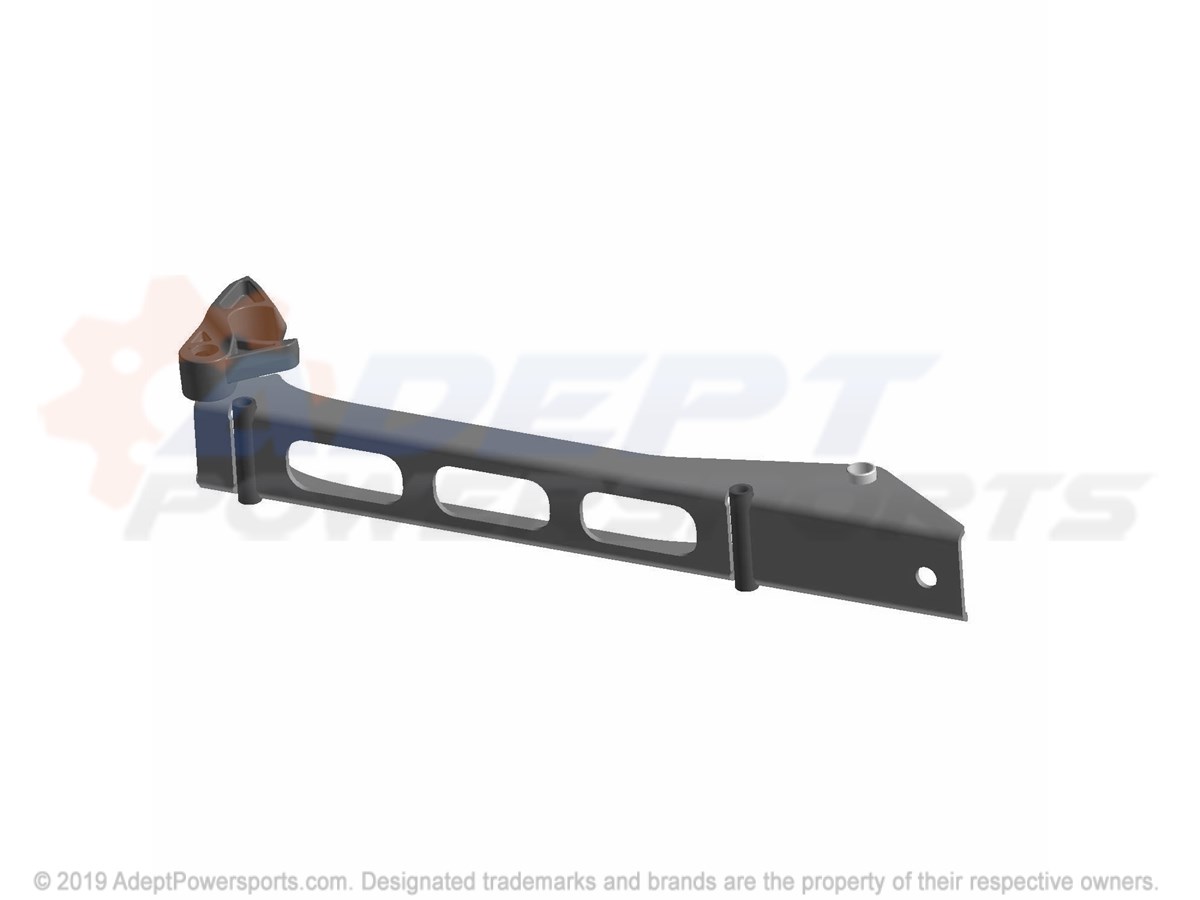

Polaris 2637651 Asm-Rcvr, Man, Seat, Slide, Rh

ASM-RCVR, MAN, SEAT, SLIDE, RH

Part #: 2637651 Required per assembly: 1 Note: INCL. 3-6
Currently Not Available
3
Polaris 5456315 Latch-Hook, Lh

LATCH-HOOK, LH

Part #: 5456315 Required per assembly: 1
Currently Not Available
3
Polaris 5456316 Latch-Hook, Rh

LATCH-HOOK, RH

Part #: 5456316 Required per assembly: 1
Currently Not Available
4
Polaris 7043989 Spring-Latch, Lh

SPRING-LATCH, LH

Part #: 7043989 Required per assembly: 1
Currently Not Available
4
Polaris 7043990 Spring-Latch, Rh

SPRING-LATCH, RH

Part #: 7043990 Required per assembly: 1
Currently Not Available
5

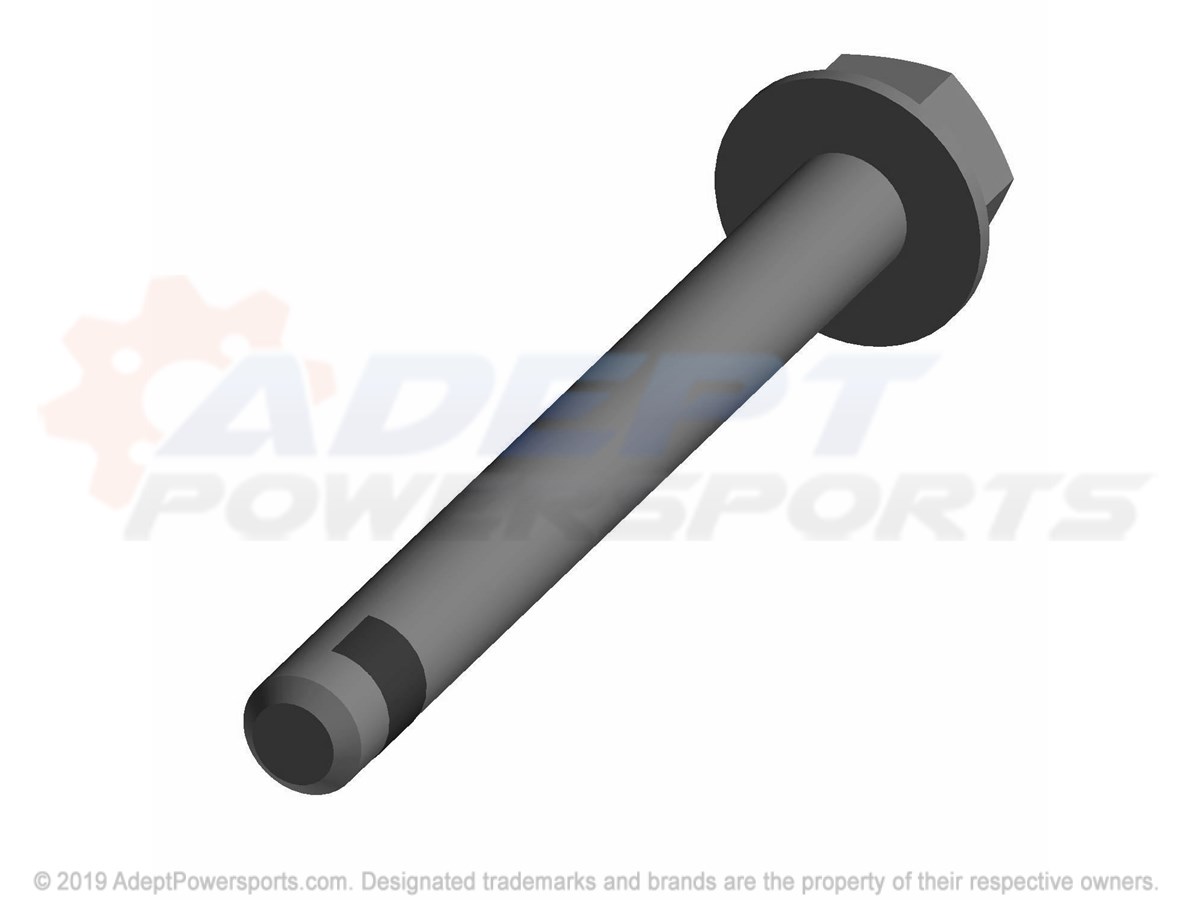

Polaris 7519980 Bolt-Shoulder, M8-15, M6x1.0-Blk

BOLT-SHOULDER, M8-15, M6X1.0-BLK

Part #: 7519980 Required per assembly: 1
Currently Not Available
6

NUT, METRIC

Part #: 7546703 Required per assembly: 2
$1.99
$1.15
-
+
Add to cart
7
Polaris 7521089 Scr-Hxfl-M8x1.25X75 8.8 Zod Ny

SCR-HXFL-M8X1.25X75 8.8 ZOD NY

Part #: 7521089 Required per assembly: 4
Currently Not Available
8
Polaris 7520054 Scr-Hxfl-M12x1.75X30 Zod

SCR-HXFL-M12X1.75X30 ZOD

Part #: 7520054 Required per assembly: 2
Currently Not Available
9
Polaris 7547441 Nut, Flange, Nylok

NUT, FLANGE, NYLOK

Part #: 7547441 Required per assembly: 2
Currently Not Available
