Front Control Arms replacement parts for 2021 Polaris RZR Turbo XP PRO Sport/Premium/ULT (2020) (R01)

OEM Parts Polaris 2021 Polaris RZR Turbo XP PRO Sport/Premium/ULT (2020) (R01) Front Control Arms

FRONT CONTROL ARMS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

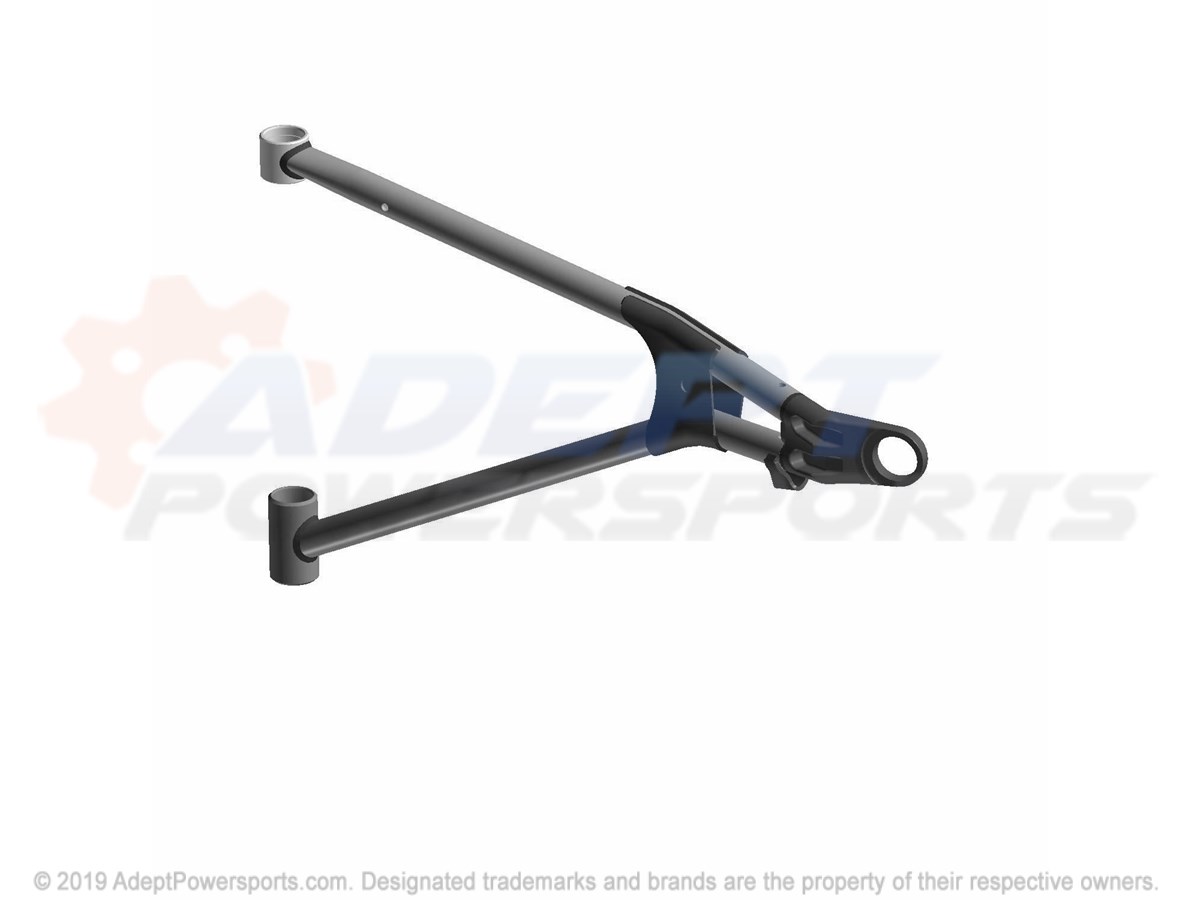

1	WELD-CTRL, ARM, UPR, FR, LH, 64, BLK Part #: 1544322-458 Required per assembly: 1 Note: EAS Currently Not Available
1	WELD-UCA, FR, LH, 64, Z.BLUE Part #: 1544322-849 Required per assembly: 1 Note: DAM Currently Not Available
1	WELD-UCA, FR, LH, 64, PRL, MLTD Part #: 1544322-707 Required per assembly: 1 Note: CAL Currently Not Available

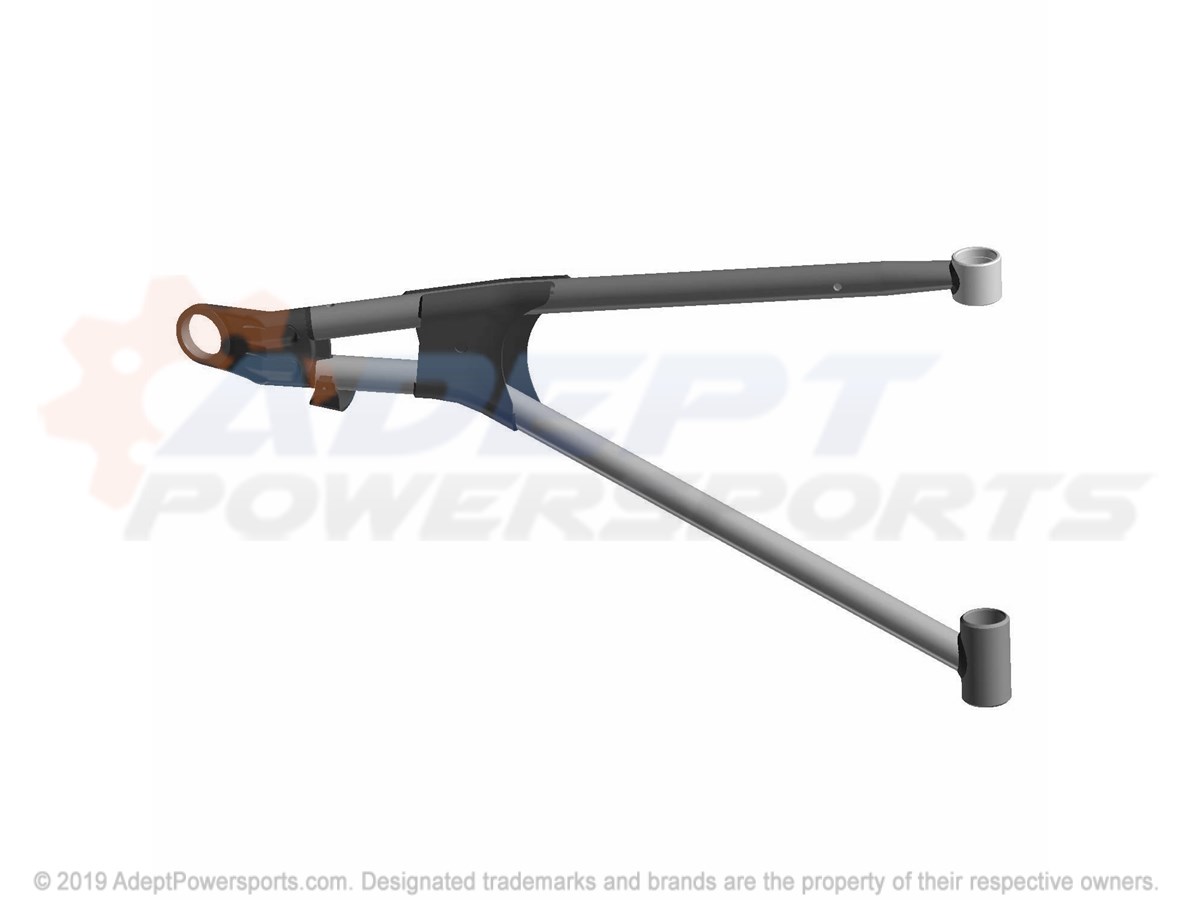

2	WELD-UCA, FR, RH, 64, Z.BLUE Part #: 1544323-849 Required per assembly: 1 Note: DAM Currently Not Available
2	WELD-CTRL, ARM, UPR, FR, RH, 64, BLK Part #: 1544323-458 Required per assembly: 1 Note: EAS Currently Not Available
2	WELD-UCA, FR, RH, 64, PRL, MLTD Part #: 1544323-707 Required per assembly: 1 Note: CAL Currently Not Available
3	WELD-LCA, FR, LH, 64, PRL, MLTD Part #: 1544336-707 Required per assembly: 1 Note: CAL Currently Not Available
3	WELD-LCA, FR, LH, 64, Z.BLUE Part #: 1544336-849 Required per assembly: 1 Note: DAM Currently Not Available
3	WELD-CTRL, ARM, LWR, FR, LH, 64, BLK Part #: 1544336-458 Required per assembly: 1 Note: EAS Currently Not Available

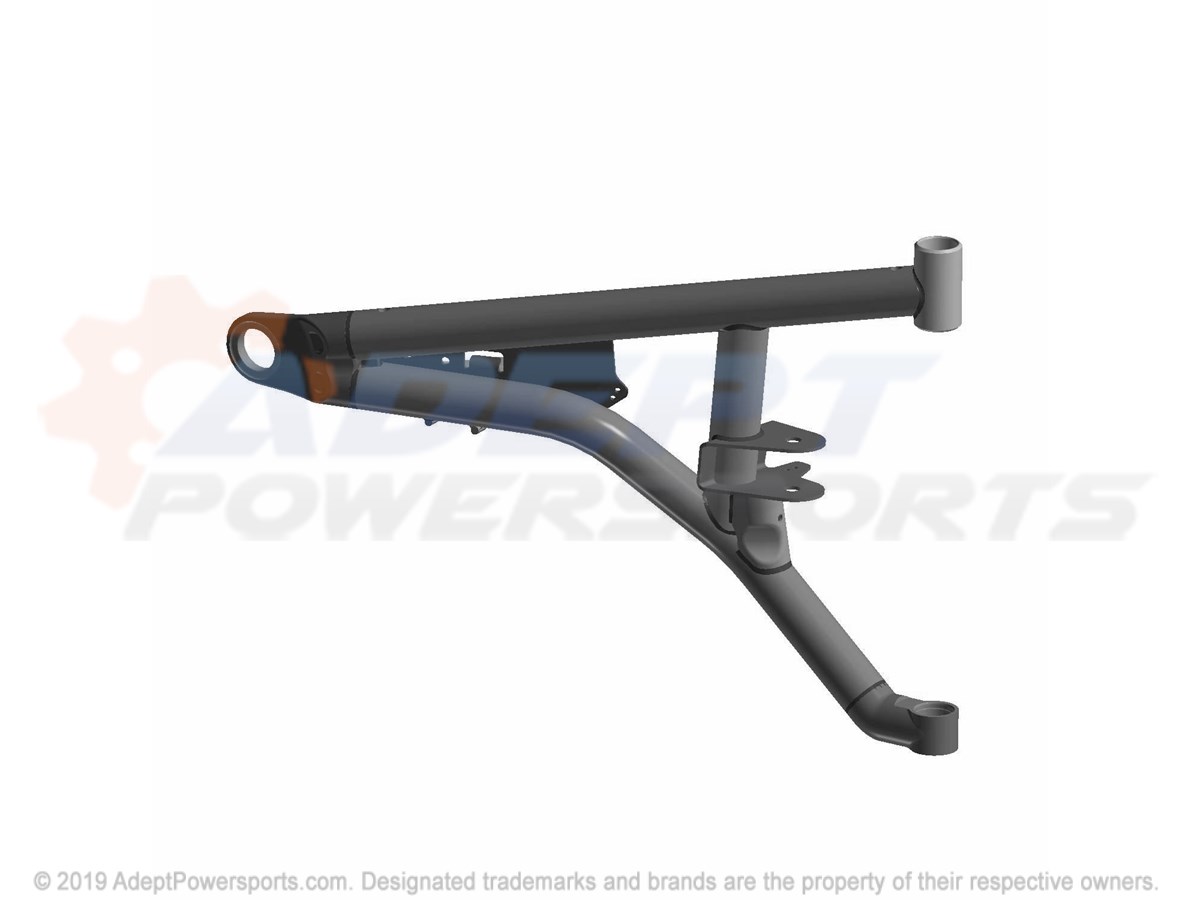

4	WELD-CTRL, ARM, LWR, FR, RH, 64, BLK Part #: 1544337-458 Required per assembly: 1 Note: EAS Currently Not Available
4	WELD-LCA, FR, RH, 64, Z.BLUE Part #: 1544337-849 Required per assembly: 1 Note: DAM Currently Not Available
4	WELD-LCA, FR, RH, 64, PRL, MLTD Part #: 1544337-707 Required per assembly: 1 Note: CAL Currently Not Available
5	ASM-PIVOT, CAP, SEALED, M12 Part #: 1543612 Required per assembly: 8 Note: INCL. 5,21 Currently Not Available
5	CAP-PIVOT, SEAL, M12 Part #: 5139992 Required per assembly: 8 Currently Not Available
6	ASM-PIVOT, CAP, SEALED, M12, MINI Part #: 1543998 Required per assembly: 8 Note: INCL. 6,21 Currently Not Available
6	CAP-PIVOT, SEAL, M12, MINI Part #: 5141426 Required per assembly: 8 Currently Not Available
7	SHAFT-PIVOT, SHORT, M12 Part #: 5140555 Required per assembly: 4 Currently Not Available
8	SCR-HXFL-M12X1.5X65 10.9 ZOD Part #: 7520477 Required per assembly: 2 Currently Not Available
9	BUSHING-STANDARD, SUSP, M12 Part #: 5452271 Required per assembly: 12 Currently Not Available
10	BALL-JOINT, HARDENED, HI-MISALGN Part #: 7082892 Required per assembly: 4 Currently Not Available
11	SCR-HXFL-M12X1.5X105 10.9 ZOD Part #: 7520479 Required per assembly: 4 Currently Not Available
12	NUT, NYLOK Part #: 7547334 Required per assembly: 8 Currently Not Available
13	WASHER-FL, 13X2.5 Part #: 7556287 Required per assembly: 8 Currently Not Available
14	RING, RETAINING Part #: 7710716 Required per assembly: 4 Currently Not Available
15	30MM, SPIRAL, RING, STEEL Part #: 7710869 Required per assembly: 4 Currently Not Available
16	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
17	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
18	WASHER, FLAT Part #: 7556153 Required per assembly: 8 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
19	SCR-HXFL-M12X1.5X75 10.9 ZOD Part #: 7521073 Required per assembly: 2 Currently Not Available
