Sub-Transmission Case replacement parts for 2024 Honda SXS1000M5P

OEM Parts Honda 2024 Honda SXS1000M5P Sub-Transmission Case

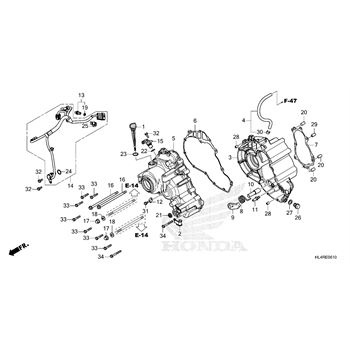

SUB-TRANSMISSION CASE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

E 0610
001	DIPSTICK, OIL Part #: 15650-HL4-000 Required per assembly: 1 ~~$15.14~~ $14.25 - + Add to cart
002	CLAMP, DRAIN, HOSE Part #: 19530-HL4-000 Required per assembly: 1 ~~$5.53~~ $5.03 - + Add to cart
003	CASE, SUB-TRANSMISSION Part #: 21100-HL6-A00 Required per assembly: 1 ~~$337.57~~ $281.40 - + Add to cart
004	TUBE, ASSEMBLY, BREATHER Part #: 21111-HL4-010 Required per assembly: 1 ~~$15.87~~ $12.85 - + Add to cart
005	COVER, SUB-TRANSMISSION Part #: 21200-HL6-A02 Required per assembly: 1 $240.29 - + Add to cart
005	COVER, SUB-TRANSMISSION Part #: 21200-HL6-A02 Required per assembly: 1 $240.29 - + Add to cart
006	GASKET Part #: 21205-HL4-003 Required per assembly: 1 ~~$22.24~~ $17.73 - + Add to cart
007	GASKET, SUB-TRANSMISSION, CASE Part #: 21206-HL6-A01 Required per assembly: 1 ~~$13.60~~ $10.85 - + Add to cart
008	SPRING, PARKING, PAWL Part #: 24552-HL4-000 Required per assembly: 1 ~~$4.85~~ $4.41 - + Add to cart
009	PAWL, PARKING, BRAKE Part #: 24561-PL4-020 Required per assembly: 1 Note: Serial end: 8438644 ~~$33.74~~ $30.67 - + Add to cart
009	PAWL, PARKING BRAKE Part #: 24561-HL4-BA0 Required per assembly: 1 Note: Serial begin: 8438645 ~~$28.00~~ $22.33 - + Add to cart
010	SHAFT, PARKING Part #: 24562-HL4-000 Required per assembly: 1 ~~$9.60~~ $8.75 - + Add to cart
011	PIN, GEARSHIFT, RETURN, SPRING Part #: 24652-HL4-000 Required per assembly: 1 $5.02 - + Add to cart
012	STAY, HARNESS, CLIP Part #: 32156-HL4-000 Required per assembly: 1 ~~$4.74~~ $4.31 - + Add to cart
013	SWITCH, SET, NEUTRAL Part #: 35600-HL4-305 Required per assembly: 1 ~~$23.40~~ $19.50 - + Add to cart
014	SWITCH, ASSEMBLY, SUB-DRUM, POSITION Part #: 35759-HL8-A01 Required per assembly: 1 ~~$111.05~~ $106.75 - + Add to cart
015	SENSOR, ASSEMBLY, SPEED Part #: 37700-KZR-601 Required per assembly: 1 ~~$53.38~~ $42.57 - + Add to cart
016	BOLT, FLANGE, (8X165) Part #: 90017-HL4-000 Required per assembly: 2 ~~$7.95~~ $6.94 - + Add to cart
017	NUT, HEX., CAP, (8MM) Part #: 90307-MJE-D00 Required per assembly: 2 ~~$2.34~~ $2.17 - + Add to cart
018	WASHER, SEAL, (8MM) Part #: 90441-286-000 Required per assembly: 2 ~~$2.88~~ $2.68 - + Add to cart
019	WASHER, OIL, BOLT Part #: 90545-300-000 Required per assembly: 1 ~~$4.80~~ $4.09 - + Add to cart
020	PIN, DOWEL, (10X16) Part #: 90701-MV9-670 Required per assembly: 3 ~~$5.70~~ $5.18 - + Add to cart
021	OIL SEAL (12X20X5) Part #: 91205-KF0-003 Required per assembly: 1 ~~$4.80~~ $4.36 - + Add to cart
022	O-RING (14.8X2.4) Part #: 91356-MA6-005 Required per assembly: 1 ~~$2.86~~ $2.65 - + Add to cart
023	O-RING (18X3) Part #: 91307-KF0-003 Required per assembly: 1 ~~$3.96~~ $3.60 - + Add to cart
024	O-RING (17.0X2.5) Part #: 91333-KE5-003 Required per assembly: 1 ~~$3.19~~ $2.97 - + Add to cart
025	CLIP, CONNECTOR Part #: 91535-STK-003 Required per assembly: 1 ~~$7.36~~ $7.01 - + Add to cart
026	BOLT, DRAIN, (14MM) Part #: 92800-14000 Required per assembly: 1 $4.89 - + Add to cart
027	WASHER, DRAIN, (14MM) Part #: 94109-14000 Required per assembly: 1 ~~$1.71~~ $1.55 - + Add to cart
028	PIN, DOWEL, (8X14) Part #: 94301-08140 Required per assembly: 2 ~~$3.21~~ $2.99 - + Add to cart
029	PIN, DOWEL, (10X16) Part #: 94301-10160 Required per assembly: 1 ~~$3.50~~ $3.18 - + Add to cart
030	CLAMP, TUBE, (D10) Part #: 95002-41000-08 Required per assembly: 1 $3.13 - + Add to cart
031	BOLT, FLANGE, (6X12) Part #: 95701-06012-00 Required per assembly: 1 ~~$2.63~~ $2.44 - + Add to cart
032	BOLT, FLANGE, (6X16) Part #: 95701-06016-00 Required per assembly: 3 Note: 95701-06016-08* ~~$2.63~~ $2.44 - + Add to cart
033	BOLT, FLANGE, (6X35) Part #: 95701-06035-00 Required per assembly: 7 ~~$2.87~~ $2.67 - + Add to cart
034	BOLT, FLANGE, (6X55) Part #: 95701-06055-00 Required per assembly: 2 ~~$3.14~~ $2.91 - + Add to cart
