Master Cylinder replacement parts for Kymco Mongoose 250

OEM Parts Kymco Kymco Mongoose 250 Master Cylinder

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

35340	SW ASSY FR STOP Part #: 35340-LBA7-900 Required per assembly: 1 Currently Not Available
35350	SW ASSY RR STOP Part #: 35350-KBN-9000 Required per assembly: 1 Currently Not Available
43127	HOSE COMP RR BRAKE Part #: 43127-LBA7-900 Required per assembly: 1 Currently Not Available
43128	CLAMPER RR BRK HOSE Part #: 43128-LBA7-900 Required per assembly: 1 Currently Not Available
43530	CYLINDER SET RR MASTER Part #: 43530-KKC4-305 Required per assembly: 1 Currently Not Available
45127	HOSE ASSY RR BRAKE (M/C) Part #: 45127-LBA7-900 Required per assembly: 1 Currently Not Available
45128	HOSE ASSY FR(C/P R) BRK Part #: 45128-LEC1-700 Required per assembly: 1 Currently Not Available
45129	HOSE ASSY FR(C/P L) BRK Part #: 45129-LEC1-700 Required per assembly: 1 Currently Not Available
45130	HOSE ASSY C/P L FR BRK Part #: 45130-LBA7-900 Required per assembly: 1 Currently Not Available
45132	CLAMPER FR BRK HOSE (0) C.2005.05.31 Part #: 45132-LBA7-900 Required per assembly: 2 Currently Not Available**
45513	CAP M/C Part #: 45513-KKC4-900 Required per assembly: 1 Currently Not Available
45517	HOLDER M/C Part #: 45517-KAF-9100 Required per assembly: 2 Currently Not Available
45525	STOPPER Part #: 45525-LBA7-900 Required per assembly: 1 Currently Not Available
45526	SPRING Part #: 45526-LBA7-900 Required per assembly: 1 Currently Not Available
45527	PIN PARK Part #: 45527-LBA7-900 Required per assembly: 1 Currently Not Available
45530	CYLINDER SET FR MASTER Part #: 45530-LBA7-305 Required per assembly: 1 Currently Not Available
53178	LEVER L STRG HANDLE BLACK Part #: 53178-KFC8-E10-M2A Required per assembly: 1 Currently Not Available
90114	BOLT LEVER RH Part #: 90114-166-0070 Required per assembly: 2 Currently Not Available
90145	OIL BOLT 10X22 Part #: 90145-MS9-6120-M1 Required per assembly: 7 Currently Not Available
90501	WASHER 712 310-001 C.2005.06.01 Part #: 90501-3L10-001 Required per assembly: 1 Currently Not Available*
90545	WASHER OIL BOLT Part #: 90545-300-0010 Required per assembly: 14 Currently Not Available

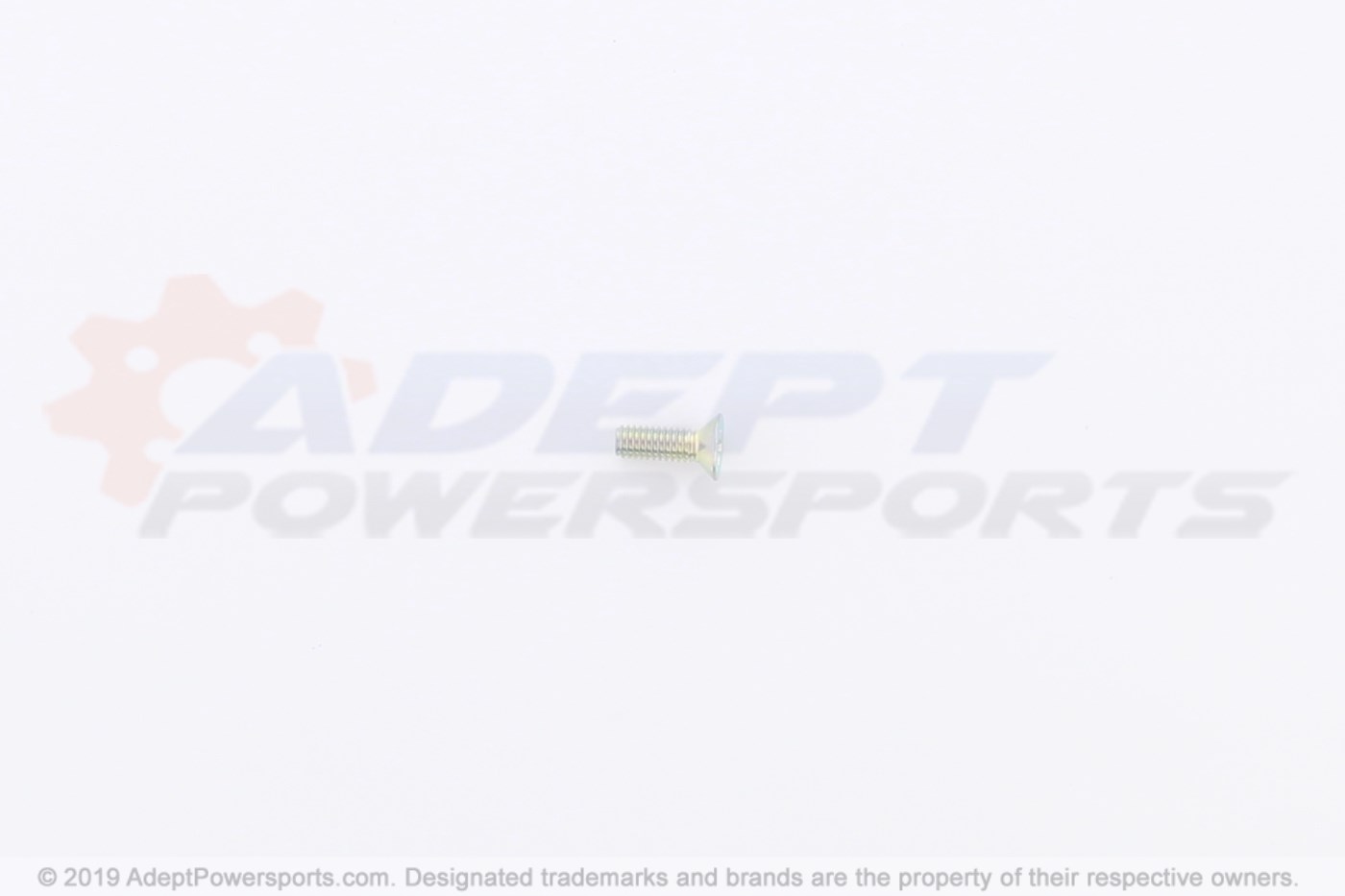

93600-04012-1A	SCREW FLAT 412 Part #: 93600-04012-1A Required per assembly: 2 Currently Not Available*
93600-04012-1G	SCREW FLAT 412 Part #: 93600-04012-0G Required per assembly: 2 Currently Not Available*
93893	SCREW WASHER 412 Part #: 93893-04012-18 Required per assembly: 1 Currently Not Available*
94050	NUT FLANGE 6MM Part #: 94050-06070 Required per assembly: 2 Currently Not Available
95701	BOLT FLANGE 612 07 C.2005.07.01 Part #: 95701-06012-06 Required per assembly: 3 Currently Not Available*
95801	BOLT FLANGE 835 Part #: 95801-08035-06 Required per assembly: 1 Currently Not Available*
96001	BOLT FLANGE 622 Part #: 96001-06022-06 Required per assembly: 4 Currently Not Available*
