Rear Fork replacement parts for Kymco Mongoose 250

OEM Parts Kymco Kymco Mongoose 250 Rear Fork

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

5231A	LINK ASSY RR CUSHION Part #: 5231A-LBA7-600 Required per assembly: 1 Currently Not Available
40525	SLIDER CHAIN Part #: 40525-LBA7-900 Required per assembly: 1 Currently Not Available
40526	PROTECTOR DISK Part #: 40526-LBA7-900 Required per assembly: 1 Currently Not Available
40527	SLIDER CHAIN Part #: 40527-LBA7-600 Required per assembly: 1 Currently Not Available
44621	COLLAR GUIDE BUSH Part #: 44621-LBA7-900 Required per assembly: 1 Currently Not Available
52000	FORK ASSY RR Part #: 52000-LBA7-E70-M2S Required per assembly: 1 Currently Not Available
52101	COLLAR RR FORK DIST Part #: 52101-LLB1-900 Required per assembly: 1 Currently Not Available
52108	BUSH RR FORK (PIVOT) Part #: 52108-KEE5-0040 Required per assembly: 2 Currently Not Available
52144	CAP RR FORK DUST SEAL Part #: 52144-LBA7-900 Required per assembly: 2 Currently Not Available
52200	ARM ASSY RR CUSHION Part #: 52200-LBA7-900 Required per assembly: 1 Currently Not Available
52242	COLLAR LINK Part #: 52242-LBA7-900 Required per assembly: 2 Currently Not Available

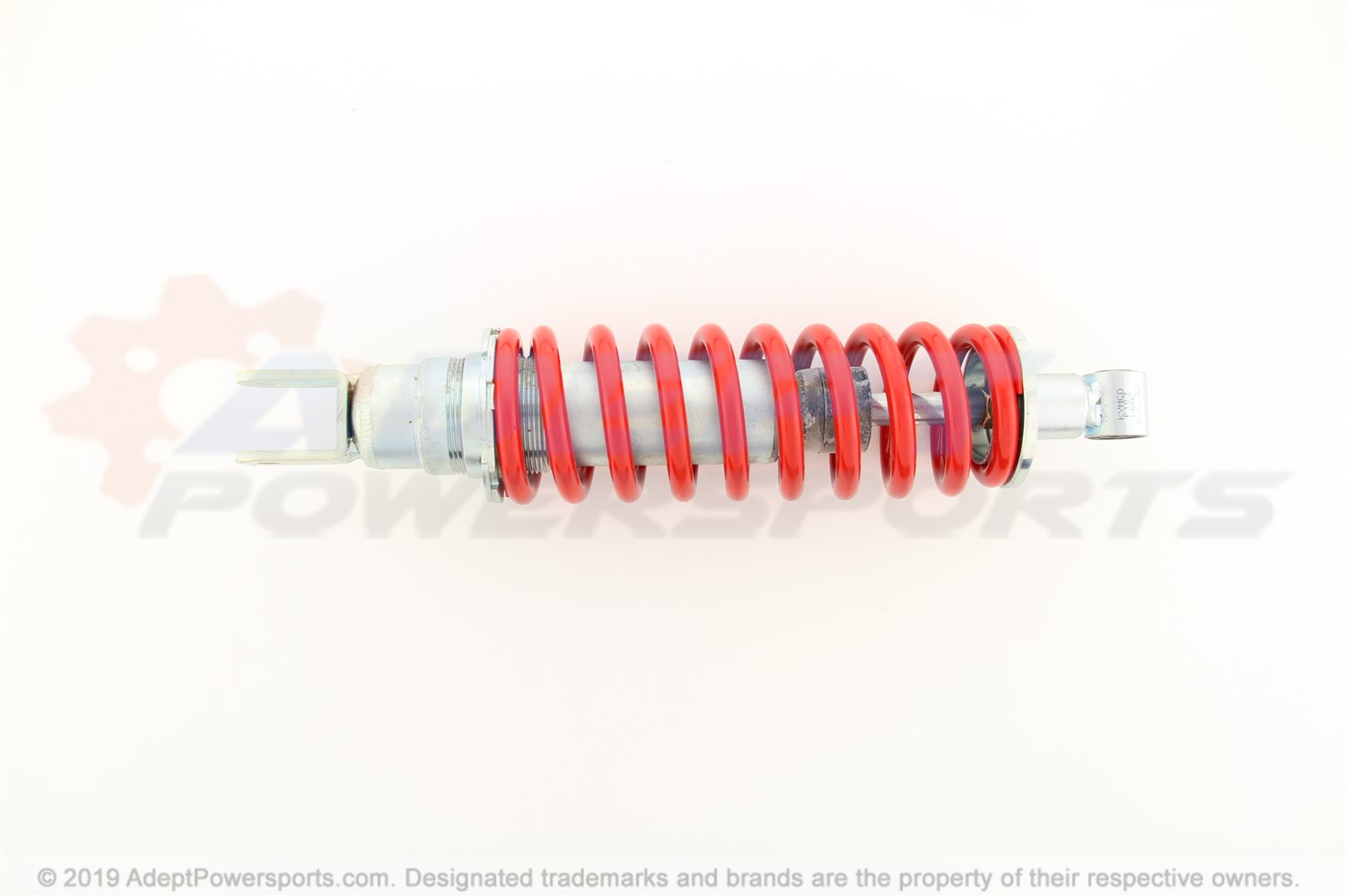

52400	CUSHION ASSY RR RED Part #: 52400-LBA7-900-R8S Required per assembly: 1 Currently Not Available
53402	GUIDE BUSH Part #: 53402-LBA7-900 Required per assembly: 1 Currently Not Available
90111	BOLT FLANGE 617 Part #: 90111-1G47-001 Required per assembly: 2 Currently Not Available*
90121	BOLT RR FORK PIVOT Part #: 90121-LBA7-900 Required per assembly: 1 Currently Not Available
90304	NUT U 10MM GE8-0040 Part #: 90304-GHE8-004 Required per assembly: 9 Currently Not Available**
90305	NUT U 14MM Part #: 90305-GE8-0030 Required per assembly: 1 Currently Not Available
91072	NEEDLE BEARING Part #: 91072-LBA7-900 Required per assembly: 2 Currently Not Available
91258	OIL SEAL 18267 Part #: 91258-LBA7-900 Required per assembly: 2 Currently Not Available
91259	OIL SEAL 17245 Part #: 91259-LBA7-900 Required per assembly: 4 Currently Not Available
93404	BOTL WASHER 616(K) Part #: 93404-06016-07 Required per assembly: 4 Currently Not Available*
95801-10060	BOLT FLANGE 1060 Part #: 95801-10060-08 Required per assembly: 1 Currently Not Available*
95801-10085	BOLT FLANGE 10X85 Part #: 95801-10085-06 Required per assembly: 1 Currently Not Available
95801-LBA7	BOLT FLANGE 1053 Part #: 95801-LBA7-900 Required per assembly: 3 Currently Not Available*
96201	NIPPLE GREASE Part #: 96201-10000 Required per assembly: 1 Currently Not Available
