Transmission replacement parts for Kymco Mongoose 250

OEM Parts Kymco Kymco Mongoose 250 Transmission

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

2431A	DRUM ASSY GEAR SHIFT Part #: 2431A-LBA7-900 Required per assembly: 1 Currently Not Available
9052A	BOLT DRAIN PLUG Part #: 9052A-GY6-9500 Required per assembly: 1 Currently Not Available
11221	TUBE MISSION BREATHER Part #: 11221-LBA7-900 Required per assembly: 1 Currently Not Available
21201	CASE MISSION Part #: 21201-LBA7-600 Required per assembly: 1 Currently Not Available

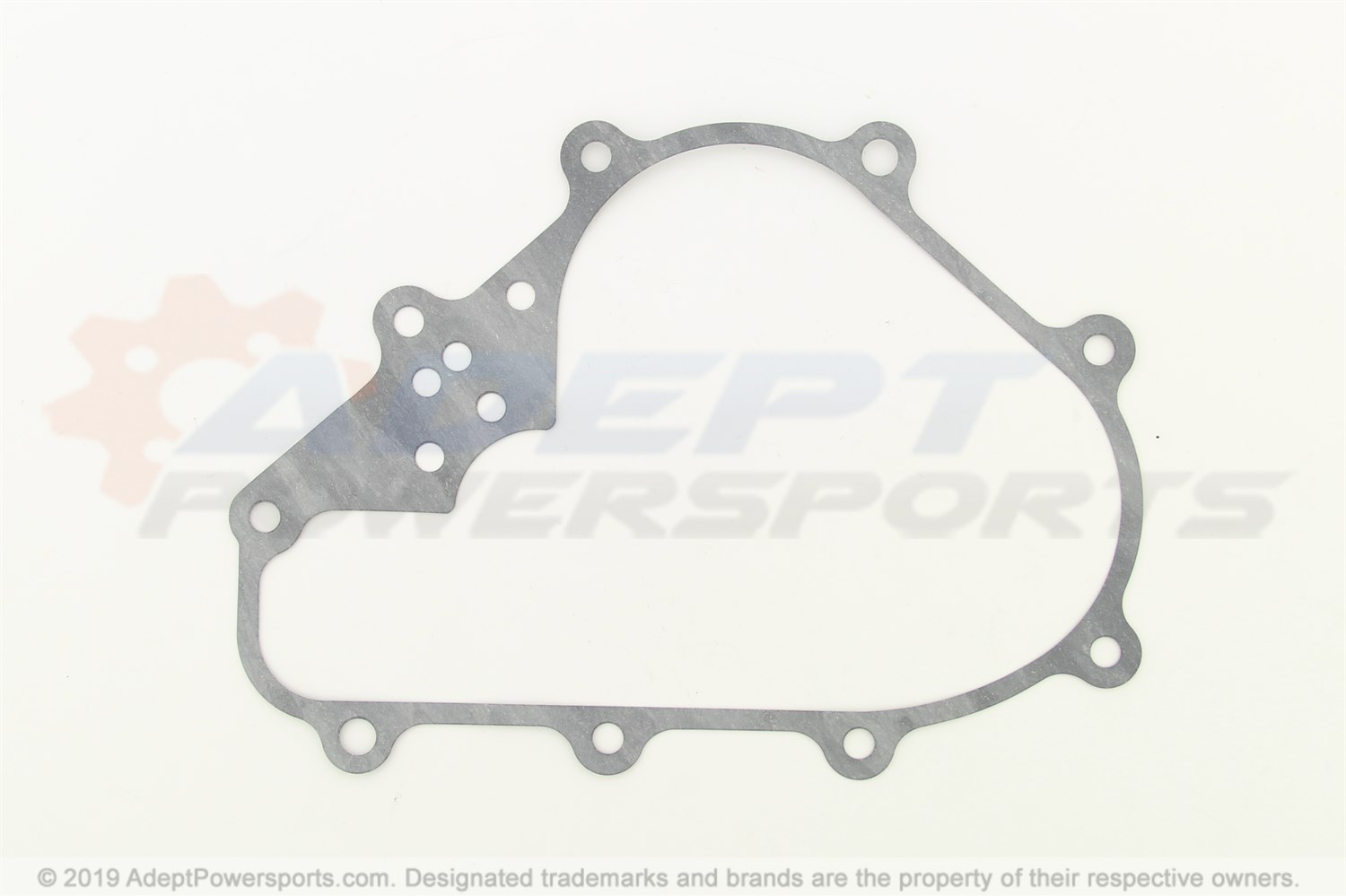

21395	GASKET MISSION CASE Part #: 21395-LBA7-900 Required per assembly: 1 Currently Not Available

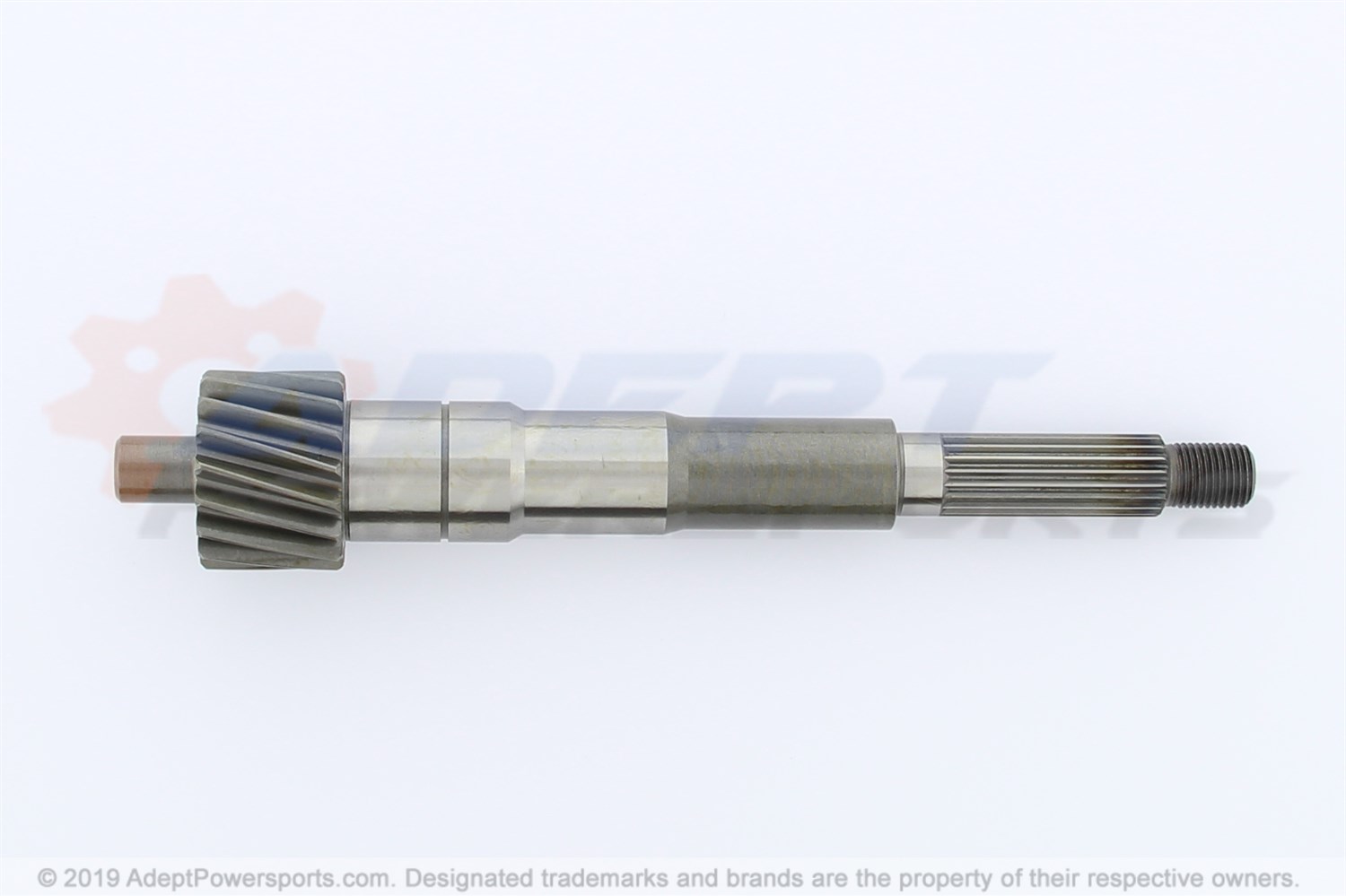

23211	SHAFT MAIN Part #: 23211-LBA7-900 Required per assembly: 1 Currently Not Available
23411	SHAFT DRIVE Part #: 23411-LBA7-900 Required per assembly: 1 Currently Not Available
23411	SHAFT DRIVE Part #: 23411-PTA3-E00 Required per assembly: 1 Currently Not Available
23420	GEAR COMP COUNTER Part #: 23420-LBA7-900 Required per assembly: 1 Currently Not Available
23431	SHAFT FINAL Part #: 23431-LBA7-600 Required per assembly: 1 Currently Not Available
23441	GEAR FORWARD Part #: 23441-PTA3-E00 Required per assembly: 1 Currently Not Available
23441	GEAR FORWARD Part #: 23441-LBA7-900 Required per assembly: 1 Currently Not Available
23451	GEAR BACKWARD Part #: 23451-LBA7-900 Required per assembly: 1 Currently Not Available
23472	COLLAR 202511 (2) C.V Part #: 23472-LBA7-900 Required per assembly: 1 Currently Not Available**
23473	COLLAR 202211 Part #: 23473-LBA7-900 Required per assembly: 1 Currently Not Available
23481	SHIFT MAIN Part #: 23481-LBA7-900 Required per assembly: 1 Currently Not Available
23801	SPROCKET DRIVE 14T Part #: 23801-LBA7-900 Required per assembly: 1 Currently Not Available
23803	STAY CHAIN Part #: 23803-LBA7-900 Required per assembly: 1 Currently Not Available
23811	PLATE A2 FIXING Part #: 23811-LBA7-900 Required per assembly: 1 Currently Not Available
24221	FORK GEAR SHIFT Part #: 24221-PTA3-E00 Required per assembly: 1 Currently Not Available
24221	FORK GEAR SHIFT Part #: 24221-LBA7-900 Required per assembly: 1 Currently Not Available
24241	SHAFT GEAR SHIFT FORK GUI Part #: 24241-KGB4-C00 Required per assembly: 1 Currently Not Available
24610	SPINDLE COMP DRUM SHIFT Part #: 24610-LLB1-900 Required per assembly: 1 Currently Not Available
24701	GEAR CHANGE HANDLE Part #: 24701-LEC1-E00 Required per assembly: 1 Currently Not Available
24702	BAR CHANGE HANDLE Part #: 24702-LBA7-900 Required per assembly: 1 Currently Not Available
24703	PIN CHANGE HANDLE Part #: 24703-LLB1-900 Required per assembly: 1 Currently Not Available
24704	SPRING CHANGE HANDLE (3) Part #: 24704-LBA7-900 Required per assembly: 1 Currently Not Available**
24707	BRKT CHANGE H Part #: 24707-LBA7-900 Required per assembly: 1 Currently Not Available
24710	STAY CHANGE HANDLE ASSY Part #: 24710-LBA7-900 Required per assembly: 1 Currently Not Available
24711	SHAFT COMP CHANGE HANDLE Part #: 24711-LEC1-E00 Required per assembly: 1 Currently Not Available
24720	ROD ASSY CHANGE HANDLE Part #: 24720-LBA7-900 Required per assembly: 1 Currently Not Available
24781	COVER CHANGE HANDLE Part #: 24781-LBA7-900 Required per assembly: 1 Currently Not Available
40510	COVER CHAIN Part #: 40510-LBA7-900 Required per assembly: 1 Currently Not Available
40530	CHAIN DRIVE Part #: 40530-LBA7-900 Required per assembly: 1 Currently Not Available
90101	BOLT SOCKET 520 Part #: 90101-LBA7-900 Required per assembly: 1 Currently Not Available*
90106	BOLT FLANGE 825 Part #: 90106-LBA7-900 Required per assembly: 2 Currently Not Available*
90451	WASHER THRUST 20MM (0) C.2005.05.31 Part #: 90451-LBA7-900 Required per assembly: 1 Currently Not Available**
90452	WASHER THRUST 25MM (0) C.2005.05.31 Part #: 90452-LBA7-900 Required per assembly: 1 Currently Not Available**
90454	WASHER THRUST 20MM 0000 Part #: 90454-107-0010 Required per assembly: 2 Currently Not Available**
90455	WASHER SPLINE 25MM Part #: 90455-LBA7-900 Required per assembly: 1 Currently Not Available
90474	WASHER 8MM (T2) Part #: 90474-3C33-001 Required per assembly: 1 Currently Not Available*
90605	SET RING 28MM (0) C.2005.05.31 Part #: 90605-KED9-900 Required per assembly: 1 Currently Not Available**
91101	BRG NEEDLE 304223 Part #: 91101-LCA5-E0B Required per assembly: 1 Currently Not Available
91107-LBA7-900	BRG NEEDLE 253316 Part #: 91107-LBA7-900 Required per assembly: 1 Currently Not Available
91107-LBA7-90A	BRG NEEDLE 253316 Part #: 91107-LBA7-90A Required per assembly: 1 Currently Not Available
91206	OIL SEAL 14287 Part #: 91206-2F86-014 Required per assembly: 1 Currently Not Available
91256	OIL SEAL 24.852.27 Part #: 91256-LLB1-900 Required per assembly: 1 Currently Not Available
92000	BOLT HEX 610 Part #: 92000-06010-0H Required per assembly: 2 Currently Not Available*
92101	BOLT HEX 620 Part #: 92101-06020-0H Required per assembly: 2 Currently Not Available*
93903	SCREW TAPPING 516(K) Part #: 93903-35380 Required per assembly: 2 Currently Not Available*
94002	NUT HEX 6MM Part #: 94002-06080-0S Required per assembly: 1 Currently Not Available
94050	NUT FLANGE 8MM Part #: 94050-08080 Required per assembly: 4 Currently Not Available
94102	WASHER PLAIN 8161.2 Part #: 94102-08000 Required per assembly: 2 Currently Not Available
94201	PIN SPLIT 215 Part #: 94201-20150 Required per assembly: 1 Currently Not Available*
94301	DOWEL PIN 1016 Part #: 94301-10160 Required per assembly: 2 Currently Not Available*
94510	CIR CLIP EX 25MM Part #: 94510-25000 Required per assembly: 2 Currently Not Available
94520	CIRCLIP IN 52 Part #: 94520-52000 Required per assembly: 1 Currently Not Available
94540	E RING 12 Part #: 94540-12028 Required per assembly: 4 Currently Not Available
95002	CLIP B14.5 TUBE Part #: 95002-02150 Required per assembly: 1 Currently Not Available
95701-08012	BOLT FLANGE 812 (C) Part #: 95701-08012-08 Required per assembly: 1 Currently Not Available*
95701-08028	BOLT FLANGE 828 07 C.2005.07.01 Part #: 95701-08028-06 Required per assembly: 2 Currently Not Available*
95701-08040	BOLT FLANGE 840 Part #: 95701-08040-08 Required per assembly: 7 Currently Not Available*
95701-08045	BOLT FLANGE 845 Part #: 95701-08045-08 Required per assembly: 4 Currently Not Available*
96001-06016	BOLT FLANGE 616MM Part #: 96001-06016-08 Required per assembly: 1 Currently Not Available*
96001-06020	BOLT FLANGE SH 620 Part #: 96001-06020-08 Required per assembly: 3 Currently Not Available*
96100-62040	BRG BALL RADIAL 6204/204714 Part #: 96100-62040-00 Required per assembly: 1 Currently Not Available
96100-62050	BRG BALL RADIAL 6205 Part #: 96100-62050-00 Required per assembly: 1 Currently Not Available
96100-63040	BRG BALL RADIAL 6304 Part #: 96100-63040-00 Required per assembly: 1 Currently Not Available
