OEM Parts Bmw 1981-1985 Bmw R65LS (248) Cylinder

1981-1985 Bmw R65LS (248) 06/81-02/85 USA - Cylinder

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
01

"NIKASIL"-CYLINDER - D=82 (FROM 11/79)

Part #: 11111337275 Required per assembly: 2
Currently Not Available
02

STUD BOLT - M10X50

Part #: 07129908174 Required per assembly: 4
Currently Not Available
03

SET: CYLINDER WITH PISTON (FROM 11/79)

Part #: 11001338031 Required per assembly: 2
Not Available
03

CYLINDER WITH PISTON (FROM 09/80)

Part #: 11001337394 Required per assembly: 2
Not Available
04

PROTECTION TUBE

Part #: 11111335277 Required per assembly: 4
Currently Not Available
05

GASKET RING - 11X2

Part #: 11111262141 Required per assembly: 4
Currently Not Available
06

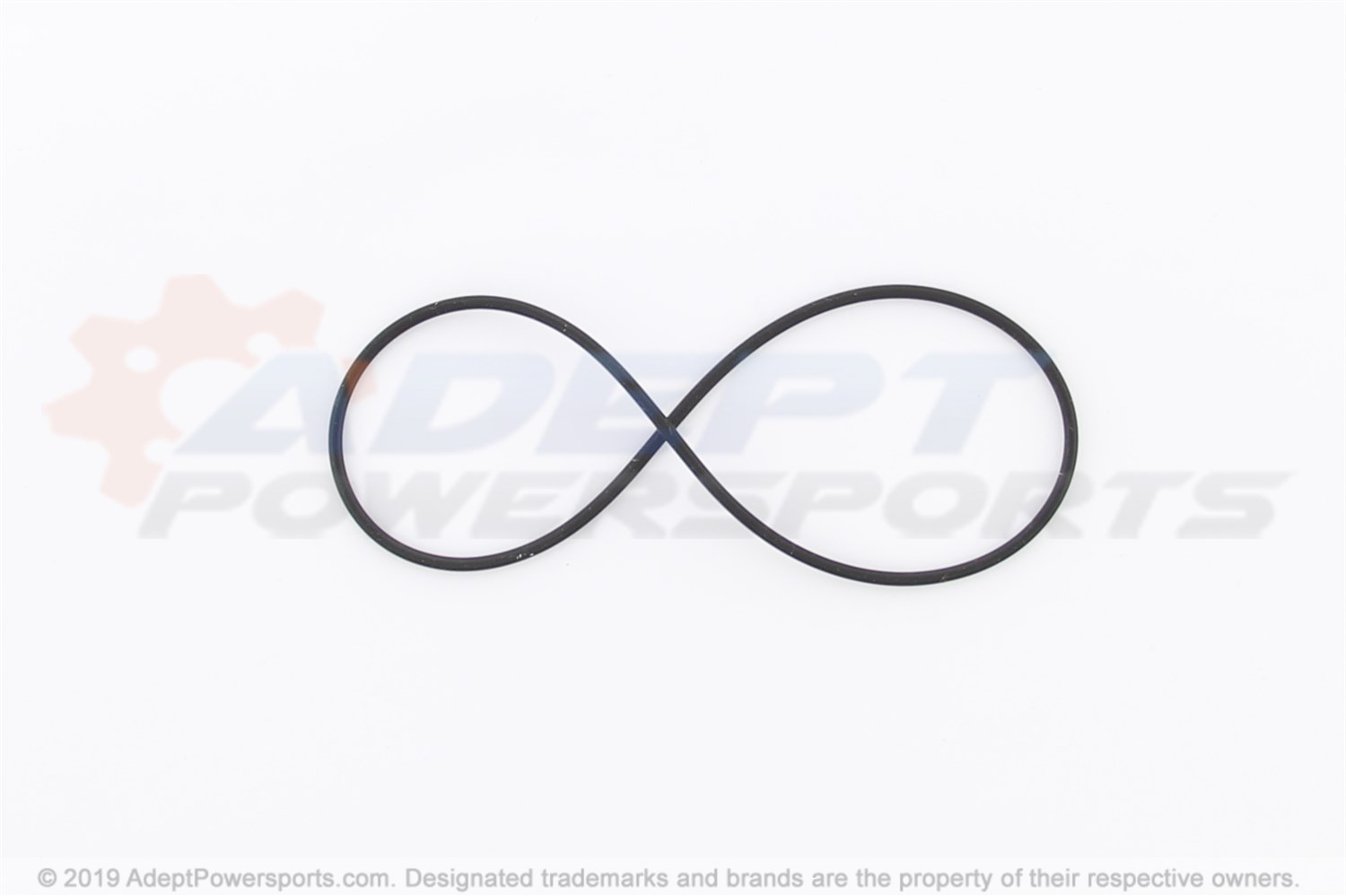

O-RING - 93X2,2 (FROM 08/75)

Part #: 11111337567 Required per assembly: 2 Note: NOT FOR VEHICLES WITH AUTHORITIES DENMARK 35 KW (CODE: V005A) AND OFFICIAL VEHICLE, DENMARK (CODE: X101A) AND AUTHORITIES FRANCE R65GS (CODE: X105A)
Currently Not Available
07

RUBBER GROMMET

Part #: 11111335090 Required per assembly: 4 Note: NOT FOR VEHICLES WITH AUTHORITIES DENMARK 35 KW (CODE: V005A) AND OFFICIAL VEHICLE, DENMARK (CODE: X101A) AND AUTHORITIES FRANCE R65GS (CODE: X105A)
Currently Not Available
08

PUSHROD SEAL

Part #: 11121337818 Required per assembly: 1
Currently Not Available
