OEM Parts Bmw 1981-1985 Bmw R65LS (248) Fuse Box

1981-1985 Bmw R65LS (248) 06/81-02/85 USA - Fuse Box

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
04

FILLISTER HEAD SELF-TAPPING SCREW - ST4,2X13

Part #: 07119907946 Required per assembly: 1
Currently Not Available
15

FUSE - 8A

Part #: 61138760138 Required per assembly: 2
Currently Not Available
16

FUSE BOX (FROM 09/80)

Part #: 61131244038 Required per assembly: 1
Currently Not Available
17

BRACKET (FROM 09/80)

Part #: 61131244132 Required per assembly: 1 Note: NOT FOR VEHICLES WITH AUTHORITIES DENMARK 35 KW (CODE: V005A) AND OFFICIAL VEHICLE, DENMARK (CODE: X101A) AND AUTHORITIES FRANCE R65GS (CODE: X105A)
Currently Not Available
17

BRACKET (FROM 09/80)

Part #: 61131244301 Required per assembly: 1
Currently Not Available
18

SCREW (FROM 08/90)

Part #: 07119904170 Required per assembly: 1
Currently Not Available
20

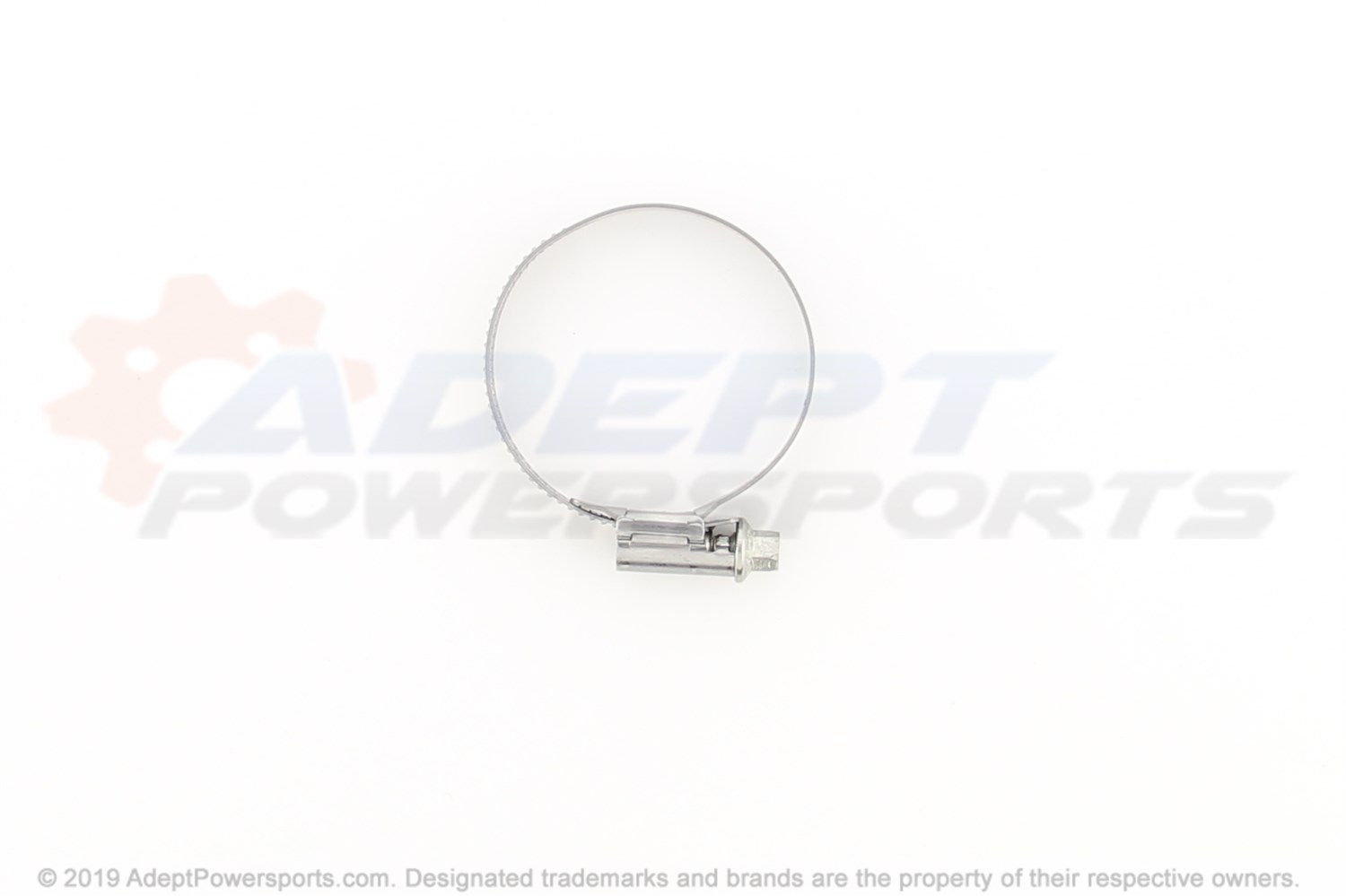

HOSE CLAMP - L42-48

Part #: 07129952119 Required per assembly: 1
$3.71
$2.79
-
+
Add to cart
