Adjustable Windshield/Mounting Parts replacement parts for 1997-2003 BMW K1200LT 99-04 (89V3)

OEM Parts Bmw 1997-2003 Bmw K1200LT 99 04 (89V3) Adjustable Windshield/Mounting Parts

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	WINDSHIELD HIGH - 620MM Part #: 46632307914 Required per assembly: 1 Currently Not Available
01	WINDSHIELD - NIEDRIG 440MM Part #: 46632347010 Required per assembly: 1 Currently Not Available

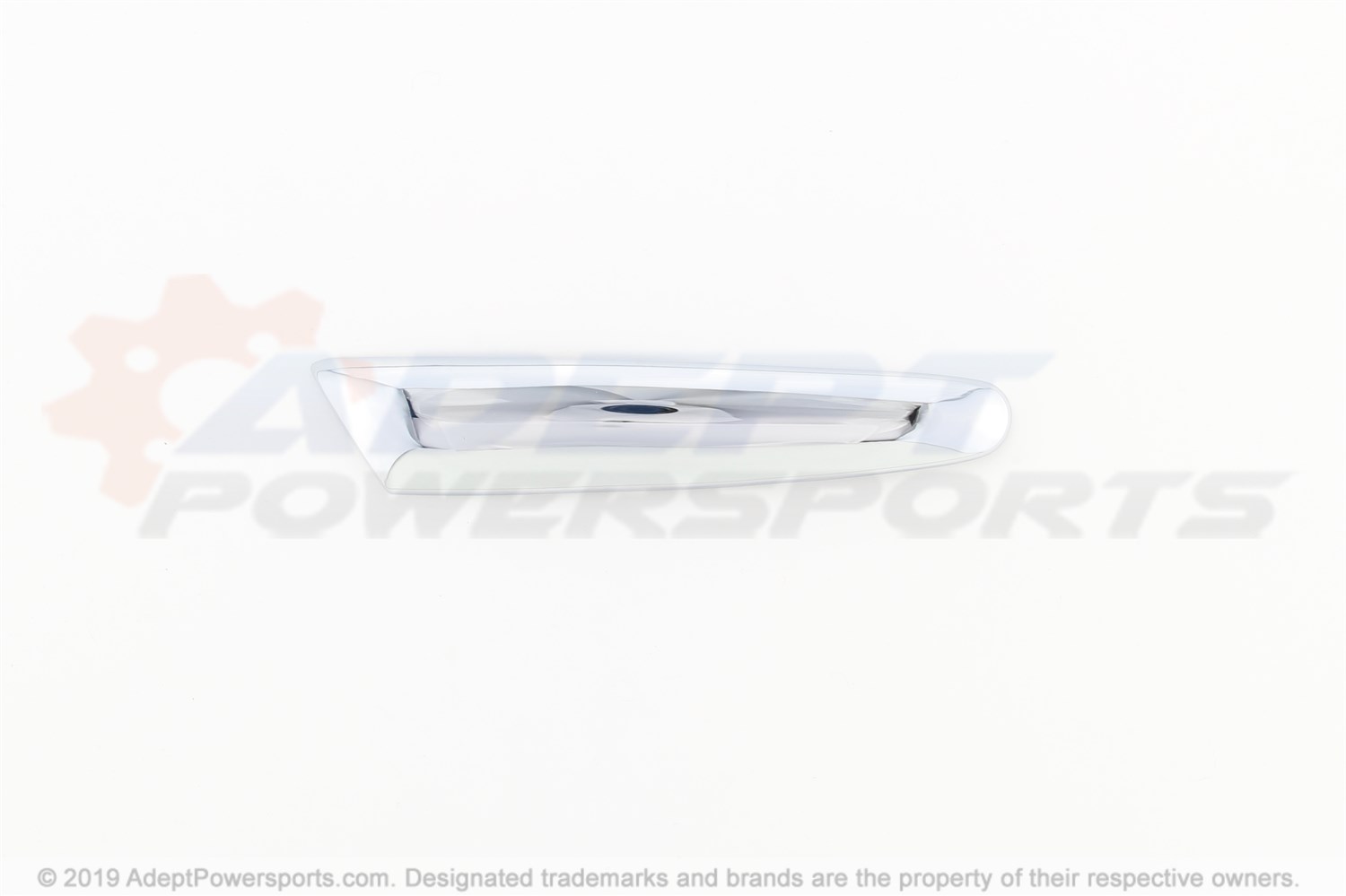

02	COVERING LEFT - GRAPHITAN Part #: 46632347017 Required per assembly: 1 Currently Not Available
02	COVERING LEFT - CHROM Part #: 46632347301 Required per assembly: 1 Currently Not Available
03	COVERING RIGHT - GRAPHITAN Part #: 46632347018 Required per assembly: 1 Currently Not Available
03	COVERING RIGHT - CHROM Part #: 46632347302 Required per assembly: 1 Currently Not Available
04	MOUNTING PANEL - LEFT Part #: 46632347021 Required per assembly: 1 Currently Not Available
05	MOUNTING PANEL - RIGHT Part #: 46632347022 Required per assembly: 1 Currently Not Available
06	FILLISTER HEAD SCREW - M5X16 A4/80 Part #: 46632351521 Required per assembly: 4 Currently Not Available
