Engine Spoiler replacement parts for 1997-2003 BMW K1200LT 99-04 (89V3)

OEM Parts Bmw 1997-2003 Bmw K1200LT 99 04 (89V3) Engine Spoiler

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	SPOILER CENTER - WHITE-ALU Part #: 46632347450 Required per assembly: 1 Currently Not Available

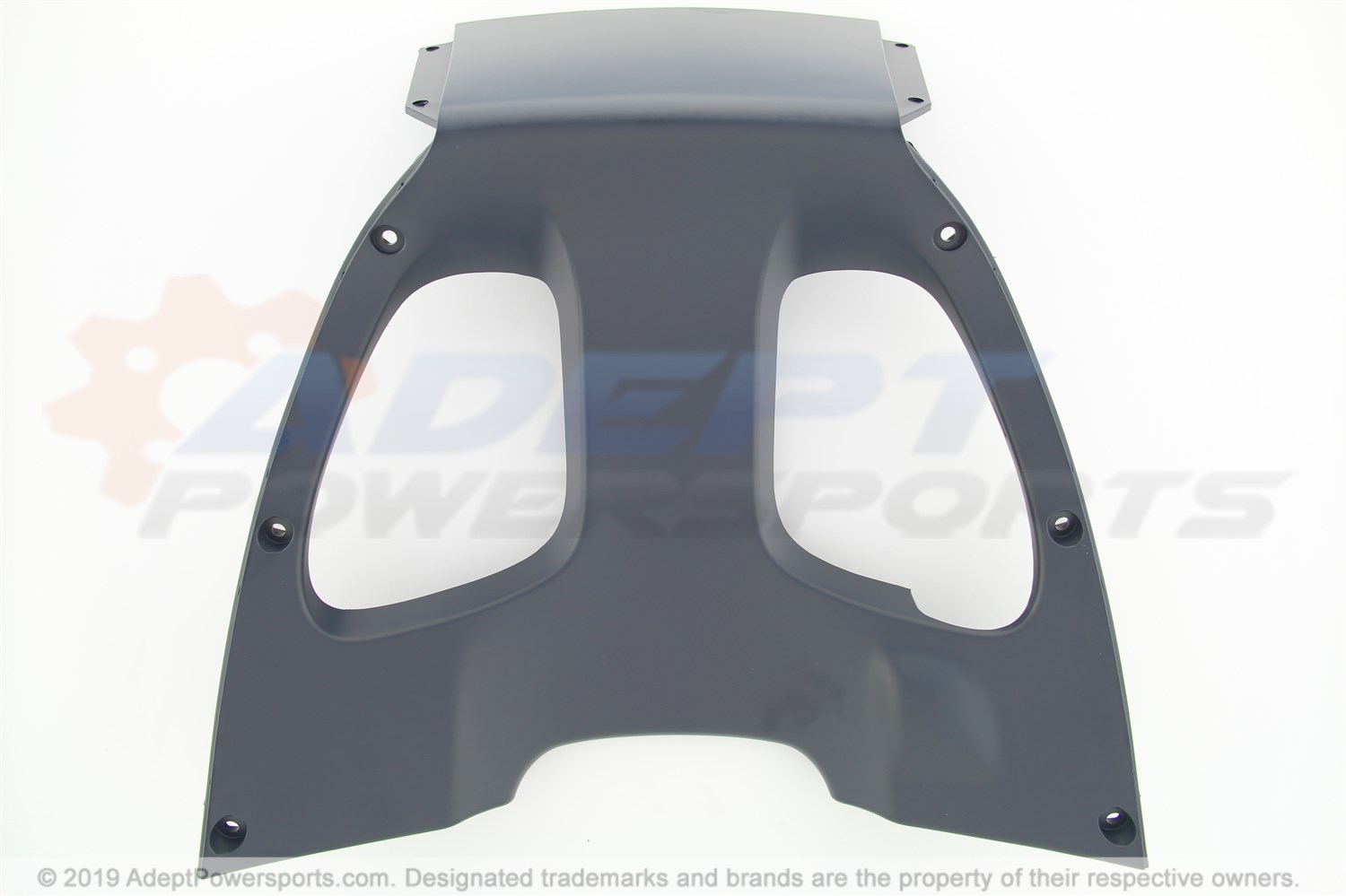

01	SPOILER CENTER PRIME-COATED Part #: 46632307968 Required per assembly: 1 Currently Not Available
02	SPOILER PRIME COATED LEFT Part #: 46632307963 Required per assembly: 1 Currently Not Available
02	SPOILER PRIME COATED RIGHT Part #: 46632307964 Required per assembly: 1 Currently Not Available
02	SPOILER LEFT - WHITE-ALU Part #: 46632347451 Required per assembly: 1 Currently Not Available
02	SPOILER RIGHT - WHITE-ALU Part #: 46632347452 Required per assembly: 1 Currently Not Available
03	BLIND RIVET NUT, INSULATING - M5 (TO 05/05) Part #: 46632347012 Required per assembly: 6 Note: CONTAINED IN POS. 5 AND 6 Currently Not Available
04	FLANGED CAP SCREW - M5X16SW Part #: 46632325998 Required per assembly: 2 Currently Not Available
05	FLANGED CAP SCREW - M5X20 SW Part #: 46632325999 Required per assembly: 1 Note: FOR VEHICLES WITH WINDSHIELD, HIGH (CODE: X553A) Currently Not Available
06	NUT - M5 Part #: 46637658638 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
07	STICK-ON LABEL, BACKUP ASSISTANCE Part #: 46632347606 Required per assembly: 1 Currently Not Available
08	PLUG-IN SOCKET Part #: 61131391630 Required per assembly: 1 Note: FOR VEHICLES WITH PLUG-IN SOCKET (CODE: X764A) Currently Not Available
