Engine Protection Bar replacement parts for 1997-2003 BMW K1200LT 99-04 (89V3)

OEM Parts Bmw 1997-2003 Bmw K1200LT 99 04 (89V3) Engine Protection Bar

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

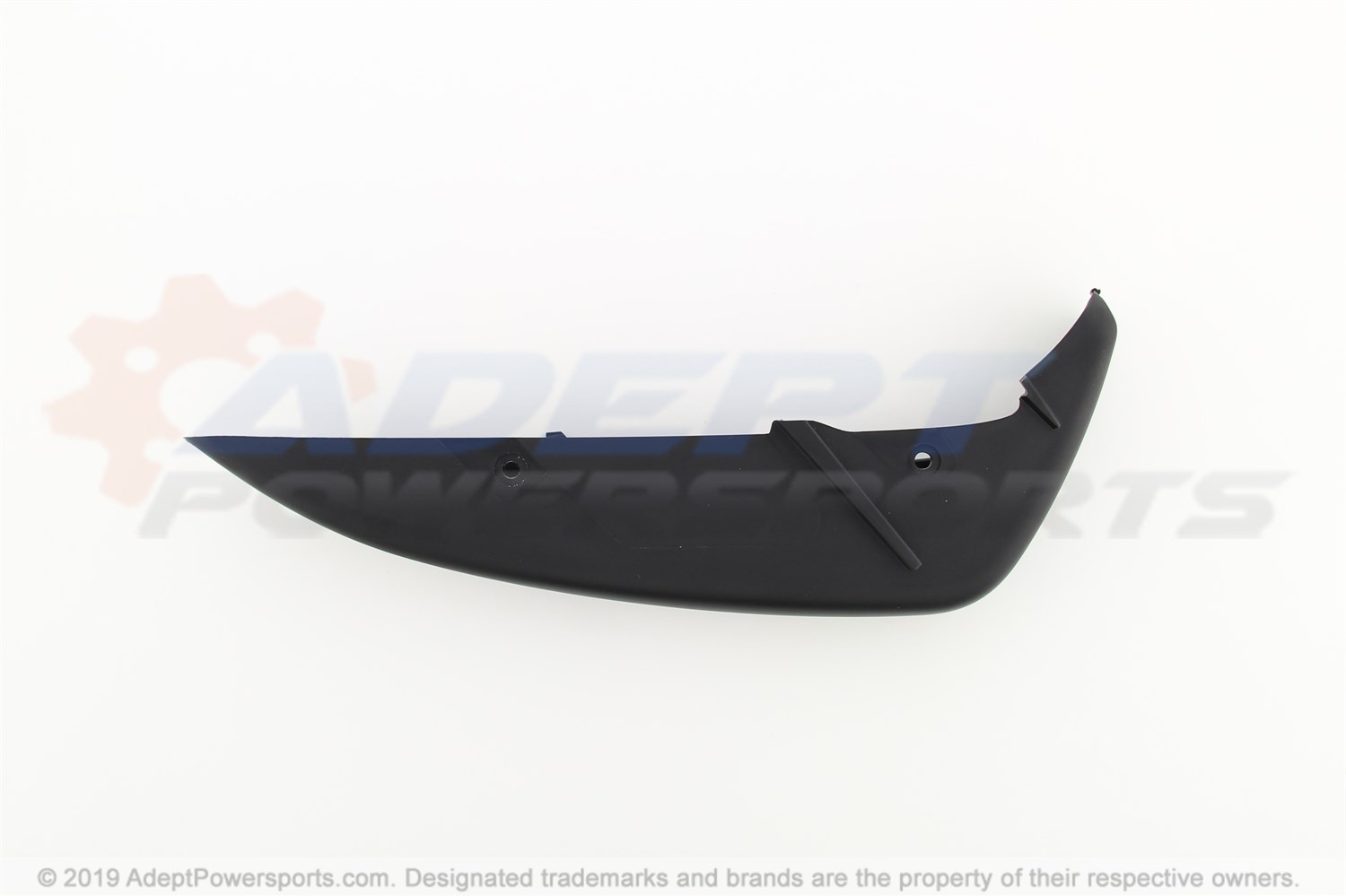

01	COVERING LEFT Part #: 46637653619 Required per assembly: 1 Note: NOT FOR VEHICLES WITH FLOOR LIGHTING (CODE: X418A) Currently Not Available
01	COVERING RIGHT Part #: 46637653620 Required per assembly: 1 Currently Not Available
02	SAFETY BAR - LEFT/RIGHT Part #: 46632347101 Required per assembly: 2 Currently Not Available
03	MOULDING ROCKER PANEL FRONT LEFT - CHROM Part #: 46637651111 Required per assembly: 1 Currently Not Available
03	MOULDING ROCKER PANEL FRONT RIGHT - CHROM Part #: 46637651112 Required per assembly: 1 Currently Not Available
03	MOULDING ROCKER PANEL FRONT LEFT - WHITE-ALU Part #: 46637651105 Required per assembly: 1 Currently Not Available
03	MOULDING ROCKER PANEL FRONT RIGHT - WHITE-ALU Part #: 46637651106 Required per assembly: 1 Currently Not Available
03	MOULDING ROCKER PANEL FRONT LEFT - GRAPHITAN Part #: 46637666281 Required per assembly: 1 Currently Not Available
03	MOULDING ROCKER PANEL FRONT RIGHT - GRAPHITAN Part #: 46637666282 Required per assembly: 1 Currently Not Available
04	BRACKET - LEFT Part #: 46632347163 Required per assembly: 1 Currently Not Available
04	BRACKET - RIGHT Part #: 46632347164 Required per assembly: 1 Currently Not Available
05	BLIND RIVET NUT, INSULATING - M5 (TO 05/05) Part #: 46632347012 Required per assembly: 1 Note: CONTAINED IN POS. 5 AND 6 Currently Not Available
06	OVAL HEAD SCREW - M8X20MK Part #: 34117713039 Required per assembly: 2 Note: FOR VEHICLES WITH CROSS-SPOKE WHEELS (CODE: X771A) Currently Not Available
07	WASHER - A8,4-ZNS Part #: 07119931019 Required per assembly: 4 Note: FOUR SPEED GEARBOX Currently Not Available
08	FILLISTER-HEAD SCREW - M8X25-8.8-ZNS3 Part #: 07119904477 Required per assembly: 2 Not Available
09	FILLISTER-HEAD SCREW - M6X12 (TO 08/92) Part #: 07119920148 Required per assembly: 2 Currently Not Available
10	FILLISTER HEAD WITH WASHER - M6X16-Z1-ZNS Part #: 07119900636 Required per assembly: 4 Currently Not Available
11	FLANGED CAP SCREW - M5X12 Part #: 46632325997 Required per assembly: 4 Note: NOT FOR VEHICLES WITH HAZARD WARNING FLASHERS (CODE: X522A) Currently Not Available
12	FLANGED CAP SCREW - M5X20 SW Part #: 46632325999 Required per assembly: 2 Note: FOR VEHICLES WITH WINDSHIELD, HIGH (CODE: X553A) Currently Not Available
13	SEALING STRIP - 50X20X6MM Part #: 46637653616 Required per assembly: 1 Currently Not Available
