Crankshaft And Piston - A01ch50eb replacement parts for 2001 Polaris Worker 500 (A01CH50EB)

OEM Parts Polaris 2001 Polaris Worker 500 (A01CH50EB) Crankshaft And Piston - A01ch50eb

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PISTON RING SET [STD] Part #: 3087224 Required per assembly: 1 Note: Set, Piston, Ring, Standard Currently Not Available
1	PISTON RING SET [0.50 O/S] Part #: 3087226 Required per assembly: 1 Note: Set, Piston, Ring, .020 Inch/.50MM O/S Currently Not Available
1	PISTON RING SET [0.25 O/S] Part #: 3087225 Required per assembly: 1 Note: Set, Piston, Ring, .010 Inch/.25MM O/S Currently Not Available
2	PISTON SET [0.50 O/S] Part #: 3087172 Required per assembly: 1 Note: PISTON,SET(.50 0/S) (0.50 O/S) (Incl. 2-4) Currently Not Available
2	PISTON SET [0.25 O/S] Part #: 3087171 Required per assembly: 1 Note: PISTON,SET(.25 O/S) (0.25 O/S) (Incl. 2-4) Currently Not Available
2	PISTON SET [STD] Part #: 3087170 Required per assembly: 1 Note: PISTON SET(STD) (Std) (Incl. 2-4) Currently Not Available
4	CLIP Part #: 3085534 Required per assembly: 2 Note: Clip $3.99 $2.30 - + Add to cart
5	BEARING, BALL Part #: 3080676 Required per assembly: 1 Currently Not Available
6	BEARING, BALL Part #: 3085815 Required per assembly: 1 Note: Bearing, Ball Currently Not Available
7	CRANKSHAFT, #2 Part #: 3085812 Required per assembly: 1 Note: Crankshaft 2 Currently Not Available
8	PIN-CRANK COMPL. Part #: 3085375 Required per assembly: 1 Currently Not Available
9	CONNECTING ROD Part #: 3090273 Required per assembly: 1 Currently Not Available
10	BEARING, LARGE, END Part #: 3085400 Required per assembly: 1 Note: Bearing, Large End Currently Not Available
11	BALL, STEEL Part #: 3085024 Required per assembly: 1 Currently Not Available

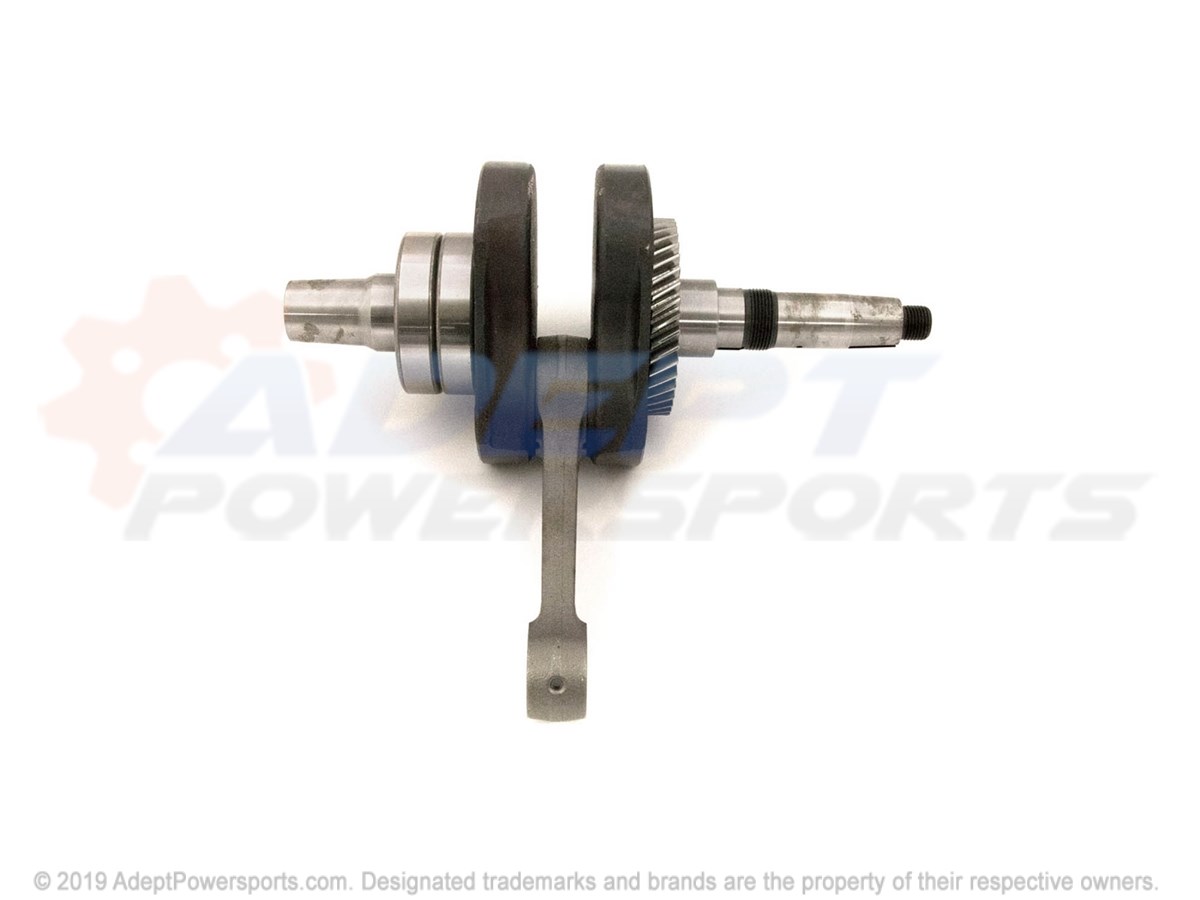

12	ASSEMBLY, CRANKSHAFT Part #: 3090323 Required per assembly: 1 Currently Not Available
12	CRANKSHAFT 1 Part #: 3085945 Required per assembly: 1 Currently Not Available
13	BALANCER, GEAR, 1, * Part #: 3085852 Required per assembly: 1 Currently Not Available
14	SHAFT, BALANCER, * Part #: 3086837 Required per assembly: 1 Currently Not Available
15	SPACER Part #: 3240088 Required per assembly: 1 Note: Spacer, 0.6 Currently Not Available
15	SPACER Part #: 3084892 Required per assembly: 1 Note: Spacer, 0.8 Currently Not Available
15	SPACER Part #: 3084893 Required per assembly: 1 Note: Spacer, 1.0 Currently Not Available
15	SPACER Part #: 3084894 Required per assembly: 1 Note: Spacer, 1.2 Currently Not Available
16	SPACER Part #: 3084895 Required per assembly: 1 Note: Spacer, 0.8 Currently Not Available
16	SPACER Part #: 3084897 Required per assembly: 1 Note: Spacer, 1.2 $6.99 $4.03 - + Add to cart
16	SPACER Part #: 3084896 Required per assembly: 1 Note: Spacer, 1.0 Currently Not Available
17	SPROCKET 1 Part #: 3084882 Required per assembly: 1 Currently Not Available
18	NUT, SLIT Part #: 3085528 Required per assembly: 1 Note: Nut, Slit Currently Not Available
19	LOCKNUT Part #: 3083905 Required per assembly: 1 Currently Not Available
20	WASHER Part #: 3083904 Required per assembly: 1 Currently Not Available
21	PIN, DOWEL Part #: 3085346 Required per assembly: 1 Currently Not Available

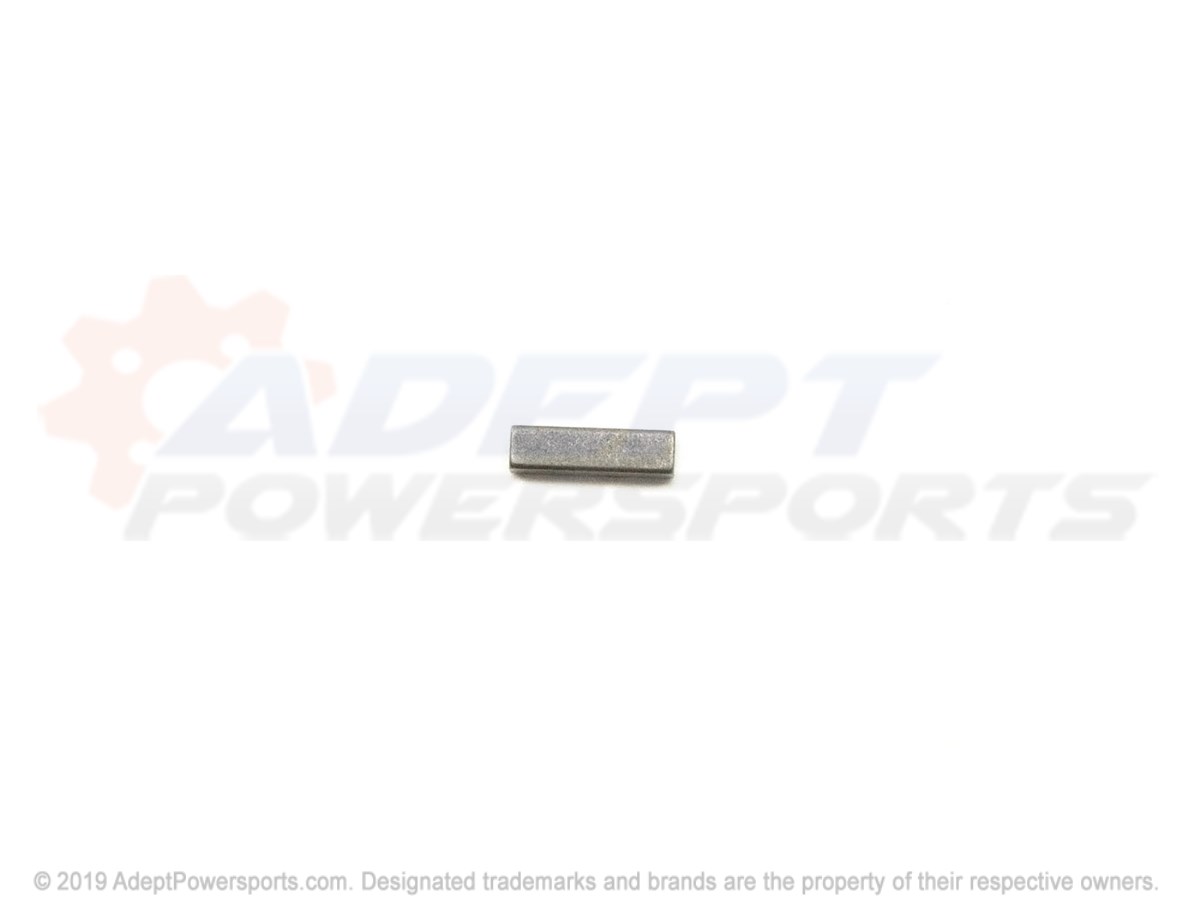

22	KEY Part #: 3081447 Required per assembly: 1 Currently Not Available
23	KEY WOODRUFF Part #: 3081543 Required per assembly: 1 Currently Not Available
