Handlebar And Headlight Pod - A01ch50aa replacement parts for 2001 Polaris Worker 500 (A01CH50EB)

OEM Parts Polaris 2001 Polaris Worker 500 (A01CH50EB) Handlebar And Headlight Pod - A01ch50aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SPEEDOMETER, 3.38", 6-PULSE, (AA) Part #: 3280363 Required per assembly: 1 Currently Not Available
2	PANEL-INDICATOR, SVC, STD, PVT Part #: 4010459 Required per assembly: 1 Note: Panel, Indicator Currently Not Available
2	BULB-INDICATOR, HOBBS Part #: 4010416 Required per assembly: 3 Note: Bulb Currently Not Available
3	SCREW Part #: 7511881 Required per assembly: 3 $2.99 $1.73 - + Add to cart
4	NUT Part #: 7670086 Required per assembly: 3 Currently Not Available
6	TUBE-HANDLEBAR, GEN, 4, POD, BLACK Part #: 5242987-067 Required per assembly: 1 Note: TUBE-HANDLEBAR,GEN 4,POD,BLK (AA) Currently Not Available
7	BLOCK, H'BAR, RETAINER, BLACK Part #: 5630616-067 Required per assembly: 2 Currently Not Available
7	KIT, H'BAR, BLOCK Part #: 2202395 Required per assembly: 1 Note: KIT,H'BAR BLOCK (Incl. Blocks and 11,19,30) Currently Not Available
8	NUT, BRASS Part #: 7541933 Required per assembly: 2 Note: NUT, BRASS(10) (FB) Currently Not Available
9	WASHER, LOCK, (S.S.) Part #: 7555868 Required per assembly: 2 Note: WASHER, LOCK,(S.S.)(10) (FB) Currently Not Available
10	WASHER, 13/64X1/2X18GA, FL-Y Part #: 7558212 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
11	SCREW Part #: 7515189 Required per assembly: 4 $2.99 $1.73 - + Add to cart
12	CLAMP, BACK, ELEC.SPEEDO, 3.38" Part #: 3280291 Required per assembly: 1 Currently Not Available
13	POD-HEADLIGHT, UPPER, OLIVE, GREEN, (AA) Part #: 5433763-191 Required per assembly: 1 Currently Not Available
13	POD-HEADLIGHT, UPPER, MED, YELLOW, (AC) Part #: 5433763-053 Required per assembly: 1 Currently Not Available
13	POD-HEADLIGHT, UPPER, PORCHE, RED, (AB) Part #: 5433763-136 Required per assembly: 1 Currently Not Available
13	POD-HDLGHT, UPR, SNAP, WET, CAMO, (AF) Part #: 5433972-315A Required per assembly: 1 Currently Not Available
13	POD, HEADLIGHT, UPPER, (OLIVE, GREEN) Part #: 5433763-359 Required per assembly: 1 Currently Not Available
15	SPACER-SWITCH, LH, 99 Part #: 5433903 Required per assembly: 1 Currently Not Available
16	SWITCH-HANDLEBAR, H/L/O, REV/OR Part #: 4010262 Required per assembly: 1 Currently Not Available
17	HANDLEBAR, GRIP, 7/8, ID, ATV, BLACK Part #: 5433834-070 Required per assembly: 2 Currently Not Available
18	PLUG, HOLE Part #: 5432952 Required per assembly: 1 Note: Plug, Hole Currently Not Available
19	SCREW, SET Part #: 7517625 Required per assembly: 1 Note: Screw, Set Currently Not Available
20	BRKT-POD, MOUNTING, E-COAT Part #: 5244969-329 Required per assembly: 1 Currently Not Available
21	SCREW Part #: 7517317 Required per assembly: 2 $1.99 $1.15 - + Add to cart

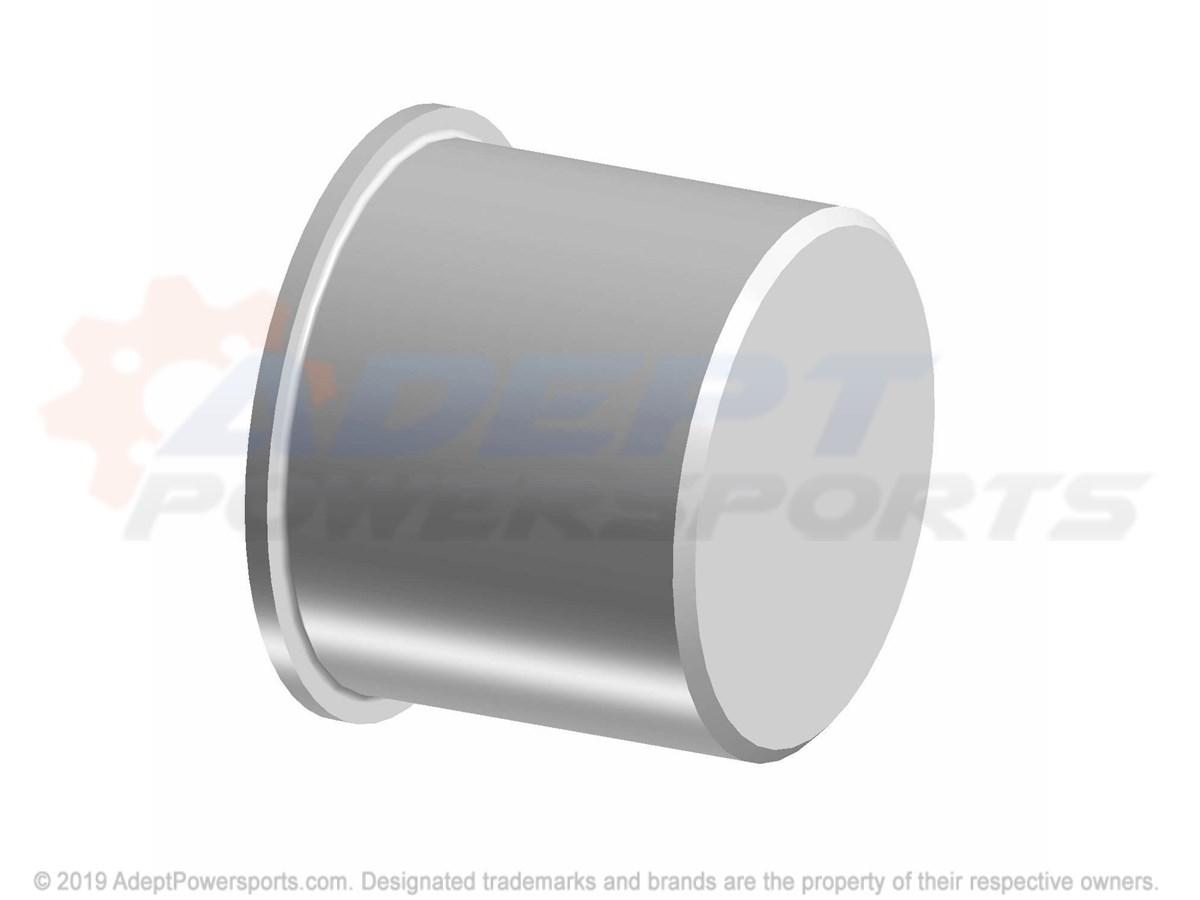

22	KNOB, ADJUSTING Part #: 4032079 Required per assembly: 1 $24.99 $14.38 - + Add to cart
23	BOOT, HEADLIGHT Part #: 5411120 Required per assembly: 1 Currently Not Available
24	COLLAR, LOCK Part #: 4032077 Required per assembly: 1 Currently Not Available
25	QUARTZ HALOGEN HEADLIGHT BULB Part #: 2870448 Required per assembly: 1 Note: Replacement bulb for Sportsman. Currently Not Available
25	LENS&REFLECTOR ASM. Part #: 4032075 Required per assembly: 1 Currently Not Available
26	ROD, ADJUSTING Part #: 4032078 Required per assembly: 1 Currently Not Available

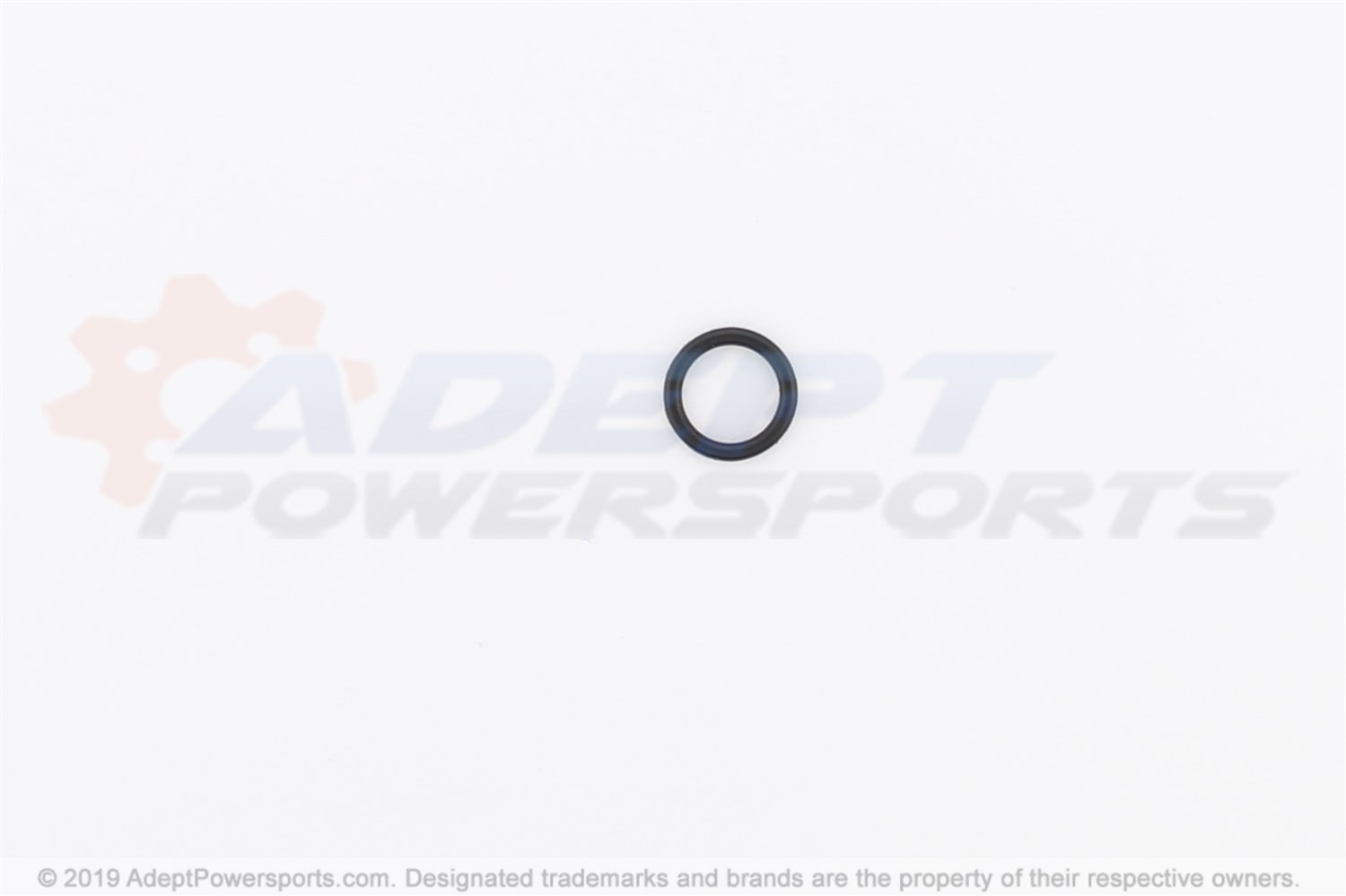

27	O RING Part #: 5410163 Required per assembly: 2 $4.99 $2.92 - + Add to cart
28	CABLE-CHOKE, FRICTION, 40" Part #: 7081008 Required per assembly: 1 Currently Not Available
29	NUT-LOCK Part #: 7542122 Required per assembly: 4 Currently Not Available
30	NUT, U-TYPE Part #: 7670089 Required per assembly: 2 Currently Not Available
31	RECEPTACLE-POD, MNT, 12, VOLT Part #: 4010283 Required per assembly: 1 Currently Not Available
33	CLIP, CABLE, RETAIN Part #: 7080631 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
34	SCREW Part #: 7522021 Required per assembly: 2 $1.99 $1.15 - + Add to cart
35	POD-HEADLIGHT, LOWER, SNAP, BLACK, [AA], [AG] Part #: 5433762-070 Required per assembly: 1 Currently Not Available
36	KEY BLANK (22/23/27/28) SERIES. SPARE KEY MUST BE CUT FROM EXISTING KEY. Part #: 4010321 Required per assembly: 1 Currently Not Available
36	KEY BLANK (6700&6800 SERIES) SPARE KEY MUST BE CUT FROM EXISTING KEY. Part #: 4010278 Required per assembly: 1 Note: Key, Blank NOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key. Currently Not Available
36	SWITCH, IGNITION Part #: 4012163 Required per assembly: 1 Note: Switch Ignition [Incl. 5, Key and Cover] Currently Not Available
37	KEY COVER-KEYSWITCH Part #: 5433534 Required per assembly: 1 Currently Not Available
38	NUT, CHOKE, M24X1.5, THD, M29, HEX Part #: 7080922 Required per assembly: 1 Note: Nut, Choke Currently Not Available
39	SENSOR, HALLEFFECT, (FA) Part #: 4010298 Required per assembly: 1 Note: Sensor, Hall Effect Currently Not Available
40	CAP-HALL SENSOR (FA) Part #: 5132382 Required per assembly: 1 Note: Cap, Hall Effect Currently Not Available
41	SCREW (FA) Part #: 7517658 Required per assembly: 1 Note: Screw Currently Not Available
