Rear Suspension - A01ch50aa replacement parts for 2001 Polaris Worker 500 (A01CH50EB)

OEM Parts Polaris 2001 Polaris Worker 500 (A01CH50EB) Rear Suspension - A01ch50aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT Part #: 7512329 Required per assembly: 6 $3.99 $2.30 - + Add to cart
2	ARM, STABILIZER, BAR, BLACK Part #: 1543119-067 Required per assembly: 2 Currently Not Available
3	NUT Part #: 7542324 Required per assembly: 6 Currently Not Available
4	SCREW Part #: 7517231 Required per assembly: 4 Note: Screw Currently Not Available
5	WASHER Part #: 7555761 Required per assembly: 8 Note: Washer Currently Not Available
6	BUSHING, STAB.LINK Part #: 5432598 Required per assembly: 8 Note: Bushing Currently Not Available
7	ROD-LINKAGE, STABILIZER Part #: 5020827 Required per assembly: 2 Note: Rod, Linkage, Stabilizer Currently Not Available
8	SHAFT, A-ARM, SHORT Part #: 5020826 Required per assembly: 6 Note: Shaft, A-Arm, Short Currently Not Available
9	BUSHING A-ARM SHORT BLACK Part #: 5439270 Required per assembly: 12 $4.99 $3.56 - + Add to cart

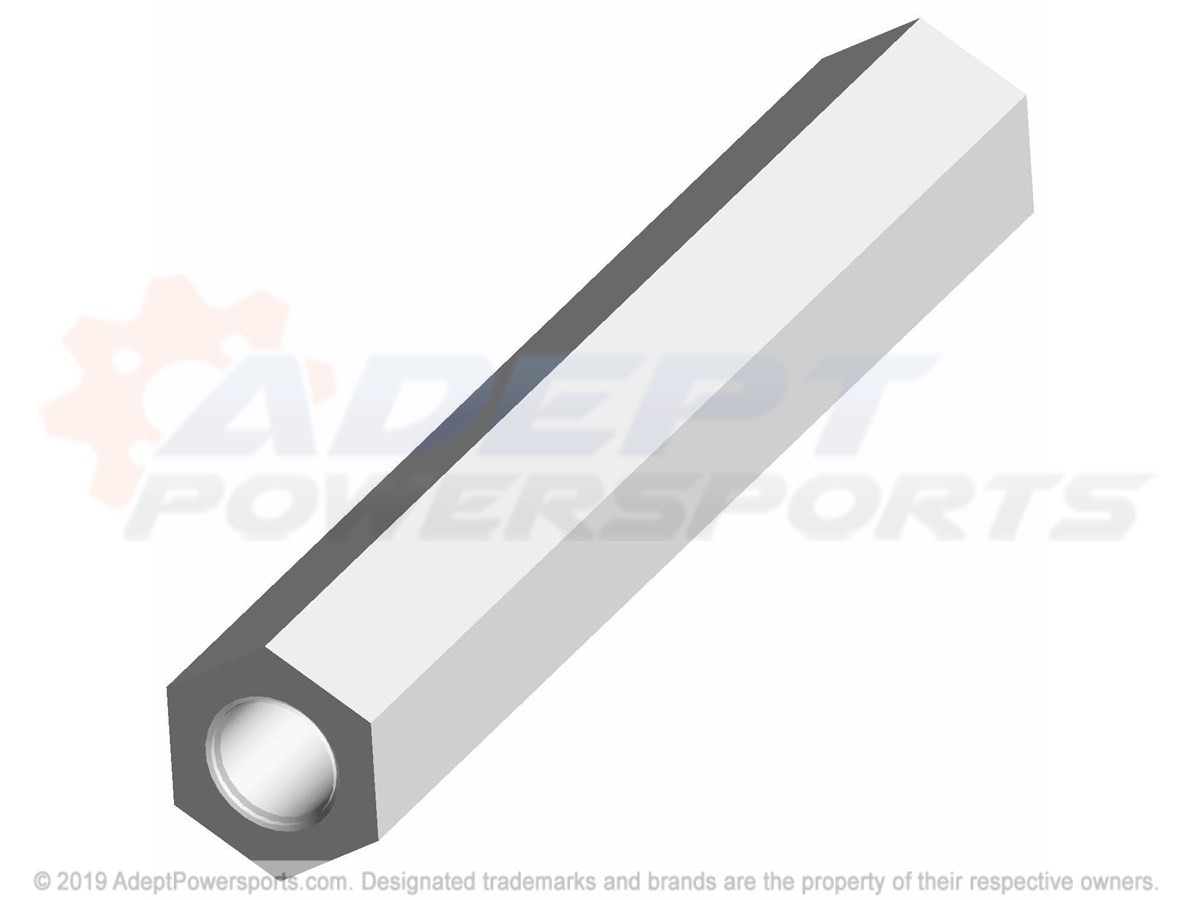

10	BUSHING, A-ARM, SPACER Part #: 5020677 Required per assembly: 12 $11.99 $6.90 - + Add to cart
11	ZERK, FITTING, THREADED Part #: 7080433 Required per assembly: 12 $2.99 $1.73 - + Add to cart
12	BOLT Part #: 7515472 Required per assembly: 6 Currently Not Available
13	BAR-STABILIZER, TUBE, E-COAT Part #: 5334114-329 Required per assembly: 1 Currently Not Available
14	WASHER Part #: 7555939 Required per assembly: 4 Currently Not Available
15	BUSHING-STABILIZER TUBE BLK Part #: 5438901 Required per assembly: 2 Currently Not Available
16	WASHER STEEL Part #: 7558402 Required per assembly: 8 $1.34 $0.97 - + Add to cart
17	SCREW Part #: 7512492 Required per assembly: 16 $2.99 $1.73 - + Add to cart
18	WASHER Part #: 7552603 Required per assembly: 16 $1.99 $1.15 - + Add to cart
19	SUPPORT, STABILIZER, BLACK. Part #: 1541322-067 Required per assembly: 1 Currently Not Available
20	NUT LOCK Part #: 7542403 Required per assembly: 8 $3.99 $2.30 - + Add to cart
21	BRACKET, A-ARM, PIVOT Part #: 5247345 Required per assembly: 2 Currently Not Available
22	SCREW Part #: 7515433 Required per assembly: 2 $2.99 $1.73 - + Add to cart
23	NUT-LOCK Part #: 7542439 Required per assembly: 4 $1.99 $1.43 - + Add to cart
24	NUT LOCK Part #: 7542321 Required per assembly: 2 $2.99 $1.73 - + Add to cart
25	BOLT Part #: 7515321 Required per assembly: 4 $2.99 $1.73 - + Add to cart
26	SUPPORT, UPR.TRANS, BLACK Part #: 5224667-067 Required per assembly: 1 Currently Not Available
27	LOCK WASHER Part #: 7552901 Required per assembly: 2 $1.99 $1.15 - + Add to cart
28	RETAINER, SPRING Part #: 5251753 Required per assembly: 2 Currently Not Available
29	SPRING, COMPRESSION, REAR Part #: 7042311-067 Required per assembly: 2 Currently Not Available
29	SPRING, COMP, RR, BLACK, (SWED) Part #: 7041519-067 Required per assembly: 2 Note: SPRING,COMP,RR,BLK (EB) Currently Not Available
30	CAM, ADJUST, SPRING Part #: 5630551 Required per assembly: 2 Note: Cam, Adjust, Spring Currently Not Available
30	CAM, SPRING, ADJUST, 1-3/8 Part #: 5631014 Required per assembly: 2 Note: CAM,SPRING ADJUST,1-3/8 (If built after 10/23/00) Currently Not Available

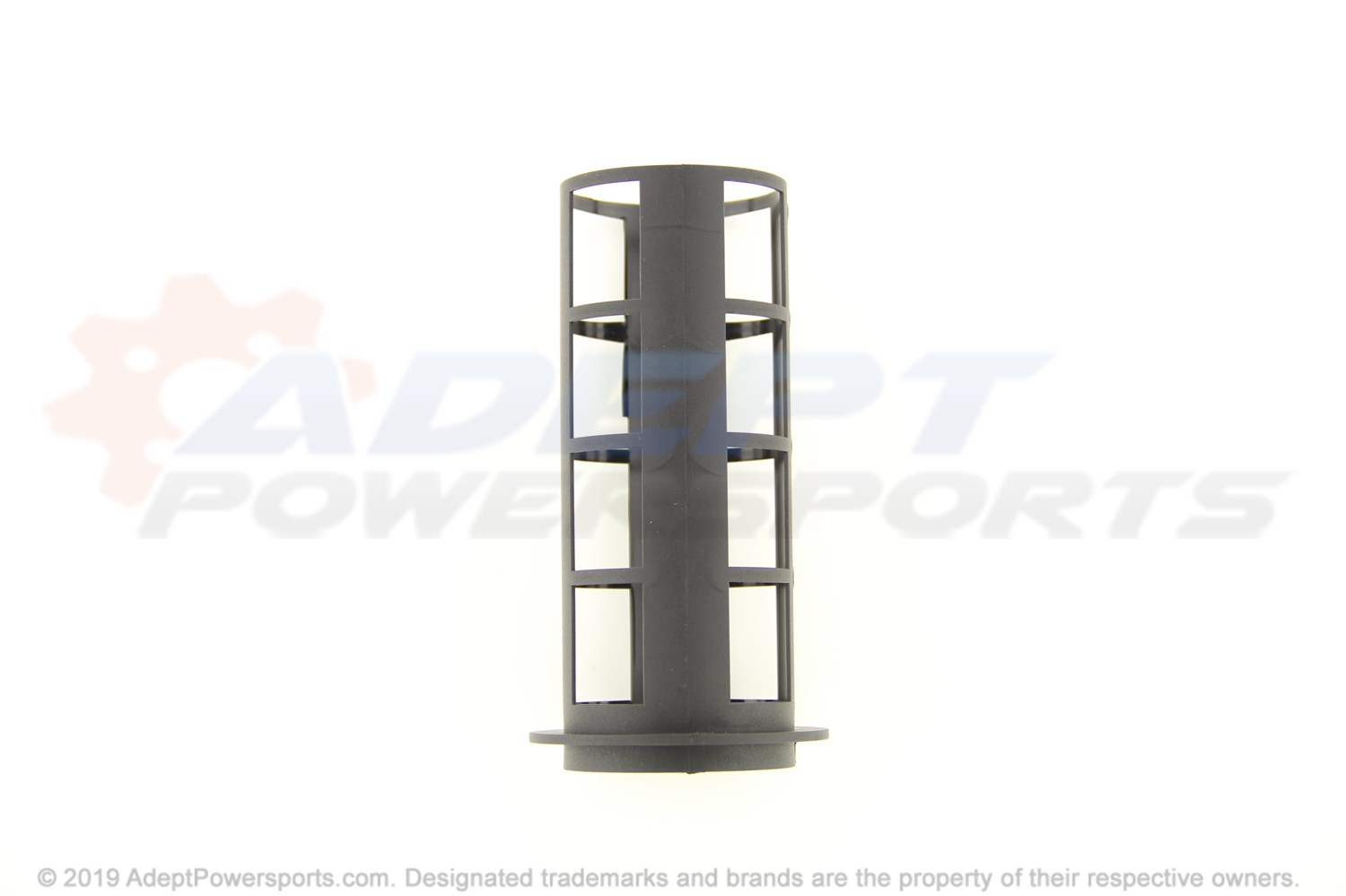

30	SLEEVE, SHOCK, PROTECTOR Part #: 5433551 Required per assembly: 1 Currently Not Available
31	SHOCK-RR, 2", INDEP, SUSP Part #: 7041770 Required per assembly: 2 Note: SHOCK-RR,2",INDEP SUSP (If built after 3/01/01) Currently Not Available
31	SHOCK-RR, IRS Part #: 7041959 Required per assembly: 2 Currently Not Available
32	BOLT Part #: 7515415 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
33	BUSHING, A-ARM, LONG, GREY Part #: 5436973 Required per assembly: 4 Note: Bushing, A-Arm, Long $10.99 $6.33 - + Add to cart
34	SHAFT, A-ARM Part #: 5133806 Required per assembly: 2 Currently Not Available
35	ARM, CONTROL, RH, LOW, BLACK. Part #: 1012718-067 Required per assembly: 1 Currently Not Available
35	ARM, CONTROL, LH, LOW, BLACK. Part #: 1012717-067 Required per assembly: 1 Currently Not Available
36	BUSHING, CONTROL, LOWER Part #: 5438902 Required per assembly: 8 Note: Bushing, Control, Lower $9.99 $5.75 - + Add to cart
37	CONTROL, UPPER, ARM, BLACK, LH Part #: 1040730-067 Required per assembly: 1 Currently Not Available
37	CONTROL, UPPER, ARM, BLACK.RH Part #: 1040731-067 Required per assembly: 1 Currently Not Available
38	BUSHING, BRNG.CARRIER Part #: 5131883 Required per assembly: 4 Currently Not Available
39	WASHER Part #: 7555936 Required per assembly: 4 $6.99 $4.53 - + Add to cart
40	SCREW Part #: 7517297 Required per assembly: 4 $6.79 $3.67 - + Add to cart
41	SHIELD-CV, REAR, BLACK, LH Part #: 5433098-070 Required per assembly: 1 Currently Not Available
41	SHIELD-CV, REAR, BLACK, RH Part #: 5433099-070 Required per assembly: 1 Currently Not Available
42	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw $2.99 $1.73 - + Add to cart
43	CARRIER, WHEEL, BEARING Part #: 5134206 Required per assembly: 2 Currently Not Available
44	BEARING, CARRIER, WHEEL Part #: 3514635 Required per assembly: 2 Note: Bearing, Carrier, Wheel Currently Not Available
45	FITTING, LUBE, 45, DEG. Part #: 7080586 Required per assembly: 2 Note: FITTING,LUBE,45 DEG Sold in multiples of 10 only Currently Not Available
