Crankcase Cover 1 replacement parts for 2002 Yamaha Road Star Warrior CA (XV17PCPC)

OEM Parts Yamaha 2002 Yamaha Road Star Warrior CA (XV17PCPC) Crankcase Cover 1

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	COVER, CRANKCASE, 1 Part #: 5PX-15411-00-00 Required per assembly: 1 $308.95 - + Add to cart
002	BEARING Part #: 93317-11287-00 Required per assembly: 1 $25.98 $20.12 - + Add to cart
003	OIL, SEAL, SD-TYPE Part #: 93102-12224-00 Required per assembly: 1 $11.49 $8.20 - + Add to cart
004	COVER, AIR, CLEANER Part #: 5PX-15414-00-00 Required per assembly: 1 Not Available
005	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06016-00 Required per assembly: 2 $9.49 $6.05 - + Add to cart
006	DAMPER 1 Part #: 5PX-1542A-00-00 Required per assembly: 1 $24.98 $20.05 - + Add to cart

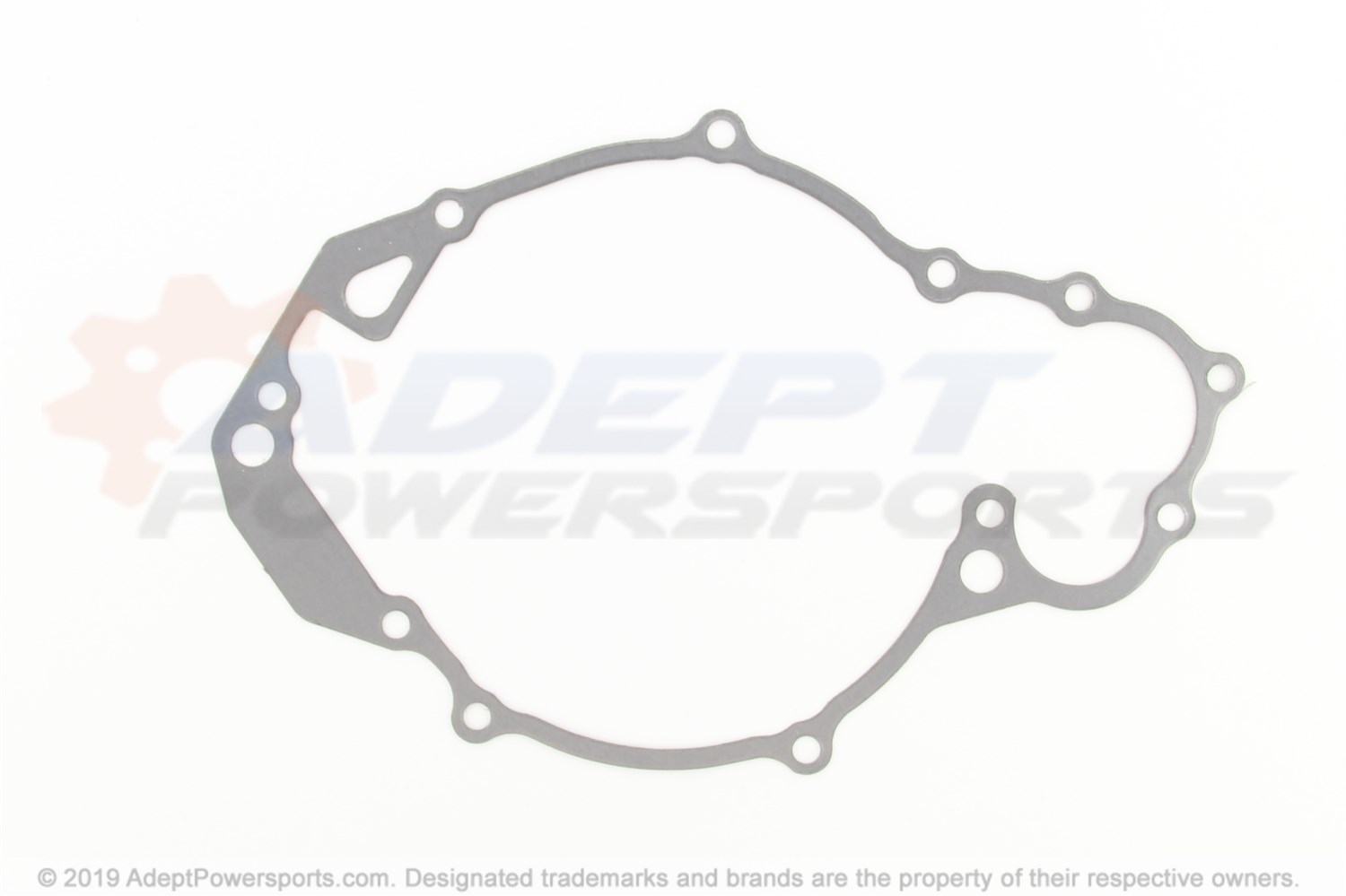

007	GASKET, CRANKCASE, COVER, 1 Part #: 5VN-15451-00-00 Required per assembly: 1 $35.20 - + Add to cart
008	PLUG, STRAIGHT, SCREW(2HT) Part #: 90340-14117-00 Required per assembly: 1 $16.48 $11.40 - + Add to cart
009	O-RING (2H9) Part #: 93210-14369-00 Required per assembly: 1 $8.49 $5.70 - + Add to cart
010	PLUG, STRAIGHT, SCREW Part #: 90340-32080-00 Required per assembly: 1 $35.99 $26.16 - + Add to cart
011	O-RING Part #: 93210-32172-00 Required per assembly: 1 $8.49 $5.67 - + Add to cart
012	PIN, DOWEL, (3VD) Part #: 99530-10114-00 Required per assembly: 2 $2.64 $2.24 - + Add to cart
013	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06035-00 Required per assembly: 3 $9.49 $6.05 - + Add to cart
014	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06045-00 Required per assembly: 1 $9.49 $6.05 - + Add to cart
015	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06070-00 Required per assembly: 1 $9.49 $6.55 - + Add to cart
016	GUIDE 1 Part #: 4WM-15142-00-00 Required per assembly: 1 Not Available
017	GUIDE Part #: 4WM-15143-00-00 Required per assembly: 1 $26.98 $21.88 - + Add to cart
018	CLAMP 2 Part #: 4WM-15484-00-00 Required per assembly: 1 $7.99 $6.61 - + Add to cart
019	SCREW, PAN, HEAD Part #: 98507-06010-00 Required per assembly: 2 $3.85 $2.65 - + Add to cart
020	COVER 2 Part #: 5PX-15423-00-00 Required per assembly: 1 $142.99 $128.84 - + Add to cart
021	DAMPER 2 Part #: 4WM-15326-00-00 Required per assembly: 1 $32.99 $27.16 - + Add to cart
022	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06025-00 Required per assembly: 4 $9.49 $6.55 - + Add to cart
023	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06035-00 Required per assembly: 3 $9.49 $6.05 - + Add to cart
024	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06060-00 Required per assembly: 2 $9.49 $6.55 - + Add to cart
025	PIN, DOWEL, (3XW) Part #: 91808-16023-00 Required per assembly: 2 $8.49 $5.54 - + Add to cart
026	COVER, GENERATOR, 2 Part #: 5PX-15425-00-00 Required per assembly: 1 $63.99 $57.56 - + Add to cart
027	DAMPER 1 Part #: 4WM-15316-00-00 Required per assembly: 1 $7.49 $6.05 - + Add to cart
028	SCREW, COUNTERSUNK Part #: 98707-05012-00 Required per assembly: 3 $1.85 $1.21 - + Add to cart
029	COVER, CRANKCASE, 2 Part #: 5PX-15421-00-00 Required per assembly: 1 $200.99 $180.02 - + Add to cart
030	GUIDE, INLET Part #: 4WM-15377-00-00 Required per assembly: 1 $10.49 $8.10 - + Add to cart
031	BOLT, SOCKET Part #: 91317-06010-00 Required per assembly: 1 Note: (USA) $10.49 $6.79 - + Add to cart
032	GASKET, CRANKCASE, COVER, 2 Part #: 5PX-15461-02-00 Required per assembly: 1 $18.98 $14.76 - + Add to cart
033	PIN, DOWEL, (3VD) Part #: 99530-10114-00 Required per assembly: 2 $2.64 $2.24 - + Add to cart
034	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06030-00 Required per assembly: 1 $9.49 $6.05 - + Add to cart
035	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06050-00 Required per assembly: 5 $9.49 $6.05 - + Add to cart
036	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06065-00 Required per assembly: 1 $9.49 $6.55 - + Add to cart
037	GASKET Part #: 90430-06014-00 Required per assembly: 1 $8.99 $7.11 - + Add to cart
038	COVER, CRANKCASE, 3 Part #: 5PX-15431-00-00 Required per assembly: 1 $153.99 $143.66 - + Add to cart
039	GASKET, CRANKCASE, COVER, 3 Part #: 5YU-15462-01-00 Required per assembly: 1 $14.49 $11.19 - + Add to cart
040	PIN, DOWEL Part #: 93606-10227-00 Required per assembly: 2 $1.75 $1.44 - + Add to cart
041	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06035-00 Required per assembly: 3 $9.49 $6.05 - + Add to cart
042	COVER, DECOMP. Part #: 5PX-12278-00-00 Required per assembly: 1 $143.99 $129.96 - + Add to cart
043	COVER, SHIFTER Part #: 5PX-15429-00-00 Required per assembly: 1 $123.98 $112.02 - + Add to cart
044	OIL SEAL Part #: 93109-08803-00 Required per assembly: 1 $11.99 $7.70 - + Add to cart
045	COVER, CAP, 2 Part #: 5PX-15427-00-00 Required per assembly: 1 $60.99 $53.24 - + Add to cart
046	DAMPER 3 Part #: 4WM-15335-00-00 Required per assembly: 1 $34.99 $24.62 - + Add to cart
047	BOLT, BUTTON, HEAD Part #: 92017-06010-00 Required per assembly: 2 $5.49 $3.01 - + Add to cart
048	GASKET, DECOMPRESSION Part #: 5PX-12286-00-00 Required per assembly: 1 $25.98 $18.63 - + Add to cart
049	PIN, DOWEL Part #: 93606-10227-00 Required per assembly: 2 $1.75 $1.44 - + Add to cart
050	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06025-00 Required per assembly: 4 $9.49 $6.55 - + Add to cart
051	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06040-00 Required per assembly: 6 $9.49 $6.05 - + Add to cart
052	COVER, DECOMP, LEVER Part #: 5PX-12275-00-00 Required per assembly: 1 $57.99 $50.79 - + Add to cart
053	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06025-00 Required per assembly: 4 $9.49 $6.55 - + Add to cart
054	BOLT, STUD Part #: 90116-12240-00 Required per assembly: 8 $16.48 $13.52 - + Add to cart
055	BOLT, STUD Part #: 90116-10344-00 Required per assembly: 2 $9.49 $7.98 - + Add to cart
056	O-RING Part #: 93210-750A1-00 Required per assembly: 1 $20.98 $19.60 - + Add to cart
057	BOLT, STUD Part #: 90116-08065-00 Required per assembly: 4 $10.49 $7.94 - + Add to cart
058	PLUG, STRAIGHT, SCREW, (3FA) Part #: 90340-14132-00 Required per assembly: 2 $3.14 $2.60 - + Add to cart
059	GASKET Part #: 214-11198-01-00 Required per assembly: 2 $3.16 $2.66 - + Add to cart
060	HOLDER, CLUTCH, CABLE Part #: 5PX-15441-00-00 Required per assembly: 1 $66.98 $52.48 - + Add to cart
061	COVER Part #: 5PX-15413-00-00 Required per assembly: 1 $20.98 $17.30 - + Add to cart
