Handle Bar/Mounting replacement parts for 2006-2007 BMW G650 Xchallenge (K15)

OEM Parts Bmw 2006-2007 Bmw G650 Xchallenge (K15) Handle Bar/Mounting

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	HANDLEBAR Part #: 32717696935 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
02	CLAMPING SUPPORT, TOP Part #: 32717696681 Required per assembly: 2 Currently Not Available
03	FILLISTER-HEAD SCREW - M8X25 Part #: 32717707974 Required per assembly: 4 Currently Not Available
04	CLAMPING SUPPORT, BOTTOM Part #: 32717696680 Required per assembly: 2 Currently Not Available
05	SPACER Part #: 32717696810 Required per assembly: 2 Currently Not Available
06	SILENTBLOC Part #: 32717707973 Required per assembly: 4 Currently Not Available

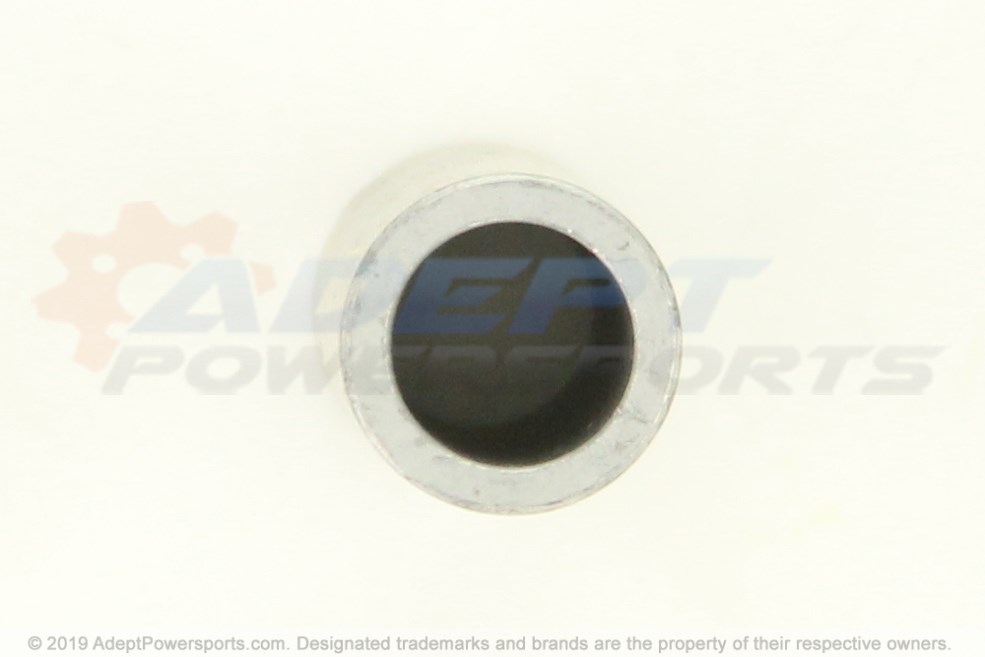

07	WASHER Part #: 32717696773 Required per assembly: 2 $3.08 $2.48 - + Add to cart

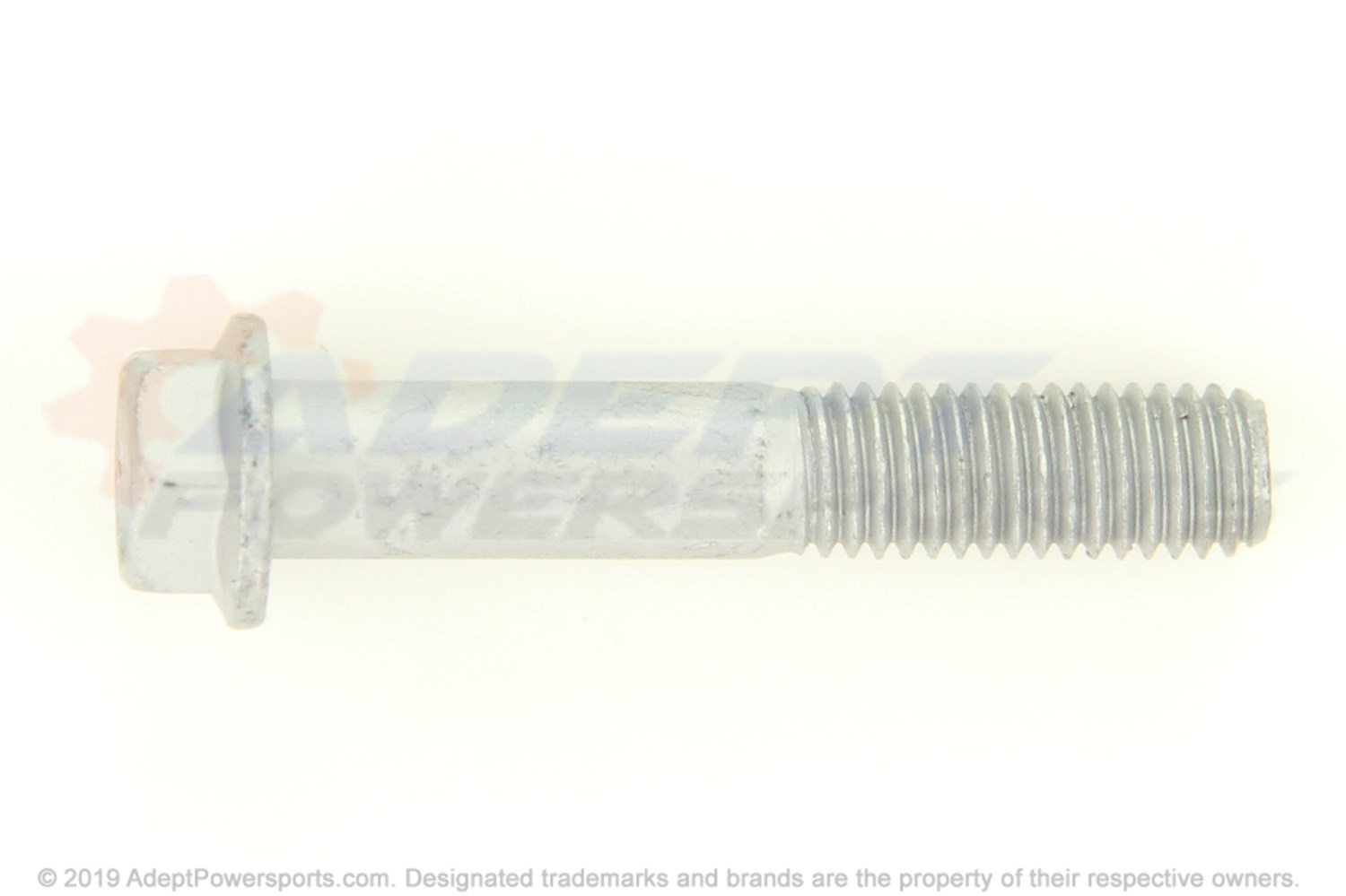

08	HEX BOLT - M10X55 Part #: 46637707966 Required per assembly: 2 $5.84 $4.73 - + Add to cart
