Rear Swing Arm Mount replacement parts for 2006-2007 BMW G650 Xchallenge (K15)

OEM Parts Bmw 2006-2007 Bmw G650 Xchallenge (K15) Rear Swing Arm Mount

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	BEARING PIN, LEFT Part #: 33177696664 Required per assembly: 1 Currently Not Available
02	SHIM Part #: 33177696797 Required per assembly: 1 Currently Not Available

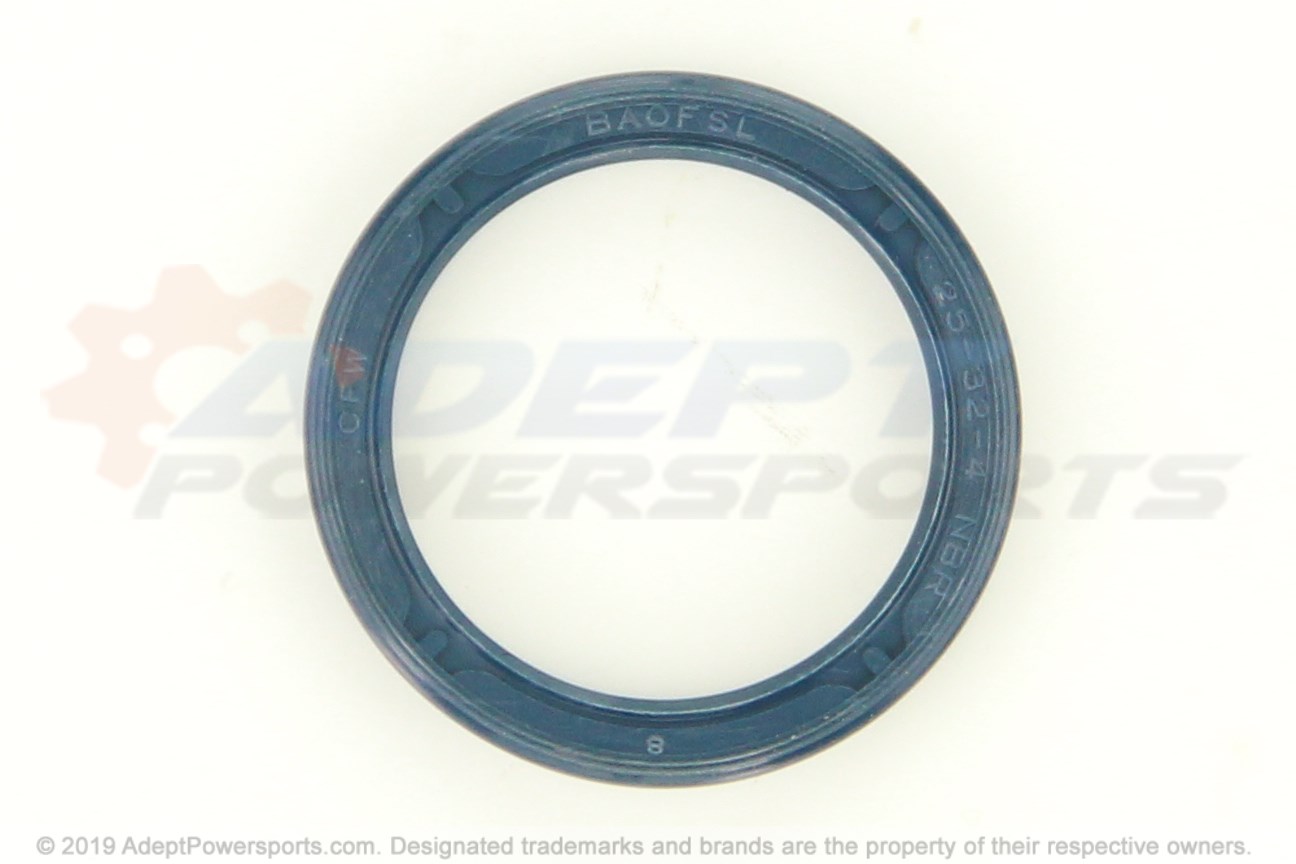

03	SHAFT SEAL - 25X32X4 Part #: 33177683104 Required per assembly: 2 $9.24 $7.49 - + Add to cart
04	NEEDLE BEARING, LEFT - 25X32X26 Part #: 33177697081 Required per assembly: 1 Currently Not Available
05	SHIM Part #: 33177696797 Required per assembly: 1 Currently Not Available
06	BUSH BEARING Part #: 33177696687 Required per assembly: 1 Currently Not Available
07	OVAL HEAD SCREW - M5X12 Part #: 33177707986 Required per assembly: 3 Currently Not Available
08	BEARING PIN, RIGHT Part #: 33177696663 Required per assembly: 1 Currently Not Available
09	SHAFT SEAL - 37X30X4 Part #: 33177697083 Required per assembly: 1 Currently Not Available
10	NEEDLE BEARING INNER RING - 25X30X30 Part #: 33177718547 Required per assembly: 1 Currently Not Available
11	BEARING - 30X37X26 Part #: 33177697082 Required per assembly: 1 Currently Not Available
12	COVERING CAP Part #: 33177696685 Required per assembly: 2 Currently Not Available
13	COVERING CAP Part #: 33177696684 Required per assembly: 2 Currently Not Available
14	O-RING - 19X1.8 Part #: 11417566726 Required per assembly: 1 Currently Not Available
