OEM Parts Bmw 2006-2007 Bmw G650 Xchallenge (K15) Sensor Ring

2006-2007 Bmw G650 Xchallenge (K15) 11/06-11/07 USA - Sensor Ring

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
01

SENSOR RING ABS, FRONT

Part #: 34512345822 Required per assembly: 1 Note: FOR VEHICLES WITH ANTI BLOCK SYSTEM (ABS) (CODE: X524A)
Currently Not Available
01

SENSOR RING, REAR

Part #: 34527705974 Required per assembly: 1
Currently Not Available
02

HEX BOLT - M6X16

Part #: 12132345541 Required per assembly: 6
Currently Not Available
03

WHEELSPEED SENSOR

Part #: 34527687528 Required per assembly: 1 Note: FOR VEHICLES WITH ANTI BLOCK SYSTEM (ABS) (CODE: X524A)
Currently Not Available
03

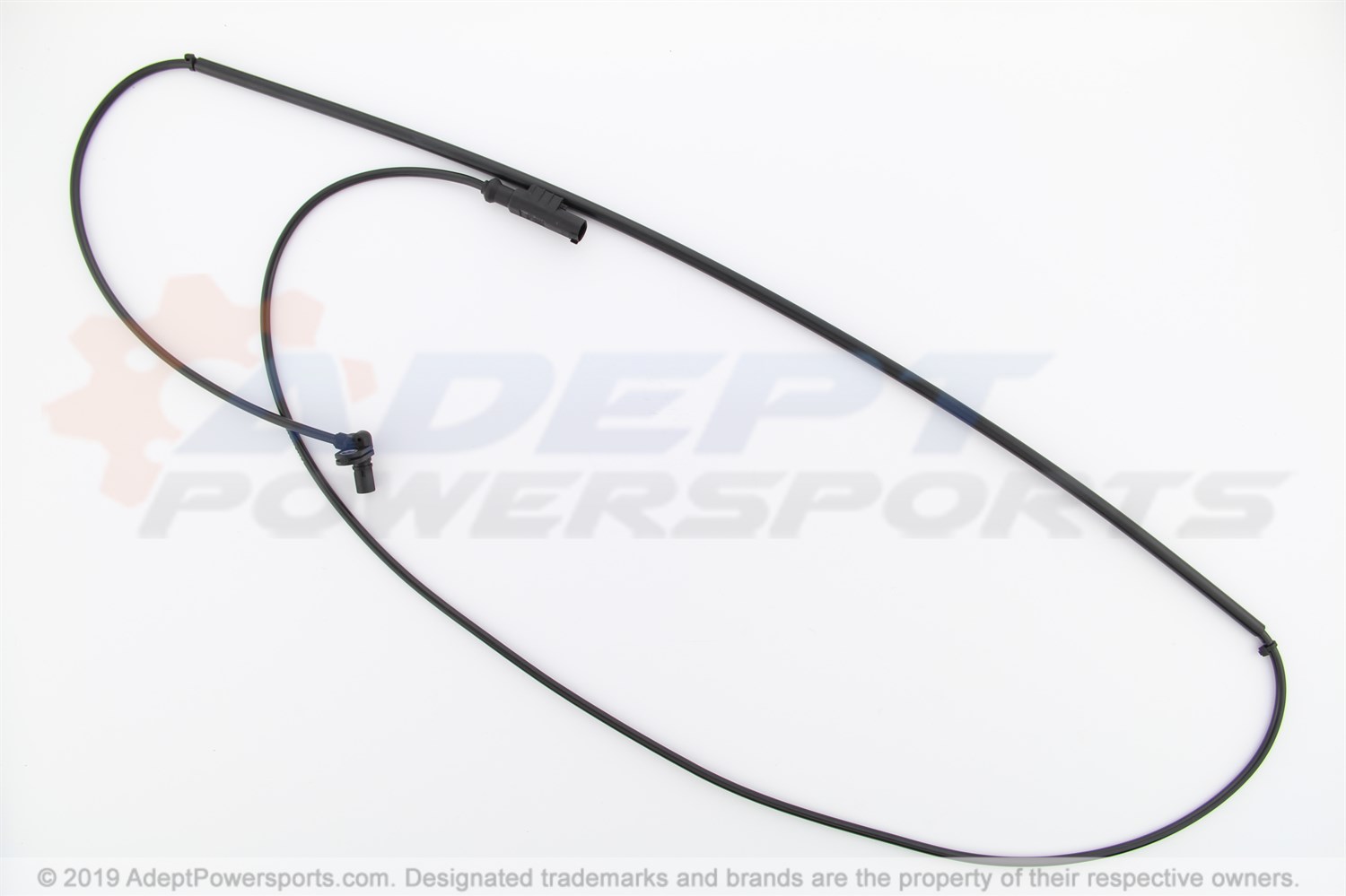

ABS SENSOR, FRONT

Part #: 34527696905 Required per assembly: 1 Note: FOR VEHICLES WITH ANTI BLOCK SYSTEM (ABS) (CODE: X524A)
Currently Not Available
04

COLLAR SCREW - M6

Part #: 31427708941 Required per assembly: 1
Currently Not Available
04

HEXAGON SCREW WITH FLANGE - M6X12

Part #: 34117708941 Required per assembly: 1
Not Available
05

ISA SCREW - M6X8

Part #: 07129907087 Required per assembly: 1
Currently Not Available
06

BRACKET - ABS

Part #: 34327696799 Required per assembly: 1
Currently Not Available
07

COVER

Part #: 27727696964 Required per assembly: 1 Note: FOR VEHICLES WITH ANTI BLOCK SYSTEM (ABS) (CODE: X524A)
Not Available
08

HEXAGON SCREW WITH FLANGE - M6X30

Part #: 11147697044 Required per assembly: 2
Currently Not Available
